Description

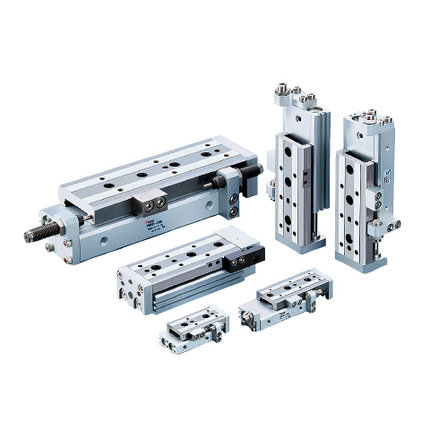

SMC MXQ8-75-M9BW — MXQ Series Air Slide Table, Guided Cylinder. This code specifies 8mm bore, 75mm stroke, double acting, built-in magnet.
Specification — MXQ8-75-M9BW
| Bore |
8mm |
| Stroke |
75mm |
| Magnet |
Built-in magnet |
| Mounting |
Basic |
| Port size |
M5X0.8 |
| Fluid |
Air |
| Action |
Double acting |
| Min. operating pressure |
0.15 MPa |
| Max. operating pressure |
0.7 MPa |
| Proof pressure |
1.05 MPa |
| Lubrication |
Non-lube |
| Weight |
399 g |
Specification values above are for model code MXQ8-75-M9BW as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
About the SMC MXQ series
- Guide rail and table integrated
- High rigidity and high accuracy by adopting a circular linear guide
Supply from Korea
Genuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.
