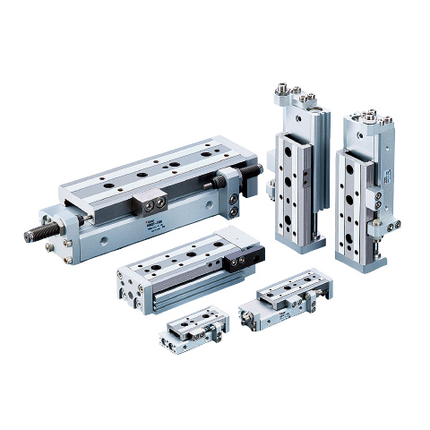

Name: SMC MXQ Series Air Slide Table, Guided Cylinder, MXQ8-75-M9NL
Brand: SMC
SKU: MXQ8-75-M9NL
Price: 298.9 USD
Availability: InStock

SMC MXQ Series Air Slide Table, Guided Cylinder, MXQ8-75-M9NL

VendorSMC

Description

OVERVIEW

The MXQ precision slide is ideal for applications requiring closely held parallelism and perpendicular specifications. The table and bearing guide are integrated into one precisely machined part made of hardened stainless steel. This minimizes tolerance stack-up associated with multiple part assemblies, and affords height tolerances of +/-0.05mm. The bearing is a recirculating linear guide in a stainless steel housing.

Guide rail and table integrated
High rigidity and high accuracy by adopting a circular linear guide

Specification item	model symbol	Specification information
tube inner diameter	8	tube inner diameter 8mm
Types of port screws	-	M screw, Rc
symmetrical	-	standard type
cylinder stroke	75	Cylinder stroke 75mm
adjustment options	-	doesn't exist
function options	-	standard
auto switch	M9NL	Solid-state auto switch, grommet, with light, 3-wire type (NPN), lateral entry, lead wire 3 m, applied voltage: DC5V, 12V, 24V (DC4.5 to 28V)
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Specification — MXQ8-75-M9NL

Bore	8mm
Stroke	75mm
Magnet	Built-in magnet
Mounting	Basic
Port size	M5X0.8
Fluid	Air
Action	Double acting
Min. operating pressure	0.15 MPa
Max. operating pressure	0.7 MPa
Proof pressure	1.05 MPa
Lubrication	Non-lube
Weight	467 g

Specification values above are for model code MXQ8-75-M9NL as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
