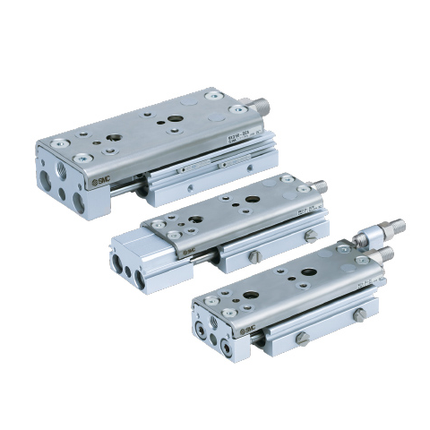

SMC MXQ20-75ZH — MXQ Series Air Slide Table, Height compatible type, Guided Cylinder. This code specifies 20mm bore, 75mm stroke, double acting, built-in magnet, without auto switch.
Specification — MXQ20-75ZH
| Auto switch |
Without auto switch |
| Magnet |
Built-in magnet |
| Mounting |
Basic |
| Port thread |
M |
| Port size |
M5X0.8 |
| Fluid |
Air |
| Action |
Double acting |
| Min. operating pressure |
0.15 MPa |
| Max. operating pressure |
0.7 MPa |
| Proof pressure |
1.05 MPa |
| Fluid temp. min |
-10 °C |
| Fluid temp. max |
60 °C |
| Ambient temp. min |
-10 °C |
| Ambient temp. max |
60 °C |
| Piston speed min |
50 mm/s |
| Piston speed max |
500 mm/s |
| Weight |
1,000 g |
Specification values above are for model code MXQ20-75ZH as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
About the SMC MXQ series
- Overall height reduction: 10% reduction (27mm: conventional 30mm)
- Product mass: 22% reduction (298g: conventional 380g)
- Allowable kinetic energy: 64% improvement (0.09J: conventional 0.054J)
