SMC MXQ Series Air Slide Table, Height compatible type, Guided Cylinder, MXQ25-150ZA

Description

OVERVIEW

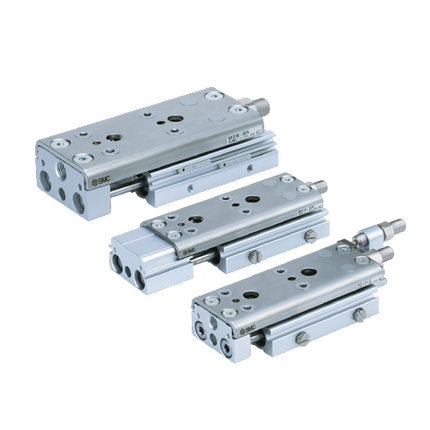

The MXQ precision slide is ideal for applications requiring closely held parallelism and perpendicular specifications. The table and bearing guide are integrated into one precisely machined part made of hardened stainless steel. This minimizes tolerance stack-up associated with multiple part assemblies, and affords height tolerances of +/-0.05mm. The bearing is a recirculating linear guide in a stainless steel housing.

  • Overall height reduction: 10% reduction (27mm: conventional 30mm)
  • Product mass: 22% reduction (298g: conventional 380g)
  • Allowable kinetic energy: 64% improvement (0.09J: conventional 0.054J)



Specification item model symbol Specification information
cylinder inner diameter 25 25
body options - standard type
stroke 150 stroke 150mm
adjustment options ZA Metal stopper with damper at forward travel end + Metal stopper with damper at retraction end
function options - standard
auto switch - Without auto switch
Auto switch additional symbol - 2 with or without
Custom made specifications - standard



Product form

OVERVIEW The MXQ precision slide is ideal for applications requiring closely held parallelism and perpendicular specifications. The table and bearing... Read more

SKU: MXQ25-150ZA

$1,275.36 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal
    • Shipped today? Order within: Nov 18, 2024 17:00:00 +0900

    Description

    OVERVIEW


    The MXQ precision slide is ideal for applications requiring closely held parallelism and perpendicular specifications. The table and bearing guide are integrated into one precisely machined part made of hardened stainless steel. This minimizes tolerance stack-up associated with multiple part assemblies, and affords height tolerances of +/-0.05mm. The bearing is a recirculating linear guide in a stainless steel housing.

    • Overall height reduction: 10% reduction (27mm: conventional 30mm)
    • Product mass: 22% reduction (298g: conventional 380g)
    • Allowable kinetic energy: 64% improvement (0.09J: conventional 0.054J)



    Specification item model symbol Specification information
    cylinder inner diameter 25 25
    body options - standard type
    stroke 150 stroke 150mm
    adjustment options ZA Metal stopper with damper at forward travel end + Metal stopper with damper at retraction end
    function options - standard
    auto switch - Without auto switch
    Auto switch additional symbol - 2 with or without
    Custom made specifications - standard
