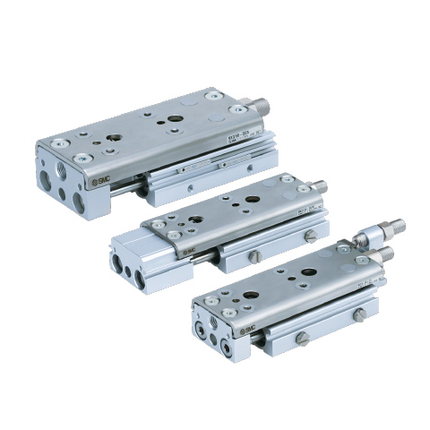

Name: SMC MXQA Series Air Slide Table, Sides Piping Type, MXQ12A-20ZF
Brand: SMC
SKU: MXQ12A-20ZF
Price: 188.14 USD
Availability: InStock

SMC MXQA Series Air Slide Table, Sides Piping Type, MXQ12A-20ZF

VendorSMC

Description

OVERVIEW

The MXQ precision slide is ideal for applications requiring closely held parallelism and perpendicular specifications. The table and bearing guide are integrated into one precisely machined part made of hardened stainless steel. This minimizes tolerance stack-up associated with multiple part assemblies, and affords height tolerances of +/-0.05mm. The bearing is a recirculating linear guide in a stainless steel housing.

Overall height reduction: 10% reduction (27mm: conventional 30mm)
Product mass: 22% reduction (298g: conventional 380g)
Allowable kinetic energy: 64% improvement (0.09J: conventional 0.054J)

Specification item	model symbol	Specification information
cylinder inner diameter	12	12
body options	A	Both side piping type
stroke	20	stroke 20mm
adjustment options	ZF	Reverse end rubber stopper
function options	-	no options
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Specification — MXQ12A-20ZF

Auto switch	Without auto switch
Magnet	Built-in magnet
Mounting	Basic
Port thread	M
Port size	M5X0.8
Fluid	Air
Action	Double acting
Min. operating pressure	0.15 MPa
Max. operating pressure	0.7 MPa
Proof pressure	1.05 MPa
Ambient temp. min	-10 °C
Ambient temp. max	60 °C
Piston speed min	50 mm/s
Piston speed max	500 mm/s
Lubrication	Non-lube
Weight	306 g

Specification values above are for model code MXQ12A-20ZF as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
