Description

OVERVIEW

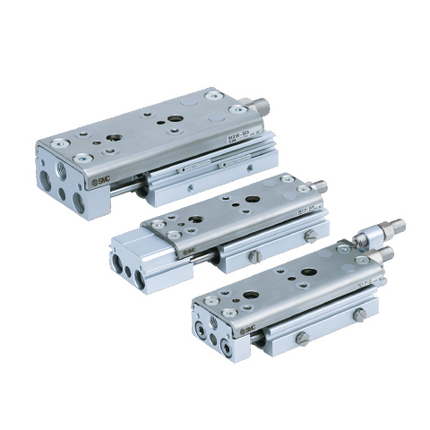

The MXQ precision slide is ideal for applications requiring closely held parallelism and perpendicular specifications. The table and bearing guide are integrated into one precisely machined part made of hardened stainless steel. This minimizes tolerance stack-up associated with multiple part assemblies, and affords height tolerances of +/-0.05mm. The bearing is a recirculating linear guide in a stainless steel housing.

Overall height reduction: 10% reduction (27mm: conventional 30mm)
Product mass: 22% reduction (298g: conventional 380g)
Allowable kinetic energy: 64% improvement (0.09J: conventional 0.054J)

Specification item	model symbol	Specification information
cylinder inner diameter	20	20
body options	A	Both side piping type
stroke	50	stroke 50mm
adjustment options	Z	without adjusting unit
function options	-	no options
auto switch	M9B	Solid-state auto switch, grommet, with light, 2-wire type, lateral entry, lead wire 0.5 m, applied voltage: DC24V (DC10 to 28V)
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Product form

OVERVIEW The MXQ precision slide is ideal for applications requiring closely held parallelism and perpendicular specifications. The table and bearing... Read more

SKU: MXQ20A-50Z-M9B

$586.83 Excl. VAT

Quick delivery worldwide

Satisfied or refunded

Secure payments Paypal

Shipped today? Order within: Nov 18, 2024 17:00:00 +0900

Description

OVERVIEW

The MXQ precision slide is ideal for applications requiring closely held parallelism and perpendicular specifications. The table and bearing guide are integrated into one precisely machined part made of hardened stainless steel. This minimizes tolerance stack-up associated with multiple part assemblies, and affords height tolerances of +/-0.05mm. The bearing is a recirculating linear guide in a stainless steel housing.

Overall height reduction: 10% reduction (27mm: conventional 30mm)
Product mass: 22% reduction (298g: conventional 380g)
Allowable kinetic energy: 64% improvement (0.09J: conventional 0.054J)

Specification item	model symbol	Specification information
cylinder inner diameter	20	20
body options	A	Both side piping type
stroke	50	stroke 50mm
adjustment options	Z	without adjusting unit
function options	-	no options
auto switch	M9B	Solid-state auto switch, grommet, with light, 2-wire type, lateral entry, lead wire 0.5 m, applied voltage: DC24V (DC10 to 28V)
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard
