Description

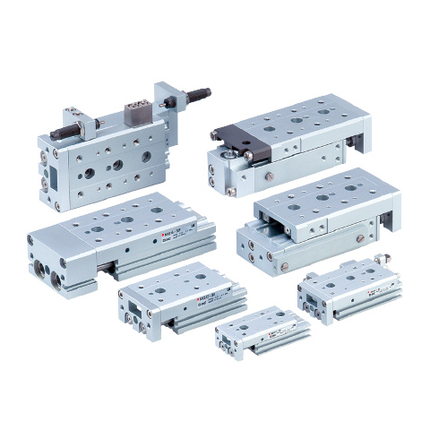

SMC MXS6L-40AS — MXS L Series Air Slide Table, Symmetrical Type, Guided Cylinder. This code specifies 6mm bore, 40mm stroke, double acting, built-in magnet, without auto switch.
Specification — MXS6L-40AS
| Bore |
6mm |
| Stroke |
40mm |
| Auto switch |
Without auto switch |
| Magnet |
Built-in magnet |
| Mounting |
Basic |
| Port size |
M3X0.5 |
| Fluid |
Air |
| Action |
Double acting |
| Min. operating pressure |
0.15 MPa |
| Max. operating pressure |
0.7 MPa |
| Proof pressure |
1.05 MPa |
| Ambient temp. min |
-10 °C |
| Ambient temp. max |
60 °C |
| Piston speed min |
50 mm/s |
| Piston speed max |
500 mm/s |
| Lubrication |
Non-lube |
| Weight |
165 g |
Specification values above are for model code MXS6L-40AS as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
Series features
- Work table + compact integration
- Air slide table optimal for precise assembly
- High rigidity/high accuracy
- Adoption of cross roller guide realizes smooth movement without wobbling
- Compact/light weight
- Adoption of dual rod enables two You can get the output of the ship.
Supply from Korea
Genuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.
