Description

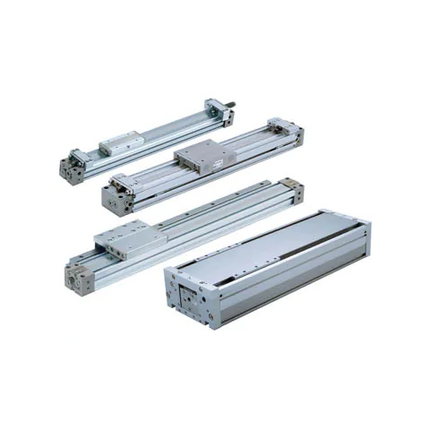

SMC MY1B25-500AZ — MY1B Series mechanical joint rodless cylinder, Guided cylinder basic type. This code specifies 25mm bore, 500mm stroke, double acting, without auto switch.
Specification — MY1B25-500AZ
| Bore |
25mm |
| Port thread |
Rc |
| Stroke |
500mm |
| Auto switch |
Without auto switch |
| Action |
Double acting |
| Fluid |
Air |
| Min. operating pressure |
0.1 MPa |
| Max. operating pressure |
0.8 MPa |
| Proof pressure |
1.2 MPa |
| Lubrication |
Non-lube |
| Weight |
2,000 g |
Specification values above are for model code MY1B25-500AZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
About the SMC MY1B series
- Refreshed in pursuit of light weight
- Weight reduced by 17% (compared to the previous MY1B)
- Attachable from the front even at the home position of auto switches, etc.
- Changed the dust seal band retaining mechanism to a magnet adsorption method to improve retention performance
- Mounting dimensions are the same as those of conventional MY1B compatible with product
Supply from Korea
Genuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.
