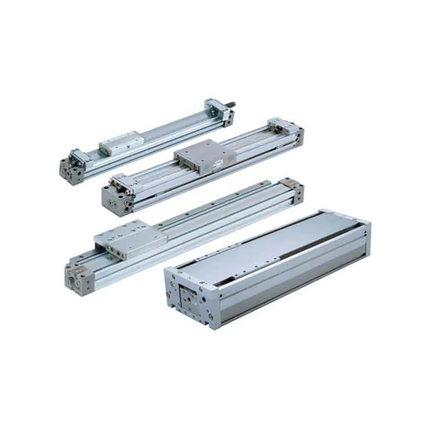

SMC MY1B Series mechanical joint rodless cylinder, Guided cylinder basic type, MY1B32-300Z

Description

OVERVIEW


For long strokes with compact size and an integrated guide, the MY1 series rodless actuator provides an ideal solution. The MY1 mechanical joint rodless cylinder includes four standard models, which allow the appropriate bearing style to be selected in order to match the accuracy and load requirements of your application. If necessary, you can also combine the basic MY1 cylinder with an external guide in order to create a special engineered solution. Piping options can be selected according to the application. MY1 is available in 9 bore sizes from 16mm to 100mm. Standard strokes are available up to 2000mm with a 5000mm long stroke option on some bore sizes.

  • Refreshed in pursuit of light weight
  • Weight reduced by 17% (compared to the previous MY1B)
  • Attachable from the front even at the home position of auto switches, etc.
  • Changed the dust seal band retaining mechanism to a magnet adsorption method to improve retention performance
  • Mounting dimensions are the same as those of conventional MY1B compatible with product



Specification item model symbol Specification information
tube inner diameter 32 Bore size 32mm
Types of port screws - Rc
Piping type - standard type
cylinder stroke 300 Cylinder stroke 300mm
Stroke adjustment unit symbol - Left: no unit, right: no unit
auto switch - Without auto switch
Auto switch additional symbol - 2 with or without
Custom made specifications - standard



Product form

OVERVIEW For long strokes with compact size and an integrated guide, the MY1 series rodless actuator provides an ideal solution.... Read more

SKU: MY1B32-300Z

$327.31 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal

      Description

      OVERVIEW


      For long strokes with compact size and an integrated guide, the MY1 series rodless actuator provides an ideal solution. The MY1 mechanical joint rodless cylinder includes four standard models, which allow the appropriate bearing style to be selected in order to match the accuracy and load requirements of your application. If necessary, you can also combine the basic MY1 cylinder with an external guide in order to create a special engineered solution. Piping options can be selected according to the application. MY1 is available in 9 bore sizes from 16mm to 100mm. Standard strokes are available up to 2000mm with a 5000mm long stroke option on some bore sizes.

      • Refreshed in pursuit of light weight
      • Weight reduced by 17% (compared to the previous MY1B)
      • Attachable from the front even at the home position of auto switches, etc.
      • Changed the dust seal band retaining mechanism to a magnet adsorption method to improve retention performance
      • Mounting dimensions are the same as those of conventional MY1B compatible with product



      Specification item model symbol Specification information
      tube inner diameter 32 Bore size 32mm
      Types of port screws - Rc
      Piping type - standard type
      cylinder stroke 300 Cylinder stroke 300mm
      Stroke adjustment unit symbol - Left: no unit, right: no unit
      auto switch - Without auto switch
      Auto switch additional symbol - 2 with or without
      Custom made specifications - standard
