Description

OVERVIEW

For long strokes with compact size and an integrated guide, the MY1 series rodless actuator provides an ideal solution. The MY1 mechanical joint rodless cylinder includes four standard models, which allow the appropriate bearing style to be selected in order to match the accuracy and load requirements of your application. If necessary, you can also combine the basic MY1 cylinder with an external guide in order to create a special engineered solution. Piping options can be selected according to the application. MY1 is available in 9 bore sizes from 16mm to 100mm. Standard strokes are available up to 2000mm with a 5000mm long stroke option on some bore sizes.

Refreshed in pursuit of light weight
Weight reduced by 17% (compared to the previous MY1B)
Attachable from the front even at the home position of auto switches, etc.
Changed the dust seal band retaining mechanism to a magnet adsorption method to improve retention performance
Mounting dimensions are the same as those of conventional MY1B compatible with product

Specification item	model symbol	Specification information
tube inner diameter	40	tube inner diameter 40mm
Types of port screws	-	Rc
Piping type	-	standard type
cylinder stroke	350
Stroke adjustment unit symbol	-	Left: no unit, right: no unit
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Product form

OVERVIEW For long strokes with compact size and an integrated guide, the MY1 series rodless actuator provides an ideal solution.... Read more

SKU: MY1B40-350Z

$414.47 Excl. VAT

International express shipping
(3–5 days, tracking included)

Shipping cost depends on destination & weight

Add 1 more item to reduce shipping cost per unit

Secure payments Paypal

Shipped today? Order within: Jan 23, 2026 17:00:00 +0900

Description

OVERVIEW

For long strokes with compact size and an integrated guide, the MY1 series rodless actuator provides an ideal solution. The MY1 mechanical joint rodless cylinder includes four standard models, which allow the appropriate bearing style to be selected in order to match the accuracy and load requirements of your application. If necessary, you can also combine the basic MY1 cylinder with an external guide in order to create a special engineered solution. Piping options can be selected according to the application. MY1 is available in 9 bore sizes from 16mm to 100mm. Standard strokes are available up to 2000mm with a 5000mm long stroke option on some bore sizes.

Refreshed in pursuit of light weight
Weight reduced by 17% (compared to the previous MY1B)
Attachable from the front even at the home position of auto switches, etc.
Changed the dust seal band retaining mechanism to a magnet adsorption method to improve retention performance
Mounting dimensions are the same as those of conventional MY1B compatible with product

Specification item	model symbol	Specification information
tube inner diameter	40	tube inner diameter 40mm
Types of port screws	-	Rc
Piping type	-	standard type
cylinder stroke	350
Stroke adjustment unit symbol	-	Left: no unit, right: no unit
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Reviews

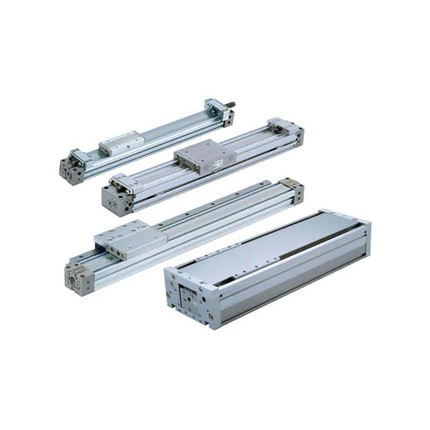

Name: SMC MY1B Series mechanical joint rodless cylinder, Guided cylinder basic type, MY1B40-350Z
Brand: SMC
SKU: MY1B40-350Z
Price: 414.47 USD

SMC MY1B Series mechanical joint rodless cylinder, Guided cylinder basic type, MY1B40-350Z
