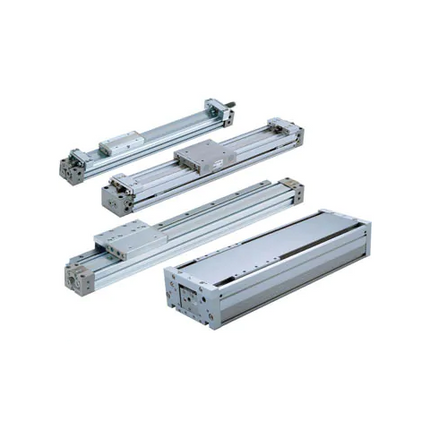

SMC MY1B Series mechanical joint rodless cylinder, Guided cylinder basic type, MY1B25-100LSZ

Description

OVERVIEW


For long strokes with compact size and an integrated guide, the MY1 series rodless actuator provides an ideal solution. The MY1 mechanical joint rodless cylinder includes four standard models, which allow the appropriate bearing style to be selected in order to match the accuracy and load requirements of your application. If necessary, you can also combine the basic MY1 cylinder with an external guide in order to create a special engineered solution. Piping options can be selected according to the application. MY1 is available in 9 bore sizes from 16mm to 100mm. Standard strokes are available up to 2000mm with a 5000mm long stroke option on some bore sizes.

  • Refreshed in pursuit of light weight
  • Weight reduced by 17% (compared to the previous MY1B)
  • Attachable from the front even at the home position of auto switches, etc.
  • Changed the dust seal band retaining mechanism to a magnet adsorption method to improve retention performance
  • Mounting dimensions are the same as those of conventional MY1B compatible with product



Specification item model symbol Specification information
tube inner diameter 25 tube inner diameter 25mm
Types of port screws - Rc
Piping type - standard type
cylinder stroke 100 cylinder stroke 100mm
Stroke adjustment unit symbol LS Left: with shock absorber for L low load + adjusting bolt, right: without unit
auto switch - Without auto switch
Auto switch additional symbol - 2 with or without
Custom made specifications - standard



Product form

OVERVIEW For long strokes with compact size and an integrated guide, the MY1 series rodless actuator provides an ideal solution.... Read more

SKU: MY1B25-100LSZ

$263.41 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal
    • Shipped today? Order within: May 28, 2024 17:00:00 +0900

    Description

    OVERVIEW


    For long strokes with compact size and an integrated guide, the MY1 series rodless actuator provides an ideal solution. The MY1 mechanical joint rodless cylinder includes four standard models, which allow the appropriate bearing style to be selected in order to match the accuracy and load requirements of your application. If necessary, you can also combine the basic MY1 cylinder with an external guide in order to create a special engineered solution. Piping options can be selected according to the application. MY1 is available in 9 bore sizes from 16mm to 100mm. Standard strokes are available up to 2000mm with a 5000mm long stroke option on some bore sizes.

    • Refreshed in pursuit of light weight
    • Weight reduced by 17% (compared to the previous MY1B)
    • Attachable from the front even at the home position of auto switches, etc.
    • Changed the dust seal band retaining mechanism to a magnet adsorption method to improve retention performance
    • Mounting dimensions are the same as those of conventional MY1B compatible with product



    Specification item model symbol Specification information
    tube inner diameter 25 tube inner diameter 25mm
    Types of port screws - Rc
    Piping type - standard type
    cylinder stroke 100 cylinder stroke 100mm
    Stroke adjustment unit symbol LS Left: with shock absorber for L low load + adjusting bolt, right: without unit
    auto switch - Without auto switch
    Auto switch additional symbol - 2 with or without
    Custom made specifications - standard
