Description

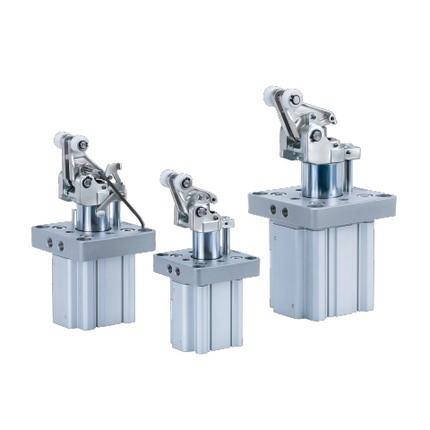

SMC RS2H50-30BM-Q — RS2H Series High Stopper Cylinder. This code specifies 50mm bore, 30mm stroke.
Specification — RS2H50-30BM-Q
| Bore |
50mm |
| Port thread |
Rc |
| Stroke |
30mm |
| Port size |
1/8 |
| Fluid |
Air |
| Cushion |
Rubber bumper |
| Max. operating pressure |
1.0 MPa |
| Proof pressure |
1.5 MPa |
| Fluid temp. min |
-10 ℃ |
| Fluid temp. max |
60 ℃ |
| Ambient temp. min |
-10 ℃ |
| Ambient temp. max |
60 ℃ |
| Lubrication |
Non-lube |
| Rod diameter |
32 mm |
| Weight |
1,700 g |
Specification values above are for model code RS2H50-30BM-Q as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
About the SMC RS2H series
- Weight reduced by up to 22% (compared to RS1H)
- Cylinder tube length shortened by up to 9mm(in the case of RS2H63-30 stroke)
- Pallet stopped smoothly
- Stopper cylinder with built-in shock absorber
- Unlock specification (-XC102)
Supply from Korea
Genuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.
