Description

OVERVIEW

The RSQ series is a fixed-height stopper cylinder with proven endurance and low breakaway characteristics. The RSG series is an adjustable mounting height stopper cylinder. It can be raised or lowered according to the distance required to stop the work piece. The RSH heavy-duty stopper cylinder is specially designed for use on conveyor lines or other applications requiring an external stopping device.

Weight reduced by up to 22% (compared to RS1H)
Cylinder tube length shortened by up to 9mm
(in the case of RS2H63-30 stroke)
Pallet stopped smoothly
Stopper cylinder with built-in shock absorber
Unlock specification (-XC102)

Specification item	model symbol	Specification information
tube inner diameter	80	Tube inner diameter 80mm
Types of port screws	-	Rc
Piping direction	-	Flange side
cylinder stroke	40	cylinder stroke 40mm
how it works	B	Built-in double acting spring
roller material	M	carbon steel
option	D	With lock mechanism
Positional relationship between lever and port	-	port coplanar
auto switch	-	Without auto switch Built-in magnet
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Product form

OVERVIEW The RSQ series is a fixed-height stopper cylinder with proven endurance and low breakaway characteristics. The RSG series is... Read more

SKU: RS2H80-40BM-D

$634.12 Excl. VAT

International express shipping
(3–5 days, tracking included)

Shipping cost depends on destination & weight

Add 1 more item to reduce shipping cost per unit

Secure payments Paypal

Shipped today? Order within: Jan 23, 2026 17:00:00 +0900

Description

OVERVIEW

The RSQ series is a fixed-height stopper cylinder with proven endurance and low breakaway characteristics. The RSG series is an adjustable mounting height stopper cylinder. It can be raised or lowered according to the distance required to stop the work piece. The RSH heavy-duty stopper cylinder is specially designed for use on conveyor lines or other applications requiring an external stopping device.

Weight reduced by up to 22% (compared to RS1H)
Cylinder tube length shortened by up to 9mm
(in the case of RS2H63-30 stroke)
Pallet stopped smoothly
Stopper cylinder with built-in shock absorber
Unlock specification (-XC102)

Specification item	model symbol	Specification information
tube inner diameter	80	Tube inner diameter 80mm
Types of port screws	-	Rc
Piping direction	-	Flange side
cylinder stroke	40	cylinder stroke 40mm
how it works	B	Built-in double acting spring
roller material	M	carbon steel
option	D	With lock mechanism
Positional relationship between lever and port	-	port coplanar
auto switch	-	Without auto switch Built-in magnet
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Reviews

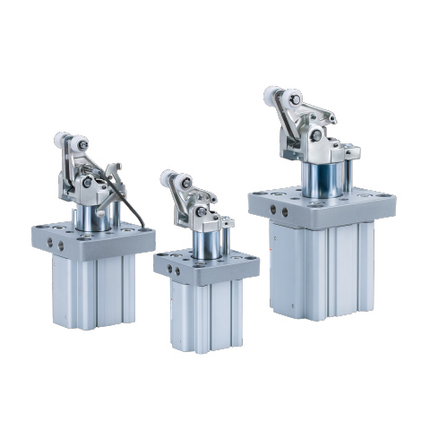

Name: SMC RS2H Series High Stopper Cylinder, RS2H80-40BM-D
Brand: SMC
SKU: RS2H80-40BM-D
Price: 634.12 USD

SMC RS2H Series High Stopper Cylinder, RS2H80-40BM-D

0 out of 5 stars

This product has no reviews yet
