Description

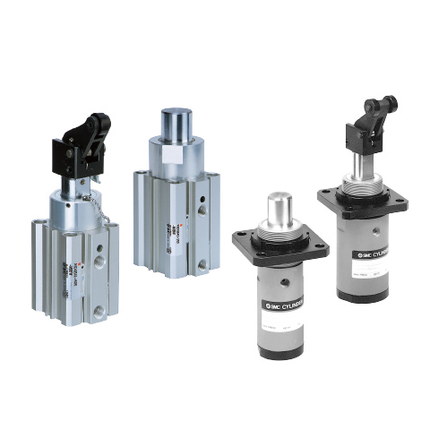

SMC RSDQB12-10D-M9B — RSQ Series Stopper Cylinder. This code specifies 12mm bore, 10mm stroke, double acting.
Specification — RSDQB12-10D-M9B
| Mounting |
Through hole (standard) |
| Bore |
12mm |
| Stroke |
10mm |
| Action |
Double acting |
| Port size |
M5X0.8 |
| Fluid |
Air |
| Cushion |
Rubber bumper |
| Max. operating pressure |
1.0 MPa |
| Proof pressure |
1.5 MPa |
| Fluid temp. min |
-10 ℃ |
| Fluid temp. max |
60 ℃ |
| Ambient temp. min |
-10 ℃ |
| Ambient temp. max |
60 ℃ |
| Lubrication |
Non-lube |
| Piston speed min |
50 mm/s |
| Piston speed max |
500 mm/s |
| Weight |
118 g |
Specification values above are for model code RSDQB12-10D-M9B as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
About the SMC RSQ series
- A wide variety of models enables selection tailored to customer needs,realizing automation and labor saving of conveyor lines
- Auto switch attached (RSDQ series: RSDQ, RSDG series: RSDG)
Supply from Korea
Genuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.
