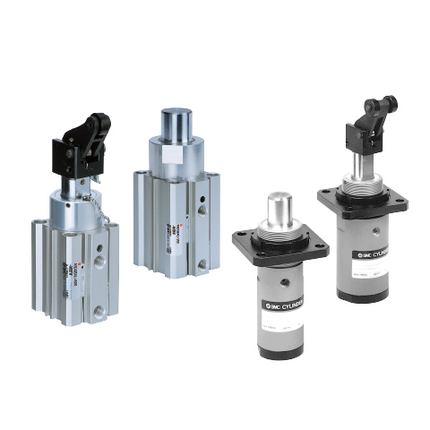

SMC RSQ Series Stopper Cylinder, RSDQB16-15D-M9PL

Description

OVERVIEW



  • A wide variety of models enables selection tailored to customer needs,
    realizing automation and labor saving of conveyor lines
  • Auto switch attached (RSDQ series: RSDQ, RSDG series: RSDG)



Specification item model symbol Specification information
With auto switch D With auto switch
installation support B Through hole (standard)
tube inner diameter 16 tube inner diameter 16mm
Types of port screws - M thread (ø12 to ø16), Rc (ø20 to ø50)
cylinder stroke 15 cylinder stroke 15mm
how it works D double acting
rod end shape - round bar type
Installation bolts included - no mounting bolt
auto switch M9PL Solid-state auto switch, grommet, with light, 3-wire type (PNP), lateral entry, lead wire 3 m, applied voltage: DC5V, 12V, 24V (DC4.5 to 28V)
Auto switch additional symbol - 2 with or without
Custom made specifications - standard




Specification — RSDQB16-15D-M9PL

Mounting Through hole (standard)
Bore 16mm
Stroke 15mm
Action Double acting
Port size M5X0.8
Fluid Air
Cushion Rubber bumper
Max. operating pressure 1.0 MPa
Proof pressure 1.5 MPa
Ambient temp. min -10 ℃
Ambient temp. max 60 ℃
Lubrication Non-lube
Piston speed min 50 mm/s
Piston speed max 500 mm/s
Rod diameter 10 mm
Weight 246 g

Specification values above are for model code RSDQB16-15D-M9PL as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.

Product form

OVERVIEW A wide variety of models enables selection tailored to customer needs,realizing automation and labor saving of conveyor lines Auto... Read more

SKU: RSDQB16-15D-M9PL

$111.71 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal

    Description

    OVERVIEW



    • A wide variety of models enables selection tailored to customer needs,
      realizing automation and labor saving of conveyor lines
    • Auto switch attached (RSDQ series: RSDQ, RSDG series: RSDG)



    Specification item model symbol Specification information
    With auto switch D With auto switch
    installation support B Through hole (standard)
    tube inner diameter 16 tube inner diameter 16mm
    Types of port screws - M thread (ø12 to ø16), Rc (ø20 to ø50)
    cylinder stroke 15 cylinder stroke 15mm
    how it works D double acting
    rod end shape - round bar type
    Installation bolts included - no mounting bolt
    auto switch M9PL Solid-state auto switch, grommet, with light, 3-wire type (PNP), lateral entry, lead wire 3 m, applied voltage: DC5V, 12V, 24V (DC4.5 to 28V)
    Auto switch additional symbol - 2 with or without
    Custom made specifications - standard




    Specification — RSDQB16-15D-M9PL

    Mounting Through hole (standard)
    Bore 16mm
    Stroke 15mm
    Action Double acting
    Port size M5X0.8
    Fluid Air
    Cushion Rubber bumper
    Max. operating pressure 1.0 MPa
    Proof pressure 1.5 MPa
    Ambient temp. min -10 ℃
    Ambient temp. max 60 ℃
    Lubrication Non-lube
    Piston speed min 50 mm/s
    Piston speed max 500 mm/s
    Rod diameter 10 mm
    Weight 246 g

    Specification values above are for model code RSDQB16-15D-M9PL as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
