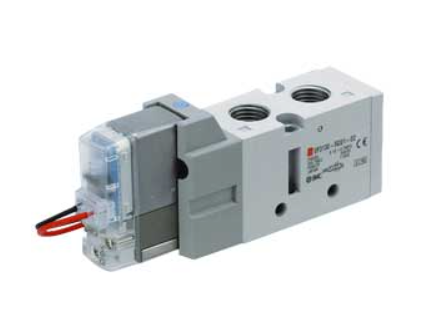

SMC Solenoid Valve (VF3230K-5DZ1-02) 5-Port, Pilot Operated, Body Ported, Single Unit, VF1000/VF3000/VF5000 Series

Description

Type Solenoid Valves Application Single Unit
Mounting Orientation Direct Voltage DC24V
Specification Standard / Lubrication Free Valve Type 5-Port Valve
Actuation Double Status at Power Off Self-Retaining
Valve Positions 2-Position Normally Open Applicable Cylinder Diameter(Ø) -
Pipe Port Type [Rc (R)] Rc Port Size 1/4"
Pressure Rating(MPa) 0.1 to 1.0 Driving Type Pilot Type Spool
Pilot Air Supply Internal Seal Type Soft Seal
Manual Switch Non-Locking Plumbing Direct Plumbing
Flow Coefficient (Cv) 1 Coil Specifications Standard
Lead Wire Electrical Entry DIN terminal (with connector) Manual Non-locking, push type
Indicator Light / Surge Voltage Suppressor With indicator light and surge voltage suppressor Bracket No bracket
Made-to-Order Specifications None Body Options Individual pilot valve exhaust type
Product form

Type Solenoid Valves Application Single Unit Mounting Orientation Direct Voltage DC24V Specification Standard / Lubrication Free Valve Type 5-Port Valve... Read more

SKU: VF3230K-5DZ1-02

$108.62 Excl. VAT

    • International express shipping
      (3–5 days, tracking included)
    • Shipping cost depends on destination & weight
    • Add 1 more item to reduce shipping cost per unit
    • Secure payments Paypal

      Description

      Type Solenoid Valves Application Single Unit
      Mounting Orientation Direct Voltage DC24V
      Specification Standard / Lubrication Free Valve Type 5-Port Valve
      Actuation Double Status at Power Off Self-Retaining
      Valve Positions 2-Position Normally Open Applicable Cylinder Diameter(Ø) -
      Pipe Port Type [Rc (R)] Rc Port Size 1/4"
      Pressure Rating(MPa) 0.1 to 1.0 Driving Type Pilot Type Spool
      Pilot Air Supply Internal Seal Type Soft Seal
      Manual Switch Non-Locking Plumbing Direct Plumbing
      Flow Coefficient (Cv) 1 Coil Specifications Standard
      Lead Wire Electrical Entry DIN terminal (with connector) Manual Non-locking, push type
      Indicator Light / Surge Voltage Suppressor With indicator light and surge voltage suppressor Bracket No bracket
      Made-to-Order Specifications None Body Options Individual pilot valve exhaust type
