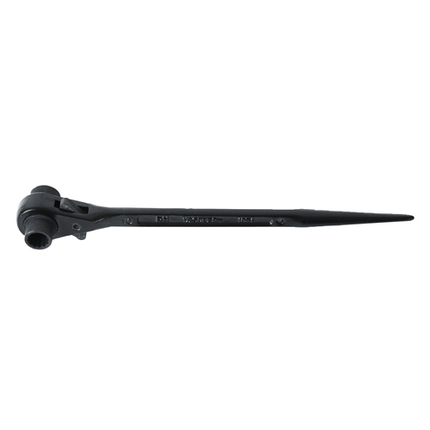

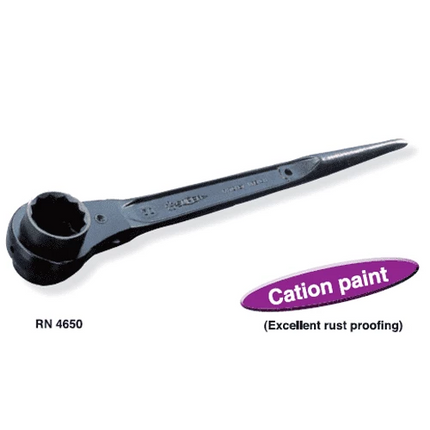

SUPER TOOL DOUBLE-SIZE RATCHET WRENCH (Reversible Claw Type) RN1012～4650

  • VendorSuper Tool

Description

SUPER TOOL DOUBLE-SIZE RATCHET WRENCH

SPECIFICATIONS
Material Special Alloy Steel
Finish Cathodic Electrodeposition Coating
Product Specifications Size: 10×12～46×50
Product Specifications All 34 sizes

● The opening of the socket is for easy reversible type of easy cleaning of sand and dirt, etc.
● 34 sizes of double socket type (Reversible claw type) are avaible to cover a variety of uses.
● Lubricate before use.

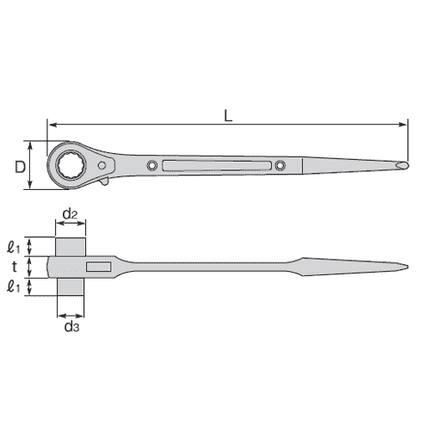

Product Code. Size (mm) L (mm) D (mm) d2 (mm) d3 (mm) t ℓ 1 (mm) Weight (G)
209-0016 10×12 225 28 18 15 14 11          160
209-0025 10×13 225 28 18 15 14 11          160
209-0034 10×14 225 28 19 15 14 11          160
209-0043 11×13 225 28 18 16 14 11          160
209-0052 12×14 225 28 19 18 14 11          160
209-0061 13×17 265 34 23 18 16 14.5          240
209-0070 13×19 310 41 26 18 18 16          400
209-0089 14×15 265 34 20 19 19 14.5          240
209-0098 14×17 265 34 23 19 16 14.5          240
209-0104 17×19 310 41 26 24 16 16          400
209-0113 17×21 310 41 29 24 18 16          400
209-0122 17×22 310 42 30 24 18 16          430
209-0131 19×21 310 41 29 27 18 16          400
209-0140 19×22 310 42 30 26 18 16          430
209-0159 19×24 355 49 33 26 20 18          680
209-0168 21×24 355 49 33 28 20 18          680
209-0177 21×26 355 49 36 28 20 18          680
209-0186 21×27 355 49 37 28 20 18          680
209-0195 22×24 355 49 33 30 20 18          680
209-0201 22×27 355 49 37 30 20 18          680
209-0229 24×26 355 49 36 33 20 18          680
209-0238 24×27 355 49 37 33 20 18          680
209-0247 24×30 400 62 42 33 22 20.5        1,080
209-0256 26×32 400 62 44 36 22 20.5        1,080
209-0265 27×30 400 62 41 38 22 20.5        1,080
209-0274 27×32 400 62 44 38 22 20.5        1,080
209-0283 30×32 400 62 44 42 22 20.5        1,080
209-0292 32×35 445 67 47 43 24 21.5        1,400
209-0308 32×36 445 67 49 43 24 21.5        1,400
209-0317 35×41 490 76 55 47 26 24        2,050
209-0326 36×41 490 76 55 49 26 24        2,050
209-0335 38×41 490 76 55 49 26 24        2,050
209-0344 41×46 500 83 61 55 29 23.5        2,500
209-0353 46×50 545 89 66 61 29 25.5        3,080
