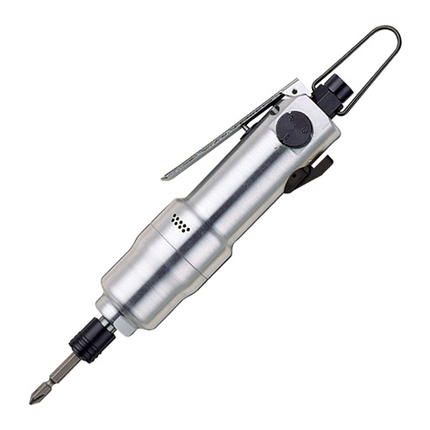

VESSEL AIR impact type air driver GTPLH2

  • VendorVESSEL AIR

Description

VESSEL AIR impact type air driver GTPLH2

Features

  • Stable tightening is possible because of the double hammer (1 rotation, 2 hits).
  • Compact and lightweight, it provides a strong tightening force.
  • Stable tightening is possible because it is a 1-turn 2-stroke type.
  • Compact, lightweight and strong tightening force can be obtained.

Use

  • For downward screw tightening.
  • For work on the assembly line.

Product specifications

Specifications / standards
  • Operating air pressure: 0.6MPa
  • Bit outlet (mm): 6.35
  • Capacity Screw size (mm): 5 to 6
  • Maximum tightening torque (N ・ m): 40.5
  • No-load rotation speed (min (-1st power)): 8500
  • Air consumption ((M3) / min): 0.30
  • Hose mounting port: Rc1 / 4
  • Exhaust: Upper
  • Overall length (mm): 213
  • No-load rotation speed (rpm): 8500
  • Compatible bit: Domestic standard type (13 mm)
  • Chuck method: Bit sleeve type

                  Product form

                  VESSEL AIR impact type air driver GTPLH2 Features Stable tightening is possible because of the double hammer (1 rotation, 2... Read more

                  SKU: 263-1628

                  $753.27 Excl. VAT

                    • Ships within 5–10 business days
                    • Ships from South Korea
                    • Export packing available
                    • Worldwide shipping
                    • Secure payments Paypal

                    Description

                    VESSEL AIR impact type air driver GTPLH2

                    Features

                    • Stable tightening is possible because of the double hammer (1 rotation, 2 hits).
                    • Compact and lightweight, it provides a strong tightening force.
                    • Stable tightening is possible because it is a 1-turn 2-stroke type.
                    • Compact, lightweight and strong tightening force can be obtained.

                    Use

                    • For downward screw tightening.
                    • For work on the assembly line.

                    Product specifications

                    Specifications / standards
                    • Operating air pressure: 0.6MPa
                    • Bit outlet (mm): 6.35
                    • Capacity Screw size (mm): 5 to 6
                    • Maximum tightening torque (N ・ m): 40.5
                    • No-load rotation speed (min (-1st power)): 8500
                    • Air consumption ((M3) / min): 0.30
                    • Hose mounting port: Rc1 / 4
                    • Exhaust: Upper
                    • Overall length (mm): 213
                    • No-load rotation speed (rpm): 8500
                    • Compatible bit: Domestic standard type (13 mm)
                    • Chuck method: Bit sleeve type
