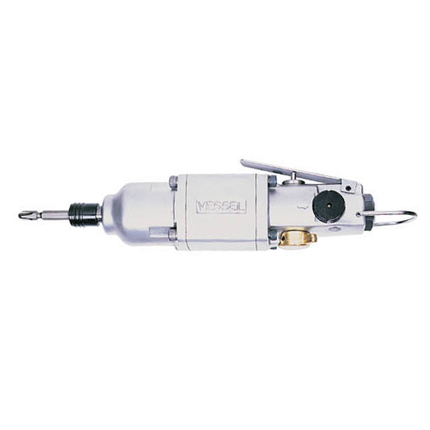

VESSEL AIR Impact type air driver GTS6.5D

  • VendorVESSEL AIR

Description

VESSEL AIR Impact type air driver GTS6.5D

Features

  • Stable tightening is possible because of the double hammer (1 rotation, 2 hits).
  • Compact, lightweight and strong tightening force can be obtained.
  • Stable tightening is possible because it is a 1-turn 2-stroke type.
  • For downward screw tightening.
  • For work on the assembly line.

specification

  • Bit outlet (mm): 6.35
  • Capacity Screw size (mm): 6-8
  • Maximum tightening torque (N ・ m): 57.2
  • No-load rotation speed (min ^ -1): 7500
  • Air consumption (m3 / min): 0.35
  • Hose mounting port: Rc1 / 4
  • Exhaust: sideways
  • Overall length (mm): 217
  • Chuck method: Bit sleeve type
  • No-load rotation speed (rpm): 7500
  • Compatible bit: Domestic standard type (13 mm)
  • Operating air pressure: 0.6MPa
  • Note: The tightening torque is a guideline. The torque value changes depending on the conditions.
  • Country of origin: Japan
                Product form

                VESSEL AIR Impact type air driver GTS6.5D Features Stable tightening is possible because of the double hammer (1 rotation, 2... Read more

                SKU: 263-1646

                $677.22 Excl. VAT

                  • Ships within 5–10 business days
                  • Ships from South Korea
                  • Export packing available
                  • Worldwide shipping
                  • Secure payments Paypal
