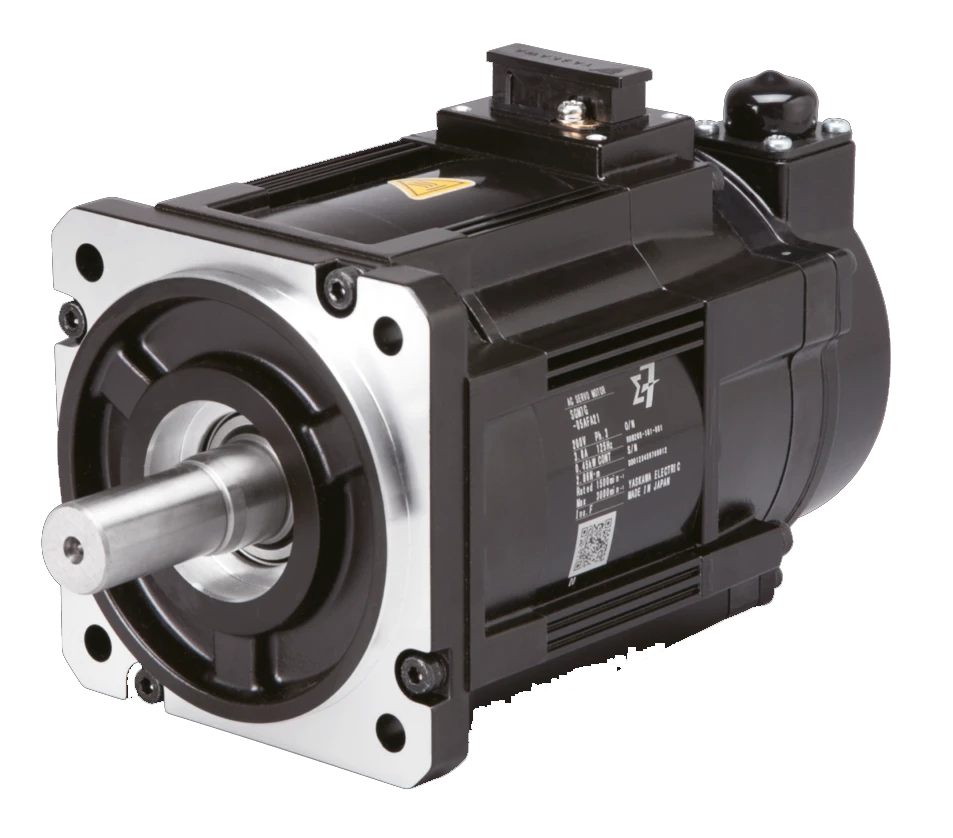

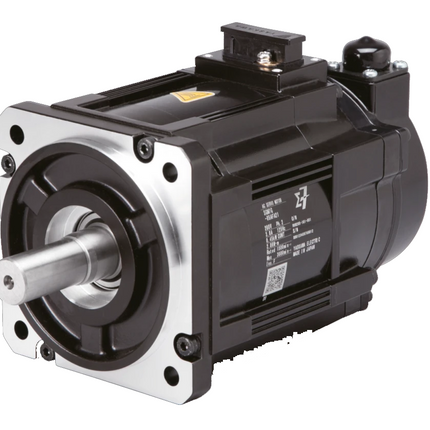

YASKAWA Servo motor SGM7G-20A7A2S

Description

Overview

  • 24-bit high-resolution encoder installed
  • High efficiency, low heat generation
  • Downsizing by up to 20%
  • Flange compatible with Sigma-5
  • Medium inertia, low speed, high torque



    Technical Details

    • Input power supply
    • 200 V
    • Rated output
    • 1.8 kW
    • Shaft end
    • Straight without key
    • Encoder resolution
    • 24 bit
    • Encoder type
    • Absolute
    • Options
    • With oil seal
    • Height
    • 169 mm
    • Width
    • 130 mm
    • Depth
    • 229 mm
    • Weight
    • 8.6 kg
    • Allowable Load Moment of Inertia
    • 5 Times
    • Rated torque
    • 11.5 Nm
    • Instantaneous maximum torque
    • 28.7 Nm
    • Rated Motor Speed
    • 1500 1/min
    • Maximum motor speed
    • 3000 1/min
    • Motor Moment of Inertia
    • 26 x10⁻⁴ kg·m²
    • Flange Dimension (LC)
    • 130 mm
    • Flange Diameter (LA)
    • 100 mm
    • Shaft End Diameter (S)
    • 16 mm
    • Shaft End Length (Q)
    • 30 mm
    Product form

    Overview 24-bit high-resolution encoder installed High efficiency, low heat generation Downsizing by up to 20% Flange compatible with Sigma-5 Medium... Read more

    SKU: SGM7G-20A7A2S

    $860.00 Excl. VAT

      • Quick delivery worldwide
      • Satisfied or refunded
      • Secure payments Paypal

        Description

        Overview

        • 24-bit high-resolution encoder installed
        • High efficiency, low heat generation
        • Downsizing by up to 20%
        • Flange compatible with Sigma-5
        • Medium inertia, low speed, high torque



          Technical Details

          • Input power supply
          • 200 V
          • Rated output
          • 1.8 kW
          • Shaft end
          • Straight without key
          • Encoder resolution
          • 24 bit
          • Encoder type
          • Absolute
          • Options
          • With oil seal
          • Height
          • 169 mm
          • Width
          • 130 mm
          • Depth
          • 229 mm
          • Weight
          • 8.6 kg
          • Allowable Load Moment of Inertia
          • 5 Times
          • Rated torque
          • 11.5 Nm
          • Instantaneous maximum torque
          • 28.7 Nm
          • Rated Motor Speed
          • 1500 1/min
          • Maximum motor speed
          • 3000 1/min
          • Motor Moment of Inertia
          • 26 x10⁻⁴ kg·m²
          • Flange Dimension (LC)
          • 130 mm
          • Flange Diameter (LA)
          • 100 mm
          • Shaft End Diameter (S)
          • 16 mm
          • Shaft End Length (Q)
          • 30 mm
