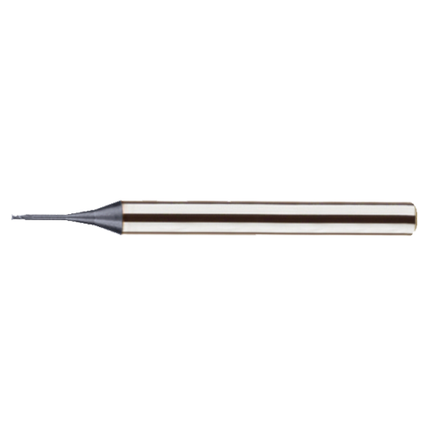

YG-1 4G MILL 2 Flute 30°Helix Rib End mill

Description

YG-1 4G MILL 2 Flute 30°Helix Rib End mill



      No. Brand/EDP No.  D1 D2 L1 L3 L2 FLUTE
      01 4G MILL SEM84501004 1 4 1.5 4 50 2
      02 4G MILL SEM84501006 1 4 1.5 6 50 2
      03 4G MILL SEM84501010 1 4 1.5 10 50 2
      04 4G MILL SEM84501012 1 4 1.5 12 50 2
      05 4G MILL SEM84501014 1 4 1.5 14 50 2
      06 4G MILL SEM84501016 1 4 1.5 16 50 2
      07 4G MILL SEM84501504 1.5 4 2.3 4 50 2
      08 4G MILL SEM84501506 1.5 4 2.3 6 50 2
      09 4G MILL SEM84501508 1.5 4 2.3 8 50 2
      10 4G MILL SEM84501510 1.5 4 2.3 10 50 2
      11 4G MILL SEM84501808 1.8 4 2.7 8 50 2
      12 4G MILL SEM84501810 1.8 4 2.7 10 50 2
      13 4G MILL SEM84502006 2 4 3 6 50 2
      14 4G MILL SEM84502008 2 4 3 8 50 2
      15 4G MILL SEM84502012 2 4 3 12 50 2
      16 4G MILL SEM84502014 2 4 3 14 50 2
      17 4G MILL SEM84502016 2 4 3 16 50 2
      18 4G MILL SEM84502020 2 4 3 20 50 2
      19 4G MILL SEM84502035 2 4 3 35 70 2
      20 4G MILL SEM84503010 3 6 4.5 10 50 2
      21 4G MILL SEM84503012 3 6 4.5 12 50 2
      22 4G MILL SEM84503016 3 6 4.5 16 60 2
      23 4G MILL SEM84503020 3 6 4.5 20 60 2
      24 4G MILL SEM84503026 3 6 4.5 26 65 2
      25 4G MILL SEM84503030 3 6 4.5 30 70 2
      26 4G MILL SEM84503035 3 6 4.5 35 70 2
      27 4G MILL SEM84503040 3 6 4.5 40 80 2
      28 4G MILL SEM84503050 3 6 4.5 50 100 2
      29 4G MILL SEM84504010 4 6 6 10 50 2
      30 4G MILL SEM84504012 4 6 6 12 50 2
      31 4G MILL SEM84504016 4 6 6 16 60 2
      32 4G MILL SEM84504020 4 6 6 20 60 2
      33 4G MILL SEM84504030 4 6 6 30 70 2
      34 4G MILL SEM84505035 5 6 8 35 75 2
      35 4G MILL SEM84505060 5 6 8 60 100 2







      Product form

      YG-1 4G MILL 2 Flute 30°Helix Rib End mill   No. Brand/EDP No.  D1 D2 L1 L3 L2 FLUTE 01... Read more

      SKU: 307-1489

      $19.00 Excl. VAT

        • Ships within 5–10 business days
        • Ships from South Korea
        • Export packing available
        • Worldwide shipping
        • Secure payments Paypal
