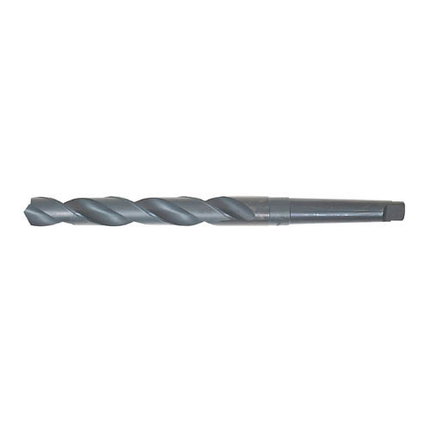

YG-1 Morse Taper Shank Drills HSS Ex-Long Taper Shank Drill

Description

YG-1  MORSE TAPER SHANK DRILLS HSS EX-Long Taper Shank Drill

 Feature

  • Surface treatment : Steam Tempered(Black Oxide Finish)Application : Drilling deep holes in steels, cast steels alloyed and non-alloyed, grey cast iron, malleable cast iron, graphite.



Brand/EDP No.  OD SDr L1 L2
MORSE TAPER SHANK DRILLS  D1201130 13 27 115 198
MORSE TAPER SHANK DRILLS  D1201135 13.5 27 118 202
MORSE TAPER SHANK DRILLS  D1201140 14 27 122 205
MORSE TAPER SHANK DRILLS  D1201145 14.5 27 122 222
MORSE TAPER SHANK DRILLS  D1201150 15 27 125 225
MORSE TAPER SHANK DRILLS  D1201155 15.5 27 128 228
MORSE TAPER SHANK DRILLS  D1201160 16 27 130 230
MORSE TAPER SHANK DRILLS  D1201165 16.5 27 132 232
MORSE TAPER SHANK DRILLS  D1201170 17 27 135 235
MORSE TAPER SHANK DRILLS  D1201175 17.5 27 140 240
MORSE TAPER SHANK DRILLS  D1201180 18 27 140 240
MORSE TAPER SHANK DRILLS  D1201185 18.5 27 145 245
MORSE TAPER SHANK DRILLS  D1201190 19 27 145 245
MORSE TAPER SHANK DRILLS  D1201195 19.5 27 150 250
MORSE TAPER SHANK DRILLS  D1201200 20 27 150 250
MORSE TAPER SHANK DRILLS  D1201205 20.5 27 155 255
MORSE TAPER SHANK DRILLS  D1201210 21 27 155 255
MORSE TAPER SHANK DRILLS  D1201215 21.5 27 160 260
MORSE TAPER SHANK DRILLS  D1201220 22 27 160 260
MORSE TAPER SHANK DRILLS  D1201225 22.5 27 165 265
MORSE TAPER SHANK DRILLS  D1201230 23 27 165 265
MORSE TAPER SHANK DRILLS  D1201235 23.5 27 165 285
MORSE TAPER SHANK DRILLS  D1201240 24 27 165 285
MORSE TAPER SHANK DRILLS  D1201245 24.5 27 165 285
MORSE TAPER SHANK DRILLS  D1201250 25 27 165 285
MORSE TAPER SHANK DRILLS  D1201255 25.5 27 165 285
MORSE TAPER SHANK DRILLS  D1201260 26 27 165 285
MORSE TAPER SHANK DRILLS  D1201265 26.5 27 170 290
MORSE TAPER SHANK DRILLS  D1201270 27 27 170 290
MORSE TAPER SHANK DRILLS  D1201275 27.5 27 175 295
MORSE TAPER SHANK DRILLS  D1201280 28 27 175 295
MORSE TAPER SHANK DRILLS  D1201285 28.5 27 180 300
MORSE TAPER SHANK DRILLS  D1201290 29 27 180 300
MORSE TAPER SHANK DRILLS  D1201295 29.5 27 185 305
MORSE TAPER SHANK DRILLS  D1201300 30 27 185 305
MORSE TAPER SHANK DRILLS  D1201305 30.5 27 190 310
MORSE TAPER SHANK DRILLS  D1201310 31 27 190 310
MORSE TAPER SHANK DRILLS  D1201315 31.5 27 195 315
MORSE TAPER SHANK DRILLS  D1201320 32 27 195 315
MORSE TAPER SHANK DRILLS  D1201325  32.5 27 200 345
MORSE TAPER SHANK DRILLS  D1201330 33 27 200 345
MORSE TAPER SHANK DRILLS  D1201340 34 27 205 350
MORSE TAPER SHANK DRILLS  D1201350 35 27 205 350
MORSE TAPER SHANK DRILLS  D1201360 36 27 210 355
MORSE TAPER SHANK DRILLS  D1201370 37 27 210 355
MORSE TAPER SHANK DRILLS  D1201380 38 27 215 360
MORSE TAPER SHANK DRILLS  D1201390 39 27 215 360
MORSE TAPER SHANK DRILLS  D1201400 40 27 220 365
MORSE TAPER SHANK DRILLS  D1201410 41 27 220 365
MORSE TAPER SHANK DRILLS  D1201420 42 27 225 370
MORSE TAPER SHANK DRILLS  D1201430 43 27 225 370
MORSE TAPER SHANK DRILLS  D1201440 44 27 230 375
MORSE TAPER SHANK DRILLS  D1201450 45 27 230 375
MORSE TAPER SHANK DRILLS  D1201460 46 27 235 380
MORSE TAPER SHANK DRILLS  D1201470 47 27 235 380
MORSE TAPER SHANK DRILLS  D1201480 48 27 240 385
MORSE TAPER SHANK DRILLS  D1201490 49 27 240 385
MORSE TAPER SHANK DRILLS  D1201500 50 27 245 390
MORSE TAPER SHANK DRILLS  D1201510 51 27 245 425
MORSE TAPER SHANK DRILLS  D1201520 52 27 250 430
MORSE TAPER SHANK DRILLS  D1201530 53 27 250 430
MORSE TAPER SHANK DRILLS  D1201540 54 27 255 435
MORSE TAPER SHANK DRILLS  D1201550 55 27 255 435
MORSE TAPER SHANK DRILLS  D1201560 56 27 260 440
MORSE TAPER SHANK DRILLS  D1201570 57 27 260 440
MORSE TAPER SHANK DRILLS  D1201580 58 27 265 445
MORSE TAPER SHANK DRILLS  D1201590 59 27 265 445
MORSE TAPER SHANK DRILLS  D1201600 60 27 270 450
MORSE TAPER SHANK DRILLS  D1201610  61 27 270 450
MORSE TAPER SHANK DRILLS  D1201620  62 27 275 455
MORSE TAPER SHANK DRILLS  D1201630  63 27 275 455
MORSE TAPER SHANK DRILLS  D1201640  64 27 280 460
MORSE TAPER SHANK DRILLS  D1201650  65 27 280 460





Product form

YG-1  MORSE TAPER SHANK DRILLS HSS EX-Long Taper Shank Drill  Feature Surface treatment : Steam Tempered(Black Oxide Finish)Application : Drilling... Read more

SKU: 300-6856

$14.16 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal
    • Shipped today? Order within: May 02, 2024 17:00:00 +0900

    Description

    YG-1  MORSE TAPER SHANK DRILLS HSS EX-Long Taper Shank Drill

     Feature

    • Surface treatment : Steam Tempered(Black Oxide Finish)Application : Drilling deep holes in steels, cast steels alloyed and non-alloyed, grey cast iron, malleable cast iron, graphite.



    Brand/EDP No.  OD SDr L1 L2
    MORSE TAPER SHANK DRILLS  D1201130 13 27 115 198
    MORSE TAPER SHANK DRILLS  D1201135 13.5 27 118 202
    MORSE TAPER SHANK DRILLS  D1201140 14 27 122 205
    MORSE TAPER SHANK DRILLS  D1201145 14.5 27 122 222
    MORSE TAPER SHANK DRILLS  D1201150 15 27 125 225
    MORSE TAPER SHANK DRILLS  D1201155 15.5 27 128 228
    MORSE TAPER SHANK DRILLS  D1201160 16 27 130 230
    MORSE TAPER SHANK DRILLS  D1201165 16.5 27 132 232
    MORSE TAPER SHANK DRILLS  D1201170 17 27 135 235
    MORSE TAPER SHANK DRILLS  D1201175 17.5 27 140 240
    MORSE TAPER SHANK DRILLS  D1201180 18 27 140 240
    MORSE TAPER SHANK DRILLS  D1201185 18.5 27 145 245
    MORSE TAPER SHANK DRILLS  D1201190 19 27 145 245
    MORSE TAPER SHANK DRILLS  D1201195 19.5 27 150 250
    MORSE TAPER SHANK DRILLS  D1201200 20 27 150 250
    MORSE TAPER SHANK DRILLS  D1201205 20.5 27 155 255
    MORSE TAPER SHANK DRILLS  D1201210 21 27 155 255
    MORSE TAPER SHANK DRILLS  D1201215 21.5 27 160 260
    MORSE TAPER SHANK DRILLS  D1201220 22 27 160 260
    MORSE TAPER SHANK DRILLS  D1201225 22.5 27 165 265
    MORSE TAPER SHANK DRILLS  D1201230 23 27 165 265
    MORSE TAPER SHANK DRILLS  D1201235 23.5 27 165 285
    MORSE TAPER SHANK DRILLS  D1201240 24 27 165 285
    MORSE TAPER SHANK DRILLS  D1201245 24.5 27 165 285
    MORSE TAPER SHANK DRILLS  D1201250 25 27 165 285
    MORSE TAPER SHANK DRILLS  D1201255 25.5 27 165 285
    MORSE TAPER SHANK DRILLS  D1201260 26 27 165 285
    MORSE TAPER SHANK DRILLS  D1201265 26.5 27 170 290
    MORSE TAPER SHANK DRILLS  D1201270 27 27 170 290
    MORSE TAPER SHANK DRILLS  D1201275 27.5 27 175 295
    MORSE TAPER SHANK DRILLS  D1201280 28 27 175 295
    MORSE TAPER SHANK DRILLS  D1201285 28.5 27 180 300
    MORSE TAPER SHANK DRILLS  D1201290 29 27 180 300
    MORSE TAPER SHANK DRILLS  D1201295 29.5 27 185 305
    MORSE TAPER SHANK DRILLS  D1201300 30 27 185 305
    MORSE TAPER SHANK DRILLS  D1201305 30.5 27 190 310
    MORSE TAPER SHANK DRILLS  D1201310 31 27 190 310
    MORSE TAPER SHANK DRILLS  D1201315 31.5 27 195 315
    MORSE TAPER SHANK DRILLS  D1201320 32 27 195 315
    MORSE TAPER SHANK DRILLS  D1201325  32.5 27 200 345
    MORSE TAPER SHANK DRILLS  D1201330 33 27 200 345
    MORSE TAPER SHANK DRILLS  D1201340 34 27 205 350
    MORSE TAPER SHANK DRILLS  D1201350 35 27 205 350
    MORSE TAPER SHANK DRILLS  D1201360 36 27 210 355
    MORSE TAPER SHANK DRILLS  D1201370 37 27 210 355
    MORSE TAPER SHANK DRILLS  D1201380 38 27 215 360
    MORSE TAPER SHANK DRILLS  D1201390 39 27 215 360
    MORSE TAPER SHANK DRILLS  D1201400 40 27 220 365
    MORSE TAPER SHANK DRILLS  D1201410 41 27 220 365
    MORSE TAPER SHANK DRILLS  D1201420 42 27 225 370
    MORSE TAPER SHANK DRILLS  D1201430 43 27 225 370
    MORSE TAPER SHANK DRILLS  D1201440 44 27 230 375
    MORSE TAPER SHANK DRILLS  D1201450 45 27 230 375
    MORSE TAPER SHANK DRILLS  D1201460 46 27 235 380
    MORSE TAPER SHANK DRILLS  D1201470 47 27 235 380
    MORSE TAPER SHANK DRILLS  D1201480 48 27 240 385
    MORSE TAPER SHANK DRILLS  D1201490 49 27 240 385
    MORSE TAPER SHANK DRILLS  D1201500 50 27 245 390
    MORSE TAPER SHANK DRILLS  D1201510 51 27 245 425
    MORSE TAPER SHANK DRILLS  D1201520 52 27 250 430
    MORSE TAPER SHANK DRILLS  D1201530 53 27 250 430
    MORSE TAPER SHANK DRILLS  D1201540 54 27 255 435
    MORSE TAPER SHANK DRILLS  D1201550 55 27 255 435
    MORSE TAPER SHANK DRILLS  D1201560 56 27 260 440
    MORSE TAPER SHANK DRILLS  D1201570 57 27 260 440
    MORSE TAPER SHANK DRILLS  D1201580 58 27 265 445
    MORSE TAPER SHANK DRILLS  D1201590 59 27 265 445
    MORSE TAPER SHANK DRILLS  D1201600 60 27 270 450
    MORSE TAPER SHANK DRILLS  D1201610  61 27 270 450
    MORSE TAPER SHANK DRILLS  D1201620  62 27 275 455
    MORSE TAPER SHANK DRILLS  D1201630  63 27 275 455
    MORSE TAPER SHANK DRILLS  D1201640  64 27 280 460
    MORSE TAPER SHANK DRILLS  D1201650  65 27 280 460
