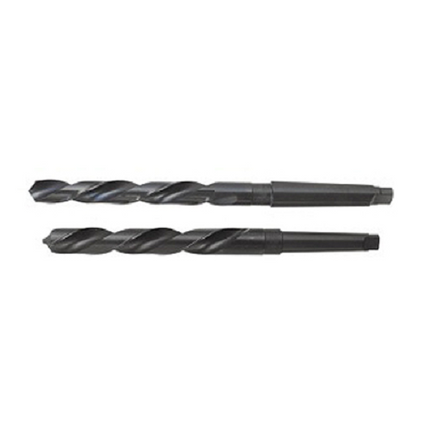

YG-1 Morse Taper Shank Drills HSS Regular Taper Shank Drill

Description

YG-1  MORSE TAPER SHANK DRILLS HSS Regular Taper Shank Drill

 Feature

  • Surface treatment : Steam Tempered(Black Oxide Finish)Application : Drilling deep holes in steels, cast steels alloyed and non-alloyed, grey cast iron, malleable cast iron, graphite.



No. Brand/EDP No. D1 D2 L1 L2
1. MORSE TAPER SHANK DRILLS D1201130 13 27 198 115
2. MORSE TAPER SHANK DRILLS D1201135 13.5 27 202 118
3. MORSE TAPER SHANK DRILLS D1201140 14 27 205 122
4. MORSE TAPER SHANK DRILLS D1201145 14.5 27 222 122
5. MORSE TAPER SHANK DRILLS D1201150 15 27 225 125
6. MORSE TAPER SHANK DRILLS D1201155 15.5 27 228 128
7. MORSE TAPER SHANK DRILLS D1201160 16 27 230 130
8. MORSE TAPER SHANK DRILLS D1201165 16.5 27 232 132
9. MORSE TAPER SHANK DRILLS D1201170 17 27 235 135
10. MORSE TAPER SHANK DRILLS D1201175 17.5 27 240 140
11. MORSE TAPER SHANK DRILLS D1201180 18 27 240 140
12. MORSE TAPER SHANK DRILLS D1201185 18.5 27 245 145
13. MORSE TAPER SHANK DRILLS D1201190 19 27 245 145
14. MORSE TAPER SHANK DRILLS D1201195 19.5 27 250 150
15. MORSE TAPER SHANK DRILLS D1201200 20 27 250 150
16. MORSE TAPER SHANK DRILLS D1201205 20.5 27 255 155
17. MORSE TAPER SHANK DRILLS D1201210 21 27 255 155
18. MORSE TAPER SHANK DRILLS D1201215 21.5 27 260 160
19. MORSE TAPER SHANK DRILLS D1201220 22 27 260 160
20. MORSE TAPER SHANK DRILLS D1201225 22.5 27 265 165
21. MORSE TAPER SHANK DRILLS D1201230 23 27 265 165
22. MORSE TAPER SHANK DRILLS D1201235 23.5 27 285 165
23. MORSE TAPER SHANK DRILLS D1201240 24 27 285 165
24. MORSE TAPER SHANK DRILLS D1201245 24.5 27 285 165
25. MORSE TAPER SHANK DRILLS D1201250 25 27 285 165
26. MORSE TAPER SHANK DRILLS D1201255 25.5 27 285 165
27. MORSE TAPER SHANK DRILLS D1201260 26 27 285 165
28. MORSE TAPER SHANK DRILLS D1201265 26.5 27 290 170
29. MORSE TAPER SHANK DRILLS D1201270 27 27 290 170
30. MORSE TAPER SHANK DRILLS D1201275 27.5 27 295 175
31. MORSE TAPER SHANK DRILLS D1201280 28 27 295 175
32. MORSE TAPER SHANK DRILLS D1201285 28.5 27 300 180
33. MORSE TAPER SHANK DRILLS D1201290 29 27 300 180
34. MORSE TAPER SHANK DRILLS D1201295 29.5 27 305 185
35. MORSE TAPER SHANK DRILLS D1201300 30 27 305 185
36. MORSE TAPER SHANK DRILLS D1201305 30.5 27 310 190
37. MORSE TAPER SHANK DRILLS D1201310 31 27 310 190
38. MORSE TAPER SHANK DRILLS D1201315 31.5 27 315 195
39. MORSE TAPER SHANK DRILLS D1201320 32 27 315 195
40. MORSE TAPER SHANK DRILLS D1201330 33 27 345 200
41. MORSE TAPER SHANK DRILLS D1201340 34 27 350 205
42. MORSE TAPER SHANK DRILLS D1201350 35 27 350 205
43. MORSE TAPER SHANK DRILLS D1201360 36 27 355 210
44. MORSE TAPER SHANK DRILLS D1201370 37 27 355 210
45. MORSE TAPER SHANK DRILLS D1201380 38 27 360 215
46. MORSE TAPER SHANK DRILLS D1201390 39 27 360 215
47. MORSE TAPER SHANK DRILLS D1201400 40 27 365 220
48. MORSE TAPER SHANK DRILLS D1201410 41 27 365 220
49. MORSE TAPER SHANK DRILLS D1201420 42 27 370 225
50. MORSE TAPER SHANK DRILLS D1201430 43 27 370 225
51. MORSE TAPER SHANK DRILLS D1201440 44 27 375 230
52. MORSE TAPER SHANK DRILLS D1201450 45 27 375 230
53. MORSE TAPER SHANK DRILLS D1201460 46 27 380 235
54. MORSE TAPER SHANK DRILLS D1201470 47 27 380 235
55. MORSE TAPER SHANK DRILLS D1201480 48 27 385 240
56. MORSE TAPER SHANK DRILLS D1201490 49 27 385 240
57. MORSE TAPER SHANK DRILLS D1201500 50 27 390 245
58. MORSE TAPER SHANK DRILLS D1201510 51 27 425 245
59. MORSE TAPER SHANK DRILLS D1201520 52 27 430 250
60. MORSE TAPER SHANK DRILLS D1201530 53 27 430 250
61. MORSE TAPER SHANK DRILLS D1201540 54 27 435 255
62. MORSE TAPER SHANK DRILLS D1201550 55 27 435 255
63. MORSE TAPER SHANK DRILLS D1201560 56 27 440 260
64. MORSE TAPER SHANK DRILLS D1201570 57 27 440 260
65. MORSE TAPER SHANK DRILLS D1201580 58 27 445 265
66. MORSE TAPER SHANK DRILLS D1201590 59 27 445 265
67. MORSE TAPER SHANK DRILLS D1201600 60 27 450 270







Product form

YG-1  MORSE TAPER SHANK DRILLS HSS Regular Taper Shank Drill  Feature Surface treatment : Steam Tempered(Black Oxide Finish)Application : Drilling... Read more

SKU: K 207-0001

$14.96 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal
    • Shipped today? Order within: May 08, 2024 17:00:00 +0900

    Description

    YG-1  MORSE TAPER SHANK DRILLS HSS Regular Taper Shank Drill

     Feature

    • Surface treatment : Steam Tempered(Black Oxide Finish)Application : Drilling deep holes in steels, cast steels alloyed and non-alloyed, grey cast iron, malleable cast iron, graphite.



    No. Brand/EDP No. D1 D2 L1 L2
    1. MORSE TAPER SHANK DRILLS D1201130 13 27 198 115
    2. MORSE TAPER SHANK DRILLS D1201135 13.5 27 202 118
    3. MORSE TAPER SHANK DRILLS D1201140 14 27 205 122
    4. MORSE TAPER SHANK DRILLS D1201145 14.5 27 222 122
    5. MORSE TAPER SHANK DRILLS D1201150 15 27 225 125
    6. MORSE TAPER SHANK DRILLS D1201155 15.5 27 228 128
    7. MORSE TAPER SHANK DRILLS D1201160 16 27 230 130
    8. MORSE TAPER SHANK DRILLS D1201165 16.5 27 232 132
    9. MORSE TAPER SHANK DRILLS D1201170 17 27 235 135
    10. MORSE TAPER SHANK DRILLS D1201175 17.5 27 240 140
    11. MORSE TAPER SHANK DRILLS D1201180 18 27 240 140
    12. MORSE TAPER SHANK DRILLS D1201185 18.5 27 245 145
    13. MORSE TAPER SHANK DRILLS D1201190 19 27 245 145
    14. MORSE TAPER SHANK DRILLS D1201195 19.5 27 250 150
    15. MORSE TAPER SHANK DRILLS D1201200 20 27 250 150
    16. MORSE TAPER SHANK DRILLS D1201205 20.5 27 255 155
    17. MORSE TAPER SHANK DRILLS D1201210 21 27 255 155
    18. MORSE TAPER SHANK DRILLS D1201215 21.5 27 260 160
    19. MORSE TAPER SHANK DRILLS D1201220 22 27 260 160
    20. MORSE TAPER SHANK DRILLS D1201225 22.5 27 265 165
    21. MORSE TAPER SHANK DRILLS D1201230 23 27 265 165
    22. MORSE TAPER SHANK DRILLS D1201235 23.5 27 285 165
    23. MORSE TAPER SHANK DRILLS D1201240 24 27 285 165
    24. MORSE TAPER SHANK DRILLS D1201245 24.5 27 285 165
    25. MORSE TAPER SHANK DRILLS D1201250 25 27 285 165
    26. MORSE TAPER SHANK DRILLS D1201255 25.5 27 285 165
    27. MORSE TAPER SHANK DRILLS D1201260 26 27 285 165
    28. MORSE TAPER SHANK DRILLS D1201265 26.5 27 290 170
    29. MORSE TAPER SHANK DRILLS D1201270 27 27 290 170
    30. MORSE TAPER SHANK DRILLS D1201275 27.5 27 295 175
    31. MORSE TAPER SHANK DRILLS D1201280 28 27 295 175
    32. MORSE TAPER SHANK DRILLS D1201285 28.5 27 300 180
    33. MORSE TAPER SHANK DRILLS D1201290 29 27 300 180
    34. MORSE TAPER SHANK DRILLS D1201295 29.5 27 305 185
    35. MORSE TAPER SHANK DRILLS D1201300 30 27 305 185
    36. MORSE TAPER SHANK DRILLS D1201305 30.5 27 310 190
    37. MORSE TAPER SHANK DRILLS D1201310 31 27 310 190
    38. MORSE TAPER SHANK DRILLS D1201315 31.5 27 315 195
    39. MORSE TAPER SHANK DRILLS D1201320 32 27 315 195
    40. MORSE TAPER SHANK DRILLS D1201330 33 27 345 200
    41. MORSE TAPER SHANK DRILLS D1201340 34 27 350 205
    42. MORSE TAPER SHANK DRILLS D1201350 35 27 350 205
    43. MORSE TAPER SHANK DRILLS D1201360 36 27 355 210
    44. MORSE TAPER SHANK DRILLS D1201370 37 27 355 210
    45. MORSE TAPER SHANK DRILLS D1201380 38 27 360 215
    46. MORSE TAPER SHANK DRILLS D1201390 39 27 360 215
    47. MORSE TAPER SHANK DRILLS D1201400 40 27 365 220
    48. MORSE TAPER SHANK DRILLS D1201410 41 27 365 220
    49. MORSE TAPER SHANK DRILLS D1201420 42 27 370 225
    50. MORSE TAPER SHANK DRILLS D1201430 43 27 370 225
    51. MORSE TAPER SHANK DRILLS D1201440 44 27 375 230
    52. MORSE TAPER SHANK DRILLS D1201450 45 27 375 230
    53. MORSE TAPER SHANK DRILLS D1201460 46 27 380 235
    54. MORSE TAPER SHANK DRILLS D1201470 47 27 380 235
    55. MORSE TAPER SHANK DRILLS D1201480 48 27 385 240
    56. MORSE TAPER SHANK DRILLS D1201490 49 27 385 240
    57. MORSE TAPER SHANK DRILLS D1201500 50 27 390 245
    58. MORSE TAPER SHANK DRILLS D1201510 51 27 425 245
    59. MORSE TAPER SHANK DRILLS D1201520 52 27 430 250
    60. MORSE TAPER SHANK DRILLS D1201530 53 27 430 250
    61. MORSE TAPER SHANK DRILLS D1201540 54 27 435 255
    62. MORSE TAPER SHANK DRILLS D1201550 55 27 435 255
    63. MORSE TAPER SHANK DRILLS D1201560 56 27 440 260
    64. MORSE TAPER SHANK DRILLS D1201570 57 27 440 260
    65. MORSE TAPER SHANK DRILLS D1201580 58 27 445 265
    66. MORSE TAPER SHANK DRILLS D1201590 59 27 445 265
    67. MORSE TAPER SHANK DRILLS D1201600 60 27 450 270
