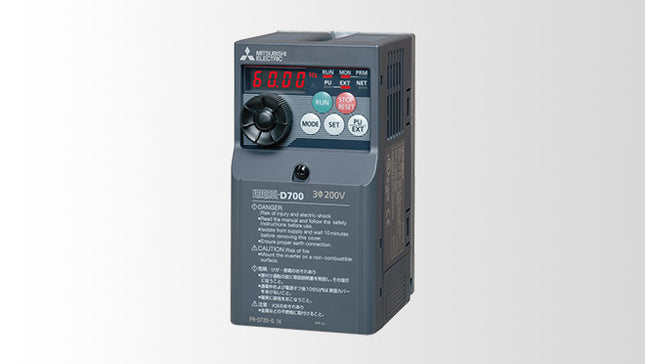

MITSUBISHI ELECTRIC FR-D710W-0. — Inverter FREQROL-D700 Series, genuine MITSUBISHI ELECTRIC product.OverviewThe Mitsubishi Electric FREQROL-D700 series is a compact general-purpose inverter that controls the speed of three-phase induction motors. The FR-D710W models accept single-phase 100 V input and output three-phase power for small motors. They are used on fans, pumps, conveyors and small machines that need simple variable-speed control.Key Features Compact inverter for small induction motors Single-phase 100 V input versions V/F and general-purpose magnetic flux vector control Built-in operation panel and dial Specifications Part No. Ambient Humidity (%RH) Atmosphere Cooling Method Rated Capacity (kVA) Enclosure Protection (JEM1030) Altitude (m) Applicable Motor Capacity (kW) Ambient Temp. (℃) Torque Boost Supply Voltage (V) Frequency (Hz) Stall Prevention Level Output Overload Current Rating V/f Characteristics Power Supply Capacity (kVA) Output Frequency (Hz) Dim. D (mm) FR-D710W-0.1K 90 or less (no condensation) Self-cooled 1000 or less 1-phase 100 ~ 115V (50Hz/60Hz) 150 % 60s, 200 % 0.5s (inverse-time characteristic) Base frequency 0 ~ 400 FR-D710W-0.2K 90 or less (no condensation) Enclosed type (IP20) -10 ~ 50 (no freezing) Manual torque boost 150 % 60s, 200 % 0.5s (inverse-time characteristic) 0.9 110.5 FR-D710W-0.4K Indoor (free of corrosive gas, flammable gas, oil mist, dust) Self-cooled 1000 or less -10 ~ 50 (no freezing) 1-phase 100 ~ 115V (50Hz/60Hz) 50/60 150 % 60s, 200 % 0.5s (inverse-time characteristic) 142.5 FR-D710W-0.75K 90 or less (no condensation) 1.7 0.75 -10 ~ 50 (no freezing) 1-phase 100 ~ 115V (50Hz/60Hz) Operating current level settable (0 ~ 200 % variable), enable/disable selectable 2.5 0.2 ~ 400 How to OrderSpecify input voltage class, motor capacity (kW) and required options. Please confirm the full part number and options against the MITSUBISHI ELECTRIC catalog; contact us if you need help identifying the right model.Product image is representative of the MITSUBISHI ELECTRIC series; appearance varies by size and model.About MITSUBISHI ELECTRICMitsubishi Electric is a Japanese manufacturer of factory automation and low-voltage power distribution equipment, including MELSEC PLCs, servo systems, inverters, magnetic contactors and starters, circuit breakers and measuring instruments.Ordering & Shipping Genuine MITSUBISHI ELECTRIC product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

MITSUBISHI ELECTRIC FR-UDA01 — DIN Rail Mounting Attachment, genuine MITSUBISHI ELECTRIC product.OverviewThe DIN rail mounting attachment from MITSUBISHI ELECTRIC allows compact inverters to be mounted on standard DIN rail. This simplifies installation in control panels alongside other DIN rail components. Different attachments fit different inverter frame sizes. Rail mounting also makes inverters quicker to remove and replace during maintenance, avoiding the need to drill and tap panel backplates.Key Features Enables DIN rail mounting of inverters Simplifies panel installation Matched to inverter frame Quick attachment Specifications Part No. Main Applications FR-UDA01 Attachment for DIN rail mounting How to OrderConfirm the inverter model and frame size. Please confirm the full part number and options against the MITSUBISHI ELECTRIC catalog; contact us if you need help identifying the right model.About MITSUBISHI ELECTRICMitsubishi Electric is a Japanese manufacturer of factory automation and low-voltage power distribution equipment, including MELSEC PLCs, servo systems, inverters, magnetic contactors and starters, circuit breakers and measuring instruments.Ordering & Shipping Genuine MITSUBISHI ELECTRIC product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

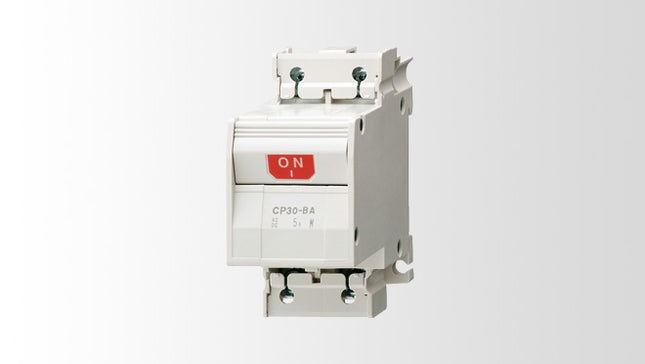

MITSUBISHI ELECTRIC CP30-BA — Circuit Protector CP-30BA Series, genuine MITSUBISHI ELECTRIC product.OverviewThe CP-30BA is a circuit protector from Mitsubishi Electric for protecting control circuits and small loads against overcurrent. It is compact and mounts on DIN rail, with ratings from fractions of an ampere. It is used in control panels for PLC power, sensors and small equipment.Key Features Compact protection for control circuits Low current ratings available DIN rail mounting Trip indication on handle Specifications Part No. Mounting Method Mechanical Durability Mass (g) Rated Impulse Withstand Voltage (kV) Temp. Range (℃) Humidity (%RH) No. of Poles Rated Insulation Voltage Rated Current (A) Insulation Resistance (MΩ) Frame (AF) Reference Ambient Temp. (℃) CP30-BA1P1-M0.1AA Front mounting, IEC 35mm rail mounting, flush handle mounting 10,000 operations or more at 10 operations per minute without current 2.5 -10 ~ 60 85 or less 1 0.1 100 or more (500V insulation resistance tester) 30.0 40(T40) CP30-BA1P1-M0.3AA Front mounting, IEC 35mm rail mounting, flush handle mounting 10,000 operations or more at 10 operations per minute without current 80.0 -10 ~ 60 85 or less 1 250.0 0.3 100 or more (500V insulation resistance tester) 30.0 40(T40) CP30-BA1P1-M0.5AA 10,000 operations or more at 10 operations per minute without current 80.0 2.5 -10 ~ 60 85 or less 1 100 or more (500V insulation resistance tester) 40(T40) CP30-BA1P1-M10AA Without current 2.5 -10 ~ 60 85 or less 1 250.0 10.0 30.0 CP30-BA1P1-M1AA 10,000 operations or more at 10 operations per minute without current 2.5 -10 ~ 60 85 or less 250.0 1.0 CP30-BA1P1-M20AA Front mounting, IEC 35mm rail mounting, flush handle mounting 10,000 operations or more at 10 operations per minute without current 80.0 2.5 -10 ~ 60 1 20.0 100 or more (500V insulation resistance tester) 30.0 40(T40) CP30-BA1P1-M2AA 10,000 operations or more at 10 operations per minute without current 2.5 100 or more (500V insulation resistance tester) CP30-BA1P1-M30AA Front mounting, IEC 35mm rail mounting, flush handle mounting 10,000 operations or more at 10 operations per minute without current 80.0 -10 ~ 60 85 or less 1 250.0 100 or more (500V insulation resistance tester) 30.0 CP30-BA1P1-M3AA 80.0 2.5 -10 ~ 60 85 or less 1 250.0 3.0 100 or more (500V insulation resistance tester) 30.0 40(T40) CP30-BA1P1-M5AA Front mounting, IEC 35mm rail mounting, flush handle mounting 10,000 operations or more at 10 operations per minute without current 80.0 2.5 -10 ~ 60 85 or less 1 250.0 30.0 40(T40) CP30-BA1P1-M7AA Front mounting, IEC 35mm rail mounting, flush handle mounting 10,000 operations or more at 10 operations per minute without current 85 or less 1 250.0 7.0 100 or more (500V insulation resistance tester) CP30-BA2P1-M0.5AA 10,000 operations or more at 10 operations per minute without current 160.0 2.5 85 or less 250.0 100 or more (500V insulation resistance tester) 30.0 CP30-BA2P1-M10AA Front mounting, IEC 35mm rail mounting, flush handle mounting 2.5 -10 ~ 60 85 or less 2 10.0 CP30-BA2P1-M15AA Front mounting, IEC 35mm rail mounting, flush handle mounting 10,000 operations or more at 10 operations per minute without current 160.0 -10 ~ 60 85 or less 2 250.0 15.0 40(T40) CP30-BA2P1-M1AA Front mounting, IEC 35mm rail mounting, flush handle mounting Without current 160.0 -10 ~ 60 85 or less 250.0 1.0 30.0 40(T40) CP30-BA2P1-M20AA Front mounting, IEC 35mm rail mounting, flush handle mounting 160.0 -10 ~ 60 85 or less 2 20.0 100 or more (500V insulation resistance tester) 30.0 CP30-BA2P1-M2AA 10,000 operations or more at 10 operations per minute without current 2.5 85 or less 2 250.0 2.0 100 or more (500V 30.0 40(T40) CP30-BA2P1-M30AA Front mounting, IEC 35mm rail mounting, flush handle 10,000 operations or more at 10 operations per minute without current -10 ~ 60 2 40(T40) CP30-BA2P1-M3AA Front mounting, IEC 35mm rail mounting, flush handle mounting 10,000 operations or more at 10 operations per minute without current 160.0 2.5 85 or less 2 250.0 3.0 100 or more (500V insulation resistance tester) 30.0 CP30-BA2P1-M5AA Front mounting, IEC 35mm rail mounting, flush handle mounting 10,000 operations or more at 10 operations per minute without current 2.5 85 or less 2 250.0 100 or more (500V insulation resistance tester) 40(T40) CP30-BA2P1-M7AA Front mounting, IEC 35mm rail mounting, flush handle mounting 10,000 operations or more at 10 operations per minute without current 160.0 2.5 -10 ~ 60 85 or less 2 250.0 7.0 30.0 CP30-BA3P1-M10AA 10,000 operations or more at 10 operations per minute without current 2.5 85 or less 3 10.0 100 or more (500V insulation resistance tester) 30.0 40(T40) CP30-BA3P1-M15AA Front mounting, IEC35m 10,000 operations or more at 10 operations per minute without current 2.5 -10 ~ 60 3 15.0 40(T40) CP30-BA3P1M1AA Front mounting, IEC 35mm rail mounting, flush handle mounting -10 85 or less 250.0 1.0 100 or more (500V insulation resistance tester) 40(T40) CP30-BA3P1M20AA Front mounting, IEC 35mm rail mounting, flush handle mounting 230.0 2.5 -10 ~ 60 85 or less 250.0 100 or more (500V insulation resistance CP30-BA3P1M3AA Front mounting, IEC 35mm rail mounting, flush handle mounting 10,000 operations or more at 10 operations per minute without current 2.5 -10 ~ 60 3 250.0 3.0 100 or more (500V insulation resistance tester) 30.0 40(T40) CP30-BA3P1M5AA Front mounting, IEC 35mm rail mounting, flush handle mounting 230.0 2.5 -10 ~ 60 85 or less 3 250.0 5.0 100 or more (500V insulation resistance tester) 40(T40) How to OrderSelect number of poles, rated current and trip characteristic. Please confirm the full part number and options against the MITSUBISHI ELECTRIC catalog; contact us if you need help identifying the right model.Product image is representative of the MITSUBISHI ELECTRIC series; appearance varies by size and model.About MITSUBISHI ELECTRICMitsubishi Electric is a Japanese manufacturer of factory automation and low-voltage power distribution equipment, including MELSEC PLCs, servo systems, inverters, magnetic contactors and starters, circuit breakers and measuring instruments.Ordering & Shipping Genuine MITSUBISHI ELECTRIC product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

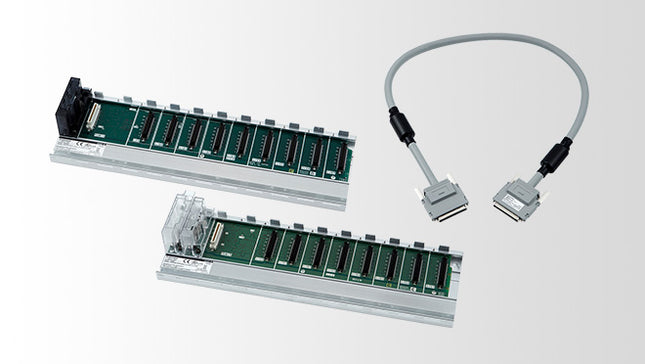

MITSUBISHI ELECTRIC Q — Main Base Unit, genuine MITSUBISHI ELECTRIC product.OverviewThe MITSUBISHI ELECTRIC main base unit for MELSEC-Q Series holds the power supply, CPU and I/O modules and provides the internal bus between them. It is available in various slot counts, and blank covers fill unused slots to protect the base. It is the foundation of a modular Q Series PLC system.Key Features Holds power supply, CPU and I/O modules Several slot counts available Blank covers for unused slots Specifications Part No. I/O Module Mounting Range Mass (kg) Power Supply Mountable Dimensions (H×W×D) (mm) Occupied I/O Points Class Unit Type Q312B 12 slots Required Main base Q33B 3 slots Required Main base Main base module Q38B 8 slots Required Main base Main base module QG60 0.07 98 × 27.4 × 90 (Basic) 16 points Blank cover How to OrderConfirm the number of slots and whether blank covers are needed. Please confirm the full part number and options against the MITSUBISHI ELECTRIC catalog; contact us if you need help identifying the right model.Product image is representative of the MITSUBISHI ELECTRIC series; appearance varies by size and model.About MITSUBISHI ELECTRICMitsubishi Electric is a Japanese manufacturer of factory automation and low-voltage power distribution equipment, including MELSEC PLCs, servo systems, inverters, magnetic contactors and starters, circuit breakers and measuring instruments.Ordering & Shipping Genuine MITSUBISHI ELECTRIC product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

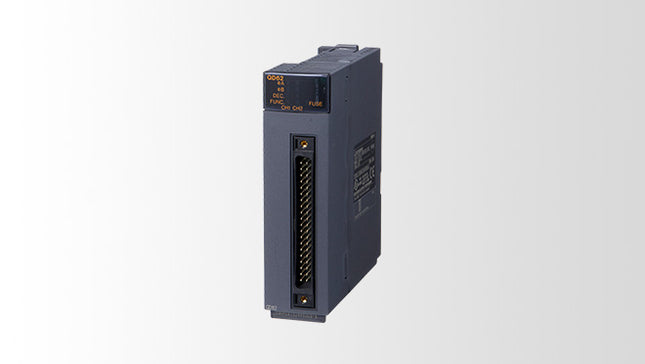

MITSUBISHI ELECTRIC QD62 — PLC MELSEC-Q Series High Speed Counter Module, genuine MITSUBISHI ELECTRIC product.OverviewThe QD62 is a two-channel high-speed counter module for the Mitsubishi Electric MELSEC-Q PLC, used to count pulses from rotary encoders and sensors. It handles counting frequencies well beyond the reach of standard input modules and supplies coincidence outputs. Typical uses are length measurement, position tracking and speed monitoring on production machinery.Key Features Two independent counting channels DC input for encoder and sensor pulses Coincidence output for fast actions Preset and ring counter functions Specifications Part No. Input Type No. of Channels Input Method Max. Counting Speed (pps) QD62 1-phase, 2-phase, CW CCW input 2 Photocoupler (DC5/12/24V 2 ~ 5mA) How to OrderCheck input voltage type, maximum counting speed and encoder signal type. Please confirm the full part number and options against the MITSUBISHI ELECTRIC catalog; contact us if you need help identifying the right model.Product image is representative of the MITSUBISHI ELECTRIC series; appearance varies by size and model.About MITSUBISHI ELECTRICMitsubishi Electric is a Japanese manufacturer of factory automation and low-voltage power distribution equipment, including MELSEC PLCs, servo systems, inverters, magnetic contactors and starters, circuit breakers and measuring instruments.Ordering & Shipping Genuine MITSUBISHI ELECTRIC product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

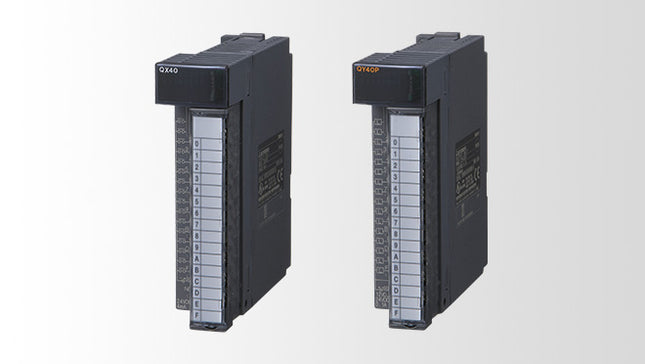

MITSUBISHI ELECTRIC Q — Mixed I/O Unit, genuine MITSUBISHI ELECTRIC product.OverviewThis MELSEC-Q Series digital I/O unit from MITSUBISHI ELECTRIC reads sensors and switches or drives actuators such as relays and solenoid valves. Input, output and mixed versions are available with different point counts. It is used in machine and process control systems. Modules plug into any I/O slot of a Q Series base unit and are assigned addresses in the engineering software.Key Features Digital input or output points Mixed versions combine both Status LEDs for each point Terminal block or connector wiring Specifications Part No. No. of Inputs Unit Type No. of Outputs Connection Method QH42P 32 points 32 points QX40 Input device External wiring QX41 Input device External wiring QX42 Input device External wiring QX48Y57 8 points I/O combined unit 7 points External wiring QX80 Input device External wiring QY10 Output device 16 points QY18A 8 points QY40P Output device 16 points QY41P Output device 32 points QY42P Output device 64 points QY80 16 points How to OrderConfirm number of points, voltage, output type and wiring method. Please confirm the full part number and options against the MITSUBISHI ELECTRIC catalog; contact us if you need help identifying the right model.Product image is representative of the MITSUBISHI ELECTRIC series; appearance varies by size and model.About MITSUBISHI ELECTRICMitsubishi Electric is a Japanese manufacturer of factory automation and low-voltage power distribution equipment, including MELSEC PLCs, servo systems, inverters, magnetic contactors and starters, circuit breakers and measuring instruments.Ordering & Shipping Genuine MITSUBISHI ELECTRIC product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

MITSUBISHI ELECTRIC QJ71LP21-25 — PLC MELSEC-Q Series MELSECNET Module, genuine MITSUBISHI ELECTRIC product.OverviewMELSECNET modules connect MELSEC-Q PLCs from Mitsubishi Electric into a controller network for high-speed data sharing between stations. Optical loop or coaxial bus versions are available. They are used in large plants where multiple PLCs must exchange data reliably. Network parameters are set from the PLC engineering software, making station configuration straightforward during commissioning.Key Features High-speed PLC-to-PLC networking Optical loop or coaxial bus models Cyclic data sharing between stations Redundant loop for reliability Specifications Part No. Communication Speed Network Name Total Extension Distance (m) Max. No. of Networks QJ71LP21-25 25Mbps/10Mbps MELSECNET/H 30000 239 How to OrderConfirm network type (optical or coaxial), station role and cable type. Please confirm the full part number and options against the MITSUBISHI ELECTRIC catalog; contact us if you need help identifying the right model.Product image is representative of the MITSUBISHI ELECTRIC series; appearance varies by size and model.About MITSUBISHI ELECTRICMitsubishi Electric is a Japanese manufacturer of factory automation and low-voltage power distribution equipment, including MELSEC PLCs, servo systems, inverters, magnetic contactors and starters, circuit breakers and measuring instruments.Ordering & Shipping Genuine MITSUBISHI ELECTRIC product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

MITSUBISHI ELECTRIC FX2N — Extension Block for Output Expansion, genuine MITSUBISHI ELECTRIC product.OverviewThe MITSUBISHI ELECTRIC FX2N extension block for output expansion adds digital outputs to MELSEC-F Series compact PLCs. Relay output versions switch AC or DC loads, while transistor versions provide fast DC switching. It is used to expand I/O on small machines without changing the main unit.Key Features Adds 8 outputs to FX PLCs Relay and transistor output versions Compact block design Specifications Part No. Power Supply Specification No. of Outputs Dimensions (W×H×D) (mm) Mass (kg) Output Method Output Specification Unit Type Program Memory Connection Type Input Specification I/O Points (points) FX2N-16EYR Internal power from base / extension unit 16 points 40 × 90 × 87 0.3 Relay output 2A 1 point (8A 4 points) AC250V DC30V Output extension block 64000 steps built-in RAM (battery backup) Output FX2N-16EYT Internal power from base / extension unit 16 points 40 × 90 × 87 0.3 Transistor (sink) output 0.5A/1 point (0.8A/4 points) DC5 ~ 30V Output extension block 64000 steps built-in RAM (battery backup) Output Vertical terminal block (M3 screw) - FX2N-8EYR Internal power from base / extension unit 8 points 43 × 90 × 87 0.2 Relay output 2A/1 point (8A/4 points) AC250V DC30V Output extension block 64000 steps built-in RAM (battery backup) Output Vertical terminal block (M3 screw) - FX2N-8EYT Internal power from base / extension unit 8 points 43 × 90 × 87 0.2 Transistor (sink) output 0.5A/1 point (0.8A/4 points) DC5 ~ 30V Output extension block 64000 steps built-in RAM (battery backup) Output Vertical terminal block (M3 screw) - FX2NC-16EYR-T Supplied from base unit 16 points 24.2 × 90 × 89 0.15 Relay output 2A/1 point (4A/1COM) AC250V DC30V 16 points FX2NC-16EYT Supplied from base unit 16 points 14.6 × 90 × 87 0.15 Transistor output 0.1A 1 point How to OrderConfirm the output type, point count and PLC compatibility. Please confirm the full part number and options against the MITSUBISHI ELECTRIC catalog; contact us if you need help identifying the right model.Product image is representative of the MITSUBISHI ELECTRIC series; appearance varies by size and model.About MITSUBISHI ELECTRICMitsubishi Electric is a Japanese manufacturer of factory automation and low-voltage power distribution equipment, including MELSEC PLCs, servo systems, inverters, magnetic contactors and starters, circuit breakers and measuring instruments.Ordering & Shipping Genuine MITSUBISHI ELECTRIC product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

MITSUBISHI ELECTRIC QJ71E71-100 — PLC MELSEC-Q Series Ethernet Module, genuine MITSUBISHI ELECTRIC product.OverviewThe QJ71E71-100 is an Ethernet interface module for the Mitsubishi Electric MELSEC-Q series PLC. It provides a 100BASE-TX/10BASE-T port for communication with SCADA systems, HMIs, PCs and other PLCs using MC protocol, socket communication and file transfer. It is a common choice for connecting older Q systems to plant networks.Key Features 100BASE-TX/10BASE-T Ethernet port Supports MC protocol and socket communication Connects PLC to PCs, HMIs and other controllers Mounts on Q series base units Specifications Part No. Transmission Method Network Name Transmission Speed (Mbps) Max. Segment Length (m) QJ71E71-100 Board hand Ethernet 100/10 100 (length between hub and node) How to OrderConfirm CPU compatibility and the communication protocols needed by connected systems. Please confirm the full part number and options against the MITSUBISHI ELECTRIC catalog; contact us if you need help identifying the right model.Product image is representative of the MITSUBISHI ELECTRIC series; appearance varies by size and model.About MITSUBISHI ELECTRICMitsubishi Electric is a Japanese manufacturer of factory automation and low-voltage power distribution equipment, including MELSEC PLCs, servo systems, inverters, magnetic contactors and starters, circuit breakers and measuring instruments.Ordering & Shipping Genuine MITSUBISHI ELECTRIC product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

MITSUBISHI ELECTRIC QJ71C24N — PLC MELSEC-Q Series Serial Communication Module, genuine MITSUBISHI ELECTRIC product.OverviewThe QJ71C24N is a MELSEC-Q Series serial communication module from MITSUBISHI ELECTRIC. It provides RS-232 and RS-422/485 ports for communicating with barcode readers, instruments, PCs and other devices. It supports MELSEC protocols and user-defined protocols. It is often used to bring legacy serial devices into a Q Series system, exchanging data with weighing scales, temperature controllers and printers without additional gateways.Key Features RS-232 and RS-422/485 serial ports Communicates with instruments and devices Supports MELSEC and user protocols Configured with engineering software Specifications Part No. Transmission Speed (bps) Synchronization Method Protocol QJ71C24N 230.4K Asynchronous method MC, non-sequential bidirectional communication QJ71C24N-R2 230.4K Asynchronous method MC, non-sequential bidirectional communication QJ71C24N-R4 230.4K Asynchronous method MC, non-sequential bidirectional communication How to OrderConfirm the serial interface type, channels and protocol. Please confirm the full part number and options against the MITSUBISHI ELECTRIC catalog; contact us if you need help identifying the right model.Product image is representative of the MITSUBISHI ELECTRIC series; appearance varies by size and model.About MITSUBISHI ELECTRICMitsubishi Electric is a Japanese manufacturer of factory automation and low-voltage power distribution equipment, including MELSEC PLCs, servo systems, inverters, magnetic contactors and starters, circuit breakers and measuring instruments.Ordering & Shipping Genuine MITSUBISHI ELECTRIC product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

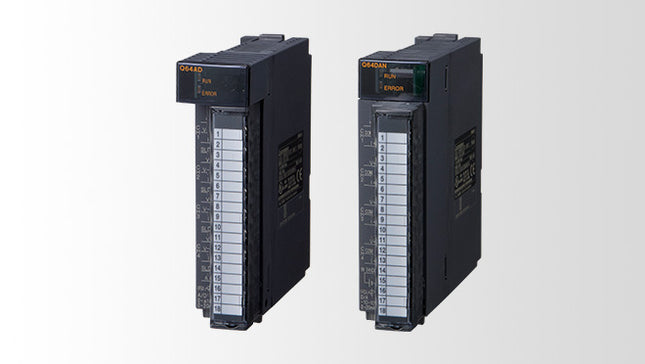

MITSUBISHI ELECTRIC Q6 — PLC MELSEC-Q Series Analog Module, genuine MITSUBISHI ELECTRIC product.OverviewThese MELSEC-Q Series analog modules from Mitsubishi Electric convert analog signals to digital (input) or digital values to analog signals (output). They connect sensors, transmitters and analog actuators such as valves and inverters to the PLC. They are used in process control and machine automation.Key Features Analog input or output models Voltage and current signal types Multiple channels per module Parameter-based configuration Specifications Part No. Conversion Speed Analog Input No. of Channels Connection Method Unit Type Analog Output No. of Inputs Type Q64AD 80μs/channel 4.0 External wiring / 18-point screw terminal block (M3 screw) A/D conversion device Analog input / voltage/current input Q64DAN 80μs/CH 4.0 External wiring / 18-point screw terminal block (M3 screw) D/A conversion device (Voltage) DC-10 ~ +10V, (Current) DC0 ~ 20mA Analog output / voltage/current output Q68ADI 80μs/CH (Current) DC0 ~ 20mA (input resistance / 250Ω) 8.0 External wiring / 18-point screw terminal block (M3 screw) A/D conversion device Analog / 8 points (8 channels) Analog input / current input How to OrderChoose input or output type, signal range and number of channels. Please confirm the full part number and options against the MITSUBISHI ELECTRIC catalog; contact us if you need help identifying the right model.Product image is representative of the MITSUBISHI ELECTRIC series; appearance varies by size and model.About MITSUBISHI ELECTRICMitsubishi Electric is a Japanese manufacturer of factory automation and low-voltage power distribution equipment, including MELSEC PLCs, servo systems, inverters, magnetic contactors and starters, circuit breakers and measuring instruments.Ordering & Shipping Genuine MITSUBISHI ELECTRIC product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

MITSUBISHI ELECTRIC AC — Cable for Connector/Terminal Block Converter, genuine MITSUBISHI ELECTRIC product.OverviewThis MITSUBISHI ELECTRIC cable links PLC I/O modules that use connector-type terminals to a connector/terminal block converter module. The converter breaks the dense connector out to screw terminals for field wiring, making panel wiring easier to install, check and maintain. It is used in control panels with high-density connector-type input and output modules.Key Features Links connector I/O modules to terminal blocks Several lengths available Simplifies field wiring Specifications Part No. Cable Length (m) Compatibility AC05TB 0.5 A6TBXY36/A6TBXY54/A6TBX70 (positive common/sink type) AC10TB 1.0 A6TBXY36/A6TBXY54/A6TBX70 (positive common/sink type) AC20TB 2.0 A6TBXY36/A6TBXY54/A6TBX70 (positive common/sink type) How to OrderConfirm the cable length and the I/O module and terminal block models. Please confirm the full part number and options against the MITSUBISHI ELECTRIC catalog; contact us if you need help identifying the right model.About MITSUBISHI ELECTRICMitsubishi Electric is a Japanese manufacturer of factory automation and low-voltage power distribution equipment, including MELSEC PLCs, servo systems, inverters, magnetic contactors and starters, circuit breakers and measuring instruments.Ordering & Shipping Genuine MITSUBISHI ELECTRIC product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

MITSUBISHI ELECTRIC A6CON — 40-Pin Connector for I/O Units (FCN Connector), genuine MITSUBISHI ELECTRIC product.OverviewThe A6CON series are 40-pin FCN-type connectors used to wire Mitsubishi Electric PLC I/O modules that have connector-type terminals instead of screw terminals. Different models offer soldering, crimp or pressure-displacement wiring methods, as well as straight or angled cable exits. They are used to connect field wiring or terminal block cables to high-density Q and L series I/O modules.Key Features 40-pin FCN connector for high-density I/O Solder, crimp or pressure-displacement versions Straight or angled cable outlet options Fits connector-type MELSEC I/O modules Specifications Part No. A6CON1 A6CON3 A6CON4 How to OrderChoose the wiring method and cable outlet direction that suit the panel layout. Please confirm the full part number and options against the MITSUBISHI ELECTRIC catalog; contact us if you need help identifying the right model.About MITSUBISHI ELECTRICMitsubishi Electric is a Japanese manufacturer of factory automation and low-voltage power distribution equipment, including MELSEC PLCs, servo systems, inverters, magnetic contactors and starters, circuit breakers and measuring instruments.Ordering & Shipping Genuine MITSUBISHI ELECTRIC product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

MITSUBISHI ELECTRIC A6TBXY — Connector to Terminal Block Converter, genuine MITSUBISHI ELECTRIC product.OverviewThe connector to terminal block converter from MITSUBISHI ELECTRIC converts the connector of a PLC I/O module into screw terminals. It simplifies field wiring of sensors and actuators to high-density connector-type modules. It is mounted on DIN rail inside control panels. Clearly labeled terminals also make troubleshooting and wiring changes faster for maintenance staff.Key Features Converts I/O connectors to screw terminals Simplifies field wiring DIN rail mounting Matched to PLC I/O modules Specifications Part No. Applicable Wire (mm2) Compatible Models Description A6TBXY36 0.75 ~ 2 Q series, A series Sink type input device, sink type output unit (standard type) A6TBXY54 0.75 ~ 2 Q series How to OrderConfirm the I/O module type, number of points and cable. Please confirm the full part number and options against the MITSUBISHI ELECTRIC catalog; contact us if you need help identifying the right model.About MITSUBISHI ELECTRICMitsubishi Electric is a Japanese manufacturer of factory automation and low-voltage power distribution equipment, including MELSEC PLCs, servo systems, inverters, magnetic contactors and starters, circuit breakers and measuring instruments.Ordering & Shipping Genuine MITSUBISHI ELECTRIC product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

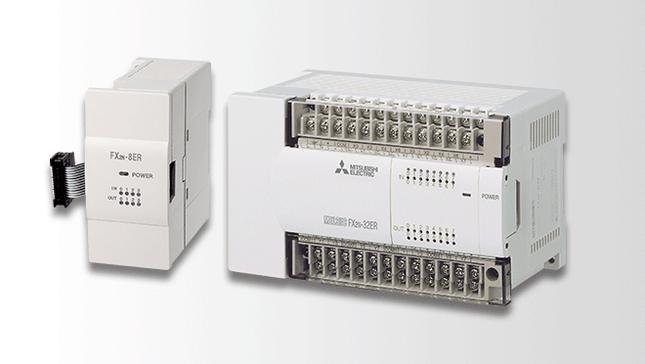

MITSUBISHI ELECTRIC FX2N — Extension Block for Input Expansion, genuine MITSUBISHI ELECTRIC product.OverviewFX2N extension blocks add digital input points to Mitsubishi Electric FX Series PLCs. They connect to the main unit's expansion port and are powered by the main unit, increasing input capacity for sensors and switches. They are used to expand small machine controllers. Expansion blocks keep wiring simple because they plug directly into the PLC's expansion connector.Key Features Adds 8 or 16 digital inputs Powered from the PLC main unit Terminal block or connector wiring Compact block size Specifications Part No. Dimensions (W×H×D) (mm) I/O Points (points) Input Signal Mass (kg) Input Type Power Supply Specification Connection Type No. of Inputs Power Supply Unit Type Program Memory FX2N-16EX 40 × 90 × 87 0.3 Supplied from base / extension unit Input Vertical terminal block (M3 screw) 16 points Input extension block FX2N-8EX 43 × 90 × 87 8 DC24V/5mA 0.2 Sink Supplied from base / extension unit Input Vertical terminal block (M3 screw) 8 points Internal power from sequencer Input extension block FX2N-8EX-ES/UL 43×90×87 DC24V/5mA 0.2 Sink/source Supplied from base / extension unit Input / vertical terminal block (M3 screw) 8 points Internal power from sequencer Input extension block 64000 steps built-in RAM (battery backup) How to OrderCheck number of inputs, input type (sink or source) and compatibility with the PLC series. Please confirm the full part number and options against the MITSUBISHI ELECTRIC catalog; contact us if you need help identifying the right model.Product image is representative of the MITSUBISHI ELECTRIC series; appearance varies by size and model.About MITSUBISHI ELECTRICMitsubishi Electric is a Japanese manufacturer of factory automation and low-voltage power distribution equipment, including MELSEC PLCs, servo systems, inverters, magnetic contactors and starters, circuit breakers and measuring instruments.Ordering & Shipping Genuine MITSUBISHI ELECTRIC product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

MITSUBISHI ELECTRIC FX-20P-CA — PLC Cable for FX-30P, genuine MITSUBISHI ELECTRIC product.OverviewThis MITSUBISHI ELECTRIC cable connects the FX-30P handy programming panel to MELSEC-F Series compact PLCs, either directly or through an adapter. With it, technicians can enter and edit programs, monitor devices and change parameters from the handheld unit without a PC. It is used for on-site servicing and commissioning of small machines.Key Features Connects handy programmer to FX PLCs Adapter or cable types available For on-site programming and monitoring Specifications Part No. Cable Length (m) FX-20P-CAB0 1.5 FX-20P-CADP 0.3 How to OrderConfirm the PLC model and the programmer connector type. Please confirm the full part number and options against the MITSUBISHI ELECTRIC catalog; contact us if you need help identifying the right model.About MITSUBISHI ELECTRICMitsubishi Electric is a Japanese manufacturer of factory automation and low-voltage power distribution equipment, including MELSEC PLCs, servo systems, inverters, magnetic contactors and starters, circuit breakers and measuring instruments.Ordering & Shipping Genuine MITSUBISHI ELECTRIC product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

MITSUBISHI ELECTRIC SD-Q1 — High Sensitivity Magnetic Contactor SD-Q Series, genuine MITSUBISHI ELECTRIC product.OverviewThe Mitsubishi Electric SD-Q series is a high-sensitivity DC-operated magnetic contactor with low coil power, allowing it to be driven directly by PLC transistor outputs. It switches motors and other loads in control panels. It is used in automated machines and systems driven by PLCs.Key Features Low coil consumption for PLC direct drive DC-operated coil Compact contactor body Auxiliary contact options Specifications Part No. Coil Rated Voltage (V) Type Rated Breaking Capacity (kA) Length (mm) Frame Mass (kg) Thermal Current (A) Width (W, mm) Altitude (m) Applicable Motor Capacity (500-550V) (kW) Mechanical Durability Applicable Rail Width (mm) Thickness (mm) Rated Operational Current (A) 3-Phase Squirrel-Cage Motor (AC-3) Rated Capacity (kW) 3-Phase Squirrel-Cage Motor (AC-3) Switching Frequency (ops/h) Avg. Power Consumption SD-Q11 DC24V 1b Electromagnetic contactor (220V)120(440V)90 2000 or less 3-phase squirrel-cage motor (AC-3): 4 10 million operations 35.0 (200-240V)12 (380-440V)9 (500-550V)7 (200-240V)2.5 (380-440V)4 (500-550V)4 1800.0 1.3W SD-Q12 DC24V 1A1B 51.0 Q12 0.21 20.0 3-phase squirrel-cage motor (AC-3): 4 (200-240V)2.5 (380-440V)4 (500-550V)4 How to OrderSpecify frame size, coil voltage and auxiliary contact arrangement. Please confirm the full part number and options against the MITSUBISHI ELECTRIC catalog; contact us if you need help identifying the right model.Product image is representative of the MITSUBISHI ELECTRIC series; appearance varies by size and model.About MITSUBISHI ELECTRICMitsubishi Electric is a Japanese manufacturer of factory automation and low-voltage power distribution equipment, including MELSEC PLCs, servo systems, inverters, magnetic contactors and starters, circuit breakers and measuring instruments.Ordering & Shipping Genuine MITSUBISHI ELECTRIC product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

MITSUBISHI ELECTRIC UN-CZ800 — Live Part Protective Cover for Magnetic Starters, Contactors and Relays, genuine MITSUBISHI ELECTRIC product.OverviewThis live part protective cover from MITSUBISHI ELECTRIC fits over the terminals of magnetic starters, contactors and relays. It prevents accidental contact with live parts, improving safety for operators and maintenance staff. It is used in control panels where terminals are exposed. Covers are especially useful where panels are opened for inspection while energized.Key Features Covers live terminals on contactors and relays Prevents accidental contact Snap-on installation Matched to contactor frame Specifications Part No. Installation Method Compatibility Model Type Type UN-CZ800 Head-on S(D)-N80/N95, B(D)-N65, SL(D)-N80/N95 UN-CZ800 Related products How to OrderConfirm the contactor or relay frame size. Please confirm the full part number and options against the MITSUBISHI ELECTRIC catalog; contact us if you need help identifying the right model.About MITSUBISHI ELECTRICMitsubishi Electric is a Japanese manufacturer of factory automation and low-voltage power distribution equipment, including MELSEC PLCs, servo systems, inverters, magnetic contactors and starters, circuit breakers and measuring instruments.Ordering & Shipping Genuine MITSUBISHI ELECTRIC product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

MITSUBISHI ELECTRIC UN-AX — MS-N Series Contact Unit, genuine MITSUBISHI ELECTRIC product.OverviewThe MS-N Series contact unit is an auxiliary contact block from Mitsubishi Electric that clips onto MS-N magnetic contactors and starters to add extra control contacts. These contacts provide signals for interlocking, indication and control logic. It is used to extend contactor functions in motor control panels.Key Features Adds auxiliary contacts to MS-N contactors Front or side mounting options Various contact configurations Clip-on installation Specifications Part No. Specification Type Mass (kg) Model Type Auxiliary Contacts Installation Method UN-AX2 1a1b UL · CSA Related products 0.03 UN-AX2 1a1b Head-on UN-AX2 2a UL · CSA Related products 0.03 UN-AX2 2a Head-on UN-AX4 2a2b UL · CSA Related products 0.05 UN-AX4 2a2b Head-on How to OrderConfirm contact configuration (for example 2a, 1a1b) and the contactor frame it fits. Please confirm the full part number and options against the MITSUBISHI ELECTRIC catalog; contact us if you need help identifying the right model.About MITSUBISHI ELECTRICMitsubishi Electric is a Japanese manufacturer of factory automation and low-voltage power distribution equipment, including MELSEC PLCs, servo systems, inverters, magnetic contactors and starters, circuit breakers and measuring instruments.Ordering & Shipping Genuine MITSUBISHI ELECTRIC product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

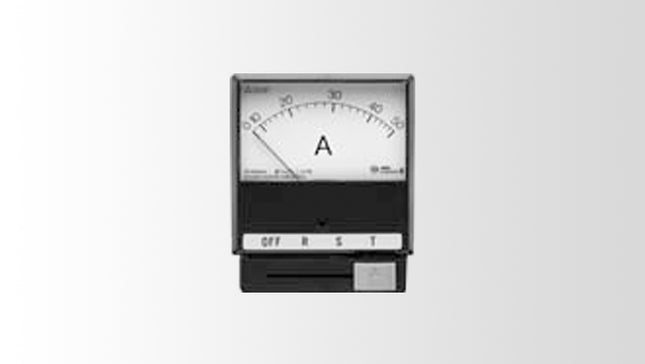

MITSUBISHI ELECTRIC Y — AC Ammeter Square Panel Meter Y-2N Series, genuine MITSUBISHI ELECTRIC product.OverviewThe MITSUBISHI ELECTRIC Y-2N Series AC ammeter is a square panel meter that displays current flowing in a circuit. It is normally connected through a current transformer with a 5A secondary, with the scale matched to the CT ratio. It is used on switchboards, motor control centers and distribution panels.Key Features Square panel-mount design Scale matched to CT ratio Analog pointer for quick reading Specifications Part No. Reference Guideline Material (Cover) Cover Scale Graduation (mm) Mounting Orientation Humidity (%RH) Type Power Consumption (VA) Product Size (W×L) Accessories Operating Principle Accuracy Class Dial Plate Insulation Resistance (MΩ) Dim. a (mm) Instrument Rating Scale Specification Operating Temp. Range (˚C) Model Type Frequency (Hz) Operating Temp. Range (℃) Mass (kg) YR-8UNAA B 0-500A 500/5A Black (Munsell N1.5 semi-gloss), without red pointer 30 ~ 70 has no adverse effect on indication CT combined use 82 × 99 Nut for mounting screw 2.5 -5 ~ 50 (standard 23) YR-8UNAA 50/60 dual use 0.2 YS-10NAA B 0-150-450A 150/5A N None Acrylic resin (antistatic treated) Black (Munsell N1.5 semi-gloss) Vertical (dial perpendicular to horizontal plane) 1.0 Mounting screw nut 10 or more (between electrical circuit and enclosure) 0-150-450A (3x extended) 150 5A (CT ratio) YS-10NAA BR 0-100-300A 100/5A N With red pointer Acrylic resin (antistatic treated) Black (Munsell N1.5 semi-gloss) Vertical (dial perpendicular to horizontal plane) Moving-iron type (Background color) white 10 or more (between electrical circuit and enclosure) 41.0 0-100-300A (3x extended) 100 5A (CT ratio) -5 ~ 50 (reference 23) YS-10NAA BR 0-40-120A 40/5A N Black (Munsell N1.5 semi-gloss) 90.0 Vertical (dial perpendicular to horizontal plane) 1.0 Moving-iron type (Background color) white 10 or more (between electrical circuit and enclosure) 41.0 0-40-120A (3x extended) 40 5A (CT ratio) YS-10NAA YS-206NAA B 0-10-30A 10/5A N Acrylic resin (antistatic treated) Black (Munsell N1.5 semi-gloss) 55.0 1.0 Mounting screw nut (Background color) white 43.0 5A 0-10-30A (3x extended) 10 5A (CT ratio) YS-206NAA YS-206NAA B 0-10-30A DRCT N Acrylic resin (antistatic treated) Black (Munsell N1.5 semi-gloss) Vertical (dial perpendicular to horizontal plane) 1.0 Moving-iron type (Background color) white 43.0 10A -5 ~ 50 (reference 23) 0.1 YS-206NAA B 0-15-45A DRCT N None Black (Munsell N1.5 semi-gloss) Mounting screw nut (Background color) white 10 or more (between electrical circuit and enclosure) 15A 0-15-45A (3x extended) YS-206NAA -5 ~ 50 (reference 23) 0.1 YS-206NAA B 0-20-60A DRCT N None Vertical (dial perpendicular to horizontal plane) Relative humidity 30 ~ 70 has no adverse effect on indication Mounting screw nut Moving-iron type 2.5 (Background color) white 10 or more (between electrical circuit and enclosure) -5 ~ 50 (reference 23) 0.1 YS-206NAA B 0-3-9A DRCT N 55.0 Relative humidity 30 ~ 70 has no adverse effect on indication 1.0 Mounting screw nut Moving-iron type 2.5 (Background color) white 10 or more (between electrical circuit and enclosure) 43.0 -5 ~ 50 (reference 23) YS-206NAA B 0-30-90A DRCT N None Acrylic resin (antistatic treated) 55.0 Vertical (dial perpendicular to horizontal plane) Relative humidity 30 ~ 70 has no adverse effect on indication Moving-iron type 2.5 10 or more (between electrical circuit and enclosure) 30A 0-30-90A (3x extended) YS-206NAA YS-206NAA B 0-40-120A 40/5A N None Black (Munsell N1.5 semi-gloss) Vertical (dial perpendicular to horizontal plane) Mounting screw nut Moving-iron type 2.5 5A 0-40-120A (3x extended) 40 5A (CT ratio) -5 ~ 50 (reference 23) YS-206NAA B 0-5-15A 5/5A N Acrylic resin (antistatic treated) Black (Munsell N1.5 semi-gloss) Vertical (dial perpendicular to horizontal plane) Relative humidity 30 ~ 70 has no adverse effect on indication 1.0 Moving-iron type 2.5 10 or more (between electrical circuit and enclosure) 43.0 -5 ~ 50 (reference 23) 0.1 YS-206NAA B 0-5-15A DRCT N Acrylic resin (antistatic treated) Black (Munsell N1.5 semi-gloss) Relative humidity 30 ~ 70 has no adverse effect on indication 1.0 Mounting screw nut 2.5 43.0 5A 0-5-15A (3x extended) YS-206NAA -5 ~ 50 (reference 23) YS-206NAA B 0-50-150A 50/5A N None Acrylic resin (antistatic treated) 55.0 1.0 Mounting screw nut 2.5 10 or more (between electrical circuit and enclosure) 43.0 0-50-150A (3x extended) 50 5A (CT ratio) -5 ~ 50 (reference 23) YS-206NAA BR 0-10-30A DRCT N With red pointer Black (Munsell N1.5 semi-gloss) 55.0 Relative humidity 30 ~ 70 has no adverse effect on indication Mounting screw nut 2.5 10A 0-10-30A (3x extended) 0.1 YS-206NAA BR 0-15-45A DRCT N With red pointer Vertical (dial perpendicular to horizontal plane) Relative humidity 30 ~ 70 has no adverse effect on indication Mounting screw nut 2.5 10 or more (between electrical circuit and enclosure) 43.0 0-15-45A (3x extended) YS-206NAA YS-206NAA BR 0-20-60A DRCT N With red pointer Acrylic resin (antistatic treated) Vertical (dial perpendicular to horizontal plane) 2.5 (Background color) white 43.0 20A 0-20-60A (3x extended) YS-206NAA -5 ~ 50 (reference 23) 0.1 YS-206NAA BR 0-3-9A DRCT N Acrylic resin (antistatic treated) Black (Munsell N1.5 semi-gloss) Vertical (dial perpendicular to horizontal plane) Mounting screw nut 2.5 (Background color) white 43.0 0.1 YS-206NAA BR 0-30-90A DRCT N With red pointer Acrylic resin (antistatic treated) Relative humidity 30 ~ 70 has no adverse effect on indication Mounting screw nut (Background color) white 10 or more (between electrical circuit and enclosure) 43.0 YS-206NAA -5 ~ 50 (reference 23) 0.1 YS-206NAA BR 0-40-120A 40/5A N With red pointer Black (Munsell N1.5 semi-gloss) Relative humidity 30 ~ 70 has no adverse effect on indication 1.0 Moving-iron type 2.5 (Background color) white 43.0 YS-206NAA -5 ~ 50 (reference 23) 0.1 YS-206NAA BR 0-5-15A DRCT N With red pointer Acrylic resin (antistatic treated) 1.0 2.5 (Background color) white 10 or more (between electrical circuit and enclosure) 5A 0-5-15A (3x extended) YS-206NAA YS-208NAA B 0-10-30A DRCT N None 70.0 Vertical (dial perpendicular to horizontal plane) Mounting screw nut Moving-iron type (Background color) white 10 or more (between electrical circuit and enclosure) 10A YS-208NAA -5 ~ 50 (reference 23) YS-208NAA B 0-15-45A DRCT N None Acrylic resin (antistatic treated) 70.0 Mounting screw nut 43.0 15A 0-15-45A (3x extended) -5 ~ 50 (reference 23) 0.1 YS-208NAA B 0-20-60A DRCT N Acrylic resin (antistatic treated) Black (Munsell N1.5 semi-gloss) 70.0 Vertical (dial perpendicular to horizontal plane) Relative humidity 30 ~ 70 has no adverse effect on indication Mounting screw nut Moving-iron type (Background color) white 20A 0-20-60A (3x extended) -5 ~ 50 (reference 23) YS-208NAA B 0-30-90A 30/5A N None Black (Munsell N1.5 semi-gloss) Moving-iron type 2.5 10 or more (between electrical circuit and enclosure) 43.0 5A 0-30-90A (3x extended) 30 5A (CT ratio) YS-208NAA -5 ~ 50 (reference 23) YS-208NAA B 0-30-90A DRCT N None Acrylic resin (antistatic treated) 70.0 Relative humidity 30 ~ 70 has no adverse effect on indication Mounting screw nut 2.5 (Background color) white 0-30-90A (3x extended) 0.1 YS-208NAA B 0-5-15A DRCT N None Acrylic resin (antistatic treated) Black (Munsell N1.5 semi-gloss) 70.0 Relative humidity 30 ~ 70 has no adverse effect on indication Mounting screw nut Moving-iron type (Background color) white 43.0 YS-208NAA YS-208NAA BR 0-10-30A 10/5A N With red pointer Black (Munsell N1.5 semi-gloss) Vertical (dial perpendicular to horizontal plane) 2.5 (Background color) white 43.0 0-10-30A (3x extended) 10 5A (CT ratio) YS-208NAA YS-208NAA BR 0-10-30A DRCT N With red pointer Acrylic resin (antistatic treated) Black (Munsell N1.5 semi-gloss) Vertical (dial perpendicular to horizontal plane) Mounting screw nut Moving-iron type 2.5 10 or more (between electrical circuit and enclosure) 0-10-30A (3x extended) YS-208NAA 0.1 YS-208NAA BR 0-3-9A DRCT N Black (Munsell N1.5 semi-gloss) 70.0 Relative humidity 30 ~ 70 has no adverse effect on indication 1.0 Mounting screw nut Moving-iron type (Background color) white 10 or more (between electrical circuit and enclosure) 0-3-9A (3x extended) 0.1 YS-208NAA BR 0-5-15A 5/5A N Acrylic resin (antistatic treated) Black (Munsell N1.5 semi-gloss) 70.0 1.0 Moving-iron type 2.5 (Background color) white 5A 0-5-15A (3x extended) 5 5A (CT ratio) -5 ~ 50 (reference 23) YS-208NAA BR 0-60-180A 60/5A N With red pointer Acrylic resin (antistatic treated) Black (Munsell N1.5 semi-gloss) Moving-iron type (Background color) white 43.0 5A 0-60-180A (3x extended) 60 5A (CT ratio) YS-208NAA YS-208NAA BR 0-75-225A 75/5A N With red pointer Vertical (dial perpendicular to horizontal plane) 1.0 Mounting screw nut 2.5 10 or more (between electrical circuit and enclosure) 5A 0-75-225A (3x extended) 75 5A (CT ratio) YS-208NAA -5 ~ 50 (reference 23) YS-8NAA B 0-10-30A 10/5A N Black (Munsell N1.5 semi-gloss) Vertical (dial perpendicular to horizontal plane) Relative humidity 30 ~ 70 has no adverse effect on indication 1.0 Mounting screw nut 2.5 (Background color) white 10 or more (between electrical circuit and enclosure) 0-10-30A (3x extended) 10 5A (CT ratio) -5 ~ 50 (reference 23) YS-8NAA B 0-10-30A DRCT N None 70.0 Vertical (dial perpendicular to horizontal plane) 1.0 Mounting screw nut Moving-iron type 2.5 41.0 YS-8NAA 0.1 YS-8NAA B 0-10A DRCT None Acrylic resin (antistatic treated) Relative humidity 30 ~ 70 has no adverse effect on indication 1.0 Mounting screw nut 2.5 41.0 10A 0-10A 0.1 YS-8NAA B 0-15-45A DRCT N None 70.0 Relative humidity 30 ~ 70 has no adverse effect on indication 1.0 Moving-iron type 2.5 41.0 15A YS-8NAA -5 ~ 50 (reference 23) YS-8NAA B 0-150A 150/5A Acrylic resin (antistatic treated) 70.0 Relative humidity 30 ~ 70 has no adverse effect on indication (Background color) white 10 or more (between electrical circuit and enclosure) 41.0 5A 0-150A 150 5A (CT ratio) -5 ~ 50 (reference 23) YS-8NAA B 0-15A DRCT Acrylic resin (antistatic treated) Vertical (dial perpendicular to horizontal plane) Relative humidity 30 ~ 70 has no adverse effect on indication 1.0 Mounting screw nut Moving-iron type (Background color) white 15A 0-15A YS-8NAA YS-8NAA B 0-20-60A DRCT N None Acrylic resin (antistatic treated) 70.0 Vertical (dial perpendicular to horizontal plane) 1.0 2.5 (Background color) white 0-20-60A (3x extended) YS-8NAA -5 ~ 50 (reference 23) YS-8NAA B 0-20A 20/5A None Relative humidity 30 ~ 70 has no adverse effect on indication 1.0 Mounting screw nut 2.5 10 or more (between electrical circuit and enclosure) 5A 0-20A 20 5A (CT ratio) YS-8NAA -5 ~ 50 (reference 23) YS-8NAA B 0-20A DRCT Acrylic resin (antistatic treated) 70.0 Relative humidity 30 ~ 70 has no adverse effect on indication Mounting screw nut 2.5 10 or more (between electrical circuit and enclosure) 41.0 20A 0-20A 0.1 YS-8NAA B 0-3-9A DRCT N Black (Munsell N1.5 semi-gloss) Vertical (dial perpendicular to horizontal plane) 1.0 Mounting screw nut 10 or more (between electrical circuit and enclosure) 41.0 0-3-9A (3x extended) -5 ~ 50 (reference 23) 0.1 YS-8NAA B 0-30-90A 30/5A N None Acrylic resin (antistatic treated) Black (Munsell N1.5 semi-gloss) Vertical (dial perpendicular to horizontal plane) 1.0 Mounting screw nut Moving-iron type 2.5 10 or more (between electrical circuit and enclosure) 5A 0-30-90A (3x extended) 30 5A (CT ratio) YS-8NAA B 0-30A 30/5A Acrylic resin (antistatic treated) 70.0 1.0 (Background color) white 10 or more (between electrical circuit and enclosure) 5A 0-30A 30 5A (CT ratio) YS-8NAA -5 ~ 50 (reference 23) YS-8NAA B 0-30A DRCT None Acrylic resin (antistatic treated) Relative humidity 30 ~ 70 has no adverse effect on indication Moving-iron type 10 or more (between electrical circuit and enclosure) 41.0 0-30A YS-8NAA -5 ~ 50 (reference 23) YS-8NAA B 0-5-15A DRCT N None Acrylic resin (antistatic treated) 70.0 Vertical (dial perpendicular to horizontal plane) Relative humidity 30 ~ 70 has no adverse effect on indication 1.0 Moving-iron type 5A YS-8NAA YS-8NAA B 0-5A DRCT Acrylic resin (antistatic treated) 70.0 Vertical (dial perpendicular to horizontal plane) Relative humidity 30 ~ 70 has no adverse effect on indication 1.0 Mounting screw nut Moving-iron type 41.0 0-5A YS-8NAA -5 ~ 50 (reference 23) YS-8NAA BR 0-10-30A DRCT N Black (Munsell N1.5 semi-gloss) Vertical (dial perpendicular to horizontal plane) 1.0 Moving-iron type 10A 0-10-30A (3x extended) YS-8NAA -5 ~ 50 (reference 23) 0.1 YS-8NAA BR 0-15-45A 15/5A N With red pointer Black (Munsell N1.5 semi-gloss) 70.0 Vertical (dial perpendicular to horizontal plane) Relative humidity 30 ~ 70 has no adverse effect on indication 1.0 Mounting screw nut (Background color) white 10 or more (between electrical circuit and enclosure) 0-15-45A (3x extended) 15 5A (CT ratio) YS-8NAA BR 0-15-45A DRCT N Acrylic resin (antistatic treated) Black (Munsell N1.5 semi-gloss) 70.0 Relative humidity 30 ~ 70 has no adverse effect on indication 1.0 Moving-iron type (Background color) white 41.0 -5 ~ 50 (reference 23) YS-8NAA BR 0-20-60A 20/5A N With red pointer Black (Munsell N1.5 semi-gloss) 70.0 1.0 Mounting screw nut 5A 0-20-60A (3x extended) 20 5A (CT ratio) YS-8NAA YS-8NAA BR 0-20-60A DRCT N Black (Munsell N1.5 semi-gloss) Relative humidity 30 ~ 70 has no adverse effect on indication Moving-iron type 2.5 (Background color) white 10 or more (between electrical circuit and enclosure) 41.0 20A 0-20-60A (3x extended) YS-8NAA YS-8NAA BR 0-3-9A DRCT N With red pointer Vertical (dial perpendicular to horizontal plane) 1.0 Mounting screw nut Moving-iron type (Background color) white 10 or more (between electrical circuit and enclosure) 0-3-9A (3x extended) YS-8NAA 0.1 YS-8NAA BR 0-30-90A 30/5A N With red pointer Black (Munsell N1.5 semi-gloss) Relative humidity 30 ~ 70 has no adverse effect on indication 1.0 Mounting screw nut 2.5 (Background color) white 5A 0-30-90A (3x extended) 30 5A (CT ratio) -5 ~ 50 (reference 23) YS-8NAA BR 0-5-15A 5/5A N With red pointer Black (Munsell N1.5 semi-gloss) 70.0 Vertical (dial perpendicular to horizontal plane) Mounting screw nut Moving-iron type 2.5 (Background color) white 10 or more (between electrical circuit and enclosure) 0-5-15A (3x extended) 5 5A (CT ratio) YS-8NAA YS-8NAA BR 0-5-15A DRCT N Acrylic resin (antistatic treated) Mounting screw nut Moving-iron type 41.0 5A 0-5-15A (3x extended) YS-8NAA -5 ~ 50 (reference 23) 0.1 How to OrderConfirm the scale range, CT ratio and panel cutout size. Please confirm the full part number and options against the MITSUBISHI ELECTRIC catalog; contact us if you need help identifying the right model.About MITSUBISHI ELECTRICMitsubishi Electric is a Japanese manufacturer of factory automation and low-voltage power distribution equipment, including MELSEC PLCs, servo systems, inverters, magnetic contactors and starters, circuit breakers and measuring instruments.Ordering & Shipping Genuine MITSUBISHI ELECTRIC product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

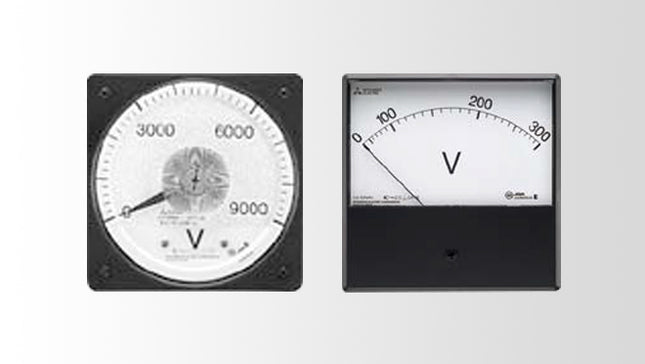

MITSUBISHI ELECTRIC YS — AC Voltmeter Square Panel Meter YS-NAV Series, genuine MITSUBISHI ELECTRIC product.OverviewThe Mitsubishi Electric YS-NAV series is a square panel-mounted AC voltmeter that displays circuit voltage on an analog dial. It is used on switchboards, distribution panels and control cabinets to monitor supply voltage. Direct-connect versions measure voltage without a voltage transformer within their range. The scale is matched to the measured circuit.Key Features Square analog dial for panel mounting Direct connection within the rated range Clear scale for quick reading Used on switchboards and control panels Specifications Part No. Dim. B (mm) Accuracy Class Dial Plate Mounting Orientation Dim. a (mm) Scale Specification Material (Cover) Cover Insulation Resistance (MΩ) Model Type Scale Graduation (mm) Mass (kg) Humidity (%RH) Operating Temp. Range (℃) Accessories Operating Principle Reference Guideline Power Consumption (VA) Operating Temp. Range (˚C) YS-10NAV B 0-300V DRCT 43.0 Vertical (dial perpendicular to horizontal plane) 41.0 Black (Munsell N1.5 semi-gloss) 10 or more at test voltage 500V (between electrical circuit and enclosure) YS-10NAV 0.15 Relative humidity 40 ~ 75 has no adverse effect on indication Mounting screw nut Moving-iron type 3.0 YS-206NAV B 0-150V DRCT 2.5 (Background color) white Vertical (dial perpendicular to horizontal plane) 43.0 0-150V Acrylic resin (antistatic treated) 55.0 0.1 Relative humidity 40 ~ 75 has no adverse effect on indication Mounting screw nut Moving-iron type YS-206NAV B 0-300V DRCT 2.5 Vertical (dial perpendicular to horizontal plane) 43.0 0-300V Acrylic resin (antistatic treated) 10 or more at test voltage 500V (between electrical circuit and enclosure) YS-206NAV 55.0 Relative humidity 40 ~ 75 has no adverse effect on indication None YS-208NAV B 0-300V DRCT 45.0 2.5 Vertical (dial perpendicular to horizontal plane) 0-300V Acrylic resin (antistatic treated) 10 or more at test voltage 500V (between electrical circuit and enclosure) 0.1 Relative humidity 40 ~ 75 has no adverse effect on indication -5 ~ 50 (standard 23) None -5 ~ 50 (reference 23) YS-8NAV B 0-150V DRCT 43.0 2.5 (Background color) white 41.0 Acrylic resin (antistatic treated) 10 or more at test voltage 500V (between electrical circuit and enclosure) 70.0 Relative humidity 40 ~ 75 has no adverse effect on indication -5 ~ 50 (reference 23) Moving-iron type None 3.0 YS-8NAV B 0-300V DRCT 43.0 (Background color) white Vertical (dial perpendicular to horizontal plane) 0-300V Acrylic resin (antistatic treated) YS-8NAV 70.0 Relative humidity 40 ~ 75 has no adverse effect on indication -5 ~ 50 (standard 23) Moving-iron type 3.0 YS-8NAV B 0-600V 440/110V 43.0 (Background color) white Vertical (dial perpendicular to horizontal plane) 41.0 Black (Munsell N1.5 semi-gloss) 70.0 Relative humidity 40 ~ 75 has no adverse effect on indication -5 ~ 50 (standard 23) None 3.0 -5 ~ 50 (reference 23) How to OrderSpecify the voltage range, connection type (direct or via VT) and size. Please confirm the full part number and options against the MITSUBISHI ELECTRIC catalog; contact us if you need help identifying the right model.About MITSUBISHI ELECTRICMitsubishi Electric is a Japanese manufacturer of factory automation and low-voltage power distribution equipment, including MELSEC PLCs, servo systems, inverters, magnetic contactors and starters, circuit breakers and measuring instruments.Ordering & Shipping Genuine MITSUBISHI ELECTRIC product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

MITSUBISHI ELECTRIC FR-CB20 — Parameter Unit Connection Cable for Inverter, genuine MITSUBISHI ELECTRIC product.OverviewThis MITSUBISHI ELECTRIC cable connects a parameter unit or operation panel to an inverter. It allows the panel to be mounted remotely, for example on a control panel door, while the inverter is installed inside. Different cable lengths are available. Cable routing through the panel wall allows parameters to be changed without opening the enclosure.Key Features Connects parameter unit to inverter Allows remote panel mounting Multiple cable lengths Plug-in connectors Specifications Part No. Compatible Models Length (m) FR-CB203 FREQROL-A500, E500 series 3.0 FR-CB205 FREQROL-A500, E500 series 5.0 How to OrderConfirm the inverter series and the required cable length. Please confirm the full part number and options against the MITSUBISHI ELECTRIC catalog; contact us if you need help identifying the right model.About MITSUBISHI ELECTRICMitsubishi Electric is a Japanese manufacturer of factory automation and low-voltage power distribution equipment, including MELSEC PLCs, servo systems, inverters, magnetic contactors and starters, circuit breakers and measuring instruments.Ordering & Shipping Genuine MITSUBISHI ELECTRIC product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

MITSUBISHI ELECTRIC TCS — Small Terminal Cover for Earth Leakage and Molded Case Circuit Breakers, genuine MITSUBISHI ELECTRIC product.OverviewThis small terminal cover from Mitsubishi Electric fits over the terminals of earth leakage and molded case circuit breakers to prevent accidental contact with live parts. It improves safety inside switchboards and distribution panels. Covers are matched to the breaker frame and number of poles.Key Features Covers live breaker terminals Improves panel safety Matched to breaker frame and poles Snap-on installation Specifications Part No. Breaker Poles Type Dim. a (mm) Dim. C (mm) Dim. B (mm) Dim. A (mm) Class Color Appearance TCS-03SV2 2.0 Small terminal cover (TC-S) one-touch 36.0 65.5 10 Small White One-touch TCS-03SV3 3.0 Small terminal cover (TC-S) one-touch 54.0 65.5 10 Small White One-touch TCS-05FA2 2.0 Small terminal cover (TC-S) one-touch 40.0 55.0 7.0 Small White One-touch TCS-05FA3 3.0 Small terminal cover (TC-S) one-touch 60.0 55.0 7.0 Small White One-touch TCS-05KC2W 2.0 Small terminal cover (TC-S) one-touch 50.0 55.5 5.0 Small White One-touch TCS-05KC3W 3.0 Small terminal cover (TC-S) one-touch 75.0 55.5 5.0 Small White One-touch TCS-05SV2 2.0 Small terminal cover (TC-S) one-touch 50.0 65.5 5 Small White One-touch TCS-05SV3 3,2 · 3 Small terminal cover (TC-S) one-touch 75.0 65.5 5 Small White One-touch TCS-1KC3W 3.0 Small terminal cover (TC - S) one-touch type 55.5 5 75 Small White One-touch TCS-1SV2 2.0 60 Small White One-touch TCS-1SV3 3,2 · 3 Small terminal cover (TC-S) one-touch 90.0 65.5 5 Small White One-touch TCS-2SV3 2 · 3 Small terminal cover (TC-S) one-touch 105.0 65.5 6.5 Small White One-touch How to OrderCheck the breaker frame, number of poles and line or load side mounting. Please confirm the full part number and options against the MITSUBISHI ELECTRIC catalog; contact us if you need help identifying the right model.About MITSUBISHI ELECTRICMitsubishi Electric is a Japanese manufacturer of factory automation and low-voltage power distribution equipment, including MELSEC PLCs, servo systems, inverters, magnetic contactors and starters, circuit breakers and measuring instruments.Ordering & Shipping Genuine MITSUBISHI ELECTRIC product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

MITSUBISHI ELECTRIC TCL — Large Terminal Cover for Earth Leakage and Molded Case Circuit Breakers, genuine MITSUBISHI ELECTRIC product.OverviewThis MITSUBISHI ELECTRIC large terminal cover fits earth leakage and molded case circuit breakers to enclose the terminal area. It prevents accidental contact with live terminals and increases safety for operators and maintenance staff. It is used in switchboards and control panels where touch protection is required.Key Features Covers breaker terminals to prevent contact Large type for extended wiring space Matched to specific breaker frames Specifications Part No. Type Breaker Poles Appearance Dim. B (mm) Class Dim. a (mm) Color Main Applications Dim. A (mm) TCL-03SV2 Large terminal cover (TC-L) 2.0 One-touch 30 Large 36.0 White For crimp terminal connection TCL-03SV3 Large terminal cover (TC-L) 3.0 One-touch 30 Large 54.0 White For crimp terminal connection TCL-05SV2 Large terminal cover (TC-L) 2.0 One-touch 25 Large 50.0 White For crimp terminal connection TCL-05SV3 Large terminal cover (TC-L) 3,2 · 3 One-touch 25 Large 75.0 White For crimp terminal connection TCL-05SV3L Large terminal cover (TC-L) 3,2 · 3 One-touch 40 Large 75.0 White For crimp terminal connection TCL-1SV2 Large terminal cover (TC-L) 2.0 One-touch 40 Large White For crimp terminal connection 60 TCL-1SV3 Large terminal cover (TC-L) 3,2 · 3 One-touch 40 Large 90.0 White For crimp terminal connection TCL-2SV3 Large terminal cover (TC-L) 2 · 3 40 Large 105.0 White For crimp terminal connection TCL-2SV3L Large terminal cover (TC-L) 2 · 3 One-touch 50 Large 105.0 White For crimp terminal connection TCL-4SW3 Large terminal cover (TC-L) 2 · 3 One-touch 110.0 Large 171.0 White For crimp terminal connection How to OrderConfirm the breaker frame and pole count the cover must fit. Please confirm the full part number and options against the MITSUBISHI ELECTRIC catalog; contact us if you need help identifying the right model.About MITSUBISHI ELECTRICMitsubishi Electric is a Japanese manufacturer of factory automation and low-voltage power distribution equipment, including MELSEC PLCs, servo systems, inverters, magnetic contactors and starters, circuit breakers and measuring instruments.Ordering & Shipping Genuine MITSUBISHI ELECTRIC product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

MITSUBISHI ELECTRIC NF — Molded Case Circuit Breaker for Distribution and Control Panels, genuine MITSUBISHI ELECTRIC product.OverviewThis Mitsubishi Electric molded case circuit breaker is designed for distribution and control panels, protecting circuits against overload and short circuit. The NF30-KC is a compact 30 A frame breaker with rated currents selectable for the load. It is used in control panels, small distribution boards and machine equipment.Key Features Overload and short-circuit protection Compact 30 A frame 2-pole versions for single-phase circuits Panel or DIN rail mounting by model Specifications Part No. Dimension c (mm) No. of Poles (P) Frame (AF) Specification Rated Insulation Voltage Color Mass (kg) Overcurrent Trip Method Rated Current (A) Dimension a (mm) Type Reference Ambient Temp. (℃) Dimension b (mm) Connection Method Dimension ca (mm) Switching Life (hours) Electrical Life (×10,000 ops) Mechanical Life (×10,000 ops) NF100-KC 3P 60A W 60 3.0 100.0 500.0 Fully electronic 60.0 75 97.5 76 0.6(AC200V) 1 NF100-KC 3P 75A W 60 3.0 100.0 500.0 Fully electronic 75.0 75 97.5 76 0.6(AC200V) 1 NF30-KC 2P 10A W 60.0 30.0 Electrical appliance type approval 500.0 0.25 Fully electronic 10.0 96.0 76.0 Mechanical: 10000 Electrical (AC415V): 6000 1 NF30-KC 2P 15A W 60.0 30.0 Electrical appliance type approval 0.25 Fully electronic 15.0 50.0 40.0 96.0 76.0 Mechanical: 10000 Electrical (AC415V): 6000 1 NF30-KC 2P 20A W 60.0 30.0 Electrical appliance type approval Fully electronic 20.0 Molded case circuit breaker NF-C series (economy type) 40.0 96.0 76.0 Mechanical: 10000 Electrical (AC415V): 6000 0.6(AC415V) NF30-KC 2P 30A W 60.0 2 Electrical appliance type approval Fully electronic 30.0 50.0 Molded case circuit breaker NF-C series (economy type) 40.0 96.0 Surface type: for crimp terminal 76.0 NF30-KC 2P 3A W 60.0 30.0 500.0 0.25 Fully electronic 3.0 Molded case circuit breaker NF-C series (economy type) 96.0 Surface type: for crimp terminal 76.0 Mechanical: 10000 Electrical (AC415V): 6000 0.6(AC415V) NF30-KC 2P 5A W 30.0 Electrical appliance type approval 500.0 0.25 5.0 50.0 40.0 96.0 Surface type: for crimp terminal Mechanical: 10000 Electrical (AC415V): 6000 0.6(AC415V) NF30-KC 3P 10A W 30.0 Electrical appliance type approval 500.0 0.37 Fully electronic 10.0 75.0 Molded case circuit breaker NF-C series (economy type) 40.0 Surface type: for crimp terminal Mechanical: 10000 Electrical (AC415V): 6000 NF30-KC 3P 15A W 3 30.0 Electrical appliance type approval 0.37 Fully electronic 15.0 75.0 40.0 96.0 Surface type: for crimp terminal 76.0 Mechanical: 10000 Electrical (AC415V): 6000 NF30-KC 3P 20A W 60.0 30.0 Electrical appliance type approval 500.0 0.37 Fully electronic 20.0 75.0 96.0 76.0 1 NF30-KC 3P 30A W 60.0 30.0 Electrical appliance type approval 500.0 30.0 75.0 Molded case circuit breaker NF-C series (economy type) 40.0 76.0 Mechanical: 10000 Electrical (AC415V): 6000 0.6(AC415V) NF30-KC 3P 5A W 60.0 30.0 Electrical appliance type approval 500.0 0.37 Fully electronic 5.0 40.0 Surface type: for crimp terminal 76.0 Mechanical: 10000 Electrical (AC415V): 6000 0.6(AC415V) NF50-KC 3P 30A W 50.0 Electrical appliance type approval White 0.37 Fully electronic 30.0 75.0 96.0 Surface type: for crimp terminal 76.0 Mechanical: 10000 Electrical (AC415V): 6000 0.6(AC415V) NF50-KC 3P 40A W 60.0 500.0 White 0.37 Fully electronic 75.0 Molded case circuit breaker NF-C series (economy type) 40.0 Surface type: for crimp terminal Mechanical: 10000 Electrical (AC415V): 6000 0.6(AC415V) NF50-KC 3P 50A W 50.0 Electrical appliance type approval White 0.37 Fully electronic 50.0 75.0 Molded case circuit breaker NF-C series (economy type) 40.0 96.0 Surface type: for crimp terminal 76.0 How to OrderSpecify number of poles, rated current and breaking capacity required. Please confirm the full part number and options against the MITSUBISHI ELECTRIC catalog; contact us if you need help identifying the right model.Product image is representative of the MITSUBISHI ELECTRIC series; appearance varies by size and model.About MITSUBISHI ELECTRICMitsubishi Electric is a Japanese manufacturer of factory automation and low-voltage power distribution equipment, including MELSEC PLCs, servo systems, inverters, magnetic contactors and starters, circuit breakers and measuring instruments.Ordering & Shipping Genuine MITSUBISHI ELECTRIC product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

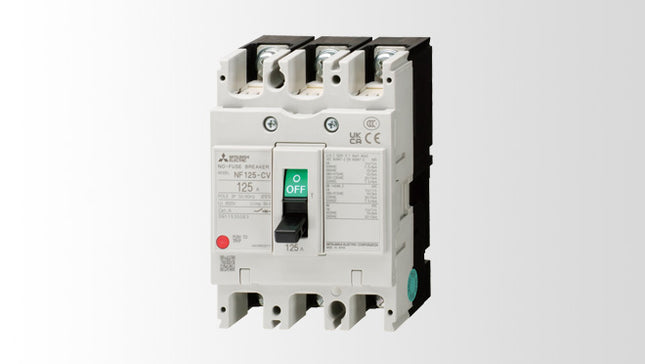

MITSUBISHI ELECTRIC NF30-FA — Molded Case Circuit Breaker for Control Panels NF-FA Series, genuine MITSUBISHI ELECTRIC product.OverviewThe NF-FA Series is a compact molded case circuit breaker from MITSUBISHI ELECTRIC designed for control panels. It protects control circuits and small loads against overload and short circuits. Its narrow body saves panel space, making it suitable for machine control panels and distribution boards.Key Features Compact body for control panels Overload and short-circuit protection DIN rail or screw mounting Range of current ratings Specifications Part No. Overcurrent Trip Method Dimension c (mm) Specification Type Rated Insulation Voltage No. of Poles Connection Method Frame (AF) Rated Current (A) Reference Ambient Temp. (℃) Rated Breaking Capacity (kA) Dimension b (mm) Model Name Dimension ca (mm) Dimension a (mm) Mass (kg) NF30-FA 2P 15A Thermal type 57.0 Electrical appliance type approval Molded case circuit breaker for control panel (general use) Surface type: for crimp terminal, highly suitable 15.0 40.0 75.0 NF30-FA 73.5 40.0 NF30-FA 2P 20A Thermal type Molded case circuit breaker for control panel (general use) Surface type: for crimp terminal, highly suitable 30.0 40.0 AC220V : 2.5/DC65V : 1.5(JIS C8370) 75.0 NF30-FA 73.5 40.0 0.14 NF30-FA 2P 30A Thermal type 57.0 Electrical appliance type approval 2P Surface type: for crimp terminal, highly suitable 30.0 40.0 AC220V : 2.5/DC65V : 1.5(JIS C8370) 75.0 NF30-FA 73.5 40.0 NF30-FA 2P 5A 57.0 250.0 2P Surface type: for crimp terminal, highly suitable 30.0 5.0 AC220V : 1.5/DC65V : 1.5(JIS C8370) 75.0 NF30-FA 40.0 0.14 NF30-FA 3P 10A Thermal type 57.0 250.0 Surface type: for crimp terminal, highly suitable 30.0 40.0 AC220V : 2.5/DC65V : 1.5(JIS C8370) 75.0 NF30-FA 73.5 0.2 NF30-FA 3P 20A 57.0 Electrical appliance type approval Molded case circuit breaker for control panel (general use) 250.0 3P Surface type: for crimp terminal, highly suitable 30.0 40.0 AC220V : 2.5/DC65V : 1.5(JIS C8370) NF30-FA 73.5 How to OrderConfirm number of poles, rated current, breaking capacity and mounting method. Please confirm the full part number and options against the MITSUBISHI ELECTRIC catalog; contact us if you need help identifying the right model.Product image is representative of the MITSUBISHI ELECTRIC series; appearance varies by size and model.About MITSUBISHI ELECTRICMitsubishi Electric is a Japanese manufacturer of factory automation and low-voltage power distribution equipment, including MELSEC PLCs, servo systems, inverters, magnetic contactors and starters, circuit breakers and measuring instruments.Ordering & Shipping Genuine MITSUBISHI ELECTRIC product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

MITSUBISHI ELECTRIC GM-S — Gearmotor (GM-S Series) 0.4kW, genuine MITSUBISHI ELECTRIC product.OverviewThe GM-S Series 0.4kW is a Mitsubishi Electric parallel-shaft gearmotor combining a three-phase induction motor with a gear reducer. Different reduction ratios set the output speed and torque. It is used on conveyors, mixers, packaging and food machinery that need a compact geared drive. Ratios such as 1/10 to 1/30 give different output speeds from the same motor size.Key Features Integrated motor and gear reducer 0.4kW output with several ratios Parallel-shaft design Brake versions available Specifications Part No. Paint Color Installation Location Brake Output Shaft Allowable Thrust Load (N) Dim. C (mm) Output (kW) Output Shaft Allowable Torque (50/60Hz) (N·m) Output Shaft Allowable Radial Load (N) Power Supply Mounting Direction Enclosure Protection Rated Current (A) Lubrication Method Vibration (m/s2) Dim. a (mm) Enclosure Type Dim. B (mm) Dim. D (mm) Starting Method Accessories Mass (kg) Output Shaft Speed (50/60Hz) (min-1r.p.m) Dim. D (Ømm) Reduction Ratio No. of Poles (P) Rating Heat Resistance Class Voltage (V) Altitude (m) Ambient Temp. (℃) Mounting Method Ambient Humidity (%RH) Compliant Standards Motor Type Dim. E (mm) Frequency (Hz) GM-S 0.4KW 1/10 Without brake 100.0 3-phase 2.2/2.0/2.0 73.0 120.0 Direct insertion 10.0 4.0 200/200/220 Altitude 1000 or less 62.5 GM-S 0.4KW 1/15 Silver (Munsell N6.0 equivalent) 150.0 1470.0 Mounting material 2.2/2.0/2.0 Grease lubrication (filled with Pyronoc Universal No. 000) Totally enclosed fan-cooled type Direct insertion 19h6 120(E) -15 ~ +40 (no freezing) JEC, JEM GM-S 0.4KW 1/20 Silver (Munsell N6.0 equivalent) 80.0 3-phase Mounting material 2.2/2.0/2.0 Grease lubrication (filled with Pyronoc Universal No. 000) Totally enclosed fan-cooled type 8.5 75/90 19h6 -15 ~ +40 (no freezing) 50/60/60 GM-S 0.4KW 1/30 Silver (Munsell N6.0 equivalent) Without brake 70/61 Mounting material Grease lubrication (filled with Pyronoc Universal No. 000) Constant 4.9, momentary 9.8 or less 73.0 Shaft end key 19h6 30.0 120(E) JEC, JEM GM-S 0.4KW 1/5 Indoor (free of corrosive gas, oil mist, flammable gas, dust, etc.) 80.0 44117.0 Indoor type (IP44 equivalent) Grease lubrication (filled with Pyronoc Universal No. 000) 125.0 Direct insertion 300/360 Continuous 200/200/220 Foot mounting type Geared motor GM-S-0.4KW-1/3 30.0 0.4 Mounting material Grease lubrication (filled with Pyronoc Universal No. 000) Constant 4.9, momentary 9.8 or less 3.0 4.0 -15 ~ +40 (no freezing) Foot mounting type 90 % RH or less JEC, JEM 50/60/60 How to OrderSpecify reduction ratio, voltage, mounting style and brake requirement. Please confirm the full part number and options against the MITSUBISHI ELECTRIC catalog; contact us if you need help identifying the right model.Product image is representative of the MITSUBISHI ELECTRIC series; appearance varies by size and model.About MITSUBISHI ELECTRICMitsubishi Electric is a Japanese manufacturer of factory automation and low-voltage power distribution equipment, including MELSEC PLCs, servo systems, inverters, magnetic contactors and starters, circuit breakers and measuring instruments.Ordering & Shipping Genuine MITSUBISHI ELECTRIC product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

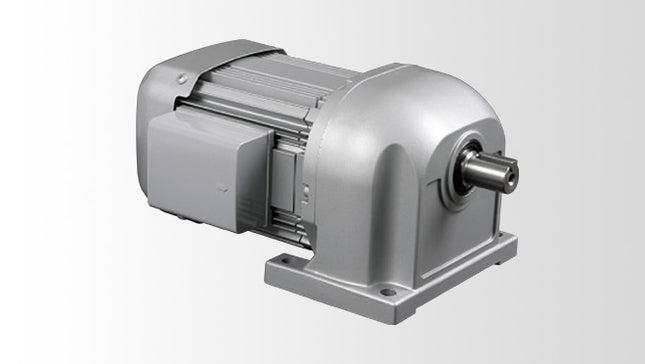

MITSUBISHI ELECTRIC GM-S — Gearmotor (GM-S Series) 0.2kW, genuine MITSUBISHI ELECTRIC product.OverviewThe MITSUBISHI ELECTRIC GM-S Series 0.2kW gearmotor combines a three-phase induction motor with a parallel-shaft gear reducer. It provides reduced output speed and higher torque in a compact unit for direct mounting on equipment. It is used for conveyors, mixers, packaging machines and general material handling.Key Features Integrated motor and gear reducer Range of reduction ratios Foot or flange mounting versions Specifications Part No. Output Shaft Allowable Radial Load (N) Rated Current (A) Paint Color Vibration (m/s2) No. of Poles (P) Reduction Ratio Enclosure Type Mounting Method Enclosure Protection Dim. a (mm) Altitude (m) Dim. E (mm) Frequency (Hz) Output Shaft Allowable Torque (50/60Hz) (N·m) Starting Method Ambient Temp. (℃) Output (kW) Mounting Direction Installation Location Output Shaft Allowable Thrust Load (N) Brake Dim. C (mm) Lubrication Method Dim. D (Ømm) Power Supply Heat Resistance Class Ambient Humidity (%RH) Dim. B (mm) Mass (kg) Motor Type Dim. D (mm) Rating Voltage (V) Output Shaft Speed (50/60Hz) (min-1r.p.m) Compliant Standards GM-S 0.2KW 1/10 686.0 Constant 4.9, momentary 9.8 or less Foot mounting type Indoor type (IP44 equivalent) Altitude 1000 or less Direct insertion Mounting material Indoor (free of corrosive gas, oil mist, flammable gas, dust, etc.) Grease lubrication (filled with Pyronoc Universal No. 000) 6.3 Continuous 150/180 GM-S 0.2KW 1/15 1.3/1.15/1.15 Silver (Munsell N6.0 equivalent) Totally enclosed fan-cooled type 60.0 Altitude 1000 or less 50/60/60 0.2 Indoor (free of corrosive gas, oil mist, flammable gas, dust, etc.) 3-phase 90 % RH or less 6.3 Geared motor GM-S 0.2KW 1/20 1180.0 Constant 4.9, momentary 9.8 or less Foot mounting type 60.0 57.0 50/60/60 -15 ~ +40 (no freezing) Indoor (free of corrosive gas, oil mist, flammable gas, dust, etc.) 3-phase 114.0 200/200/220 JEC, JEM GM-S 0.2KW 1/25 25.0 Indoor type (IP44 equivalent) 57.0 29/25 0.2 208.0 70.0 16h6 90 % RH or less 6.3 Continuous 200/200/220 GM-S 0.2KW 1/30 1.3/1.15/1.15 4.0 60.0 50/60/60 0.2 Mounting material Without brake 70.0 90 % RH or less 114.0 Geared motor 108.0 GM-S 0.2KW 1/5 1.3/1.15/1.15 Silver (Munsell N6.0 equivalent) Totally enclosed fan-cooled type Indoor type (IP44 equivalent) 57.0 Direct insertion Mounting material 42.0 16h6 120(E) 200/200/220 300/360 GM-S 0.2KW 1/50 1.3/1.15/1.15 50.0 Totally enclosed fan-cooled type Foot mounting type Altitude 1000 or less 59/49 -15 ~ +40 (no freezing) 300.0 90 % RH or less 7.0 Geared motor Continuous GM-S 0.2KW 1/60 1.3/1.15/1.15 93.0 -15 ~ +40 (no freezing) 0.2 85.0 22h6 3-phase 120(E) 90 % RH or less 8.5 25/30 JEC, JEM GM-S-0.2KW-1/100 1.3/1.15/1.15 Constant 4.9, momentary 9.8 or less 100.0 93.0 62.5 115/95 Direct insertion 500.0 Without brake 22h6 120(E) Continuous How to OrderConfirm reduction ratio, voltage, mounting style and any brake option. Please confirm the full part number and options against the MITSUBISHI ELECTRIC catalog; contact us if you need help identifying the right model.Product image is representative of the MITSUBISHI ELECTRIC series; appearance varies by size and model.About MITSUBISHI ELECTRICMitsubishi Electric is a Japanese manufacturer of factory automation and low-voltage power distribution equipment, including MELSEC PLCs, servo systems, inverters, magnetic contactors and starters, circuit breakers and measuring instruments.Ordering & Shipping Genuine MITSUBISHI ELECTRIC product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

MITSUBISHI ELECTRIC GM-S — Gearmotor (GM-S Series) 0.1kW, genuine MITSUBISHI ELECTRIC product.OverviewThe Mitsubishi Electric GM-S is a 0.1 kW gearmotor combining a small induction motor with a parallel-shaft gear reducer. It provides reduced speed and increased torque for light conveyors, mixers and packaging machines. Multiple reduction ratios allow selection of output speed. It is a ready-to-install drive for light-duty, continuous operation.Key Features 0.1 kW motor with integrated gear reducer Several reduction ratios available Compact parallel-shaft design Foot or flange mounting by model Specifications Part No. Brake Ambient Temp. (℃) Mounting Direction Output Shaft Allowable Thrust Load (N) Installation Location Heat Resistance Class Enclosure Type Altitude (m) Dim. D (mm) Enclosure Protection Rated Current (A) Lubrication Method Output Shaft Allowable Radial Load (N) No. of Poles (P) Motor Type Frequency (Hz) Output Shaft Speed (50/60Hz) (min-1r.p.m) Ambient Humidity (%RH) Vibration (m/s2) Output Shaft Allowable Torque (50/60Hz) (N·m) Compliant Standards Dim. E (mm) Mounting Method Starting Method Dim. C (mm) Mass (kg) Rating Dim. B (mm) Dim. a (mm) Paint Color Accessories Power Supply Output (kW) Reduction Ratio GM-S 0.1KW 1/10 Without brake Mounting material 120(E) 105.0 Grease lubrication (filled with Pyronoc Universal No. 000) Geared motor Constant 4.9, momentary 9.8 or less JEC, JEM 70.0 60.0 Shaft end key 0.1 GM-S 0.1KW 1/15 -15 ~ +40 (no freezing) 125.0 120(E) Totally enclosed self-cooled type Grease lubrication (filled with Pyronoc Universal No. 000) 50/60/60 90 % RH or less Foot mounting type 70.0 Continuous Shaft end key 3-phase GM-S 0.1KW 1/20 Mounting material Indoor (free of corrosive gas, oil mist, flammable gas, dust, etc.) Totally enclosed self-cooled type Indoor type (IP44 equivalent) 1030.0 Geared motor 90 % RH or less 57.0 Direct insertion 114.0 Silver (Munsell N6.0 equivalent) 0.1 GM-S 0.1KW 1/30 250.0 Indoor (free of corrosive gas, oil mist, flammable gas, dust, etc.) 120(E) 1180.0 4.0 17/14 57.0 Direct insertion 5.1 Continuous Silver (Munsell N6.0 equivalent) Shaft end key GM-S 0.1KW 1/50 250.0 Indoor (free of corrosive gas, oil mist, flammable gas, dust, etc.) 105.0 Indoor type (IP44 equivalent) 0.7/0.65/0.65 Geared motor 30/36 27/24 Direct insertion 70.0 Continuous 50.0 GM-S-0.1KW-1/100 Totally enclosed self-cooled type Altitude 1000 or less 1720.0 90 % RH or less 62.5 Foot mounting type Direct insertion Continuous 125.0 Silver (Munsell N6.0 equivalent) Shaft end key 100.0 How to OrderSpecify reduction ratio, mounting style, voltage and any brake requirement. Please confirm the full part number and options against the MITSUBISHI ELECTRIC catalog; contact us if you need help identifying the right model.Product image is representative of the MITSUBISHI ELECTRIC series; appearance varies by size and model.About MITSUBISHI ELECTRICMitsubishi Electric is a Japanese manufacturer of factory automation and low-voltage power distribution equipment, including MELSEC PLCs, servo systems, inverters, magnetic contactors and starters, circuit breakers and measuring instruments.Ordering & Shipping Genuine MITSUBISHI ELECTRIC product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

MITSUBISHI ELECTRIC FR-BIF — Radio Noise Filter, genuine MITSUBISHI ELECTRIC product.OverviewThe radio noise filter from MITSUBISHI ELECTRIC is installed on the input side of an inverter to reduce radio-frequency noise emitted onto the power line. It helps prevent interference with radios, sensors and nearby electronic equipment. It is a common option for inverter installations in buildings and factories.Key Features Reduces radio-frequency noise from inverters Installed on inverter input side Simple connection to power lines Versions for 200V and 400V classes Specifications Part No. Compatibility Rated Input Power Mass (kg) Applicable Inverter Capacity FR-BIF E700, F700PJ, D700, V500 3-phase 200V 50Hz / 3-phase 200/220V 60Hz 0.1 Usable regardless of inverter capacity How to OrderConfirm the inverter voltage class. Please confirm the full part number and options against the MITSUBISHI ELECTRIC catalog; contact us if you need help identifying the right model.About MITSUBISHI ELECTRICMitsubishi Electric is a Japanese manufacturer of factory automation and low-voltage power distribution equipment, including MELSEC PLCs, servo systems, inverters, magnetic contactors and starters, circuit breakers and measuring instruments.Ordering & Shipping Genuine MITSUBISHI ELECTRIC product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

MITSUBISHI ELECTRIC S-N — Magnetic Contactor S-N Series, genuine MITSUBISHI ELECTRIC product.OverviewThe S-N Series is a Mitsubishi Electric magnetic contactor line for switching motors and loads, covering medium to large frame sizes. It closes the main circuit when the coil is energized and opens it when de-energized, with auxiliary contacts for control. It is used in motor control centers, pump stations and industrial panels.Key Features Wide range of frame sizes AC-operated coils in several voltages Auxiliary contacts for control circuits Compatible with matching overload relays Specifications Part No. Length (mm) Compatible Thermal Relay Rated Capacity (kW) 3-Phase Squirrel-Cage Motor (AC-3) Type Thickness (mm) Coil Rated Voltage (V) Frame Thermal Current (A) Auxiliary Contacts Applicable Motor Capacity (200-240V) (kW) Installation Method Rated Operational Voltage (V) Operation Method Specification Applicable Motor Capacity (380-440V) (kW) Width (W, mm) Mass (kg) Applicable Motor Capacity (500-550V) (kW) Model Type S-N150 AC200V 2A2B 120.0 (200-240V)37 (380-440V)75 (500-550V)90 145.0 N150 2a2b Direct mounting only. Rail mounting not possible. AC200 160.0 3.3 3-phase squirrel-cage motor (AC-3): 90 S-N180 AC200V 2A2B (200-240V)45 (380-440V)90 (500-550V)110 50Hz · 60Hz/200-240 N180 260.0 3-phase squirrel-cage motor (AC-3): 45 AC200 Non-reversible type JISC8201-4-1, JEM1038 compliant 5.5 3-phase squirrel-cage motor (AC-3): 110 S-N220 AC200V TH-N220RH Electromagnetic contactor N220 3-phase squirrel-cage motor (AC-3): 55 IEC 35mm rail mounting possible. AC200 Non-reversible type 138.0 5.5 3-phase squirrel-cage motor (AC-3): 132 How to OrderSpecify the frame size, coil voltage and auxiliary contact configuration. Please confirm the full part number and options against the MITSUBISHI ELECTRIC catalog; contact us if you need help identifying the right model.Product image is representative of the MITSUBISHI ELECTRIC series; appearance varies by size and model.About MITSUBISHI ELECTRICMitsubishi Electric is a Japanese manufacturer of factory automation and low-voltage power distribution equipment, including MELSEC PLCs, servo systems, inverters, magnetic contactors and starters, circuit breakers and measuring instruments.Ordering & Shipping Genuine MITSUBISHI ELECTRIC product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

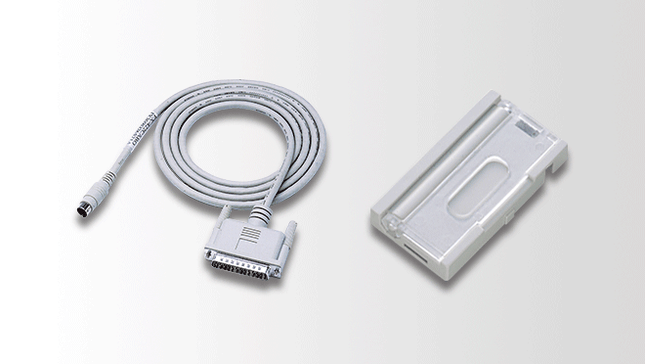

MITSUBISHI ELECTRIC FX3 — Memory Cassette, genuine MITSUBISHI ELECTRIC product.OverviewThe MITSUBISHI ELECTRIC memory cassette is a plug-in program memory for MELSEC-F Series compact PLCs. It stores the PLC program and parameters, allowing programs to be backed up, transferred or loaded into another unit. It is used for program distribution and protection on small machines.Key Features Plug-in memory for FX Series PLCs Stores program and parameters Simplifies program transfer Specifications Part No. Compatible PLC Compatibility Type Memory Capacity FX3G-EEPROM-32L FX3S、FX3G For FX3G EEPROM memory cassette Max 32000 steps FX3U-FLROM-16 FX3U, FX3UC (Ver.2.20 or later) For FX3U Flash memory cassette Max 16000 steps How to OrderConfirm the PLC series compatibility and memory capacity required. Please confirm the full part number and options against the MITSUBISHI ELECTRIC catalog; contact us if you need help identifying the right model.About MITSUBISHI ELECTRICMitsubishi Electric is a Japanese manufacturer of factory automation and low-voltage power distribution equipment, including MELSEC PLCs, servo systems, inverters, magnetic contactors and starters, circuit breakers and measuring instruments.Ordering & Shipping Genuine MITSUBISHI ELECTRIC product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

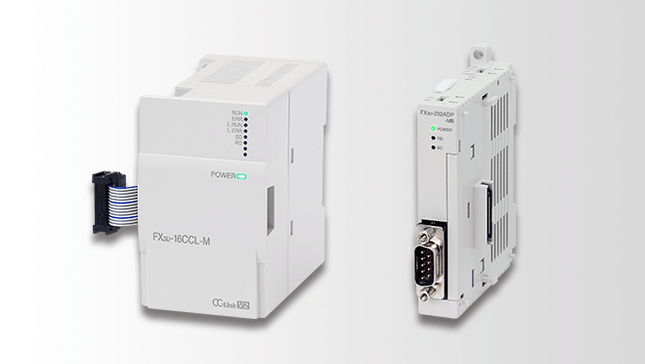

MITSUBISHI ELECTRIC FX3U — CC-Link Master/Local Unit FX Series, genuine MITSUBISHI ELECTRIC product.OverviewThe FX3U-16CCL-M and FX3U-64CCL are CC-Link interface units for the Mitsubishi Electric MELSEC-FX3U PLC family. The -M model acts as a CC-Link master to control remote I/O and devices, while the 64CCL connects the FX PLC as an intelligent device station on a CC-Link network. They are used to integrate compact PLCs into networked factory systems.Key Features CC-Link master or intelligent device station roles Connects FX3U PLCs to CC-Link networks Supports remote I/O and device communication Mounts as an extension block on the PLC Specifications Part No. Communication Method Compatibility Encoding Method Class Format Type No. of Outputs Cable Length (m) Synchronization Method Compliant Standards Insulation Type FX3U-16CCL-M Broadcast polling method FX3G、FX3GC、FX3U、FX3UC NRZI method Master station for CC-Link HDLC compliant 8.0 Frame synchronization method CE(EMC), UL/cUL, KC FX3U-64CCL Broadcast polling method NRZI method (Transmission) HDLC compliant Per CC-Link specification Flag synchronization method CE(EMC), UL/cUL, KC Photocoupler isolation between network bus and internal power supply How to OrderChoose the master or device station model and confirm the FX PLC series. Please confirm the full part number and options against the MITSUBISHI ELECTRIC catalog; contact us if you need help identifying the right model.Product image is representative of the MITSUBISHI ELECTRIC series; appearance varies by size and model.About MITSUBISHI ELECTRICMitsubishi Electric is a Japanese manufacturer of factory automation and low-voltage power distribution equipment, including MELSEC PLCs, servo systems, inverters, magnetic contactors and starters, circuit breakers and measuring instruments.Ordering & Shipping Genuine MITSUBISHI ELECTRIC product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

MITSUBISHI ELECTRIC FX — Training Textbook, genuine MITSUBISHI ELECTRIC product.OverviewThis MITSUBISHI ELECTRIC training textbook supports learning to program and operate MELSEC PLCs. Textbooks cover topics such as introductory programming, positioning and application programming for FX Series controllers. They are used by engineers, technicians and students in training courses or self-study. Each book combines explanations with exercises, making it suitable for structured in-house training of maintenance and design staff.Key Features Structured training material for MELSEC PLCs Covers programming fundamentals and applications Useful for training courses and self-study Aligned with FX Series controllers Specifications Part No. Class FX-NYUM-TEXT2 Sequencer for beginners (introduction) FX3U-POS-TEXT Understanding sequencers (positioning) FX3U-PROG-TEXT2 Understanding sequencers (basics) How to OrderConfirm the course topic and PLC series covered by the textbook. Please confirm the full part number and options against the MITSUBISHI ELECTRIC catalog; contact us if you need help identifying the right model.About MITSUBISHI ELECTRICMitsubishi Electric is a Japanese manufacturer of factory automation and low-voltage power distribution equipment, including MELSEC PLCs, servo systems, inverters, magnetic contactors and starters, circuit breakers and measuring instruments.Ordering & Shipping Genuine MITSUBISHI ELECTRIC product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

MITSUBISHI ELECTRIC FX3G-2AD-BD — Analog Input Board, genuine MITSUBISHI ELECTRIC product.OverviewThe FX3G-2AD-BD is an analog input expansion board for Mitsubishi Electric FX3G PLCs. It mounts directly on the main unit and adds two analog input channels, allowing the PLC to read voltage or current signals without a separate module. It suits compact machines that need a small amount of analog measurement.Key Features Two analog input channels Mounts directly on the FX3G main unit No extra panel space needed Voltage or current input Specifications Part No. Insulation Type Conversion Time (μs) Digital Output No. of Channels Absolute Max. Input FX3G-2AD-BD Non-isolated between analog input section and sequencer and between channels (A/D) 180 (data updated every operation cycle) (Voltage input) 12-bit binary (current input) 11-bit binary (Input) 2 Voltage input: -0.5V + 15V, current input: -2mA + 30mA How to OrderConfirm that the PLC is an FX3G model and check input range and channel needs. Please confirm the full part number and options against the MITSUBISHI ELECTRIC catalog; contact us if you need help identifying the right model.Product image is representative of the MITSUBISHI ELECTRIC series; appearance varies by size and model.About MITSUBISHI ELECTRICMitsubishi Electric is a Japanese manufacturer of factory automation and low-voltage power distribution equipment, including MELSEC PLCs, servo systems, inverters, magnetic contactors and starters, circuit breakers and measuring instruments.Ordering & Shipping Genuine MITSUBISHI ELECTRIC product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

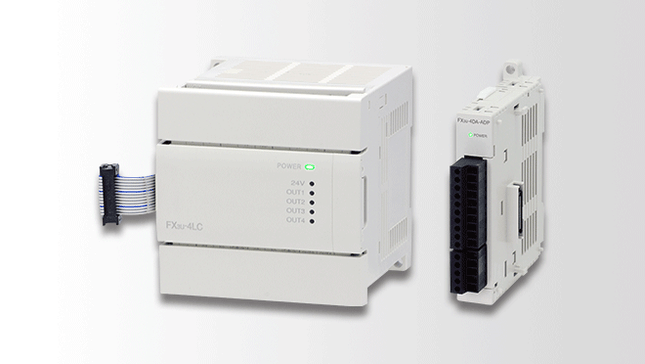

MITSUBISHI ELECTRIC FX3U-3A-ADP — MELSEC-F Series Analog I/O Adapter, genuine MITSUBISHI ELECTRIC product.OverviewThe MITSUBISHI ELECTRIC FX3U-3A-ADP is an analog I/O adapter for MELSEC-F Series compact PLCs. It adds both analog inputs and an analog output by attaching to the side of the main unit, without using an expansion slot. It is used for measuring sensor signals and outputting control values in small machines.Key Features Analog inputs and output in one adapter Attaches to the left side of the main unit Voltage and current signal support Specifications Part No. Digital Input No. of Channels Input Characteristics Digital Output Output Characteristics FX3U-3A-ADP 12-bit binary (Input) 2 channels (output) 1 channel Input mode (voltage/current input) can be set for each channel. 12-bit binary Output mode (voltage/current output) can be set. How to OrderConfirm the compatible main unit and the analog signal ranges required. Please confirm the full part number and options against the MITSUBISHI ELECTRIC catalog; contact us if you need help identifying the right model.Product image is representative of the MITSUBISHI ELECTRIC series; appearance varies by size and model.About MITSUBISHI ELECTRICMitsubishi Electric is a Japanese manufacturer of factory automation and low-voltage power distribution equipment, including MELSEC PLCs, servo systems, inverters, magnetic contactors and starters, circuit breakers and measuring instruments.Ordering & Shipping Genuine MITSUBISHI ELECTRIC product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

MITSUBISHI ELECTRIC FX3G-1DA-BD — Analog Output Board, genuine MITSUBISHI ELECTRIC product.OverviewThe FX3G-1DA-BD is an analog output expansion board for the Mitsubishi Electric MELSEC-FX3G compact PLC. It fits directly into the board slot on the PLC base unit and provides one analog voltage or current output. It is used to send speed or setpoint references to inverters, valves and other analog devices without adding a separate module.Key Features Board type mounts inside the PLC base unit One analog output channel Voltage or current output selectable No additional panel space required Specifications Part No. Output Characteristics No. of Channels Insulation Type Conversion Time (μs) Digital Input FX3G-1DA-BD Output characteristics cannot be adjusted. (Output) 1 Non-isolated 60 (data updated every operation cycle) (Voltage output) 12-bit binary (current output) 11-bit binary How to OrderConfirm the PLC model is FX3G and the required output signal range. Please confirm the full part number and options against the MITSUBISHI ELECTRIC catalog; contact us if you need help identifying the right model.Product image is representative of the MITSUBISHI ELECTRIC series; appearance varies by size and model.About MITSUBISHI ELECTRICMitsubishi Electric is a Japanese manufacturer of factory automation and low-voltage power distribution equipment, including MELSEC PLCs, servo systems, inverters, magnetic contactors and starters, circuit breakers and measuring instruments.Ordering & Shipping Genuine MITSUBISHI ELECTRIC product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

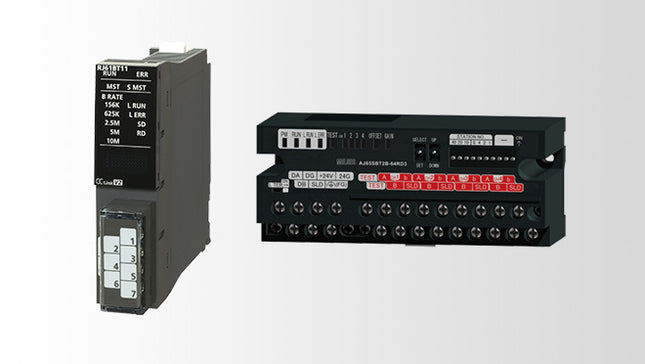

MITSUBISHI ELECTRIC AJ65SBTB1-32T1 — Screw Terminal Block Type Output Unit AJ65SBTB, genuine MITSUBISHI ELECTRIC product.OverviewThe AJ65SBTB Series screw terminal block type output unit from MITSUBISHI ELECTRIC is a CC-Link remote I/O station with transistor outputs. It is installed near actuators to reduce wiring back to the PLC. Screw terminals make field wiring straightforward for solenoid valves, lamps and relays.Key Features CC-Link remote output station Screw terminal block for field wiring Transistor outputs for actuators Compact for distributed installation Specifications Part No. Max. Load Current (A) No. of Outputs Output Type Protection Rating Type Rated Load Voltage (V) Remote Terminal Specification Leakage Current (mA) AJ65SBTB1-32T1 0.5 32 points Transistor output (sink) IP2X Screw terminal block type DC12/24 Remote I/O unit (When OFF) 0.1 or less How to OrderConfirm number of output points, output type and voltage. Please confirm the full part number and options against the MITSUBISHI ELECTRIC catalog; contact us if you need help identifying the right model.About MITSUBISHI ELECTRICMitsubishi Electric is a Japanese manufacturer of factory automation and low-voltage power distribution equipment, including MELSEC PLCs, servo systems, inverters, magnetic contactors and starters, circuit breakers and measuring instruments.Ordering & Shipping Genuine MITSUBISHI ELECTRIC product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

MITSUBISHI ELECTRIC S-T21BCSA AC200V 2A2B — Magnetic Contactor AC Operated (Non-Reversing) S-T Series, genuine MITSUBISHI ELECTRIC product.OverviewThe S-T Series is a compact AC-operated non-reversing magnetic contactor from Mitsubishi Electric, used to switch motors, heaters and other loads by remote control. When the coil is energized the main contacts close, and auxiliary contacts provide signals for control circuits. It is widely used in motor control panels and machinery.Key Features Compact contactor for motor switching AC-operated coil options Auxiliary contacts for control signals DIN rail or screw mounting Specifications Part No. Mass (kg) Width (W, mm) Frame Length (mm) Operation Method Applicable Motor Capacity (200-240V) (kW) Type Applicable Motor Capacity (500-550V) (kW) Coil Rated Voltage (V) Thickness (mm) Applicable Motor Capacity (380-440V) (kW) S-T21BCSA AC200V 2A2B 0.41 63.0 T21 81.0 Non-reversible type 3-phase squirrel-cage motor (AC-3): 4 Electromagnetic contactor 3-phase squirrel-cage motor (AC-3): 7.5 AC200 81.0 3-phase squirrel-cage motor (AC-3): 7.5 How to OrderCheck frame size (rated current or motor kW), coil voltage and auxiliary contact configuration. Please confirm the full part number and options against the MITSUBISHI ELECTRIC catalog; contact us if you need help identifying the right model.Product image is representative of the MITSUBISHI ELECTRIC series; appearance varies by size and model.About MITSUBISHI ELECTRICMitsubishi Electric is a Japanese manufacturer of factory automation and low-voltage power distribution equipment, including MELSEC PLCs, servo systems, inverters, magnetic contactors and starters, circuit breakers and measuring instruments.Ordering & Shipping Genuine MITSUBISHI ELECTRIC product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

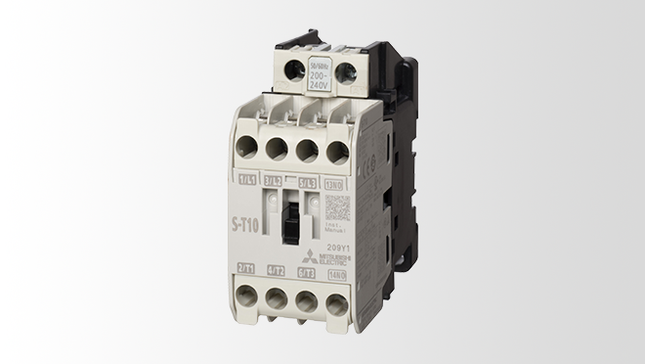

MITSUBISHI ELECTRIC S-T — Magnetic Contactor AC Operated (Non-Reversing) S-T Series, genuine MITSUBISHI ELECTRIC product.OverviewThe S-T Series is a compact AC-operated non-reversing magnetic contactor from Mitsubishi Electric, used to switch motors, heaters and other loads by remote control. When the coil is energized the main contacts close, and auxiliary contacts provide signals for control circuits. It is widely used in motor control panels and machinery.Key Features Compact contactor for motor switching AC-operated coil options Auxiliary contacts for control signals DIN rail or screw mounting Specifications Part No. Thickness (mm) Length (mm) Type Installation Method Width (W, mm) Applicable Motor Capacity (380-440V) (kW) Rated Operational Current (A) 3-Phase Squirrel-Cage Motor (AC-3) Applicable Motor Capacity (500-550V) (kW) Applicable Motor Capacity (200-240V) (kW) Mass (kg) Class Frame Auxiliary Contacts Thermal Current (A) Coil Rated Voltage (V) Operation Method S-T10BC AC200V 1A 78.0 Electromagnetic contactor 36.0 3-phase squirrel-cage motor (AC-3): 2.7 (200-240V)11 (380-440V)7 (500-550V)6 3-phase squirrel-cage motor (AC-3): 2.7 0.25 1a 20.0 AC200 S-T12BC AC200V 1A1B 75.0 Electromagnetic contactor Screw, DIN rail 43.0 (200-240V)13 (380-440V)9 (500-550V)9 0.27 T12 20.0 AC200 Non-reversible type S-T20BC AC200V 78.0 75.0 Electromagnetic contactor 43.0 3-phase squirrel-cage motor (AC-3): 7.5 (200-240V)18 (380-440V)18 (500-550V)17 3-phase squirrel-cage motor (AC-3): 7.5 0.27 1a1b 20.0 AC200 S-T21BC AC200V 81.0 Electromagnetic contactor 63.0 (200-240V)20 (380-440V)20 (500-550V)17 3-phase squirrel-cage motor (AC-3): 7.5 3-phase squirrel-cage motor (AC-3): 4 0.41 T21 2a2b 32.0 Non-reversible type S-T25BC AC200V 81.0 Electromagnetic contactor 63.0 3-phase squirrel-cage motor (AC-3): 11 3-phase squirrel-cage motor (AC-3): 11 3-phase squirrel-cage motor (AC-3): 5.5 T25 2a2b 32.0 AC200 Non-reversible type S-T35BC AC200V 91.0 89.0 Electromagnetic contactor 3-phase squirrel-cage motor (AC-3): 15 3-phase squirrel-cage motor (AC-3): 15 3-phase squirrel-cage motor (AC-3): 7.5 0.55 Live-part protective cover, wiring-simplified terminal AC200 Non-reversible type S-T50BC AC200V 91.0 89.0 Electromagnetic contactor 3-phase squirrel-cage motor (AC-3): 11 0.55 Live-part protective cover, wiring-simplified terminal T50 2a2b AC200 Non-reversible type How to OrderCheck frame size (rated current or motor kW), coil voltage and auxiliary contact configuration. Please confirm the full part number and options against the MITSUBISHI ELECTRIC catalog; contact us if you need help identifying the right model.Product image is representative of the MITSUBISHI ELECTRIC series; appearance varies by size and model.About MITSUBISHI ELECTRICMitsubishi Electric is a Japanese manufacturer of factory automation and low-voltage power distribution equipment, including MELSEC PLCs, servo systems, inverters, magnetic contactors and starters, circuit breakers and measuring instruments.Ordering & Shipping Genuine MITSUBISHI ELECTRIC product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

MITSUBISHI ELECTRIC S-T — Magnetic Contactor AC Operated (Non-Reversing) S-T Series, genuine MITSUBISHI ELECTRIC product.OverviewThe S-T Series is a compact AC-operated non-reversing magnetic contactor from Mitsubishi Electric, used to switch motors, heaters and other loads by remote control. When the coil is energized the main contacts close, and auxiliary contacts provide signals for control circuits. It is widely used in motor control panels and machinery.Key Features Compact contactor for motor switching AC-operated coil options Auxiliary contacts for control signals DIN rail or screw mounting Specifications Part No. Length (mm) Coil Rated Voltage (V) Type Width (W, mm) Mass (kg) Thickness (mm) Frame Auxiliary Contacts Applicable Motor Capacity (200-240V) (kW) Rated Operational Current (A) 3-Phase Squirrel-Cage Motor (AC-3) Operation Method Applicable Motor Capacity (500-550V) (kW) Applicable Motor Capacity (380-440V) (kW) S-T10SA AC200V 1A 75.0 Electromagnetic contactor 36.0 78.0 T10 1a 3-phase squirrel-cage motor (AC-3): 2.2 Non-reversible type 3-phase squirrel-cage motor (AC-3): 2.7 3-phase squirrel-cage motor (AC-3): 2.7 S-T12SA AC200V 1A1B 75.0 AC200 Electromagnetic contactor 43.0 0.27 78.0 T12 Non-reversible type 3-phase squirrel-cage motor (AC-3): 5.5 3-phase squirrel-cage motor (AC-3): 4 S-T20SA AC200V 1A1B 75.0 Electromagnetic contactor 43.0 0.27 78.0 T20 3-phase squirrel-cage motor (AC-3): 3.7 (200-240V)18 (380-440V)18 (500-550V)17 Non-reversible type 3-phase squirrel-cage motor (AC-3): 7.5 S-T21SA AC200V 81.0 AC200 Electromagnetic contactor 0.41 81.0 2a2b 3-phase squirrel-cage motor (AC-3): 4 (200-240V)18 (380-440V)18 (500-550V)17 Non-reversible type 3-phase squirrel-cage motor (AC-3): 7.5 S-T35SA AC200V 89.0 Electromagnetic contactor 75.0 0.55 91.0 T35 2a2b 3-phase squirrel-cage motor (AC-3): 7.5 Non-reversible type 3-phase squirrel-cage motor (AC-3): 15 How to OrderCheck frame size (rated current or motor kW), coil voltage and auxiliary contact configuration. Please confirm the full part number and options against the MITSUBISHI ELECTRIC catalog; contact us if you need help identifying the right model.Product image is representative of the MITSUBISHI ELECTRIC series; appearance varies by size and model.About MITSUBISHI ELECTRICMitsubishi Electric is a Japanese manufacturer of factory automation and low-voltage power distribution equipment, including MELSEC PLCs, servo systems, inverters, magnetic contactors and starters, circuit breakers and measuring instruments.Ordering & Shipping Genuine MITSUBISHI ELECTRIC product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

MITSUBISHI ELECTRIC S-T — Magnetic Contactor AC Operated (Non-Reversing) S-T Series, genuine MITSUBISHI ELECTRIC product.OverviewThe S-T Series is a compact AC-operated non-reversing magnetic contactor from Mitsubishi Electric, used to switch motors, heaters and other loads by remote control. When the coil is energized the main contacts close, and auxiliary contacts provide signals for control circuits. It is widely used in motor control panels and machinery.Key Features Compact contactor for motor switching AC-operated coil options Auxiliary contacts for control signals DIN rail or screw mounting Specifications Part No. Rated Insulation Voltage Mass (kg) Coil Rated Voltage (V) Length (mm) Power Consumption (W) Operation Method Frame Rated Frequency (Hz) Thickness (mm) Applicable Motor Capacity (200-240V) (kW) Type Rated Operational Current (A) 3-Phase Squirrel-Cage Motor (AC-3) Mounting Method Width (W, mm) Auxiliary Contacts Rated Impulse Withstand Voltage (kV) Class Applicable Motor Capacity (500-550V) (kW) Applicable Motor Capacity (380-440V) (kW) S-T10 AC200V 1A 690.0 0.25 AC200 2.2 T10 78.0 Electromagnetic contactor (200-240V)11 (380-440V)7 (500-550V)6 36.0 1a 6.0 3-phase squirrel-cage motor (AC-3): 2.7 S-T10 AC200V 1B 0.25 AC200 75.0 2.2 T10 50/60 78.0 Electromagnetic contactor Screw, DIN rail 36.0 6.0 3-phase squirrel-cage motor (AC-3): 2.7 S-T100 AC200V 1.7 AC200 124.0 2.8 3-phase squirrel-cage motor (AC-3): 22 Electromagnetic contactor Screw, DIN rail 2a2b - 3-phase squirrel-cage motor (AC-3): 45 S-T12 AC200V 1A1B AC200 75.0 2.2 T12 50/60 3-phase squirrel-cage motor (AC-3): 2.7 Electromagnetic contactor 43.0 6.0 3-phase squirrel-cage motor (AC-3): 5.5 3-phase squirrel-cage motor (AC-3): 4 S-T12 AC200V 2A 690.0 0.27 AC200 2.2 T12 50/60 3-phase squirrel-cage motor (AC-3): 2.7 (200-240V)13 (380-440V)9 (500-550V)9 Screw, DIN rail 43.0 6.0 3-phase squirrel-cage motor (AC-3): 5.5 S-T12 AC200V 2B 0.27 AC200 Non-reversible type T12 50/60 3-phase squirrel-cage motor (AC-3): 2.7 Electromagnetic contactor Screw, DIN rail 2b 6.0 S-T12 AC400V 2A 690.0 AC400 75.0 2.2 Non-reversible type T12 3-phase squirrel-cage motor (AC-3): 2.7 Electromagnetic contactor Screw, DIN rail 2a 6.0 S-T20 AC200V 690.0 0.27 75.0 T20 50/60 3-phase squirrel-cage motor (AC-3): 3.7 Screw, DIN rail 1a1b 3-phase squirrel-cage motor (AC-3): 7.5 3-phase squirrel-cage motor (AC-3): 7.5 S-T21 AC200V 690.0 0.41 AC200 81.0 81.0 Electromagnetic contactor 63.0 2a2b 6.0 3-phase squirrel-cage motor (AC-3): 7.5 3-phase squirrel-cage motor (AC-3): 7.5 S-T25 AC200V 690.0 81.0 2.4 Non-reversible type T25 81.0 3-phase squirrel-cage motor (AC-3): 5.5 Screw, DIN rail 2a2b 6.0 3-phase squirrel-cage motor (AC-3): 11 S-T32 AC200V 690.0 0.36 Non-reversible type 3-phase squirrel-cage motor (AC-3): 7.5 Electromagnetic contactor (200-240V)32 (380-440V)32 (500-550V)20 Screw, DIN rail 43.0 - 6.0 3-phase squirrel-cage motor (AC-3): 15 S-T35 AC200V 690.0 0.55 AC200 3.8 Non-reversible type T35 91.0 Electromagnetic contactor 75.0 2a2b 3-phase squirrel-cage motor (AC-3): 15 S-T50 AC200V 690.0 0.55 AC200 Non-reversible type T50 91.0 3-phase squirrel-cage motor (AC-3): 11 Electromagnetic contactor Screw, DIN rail 2a2b 3-phase squirrel-cage motor (AC-3): 22 S-T65 AC200V AC200 106.0 2.2 Non-reversible type T65 106.0 Electromagnetic contactor 88.0 - 3-phase squirrel-cage motor (AC-3): 30 S-T65CW AC200V 0.75 AC200 Non-reversible type T65 106.0 Electromagnetic contactor 88.0 2a2b Live-part protective cover 3-phase squirrel-cage motor (AC-3): 30 3-phase squirrel-cage motor (AC-3): 30 S-T80 AC200V AC200 106.0 2.2 Non-reversible type 3-phase squirrel-cage motor (AC-3): 19 Electromagnetic contactor (200-240V)80 (380-440V)80 (500-550V)75 Screw, DIN rail 88.0 2a2b 3-phase squirrel-cage motor (AC-3): 45 How to OrderCheck frame size (rated current or motor kW), coil voltage and auxiliary contact configuration. Please confirm the full part number and options against the MITSUBISHI ELECTRIC catalog; contact us if you need help identifying the right model.Product image is representative of the MITSUBISHI ELECTRIC series; appearance varies by size and model.About MITSUBISHI ELECTRICMitsubishi Electric is a Japanese manufacturer of factory automation and low-voltage power distribution equipment, including MELSEC PLCs, servo systems, inverters, magnetic contactors and starters, circuit breakers and measuring instruments.Ordering & Shipping Genuine MITSUBISHI ELECTRIC product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

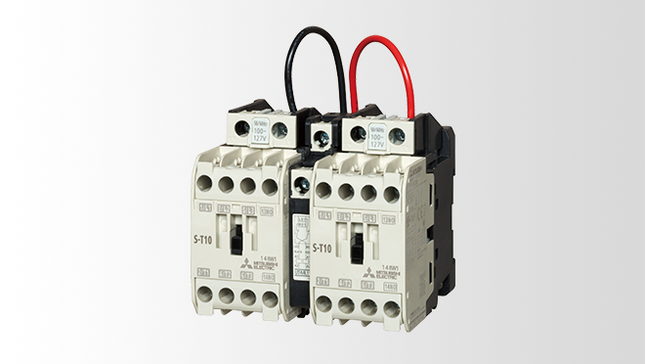

MITSUBISHI ELECTRIC S-2×T — Magnetic Contactor AC Operated (Reversing) S-2x, genuine MITSUBISHI ELECTRIC product.OverviewThe MITSUBISHI ELECTRIC S-2×T Series is a reversing magnetic contactor consisting of two contactors with a mechanical interlock. Energizing one coil runs the motor forward and the other runs it in reverse, while the interlock prevents both closing together. It is used for reversing motor control on conveyors, hoists, doors and machine drives.Key Features Two contactors with mechanical interlock AC-operated coil Compact T Series frame Specifications Part No. Thermal Current (A) Frame Coil Rated Voltage (V) Thickness (mm) Operation Method Auxiliary Contacts Type Applicable Motor Capacity (200-240V) (kW) Length (mm) Applicable Motor Capacity (500-550V) (kW) Rated Operational Current (A) 3-Phase Squirrel-Cage Motor (AC-3) Class Width (W, mm) Applicable Motor Capacity (380-440V) (kW) Mass (kg) Installation Method S-2×T10 AC200V T10 78.0 Reversible type 1a × 2 + 2b 3-phase squirrel-cage motor (AC-3): 2.2 76.5 3-phase squirrel-cage motor (AC-3): 2.7 82.0 3-phase squirrel-cage motor (AC-3): 2.7 Screw, DIN rail S-2×T20 AC200V T20 Reversible type 1a1b × 2 + 2b Electromagnetic contactor 3-phase squirrel-cage motor (AC-3): 3.7 3-phase squirrel-cage motor (AC-3): 7.5 97.0 3-phase squirrel-cage motor (AC-3): 7.5 0.59 Screw, DIN rail S-2×T21 AC200V 32.0 T21 Reversible type 2a2b × 2 Electromagnetic contactor 3-phase squirrel-cage motor (AC-3): 4 81.0 3-phase squirrel-cage motor (AC-3): 7.5 (200-240V)18 (380-440V)18 (500-550V)17 63.0 0.41 S-2×T25 AC200V 32.0 AC200 Reversible type 2a2b × 2 Electromagnetic contactor 3-phase squirrel-cage motor (AC-3): 5.5 3-phase squirrel-cage motor (AC-3): 11 (200-240V)26 (380-440V)25 (500-550V)20 63.0 3-phase squirrel-cage motor (AC-3): 11 0.41 S-2×T35 AC200V T35 AC200 91.0 Reversible type 2a2b × 2 Electromagnetic contactor 89.0 3-phase squirrel-cage motor (AC-3): 15 Live-part protective cover 75.0 3-phase squirrel-cage motor (AC-3): 15 0.55 How to OrderConfirm the frame size, coil voltage and auxiliary contact arrangement. Please confirm the full part number and options against the MITSUBISHI ELECTRIC catalog; contact us if you need help identifying the right model.Product image is representative of the MITSUBISHI ELECTRIC series; appearance varies by size and model.About MITSUBISHI ELECTRICMitsubishi Electric is a Japanese manufacturer of factory automation and low-voltage power distribution equipment, including MELSEC PLCs, servo systems, inverters, magnetic contactors and starters, circuit breakers and measuring instruments.Ordering & Shipping Genuine MITSUBISHI ELECTRIC product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

MITSUBISHI ELECTRIC UT-AX — Auxiliary Contact Unit for Magnetic Starter, genuine MITSUBISHI ELECTRIC product.OverviewThis Mitsubishi Electric auxiliary contact unit attaches to a magnetic contactor or magnetic starter to add extra normally open and normally closed contacts. The extra contacts follow the main contactor's operation and are used for interlocks, status signals to a PLC or indicator lamps. It lets panel builders expand contact count without changing the contactor itself.Key Features Adds auxiliary a and b contacts to contactors Mounts directly on the contactor body Contacts follow main contactor switching Used for interlocks and status signals Specifications Part No. Type Auxiliary Contacts Installation Method UT-AX2 1A1B Related products 1a1b Head-on UT-AX4 2A2B Related products 2a2b Head-on UT-AX4 3A1B Related products 3a1b Head-on UT-AX4 4A Related products 4a Head-on How to OrderConfirm the compatible contactor frame and the contact arrangement required (for example 1A1B or 2A2B). Please confirm the full part number and options against the MITSUBISHI ELECTRIC catalog; contact us if you need help identifying the right model.About MITSUBISHI ELECTRICMitsubishi Electric is a Japanese manufacturer of factory automation and low-voltage power distribution equipment, including MELSEC PLCs, servo systems, inverters, magnetic contactors and starters, circuit breakers and measuring instruments.Ordering & Shipping Genuine MITSUBISHI ELECTRIC product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

MITSUBISHI ELECTRIC UT-SA25 AC48V — Surge Absorber Unit for Operating Coil, genuine MITSUBISHI ELECTRIC product.OverviewThis surge absorber unit from MITSUBISHI ELECTRIC is fitted to the operating coil of a magnetic contactor or relay. It suppresses voltage spikes generated when the coil is switched off, protecting control circuits, PLC outputs and nearby electronics from noise. It is used in control panels with sensitive electronic equipment.Key Features Suppresses coil switching surges Protects PLC outputs and electronics Plug-in mounting on contactor coils Matched to coil voltage Specifications Part No. Rated Operational Voltage (V) Nominal Size Type Installation Method Type UT-SA25 AC48V AC48 (DC dual use) AC48V Related products Max ON With varistor + CR How to OrderConfirm the contactor frame and the coil voltage rating. Please confirm the full part number and options against the MITSUBISHI ELECTRIC catalog; contact us if you need help identifying the right model.About MITSUBISHI ELECTRICMitsubishi Electric is a Japanese manufacturer of factory automation and low-voltage power distribution equipment, including MELSEC PLCs, servo systems, inverters, magnetic contactors and starters, circuit breakers and measuring instruments.Ordering & Shipping Genuine MITSUBISHI ELECTRIC product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

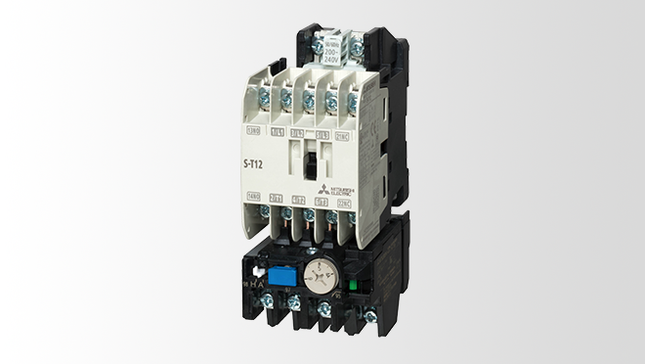

MITSUBISHI ELECTRIC MSO-T — Open Type Magnetic Starter AC Operated MSO-T Series, genuine MITSUBISHI ELECTRIC product.OverviewThe MSO-T Series is an open-type magnetic starter from Mitsubishi Electric, combining a magnetic contactor and thermal overload relay to start, stop and protect three-phase motors. The overload relay trips the contactor when motor current stays too high. It is mounted inside control panels for conveyors, pumps, fans and compressors.Key Features Contactor and thermal overload relay combined Protects motors from overload Open type for panel mounting AC-operated coil in several voltages Specifications Part No. Heater Rating (A) Coil Rated Voltage (V) Auxiliary Contacts Type Type Length (mm) Applicable Motor Capacity (500-550V) (kW) Rated Operational Voltage (V) Applicable Motor Capacity (200-240V) (kW) Main Circuit Voltage (V) Operation Method Width (W, mm) Heater Element Setting Range (A) Applicable Motor Capacity (kW) Mass (kg) Thickness (mm) Applicable Motor Capacity (380-440V) (kW) Compatible Thermal Relay Motor Capacity (kW) Frame MSO-T10 0.1KW 200V AC200V 0.7 1a 115.0 200.0 3-phase squirrel-cage motor (AC-3): 2.2 200.0 45.0 0.55 ~ 0.85 0.1 79.0 0.1 T10 MSO-T10 0.2KW 200V AC200V 1.3 Open type Electromagnetic switch 115.0 Non-reversible type 45.0 1 ~ 1.6 79.0 3-phase squirrel-cage motor (AC-3): 2.7 MSO-T10 0.4KW 200V AC200V 2.1 1a Open type Electromagnetic switch 3-phase squirrel-cage motor (AC-3): 2.7 200.0 45.0 0.4 3-phase squirrel-cage motor (AC-3): 2.7 TH-T18 2.1A 0.4 T10 MSO-T10 0.75KW 200V AC200V AC200 Open type Electromagnetic switch 3-phase squirrel-cage motor (AC-3): 2.7 3-phase squirrel-cage motor (AC-3): 2.2 Non-reversible type 0.75 0.36 3-phase squirrel-cage motor (AC-3): 2.7 MSO-T10 1.5KW 200V AC200V AC200 1a 3-phase squirrel-cage motor (AC-3): 2.7 200.0 200.0 Non-reversible type 5.2 ~ 8 TH-T18 6.6A 1.5 MSO-T10 1KW 200V AC200V 5.0 AC200 Electromagnetic switch 115.0 3-phase squirrel-cage motor (AC-3): 2.7 200.0 0.36 3-phase squirrel-cage motor (AC-3): 2.7 1.0 T10 MSO-T10 2.2KW 200V AC200V 9.0 Open type 200.0 3-phase squirrel-cage motor (AC-3): 2.2 200.0 Non-reversible type 45.0 7 ~ 11 0.36 2.2 MSO-T12 0.1KW 200V AC200V 0.7 AC200 1a1b Open type Electromagnetic switch 115.0 Non-reversible type 0.38 3-phase squirrel-cage motor (AC-3): 4 TH-T18 0.7A MSO-T12 0.2KW 200V AC200V 1.3 AC200 115.0 3-phase squirrel-cage motor (AC-3): 5.5 200.0 3-phase squirrel-cage motor (AC-3): 2.7 Non-reversible type 0.2 TH-T18 1.3A MSO-T12 0.4KW 200V AC200V 2.1 AC200 1a1b Electromagnetic switch 200.0 200.0 45.0 0.4 0.4 T12 MSO-T12 0.75KW 200V AC200V 3.6 Electromagnetic switch 3-phase squirrel-cage motor (AC-3): 5.5 200.0 200.0 Non-reversible type 45.0 2.8 ~ 4.4 0.75 79.0 0.75 T12 MSO-T12 1.5KW 200V AC200V 6.6 Open type Electromagnetic switch 200.0 5.2 ~ 8 1.5 0.38 79.0 3-phase squirrel-cage motor (AC-3): 4 1.5 T12 MSO-T12 2.2KW 200V AC200V 9.0 AC200 1a1b 115.0 3-phase squirrel-cage motor (AC-3): 5.5 200.0 200.0 45.0 0.38 79.0 3-phase squirrel-cage motor (AC-3): 4 MSO-T20 0.75KW 200V AC200V AC200 Open type Electromagnetic switch 3-phase squirrel-cage motor (AC-3): 7.5 200.0 Non-reversible type 2.8 ~ 4.4 0.38 3-phase squirrel-cage motor (AC-3): 7.5 MSO-T20 1.5KW 200V AC200V 6.6 AC200 Open type 3-phase squirrel-cage motor (AC-3): 3.7 200.0 Non-reversible type 1.5 0.38 79.0 3-phase squirrel-cage motor (AC-3): 7.5 T20 MSO-T20 2.2KW 200V AC200V 9.0 1a1b Open type Electromagnetic switch 200.0 3-phase squirrel-cage motor (AC-3): 3.7 Non-reversible type 45.0 7 ~ 11 3-phase squirrel-cage motor (AC-3): 7.5 2.2 MSO-T20 3.7KW 200V AC200V 15.0 115.0 3-phase squirrel-cage motor (AC-3): 7.5 200.0 200.0 45.0 3.7 79.0 3.7 T20 MSO-T21 0.75KW 200V AC200V 3.6 AC200 2a2b Electromagnetic switch 200.0 200.0 63.0 2.8 ~ 4.4 0.75 82.0 T21 MSO-T21 1.5KW 200V AC200V 6.6 Electromagnetic switch 3-phase squirrel-cage motor (AC-3): 7.5 200.0 3-phase squirrel-cage motor (AC-3): 4 Non-reversible type 63.0 1.5 82.0 1.5 MSO-T21 2.2KW 200V AC200V 9.0 AC200 Electromagnetic switch 3-phase squirrel-cage motor (AC-3): 7.5 200.0 200.0 63.0 7 ~ 11 2.2 TH-T25 9A MSO-T21 3.7KW 200V AC200V AC200 2a2b Open type Electromagnetic switch 128.0 200.0 63.0 3.7 0.59 82.0 T21 MSO-T25 3.7KW 200V AC200V AC200 Electromagnetic switch 128.0 200.0 Non-reversible type 63.0 12 ~ 18 3.7 82.0 3-phase squirrel-cage motor (AC-3): 11 MSO-T25 5.5KW 200V AC200V AC200 Open type 3-phase squirrel-cage motor (AC-3): 11 3-phase squirrel-cage motor (AC-3): 5.5 200.0 Non-reversible type 18 ~ 26 5.5 0.59 5.5 T25 MSO-T35 5.5KW 200V AC200V AC200 2a2b 157.5 3-phase squirrel-cage motor (AC-3): 15 200.0 3-phase squirrel-cage motor (AC-3): 7.5 Non-reversible type 5.5 0.79 91.0 T35 MSO-T35 7.5KW 200V AC200V 29.0 2a2b Open type 3-phase squirrel-cage motor (AC-3): 15 Non-reversible type 24 ~ 34 0.79 91.0 TH-T50 29A MSO-T50 11KW 200V AC200V 42.0 AC200 Electromagnetic switch 200.0 34 ~ 50 11.0 0.79 91.0 3-phase squirrel-cage motor (AC-3): 22 11.0 MSO-T65 15KW 200V AC200V AC200 Open type Electromagnetic switch 169.5 200.0 90.0 43 ~ 65 15.0 106.0 TH-T65 54A 15.0 How to OrderSpecify motor capacity and voltage, overload relay heater setting and coil voltage. Please confirm the full part number and options against the MITSUBISHI ELECTRIC catalog; contact us if you need help identifying the right model.Product image is representative of the MITSUBISHI ELECTRIC series; appearance varies by size and model.About MITSUBISHI ELECTRICMitsubishi Electric is a Japanese manufacturer of factory automation and low-voltage power distribution equipment, including MELSEC PLCs, servo systems, inverters, magnetic contactors and starters, circuit breakers and measuring instruments.Ordering & Shipping Genuine MITSUBISHI ELECTRIC product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

MITSUBISHI ELECTRIC MSO-T — Open Type Magnetic Starter AC Operated MSO-T Series, genuine MITSUBISHI ELECTRIC product.OverviewThe MSO-T Series is an open-type magnetic starter from Mitsubishi Electric, combining a magnetic contactor and thermal overload relay to start, stop and protect three-phase motors. The overload relay trips the contactor when motor current stays too high. It is mounted inside control panels for conveyors, pumps, fans and compressors.Key Features Contactor and thermal overload relay combined Protects motors from overload Open type for panel mounting AC-operated coil in several voltages Specifications Part No. Auxiliary Contacts Applicable Motor Capacity (200-240V) (kW) Motor Capacity (kW) Rated Operational Voltage (V) Operation Method Thickness (mm) Frame Mass (kg) Type Rated Operational Current (A) 3-Phase Squirrel-Cage Motor (AC-3) Coil Rated Voltage (V) Applicable Motor Capacity (500-550V) (kW) Applicable Motor Capacity (380-440V) (kW) Width (W, mm) Type Length (mm) MSO-T10BC 0.1KW 200V AC200V 1a 0.1 79.0 T10 0.36 Electromagnetic switch AC200 3-phase squirrel-cage motor (AC-3): 2.7 45.0 115.0 MSO-T10BC 0.2KW 200V AC200V 1a 0.2 200.0 79.0 T10 Electromagnetic switch AC200 3-phase squirrel-cage motor (AC-3): 2.7 45.0 Open type 115.0 MSO-T10BC 0.4KW 200V AC200V 3-phase squirrel-cage motor (AC-3): 2.2 200.0 Non-reversible type 0.36 Electromagnetic switch (200-240V)11 (380-440V)7 (500-550V)6 AC200 3-phase squirrel-cage motor (AC-3): 2.7 45.0 Open type 115.0 MSO-T10BC 0.75KW 200V AC200V 1a 0.75 Non-reversible type 79.0 T10 0.36 Electromagnetic switch (200-240V)11 (380-440V)7 (500-550V)6 AC200 3-phase squirrel-cage motor (AC-3): 2.7 45.0 115.0 MSO-T10BC 1.5KW 200V AC200V 1a 3-phase squirrel-cage motor (AC-3): 2.2 Non-reversible type T10 Electromagnetic switch (200-240V)11 (380-440V)7 (500-550V)6 3-phase squirrel-cage motor (AC-3): 2.7 45.0 Open type 115.0 MSO-T10BC 1KW 200V AC200V 200.0 Non-reversible type 79.0 T10 0.36 Electromagnetic switch (200-240V)11 (380-440V)7 (500-550V)6 AC200 3-phase squirrel-cage motor (AC-3): 2.7 3-phase squirrel-cage motor (AC-3): 2.7 Open type MSO-T10BC 2.2KW 200V AC200V 3-phase squirrel-cage motor (AC-3): 2.2 2.2 79.0 T10 0.36 Electromagnetic switch AC200 3-phase squirrel-cage motor (AC-3): 2.7 3-phase squirrel-cage motor (AC-3): 2.7 45.0 115.0 MSO-T12BC 0.4KW 200V AC200V 1a1b 3-phase squirrel-cage motor (AC-3): 2.7 200.0 Non-reversible type 79.0 0.38 Electromagnetic switch (200-240V)13 (380-440V)9 (500-550V)9 3-phase squirrel-cage motor (AC-3): 4 Open type MSO-T12BC 0.75KW 200V AC200V 1a1b 0.75 200.0 Non-reversible type 79.0 T12 0.38 Electromagnetic switch AC200 3-phase squirrel-cage motor (AC-3): 5.5 45.0 Open type MSO-T12BC 1.5KW 200V AC200V 3-phase squirrel-cage motor (AC-3): 2.7 1.5 Non-reversible type 79.0 T12 0.38 AC200 3-phase squirrel-cage motor (AC-3): 5.5 3-phase squirrel-cage motor (AC-3): 4 Open type MSO-T12BC 2.2KW 200V AC200V 3-phase squirrel-cage motor (AC-3): 2.7 2.2 200.0 Non-reversible type 79.0 T12 0.38 AC200 3-phase squirrel-cage motor (AC-3): 5.5 3-phase squirrel-cage motor (AC-3): 4 Open type 115.0 MSO-T20BC 3.7KW 200V AC200V 3-phase squirrel-cage motor (AC-3): 3.7 3.7 200.0 Non-reversible type 0.38 Electromagnetic switch AC200 3-phase squirrel-cage motor (AC-3): 7.5 45.0 115.0 MSO-T21BC 2.2KW 200V AC200V 2.2 200.0 Non-reversible type 82.0 0.59 AC200 3-phase squirrel-cage motor (AC-3): 7.5 63.0 Open type 128.0 MSO-T21BC 3.7KW 200V AC200V 3-phase squirrel-cage motor (AC-3): 4 3.7 200.0 82.0 T21 (200-240V)18 (380-440V)18 (500-550V)17 AC200 3-phase squirrel-cage motor (AC-3): 7.5 3-phase squirrel-cage motor (AC-3): 7.5 63.0 Open type 128.0 MSO-T25BC 3.7KW 200V AC200V 2a2b 3-phase squirrel-cage motor (AC-3): 5.5 3.7 200.0 Non-reversible type 0.59 Electromagnetic switch 3-phase squirrel-cage motor (AC-3): 11 63.0 Open type 128.0 MSO-T25BC 5.5KW 200V AC200V 200.0 82.0 T25 0.59 Electromagnetic switch (200-240V)26 (380-440V)25 (500-550V)20 AC200 3-phase squirrel-cage motor (AC-3): 11 3-phase squirrel-cage motor (AC-3): 11 63.0 Open type MSO-T35BC 7.5KW 200V AC200V 3-phase squirrel-cage motor (AC-3): 7.5 200.0 T35 0.79 Electromagnetic switch (200-240V)34 (380-440V)32 (500-550V)26 AC200 3-phase squirrel-cage motor (AC-3): 15 75.0 Open type 157.5 How to OrderSpecify motor capacity and voltage, overload relay heater setting and coil voltage. Please confirm the full part number and options against the MITSUBISHI ELECTRIC catalog; contact us if you need help identifying the right model.Product image is representative of the MITSUBISHI ELECTRIC series; appearance varies by size and model.About MITSUBISHI ELECTRICMitsubishi Electric is a Japanese manufacturer of factory automation and low-voltage power distribution equipment, including MELSEC PLCs, servo systems, inverters, magnetic contactors and starters, circuit breakers and measuring instruments.Ordering & Shipping Genuine MITSUBISHI ELECTRIC product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

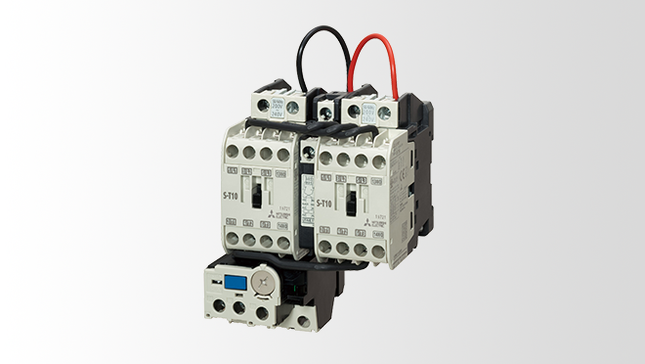

MITSUBISHI ELECTRIC MSO-2×T10BC 0.4KW 200V AC200V — Open Type Magnetic Starter AC Operated MSO, genuine MITSUBISHI ELECTRIC product.OverviewThe MITSUBISHI ELECTRIC MSO Series open type magnetic starter combines a magnetic contactor with a thermal overload relay for starting and protecting motors. The AC coil closes the main contacts to run the motor, while the overload relay trips on excessive current. The reversing models listed include two interlocked contactors to change motor direction.Key Features Contactor and thermal overload relay in one unit Open type for mounting inside control panels Reversing versions with interlock Overload heater selected by motor rating Specifications Part No. Applicable Motor Capacity (380-440V) (kW) Rated Operational Voltage (V) Mass (kg) Frame Type Type Length (mm) Motor Capacity (kW) Rated Operational Current (A) 3-Phase Squirrel-Cage Motor (AC-3) Width (W, mm) Applicable Motor Capacity (200-240V) (kW) Operation Method Applicable Motor Capacity (500-550V) (kW) Thickness (mm) Auxiliary Contacts Coil Rated Voltage (V) MSO-2×T10BC 0.4KW 200V AC200V 3-phase squirrel-cage motor (AC-3): 2.7 200.0 Open type 115.0 0.4 90.0 3-phase squirrel-cage motor (AC-3): 2.2 Reversible type 79.0 1a × 2 + 2b AC200 How to OrderConfirm the motor output and voltage, coil voltage, and reversing or non-reversing configuration. Please confirm the full part number and options against the MITSUBISHI ELECTRIC catalog; contact us if you need help identifying the right model.Product image is representative of the MITSUBISHI ELECTRIC series; appearance varies by size and model.About MITSUBISHI ELECTRICMitsubishi Electric is a Japanese manufacturer of factory automation and low-voltage power distribution equipment, including MELSEC PLCs, servo systems, inverters, magnetic contactors and starters, circuit breakers and measuring instruments.Ordering & Shipping Genuine MITSUBISHI ELECTRIC product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less
