Crimping Tool

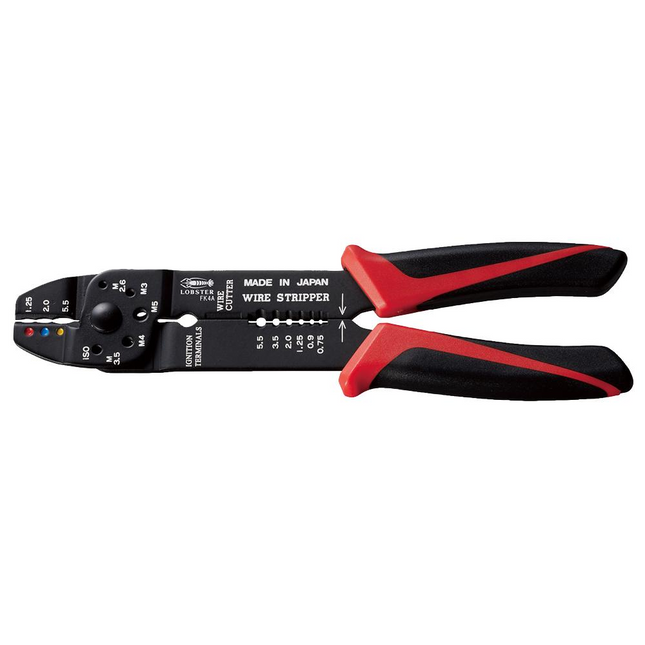

Electric equipment crimping tool FK4 For insulated crimp terminals ● One tool for crimping insulated crimp terminals and bolt / cable cutting and stripping• Insulated terminal crimp tooth opening (1.25, 2, 5.5 sq.)• Wire cutter• Wire stripper (Applicable sizes: 0.75 to 5.5 sq.)• Bolt cutter (Applicable sizes: M2.6 to M5)Use / Application• For automobile maintenance• For telephone and telecommunication cable wiring• For factory maintenance• For household appliances (Audio equipment, TVs, etc.)• For various handcrafts and hobbiesSpecifications  Product Code. Model No. weight size1 215-0141 FK4 220g 220mm IMPORTANT SAFETY INSTRUCTIONS◆ Precautions in useDo not use this tool on live wires. This may result in electric shock.Simple tools for automotive repairs and hobbies. Do not use this tool for crimping important parts such as indoor wiring.CAUTIONS ON INSCRIBED VALUES※ Since dimensions, weights, etc. are nominal, there are possibly some numerical values.※ Specifications may be changed for improvement without prior notice.

Read more less

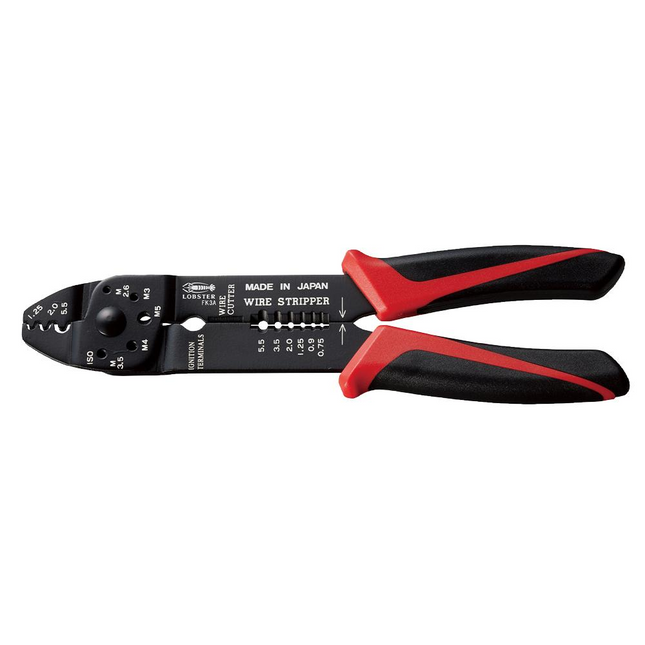

Electric equipment crimping tool FK3 For non-insulated terminals and P.B sleeves ● One tool for crimping non-insulated terminals and P.B sleeves, and bolt / cable cutting and stripping.• Crimp tooth opening for non-insulated terminal and P.B sleeve (1.25, 2, 5.5 sq.)• Bolt cutter (Applicable sizes: M2.6 to M5)• Wire cutter• Wire stripper (Applicable sizes: 0.75 to 5.5 sq.)Use / Application• For automobile maintenance• For telephone and telecommunication cable wiring• For factory maintenance• For household appliances (Audio equipment, TVs, etc.)• For various handcrafts and hobbiesSpecifications  Product Code. Model No. weight size1 215-0132 FK3 220g 220mm IMPORTANT SAFETY INSTRUCTIONS◆ Precautions in useDo not use this tool on live wires. This may result in electric shock.Simple tools for automotive repairs and hobbies. Do not use this tool for crimping important parts such as indoor wiring.CAUTIONS ON INSCRIBED VALUES※ Since dimensions, weights, etc. are nominal, there are possibly some numerical values.※ Specifications may be changed for improvement without prior notice.

Read more less

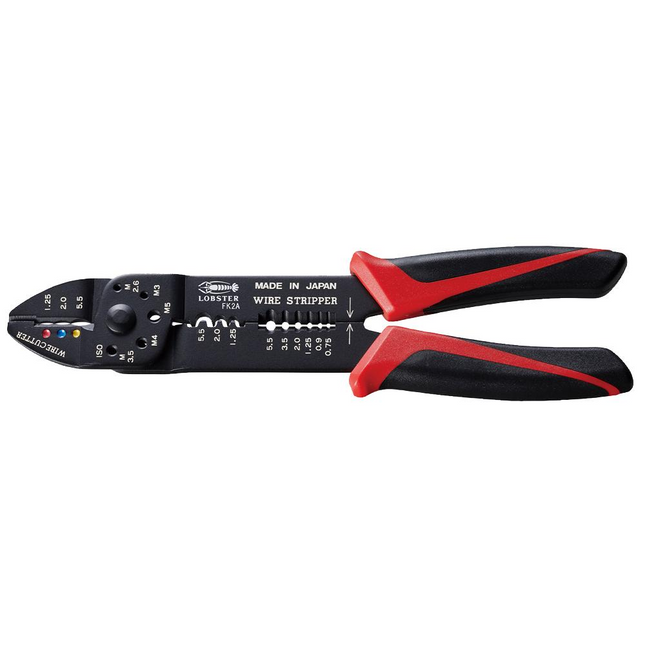

Electric equipment crimping tool FK2 Insulated crimp terminals, non-insulated terminals and P.B sleeves ● One tool for crimping insulated crimp terminals / non-insulated terminals and P.B sleeves, and bolt / cable cutting and stripping• Wire cutterInsulated terminal crimp tooth opening (1.25, 2, 5.5 sq.)• Bolt cutter (Applicable sizes: M2.6 to M5)• Crimp tooth opening for non-insulated terminal and P.B sleeve (1.25, 2, 5.5 sq.)• Wire stripper (Applicable sizes: 0.75 to 5.5 sq.)Use / Application• For automobile maintenance• For telephone and telecommunication cable wiring• For factory maintenance• For household appliances (Audio equipment, TVs, etc.)• For various handcrafts and hobbiesSpecifications Product Code. Model No. weight size1 215-0123 FK2 275g 235mm IMPORTANT SAFETY INSTRUCTIONS◆ Precautions in useDo not use this tool on live wires. This may result in electric shock.Simple tools for automotive repairs and hobbies. Do not use this tool for crimping important parts such as indoor wiring. CAUTIONS ON INSCRIBED VALUES※ Since dimensions, weights, etc. are nominal, there are possibly some numerical values.※ Specifications may be changed for improvement without prior notice.

Read more less

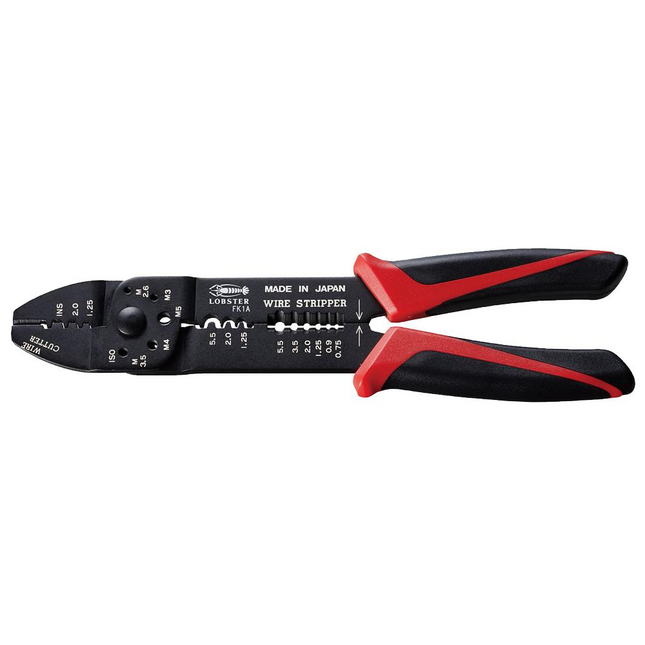

Electric equipment crimping tool FK1 For open barrel terminals, for non-insulated terminals and sleeves ● One tool for crimping open barrel terminals / non-insulated terminals, and bolt / cable cutting and stripping• Wire cutter• Open barrel crimp tooth opening (Insertion terminal: 1.25, 2 mm2) * Use dies indicated with INS crimp the insulation area• Bolt cutter (Applicable sizes: M2.6 to M5)• Crimp tooth opening for non-insulated terminal and P.B sleeve (1.25, 2, 5.5 sq.)• Wire stripper (Applicable sizes: 0.75 to 5.5 sq.)Use / Application• For automobile maintenance• For telephone and telecommunication cable wiring• For factory maintenance• For household appliances (Audio equipment, TVs, etc.)• For various handcrafts and hobbiesSpecifications Product Code. Model No. weight size1 215-0114 FK1 275g 235mm ! IMPORTANT SAFETY INSTRUCTIONS◆ Precautions in useDo not use this tool on live wires. This may result in electric shock.Simple tools for automotive repairs and hobbies. Do not use this tool for crimping important parts such as indoor wiring.! CAUTIONS ON INSCRIBED VALUES※ Since dimensions, weights, etc. are nominal, there are possibly some numerical values.※ Specifications may be changed for improvement without prior notice.

Read more less

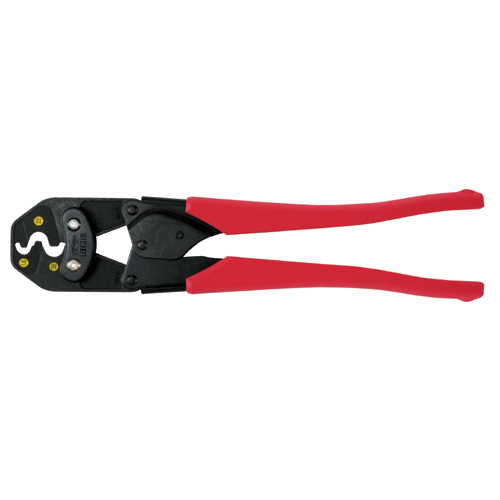

Crimping tool AK38A For non-insulated terminals for copper wire. For non-insulated sleeves for copper wire. • The handle is narrow and weighs less, enabling easy and secure crimping work via minimal handle operation.Use / Application• For non-insulated terminals for copper wire.For non-insulated sleeves (P-B) for copper wire.Specifications  Product Code. Model No. weight size1 size2 Use range 215-0080 AK38A 670g 335mm 82mm 14、22、38㎜2 ! IMPORTANT SAFETY INSTRUCTIONS◆ Precautions in useDo not crimp or work nearby live wires. This may result in electric shock.Use this tool properly with compatible cable connectors (terminals and sleeves) and cables.To prevent crimping failure, and to ensure crimping performance, the tool should be periodically inspected by Lobtex.! CAUTIONS ON INSCRIBED VALUES※ Since dimensions, weights, etc. are nominal, there are possibly some numerical values.※ Specifications may be changed for improvement without prior notice.

Read more less

Crimping tool AK25A • AK28A For closed end insulated connectors • Smooth handle operation• Forming check mechanism incorporated in the body. Smart collar design.• Handle is narrower than conventional models. (Approx. 200 mm when opened.) Handle is easily operated with one hand while holding the terminal with the other.Use / ApplicationFor closed end insulated connectorsSpecifications Product Code. Model No.  weight size1 size2 Use range 215-0053 AK25A 415g 266mm 82mm CE1、2、5 215-4484 AK28A 425g 269mm 82mm CE1、2、5、8 ! IMPORTANT SAFETY INSTRUCTIONS◆ Precautions in useDo not crimp or work nearby live wires. This may result in electric shock.Use this tool properly with compatible cable connectors (terminals and sleeves) and cables.To prevent crimping failure, and to ensure crimping performance, the tool should be periodically inspected by Lobtex.! CAUTIONS ON INSCRIBED VALUES※ Since dimensions, weights, etc. are nominal, there are possibly some numerical values.※  Specifications may be changed for improvement without prior notice.

Read more less

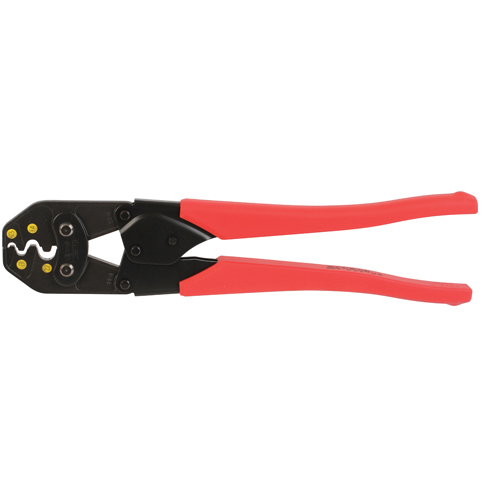

Crimping tool AK22A For non-insulated terminals for copper wire. For non-insulated sleeves for copper wire. • The handle is narrow and weighs less, enabling easy and secure crimping work via minimal handle operation.Use / Application• For non-insulated terminals for copper wire.•For non-insulated sleeves (P-B) for copper wire.Specifications Product Code. Model No. (Product) weight size1 size2 Use range 215-4527 AK22A 675g 336mm 82mm 5.5、8、14、22㎜2 ! IMPORTANT SAFETY INSTRUCTIONS◆ Precautions in useDo not crimp or work nearby live wires. This may result in electric shock.Use this tool properly with compatible cable connectors (terminals and sleeves) and cables.To prevent crimping failure, and to ensure crimping performance, the tool should be periodically inspected by Lobtex.! CAUTIONS ON INSCRIBED VALUES※ Since dimensions, weights, etc. are nominal, there are possibly some numerical values.※ Specifications may be changed for improvement without prior notice.

Read more less

LOBSTER Crimping Side-Cutting Pliers CSC225  Specifications Product Code. Model No. weight size1 Remark 215-0576 CSC225 365g 365mm Cutting capacity ①Iron wire:φ3.6 ②Copper wire:φ4.0 ※① of a table is full length. IMPORTANT SAFETY INSTRUCTIONS◆ Attention on useDo not use this tool on live parts. The grip is not insulated.Before cutting work, confirm the direction in which chips scatter.During work, wear protective goggles.CAUTIONS ON INSCRIBED VALUES※ Since dimensions, weights, etc. are nominal, there are possibly some numerical values.※ Specifications may be changed for improvement without prior notice.

Read more less

KLEIN TOOLS Side-Cutting Pliers Connector Crimping, 9-Inch (D213-9NE-CR)  ▶ Crimping die behind hinge for superior leverage crimping of non-insulated connectors, lugs and terminals▶ High-leverage design; rivet is closer to the cutting edge for 46-percent greater cutting and gripping power than other plier designs▶ Induction hardened cutting knives for long life▶ Hot-riveted joint ensuring smooth action and no handle wobble▶ Streamlined design with sure-gripping, cross-hatched knurled jaws▶ Unique handle tempering helps absorb the '' snap '' when cutting wire▶ Precision-hardened plier head for on-the-job toughness▶ Plastic-dipped handles for comfort and ease of identification▶ '' Handform '' handles for full gripping and cutting power▶ Custom, US-made tool steel Type: High Leverage Side Cutting/Connector Crimping Pliers Application: Cutting and Crimping Material: Steel Nose Type: New England Jaw Length: 1-19/32'' (40.5 mm) Jaw Width: 1-1/4'' (31.8 mm) Jaw Thickness: 1-19/32'' (40.5 mm) Jaw Capacity: 1-3/8'' (34.9 mm) Knife Length: 25/32'' (19.8 mm) Joint Type: Locking Handle Color: Yellow Handle Finish: Plastic-Dipped Handle Length: 5-9/16'' ( 141.3 mm) Insulated: No Tether Capable: No Overall Length: 9-3/8'' (238.1 mm) Weight: 1.0 lb (0.5 kg) UPC: 92644700460

Read more less

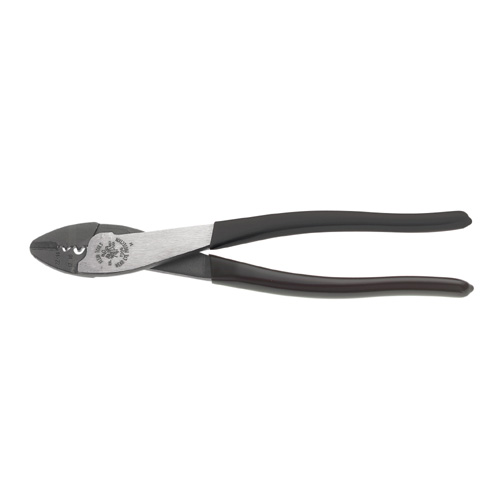

KLEIN TOOLS Crimping/Cutting Tool for Non-Insulated Terminals (No.1006)  Product Features● Used to crimp non-insulated solderless terminals and connectors● Specially hardened wire cutter in nose● Tapered nose for working in confined spaces● Plastic-dipped, cushioned handles for comfort● Crimps non-insulated 10 to 22 AWG (2.59 mm to 0.64 mm) solderless terminals and connectors● Forged steel for maximum durability   SPECS Application: Crimps Non-Insulated Solderless Terminals and Connectors Material: Steel Handle Color: Black Handle Finish: Plastic-dipped Jaw Material: Steel Cutting Capacity: 10 - 22 AWG Crimps: 10 - 22 AWG (4.0 mm² - 0.34 mm²) Overall Length: 9-3/4'' (247.7 mm) Weight: 0.85 lb (0.39 kg) UPC: 92644742064

Read more less

KLEIN TOOLS Connector Crimping Long-Nose Pliers (No.VDV026-049)  Product Features● Crimps UR / UY / UG insulation displacement connectors (IDC) - Scotchlok® type connectors● Grooved jaws for wire wrapping, looping and twisting● Cleanly strips 23 AWG and 24 AWG wire● Hot riveted joint ensures smooth action and no handle wobble● Induction hardened cutting surface for long life● Yellow plastic grips enhance comfort, visibility and allow quick identification● Scotchlok® is a registered trademark of 3M Corporation   SPECS Application: Crimps UR/UY/UG Insulation Displacement Connectors (IDC)- Scotchlok Type Connectors, Cleanly Strips 23 AWG and 24 AWG Wires Overall Length: 6-51/64'' (172.6 mm) Jaw Length: 2'' (50.8 mm) Jaw Width: 45/64'' (17.9 mm) Jaw Thickness: 3/8'' (9.5 mm) Point Diameter: 0.095'' x 0.125'' (2.41 mm x 3.17 mm) Knife Length: 7/16'' (11.1 mm) Handle Color: Yellow Handle Finish: Plastic Dipped Weight: 0.28 lb (0.13 kg)

Read more less

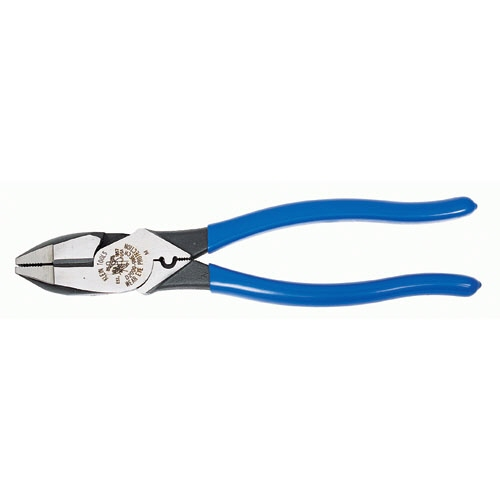

KLEIN TOOLS 9'' Heavy Duty Cutting Pliers Crimping (No.D2000-9NECR)  Product Features● Crimping die behind hinge for superior leverage crimping of non-insulated connectors, lugs and terminals● Cuts ACSR, screws, nails, and most hardened wire● High-leverage design. Rivet is closer to the cutting edge for 46% greater cutting and gripping power than other plier designs● Induction hardened cutting knives for long life● Hot-riveted joint ensuring smooth action and no handle wobble● Streamlined design with sure-gripping, cross-hatched knurled jaws● Unique handle tempering helps absorb the '' snap '' when cutting wire● Precision-hardened plier head for on-the-job toughness● Plastic-dipped handles for comfort and ease of identification● '' Handform '' handles for full gripping and cutting power● Custom, US-made tool steel SPECS Type: Heavy Duty High Leverage Crimping Pliers Application: ACSR, Screws, Nails, Most Hardened Wire Material: Steel Nose Type: New England Jaw Length: 1-19/32'' (40.5 mm) Jaw Width: 1-1/4'' (31.8 mm) Jaw Thickness: 1-19/32'' (40.5 mm) Jaw Capacity: 1-3/8'' (34.9 mm) Knife Length: 25/32'' (19.8 mm) Joint Type: Hot Riveted Handle Color: Light Blue Handle Finish: Plastic-Dipped Handle Length: 5-3/8'' (136.5 mm) Insulated: No Tether Capable: No Overall Length: 9-3/8'' (238.1 mm) Weight: 1.1 lb (0.5 kg) UPC: 92644700835

Read more less
