LS ELECTRIC Magnetic Contactor
LS ELECTRIC LS ELECTRIC Magnetic Contactor MC-18a
LS ELECTRIC MC-18a — genuine LS ELECTRIC Magnetic Contactor (model MC-18a). This listing covers 5 versions, including AC220V, AC110V and AC380V. Check the coil voltage against your control circuit. A magnetic contactor for switching motors and loads. It has an electromagnetic coil and main and auxiliary contacts, and is used in control panels to start and stop equipment remotely. Key Features Coil voltage depends on the model Rated current depends on the model Auxiliary contacts depend on the model Panel mounting inside the control enclosure Specifications Model Voltage MC-18a AC220V MC-18a AC110V MC-18a AC380V MC-18a AC24V MC-18a DC24V Poles: 3-Pole Rated Current: 200/240V : 4.5kW 18A 380/440V : 7.5kW 185A * Please confirm the coil voltage (operating voltage). Brand: LS ELECTRIC Model: MC-18a About LS ELECTRICLS ELECTRIC (formerly LSIS) is one of South Korea's largest makers of power and automation equipment: Metasol and Susol circuit breakers and contactors, PLCs, HMIs, inverters and power-metering devices.Ordering & Shipping Genuine product sourced through official Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Import duties and taxes are payable by the recipient Bulk and trade pricing available on request Some models are made to order; the exact lead time is confirmed after the order is placed.
$13.44

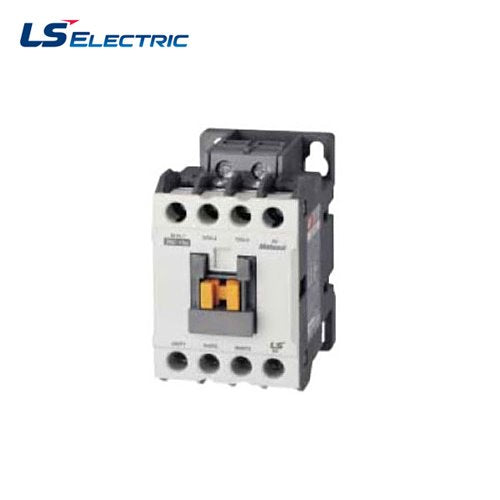

LS ELECTRIC LS ELECTRIC Magnetic Contactor, 1a MC-12a
LS ELECTRIC MC-12a — genuine LS ELECTRIC Magnetic Contactor, 1a (model MC-12a). This listing covers 5 versions, including AC220V, AC110V and AC380V. Check the coil voltage against your control circuit. A magnetic contactor for switching motors and loads. It has an electromagnetic coil and main and auxiliary contacts, and is used in control panels to start and stop equipment remotely. Key Features Coil voltage depends on the model Rated current depends on the model Auxiliary contacts depend on the model Panel mounting inside the control enclosure Specifications Model Voltage MC-12a AC220V MC-12a AC110V MC-12a AC380V MC-12a AC24V MC-12a DC24V Brand: LS ELECTRIC Model: MC-12a About LS ELECTRICLS ELECTRIC (formerly LSIS) is one of South Korea's largest makers of power and automation equipment: Metasol and Susol circuit breakers and contactors, PLCs, HMIs, inverters and power-metering devices.Ordering & Shipping Genuine product sourced through official Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Import duties and taxes are payable by the recipient Bulk and trade pricing available on request Some models are made to order; the exact lead time is confirmed after the order is placed.
$10.23
LS ELECTRIC LS ELECTRIC Magnetic Contactor, MC-65a 2a2b
LS ELECTRIC 2a2b — genuine LS ELECTRIC Magnetic Contactor, MC-65a (model 2a2b). This listing covers 5 versions, including AC220V, AC110V and AC380V. Check the coil voltage against your control circuit. A magnetic contactor for switching motors and loads. It has an electromagnetic coil and main and auxiliary contacts, and is used in control panels to start and stop equipment remotely. Key Features Coil voltage depends on the model Rated current depends on the model Auxiliary contacts depend on the model Panel mounting inside the control enclosure Specifications Model Voltage 2a2b AC220V 2a2b AC110V 2a2b AC380V 2a2b AC24V 2a2b DC24V Poles: 3-Pole Rated Current: 200/240V : 18.5kW 65A 380/440V : 30kW 65A Included Contacts (Standard): 2a2b * Please confirm the coil voltage (operating voltage). Brand: LS ELECTRIC Model: 2a2b About LS ELECTRICLS ELECTRIC (formerly LSIS) is one of South Korea's largest makers of power and automation equipment: Metasol and Susol circuit breakers and contactors, PLCs, HMIs, inverters and power-metering devices.Ordering & Shipping Genuine product sourced through official Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Import duties and taxes are payable by the recipient Bulk and trade pricing available on request Some models are made to order; the exact lead time is confirmed after the order is placed.
$61.24

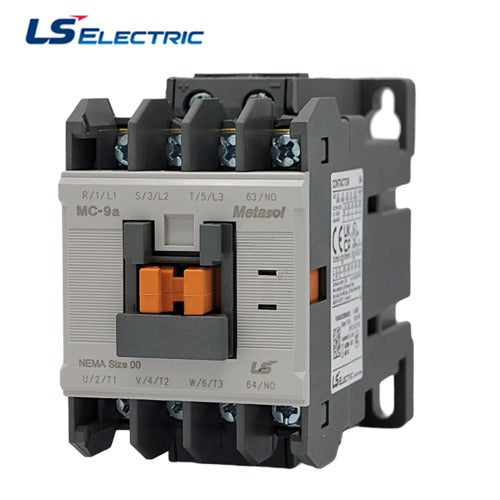

LS ELECTRIC LS ELECTRIC Magnetic Contactor, 1a MC-9a
LS ELECTRIC MC-9a — genuine LS ELECTRIC Magnetic Contactor, 1a (model MC-9a). This listing covers 5 versions, including AC220V, AC110V and AC380V. Check the coil voltage against your control circuit. A magnetic contactor for switching motors and loads. It has an electromagnetic coil and main and auxiliary contacts, and is used in control panels to start and stop equipment remotely. Key Features Coil voltage depends on the model Rated current depends on the model Auxiliary contacts depend on the model Panel mounting inside the control enclosure Specifications Model Voltage MC-9a AC220V MC-9a AC110V MC-9a AC380V MC-9a AC440V MC-9a DC24V Poles: 3-Pole Rated Current: 200/240V : 2.5W 11A 380/440V : 4kW 9A * Please confirm the coil voltage (operating voltage). Brand: LS ELECTRIC Model: MC-9a About LS ELECTRICLS ELECTRIC (formerly LSIS) is one of South Korea's largest makers of power and automation equipment: Metasol and Susol circuit breakers and contactors, PLCs, HMIs, inverters and power-metering devices.Ordering & Shipping Genuine product sourced through official Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Import duties and taxes are payable by the recipient Bulk and trade pricing available on request Some models are made to order; the exact lead time is confirmed after the order is placed.
$9.66

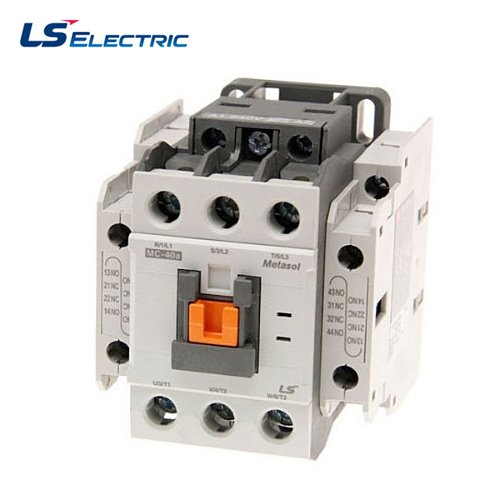

LS ELECTRIC LS ELECTRIC Magnetic Contactor, MC-48a 2a2b
LS ELECTRIC 2a2b — genuine LS ELECTRIC Magnetic Contactor, MC-48a (model 2a2b). This listing covers 5 versions, including AC220V, AC110V and AC380V. Check the coil voltage against your control circuit. A magnetic contactor for switching motors and loads. It has an electromagnetic coil and main and auxiliary contacts, and is used in control panels to start and stop equipment remotely. Key Features Coil voltage depends on the model Rated current depends on the model Auxiliary contacts depend on the model Panel mounting inside the control enclosure Specifications Model Voltage 2a2b AC220V 2a2b AC110V 2a2b AC380V 2a2b AC24V 2a2b DC24V Poles: 3-Pole Rated Current: 200/240V : 14kW 48A 380/440V : 20kW 48A Included Contacts (Standard): 2a2b * Please confirm the coil voltage (operating voltage). Brand: LS ELECTRIC Model: 2a2b About LS ELECTRICLS ELECTRIC (formerly LSIS) is one of South Korea's largest makers of power and automation equipment: Metasol and Susol circuit breakers and contactors, PLCs, HMIs, inverters and power-metering devices.Ordering & Shipping Genuine product sourced through official Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Import duties and taxes are payable by the recipient Bulk and trade pricing available on request Some models are made to order; the exact lead time is confirmed after the order is placed.
$42.15

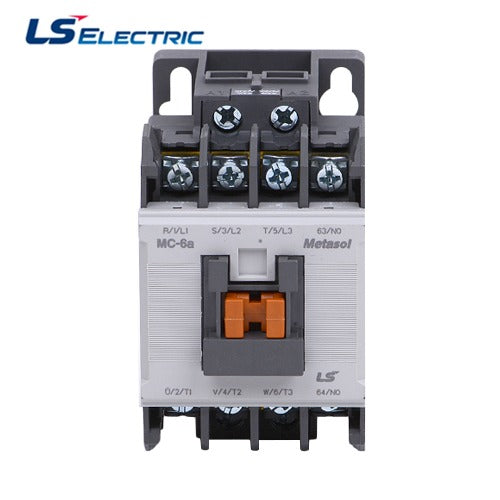

LS ELECTRIC LS ELECTRIC Magnetic Contactor, 1a MC-6a
LS ELECTRIC MC-6a — genuine LS ELECTRIC Magnetic Contactor, 1a (model MC-6a). This listing covers 5 versions, including AC220V, AC110V and AC440V. The coil voltage must match your control supply (AC220V, AC110V or DC24V). A magnetic contactor switches motor and load circuits using an electromagnetic coil. It is used in control panels to start, stop and reverse motors and to switch heaters and lighting banks remotely. Key Features Coil voltage depends on the model Auxiliary contacts depend on the model Rated current depends on the model Panel mounting inside the control enclosure Specifications Model Voltage MC-6a AC220V MC-6a AC110V MC-6a AC440V MC-6a DC12V MC-6a DC24V Poles: 3-Pole Rated Current: 200/240V : 2.2kW 9A 380/440V : 3kW 7A * Please confirm the coil voltage (operating voltage). Brand: LS ELECTRIC Model: MC-6a About LS ELECTRICLS ELECTRIC (formerly LSIS) is one of South Korea's largest makers of power and automation equipment: Metasol and Susol circuit breakers and contactors, PLCs, HMIs, inverters and power-metering devices.Ordering & Shipping Genuine product sourced through official Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Import duties and taxes are payable by the recipient Bulk and trade pricing available on request Some models are made to order; the exact lead time is confirmed after the order is placed.
$9.32
LS ELECTRIC LS ELECTRIC DC Magnetic Contactor MC-150a DC
LS ELECTRIC DC Magnetic Contactor MC-150a DCLS ELECTRIC DC Magnetic Contactor MC-150a DC supplied by LS ELECTRIC, sourced through official Korean distribution.Specifications Auxiliary Contacts 2a2b Ordering & Shipping Genuine product sourced through official Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Import duties and taxes are payable by the recipient Bulk and trade pricing available on request
$160.15
LS ELECTRIC LS ELECTRIC DC Magnetic Contactor MC-100a DC
LS ELECTRIC DC Magnetic Contactor MC-100a DCLS ELECTRIC DC Magnetic Contactor MC-100a DC supplied by LS ELECTRIC, sourced through official Korean distribution.Specifications Auxiliary Contacts 2a2b Ordering & Shipping Genuine product sourced through official Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Import duties and taxes are payable by the recipient Bulk and trade pricing available on request
$103.13
LS ELECTRIC LS ELECTRIC DC Magnetic Contactor MC-65a DC
LS ELECTRIC DC Magnetic Contactor MC-65a DCLS ELECTRIC DC Magnetic Contactor MC-65a DC supplied by LS ELECTRIC, sourced through official Korean distribution.Specifications Auxiliary Contacts 2a2b Ordering & Shipping Genuine product sourced through official Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Import duties and taxes are payable by the recipient Bulk and trade pricing available on request
$76.23
LS ELECTRIC LS ELECTRIC DC Magnetic Contactor MC-32a DC
LS ELECTRIC DC Magnetic Contactor MC-32a DCLS ELECTRIC DC Magnetic Contactor MC-32a DC supplied by LS ELECTRIC, sourced through official Korean distribution.Specifications Auxiliary Contacts 2a2b Ordering & Shipping Genuine product sourced through official Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Import duties and taxes are payable by the recipient Bulk and trade pricing available on request
$38.18
LS ELECTRIC LS ELECTRIC DC Magnetic Contactor MC-85a DC
LS ELECTRIC DC Magnetic Contactor MC-85a DCLS ELECTRIC DC Magnetic Contactor MC-85a DC supplied by LS ELECTRIC, sourced through official Korean distribution.Specifications Auxiliary Contacts 2a2b Ordering & Shipping Genuine product sourced through official Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Import duties and taxes are payable by the recipient Bulk and trade pricing available on request
$95.45
LS ELECTRIC LS ELECTRIC AC Magnetic Contactor MC-100a AC
LS ELECTRIC AC Magnetic Contactor MC-100a ACLS ELECTRIC AC Magnetic Contactor MC-100a AC supplied by LS ELECTRIC, sourced through official Korean distribution.Specifications Auxiliary Contacts 2a2b Ordering & Shipping Genuine product sourced through official Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Import duties and taxes are payable by the recipient Bulk and trade pricing available on request
$94.81
LS ELECTRIC LS ELECTRIC DC Magnetic Contactor MC-50a DC
LS ELECTRIC DC Magnetic Contactor MC-50a DCLS ELECTRIC DC Magnetic Contactor MC-50a DC supplied by LS ELECTRIC, sourced through official Korean distribution.Specifications Auxiliary Contacts 2a2b Ordering & Shipping Genuine product sourced through official Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Import duties and taxes are payable by the recipient Bulk and trade pricing available on request
$58.03
LS ELECTRIC LS ELECTRIC DC Magnetic Contactor MC-40a DC
LS ELECTRIC DC Magnetic Contactor MC-40a DCLS ELECTRIC DC Magnetic Contactor MC-40a DC supplied by LS ELECTRIC, sourced through official Korean distribution.Specifications Auxiliary Contacts 2a2b Ordering & Shipping Genuine product sourced through official Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Import duties and taxes are payable by the recipient Bulk and trade pricing available on request
$43.17
LS ELECTRIC LS ELECTRIC AC Magnetic Contactor MC-85a AC
LS ELECTRIC AC Magnetic Contactor MC-85a ACLS ELECTRIC AC Magnetic Contactor MC-85a AC supplied by LS ELECTRIC, sourced through official Korean distribution.Specifications Auxiliary Contacts 2a2b Ordering & Shipping Genuine product sourced through official Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Import duties and taxes are payable by the recipient Bulk and trade pricing available on request
$82.64
LS ELECTRIC LS ELECTRIC DC Magnetic Contactor MC-12b DC
LS ELECTRIC DC Magnetic Contactor MC-12b DCLS ELECTRIC DC Magnetic Contactor MC-12b DC supplied by LS ELECTRIC, sourced through official Korean distribution.Specifications Auxiliary Contacts 1a1b Ordering & Shipping Genuine product sourced through official Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Import duties and taxes are payable by the recipient Bulk and trade pricing available on request
$18.90
LS ELECTRIC LS ELECTRIC DC Magnetic Contactor MC-22b DC
LS ELECTRIC DC Magnetic Contactor MC-22b DCLS ELECTRIC DC Magnetic Contactor MC-22b DC supplied by LS ELECTRIC, sourced through official Korean distribution.Specifications Auxiliary Contacts 1a1b Ordering & Shipping Genuine product sourced through official Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Import duties and taxes are payable by the recipient Bulk and trade pricing available on request
$30.24
LS ELECTRIC LS ELECTRIC AC Magnetic Contactor MC-50a AC
LS ELECTRIC AC Magnetic Contactor MC-50a ACLS ELECTRIC AC Magnetic Contactor MC-50a AC supplied by LS ELECTRIC, sourced through official Korean distribution.Specifications Auxiliary Contacts 2a2b Ordering & Shipping Genuine product sourced through official Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Import duties and taxes are payable by the recipient Bulk and trade pricing available on request
$46.44
LS ELECTRIC LS ELECTRIC AC Magnetic Contactor MC-65a AC
LS ELECTRIC AC Magnetic Contactor MC-65a ACLS ELECTRIC AC Magnetic Contactor MC-65a AC supplied by LS ELECTRIC, sourced through official Korean distribution.Specifications Auxiliary Contacts 2a2b Ordering & Shipping Genuine product sourced through official Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Import duties and taxes are payable by the recipient Bulk and trade pricing available on request
$63.48
LS ELECTRIC LS ELECTRIC AC Magnetic Contactor MC-40a AC
LS ELECTRIC AC Magnetic Contactor MC-40a ACLS ELECTRIC AC Magnetic Contactor MC-40a AC supplied by LS ELECTRIC, sourced through official Korean distribution.Specifications Auxiliary Contacts 2a2b Ordering & Shipping Genuine product sourced through official Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Import duties and taxes are payable by the recipient Bulk and trade pricing available on request
$36.83
LS ELECTRIC LS ELECTRIC AC Magnetic Contactor MC-48a AC
LS ELECTRIC AC Magnetic Contactor MC-48a ACLS ELECTRIC AC Magnetic Contactor MC-48a AC supplied by LS ELECTRIC, sourced through official Korean distribution.Specifications Auxiliary Contacts 2a2b Ordering & Shipping Genuine product sourced through official Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Import duties and taxes are payable by the recipient Bulk and trade pricing available on request
$43.76
LS ELECTRIC LS ELECTRIC AC Magnetic Contactor MC-22b AC
LS ELECTRIC AC Magnetic Contactor MC-22b ACLS ELECTRIC AC Magnetic Contactor MC-22b AC supplied by LS ELECTRIC, sourced through official Korean distribution.Specifications Auxiliary Contacts 1a1b Ordering & Shipping Genuine product sourced through official Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Import duties and taxes are payable by the recipient Bulk and trade pricing available on request
$17.49
LS ELECTRIC LS ELECTRIC AC Magnetic Contactor MC-18b AC
LS ELECTRIC AC Magnetic Contactor MC-18b ACLS ELECTRIC AC Magnetic Contactor MC-18b AC supplied by LS ELECTRIC, sourced through official Korean distribution.Specifications Auxiliary Contacts 1a1b Ordering & Shipping Genuine product sourced through official Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Import duties and taxes are payable by the recipient Bulk and trade pricing available on request
$16.02
LS ELECTRIC LS ELECTRIC AC Magnetic Contactor MC-32a AC
LS ELECTRIC AC Magnetic Contactor MC-32a ACLS ELECTRIC AC Magnetic Contactor MC-32a AC supplied by LS ELECTRIC, sourced through official Korean distribution.Specifications Auxiliary Contacts 2a2b Ordering & Shipping Genuine product sourced through official Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Import duties and taxes are payable by the recipient Bulk and trade pricing available on request
$31.38
LS ELECTRIC LS ELECTRIC AC Magnetic Contactor MC-9b AC
LS ELECTRIC AC Magnetic Contactor MC-9b ACLS ELECTRIC AC Magnetic Contactor MC-9b AC supplied by LS ELECTRIC, sourced through official Korean distribution.Specifications Auxiliary Contacts 1a1b Ordering & Shipping Genuine product sourced through official Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Import duties and taxes are payable by the recipient Bulk and trade pricing available on request
$10.70
LS ELECTRIC LS ELECTRIC AC Magnetic Contactor MC-12b AC
LS ELECTRIC AC Magnetic Contactor MC-12b ACLS ELECTRIC AC Magnetic Contactor MC-12b AC supplied by LS ELECTRIC, sourced through official Korean distribution.Specifications Auxiliary Contacts 1a1b Ordering & Shipping Genuine product sourced through official Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Import duties and taxes are payable by the recipient Bulk and trade pricing available on request
$11.27
LS ELECTRIC LS ELECTRIC Magnetic Contactor MC-40a AC200V 50Hz 220V 60Hz SCREW 1a1b (Metasol) EXP (MC40A-30-11-LM7-S-E)
General Product code 1337011100 Product description MC-40a AC200V 50Hz 220V 60Hz SCREW 1a1b (Metasol) EXP (MC40A-30-11-LM7-S-E) Main contact 3NO Auxiliary contact 1NO 1NC Control voltage AC200V 50Hz / 220V 60Hz Type of terminal Screw Local/Export Export Standards IEC 60947-4-1, IEC 60947-5-1, UL508 Certificates CE, UL, CCC KR, LR, BV, DNV, ABS, NK, RINA Characteristics Number of poles 3P Rated operational voltage [Ue] 1000V Rated insulation voltage [Ui] 1000V Rated withstand voltage [Uimp] 8kV Rated frequency [Hz] 50/60Hz Maximum operating rate in operating cycles per hour(AC3) 50/60Hz Mechanical durability (mil. operations) 50/60Hz Electrical durability (mil. operations) 50/60Hz Rated operational current (AC-1) 60A Power (AC-1) - - - - Current (AC-1) - - - - Motor power (AC-3) 11kW at 200/240V 18.5kW at 380/440V 22kW at 500/550V 22kW at 690V 22kW at 1000V Motor power (AC-4) 5.5kW at 200/240V 11kW at 380/440V Rated operational current (AC-3) 40A at 200/240V 40A at 380/440V 32A at 500/550V 23A at 690V 17A at 690V Rated operational current (AC-4) 25A at 200/240V 24A at 380/440V Rated operational current (DC-3,5) - - - Rated operational current (DC-1) - Type 2 Coordination See the Type 2 Coordination Table in the catalog Motor power (UL/CSA) 3hp at 110~220V for 1 phase motors 7.5hp at 220~240V for 1 phase motors 15hp at 200~208V for 3 phase motors 15hp at 220~240V for 3 phase motors 30hp at 440~480V for 3 phase motors 30hp at 550~600V for 3 phase motors NEMA size 30hp at 550~600V for 3 phase motors Rated Short-time withstand current 700A at 1s 300A at 10s 190A at 30s 120A at 1min 80A at 3min 65A at 10min 60A at =15min Conductor size (AWG) 8~6 Conductor size (mm2) 10~16 The max. number of conductor 10~16 Conductor type Solid, Stranded Conductor charateristic 65/75? Cu-wire only Main terminal size M5 Crimp terminal (mm) M5 Torque (lb-in) M5 Torque (Nm) M5 Torque (kgf.cm) M5 Environment Degree of protection IP20 Ambient air temperature -30? ~ +65? at storage -5? ~ +55? at operation (AC type) Operating altitude 3000m(8900ft) Shock resistance (1/2 sin wave=11ms) 8G at opened 10G at closed Vibration resistance (Conforming to IEC68-2-6) (5~300Hz) 2G at opened 4G at closed Flame resistance V0 at conforming to UL94 960? at conforming to IEC695-2-1 REACH Yes RoHS Yes WEEE Yes Dimensions Weight 0.5kg Size width 57mm / 2.24inch Size height 83mm / 3.27inch Size depth 90mm / 3.54inch Control coil Control voltage AC200V 50Hz / 220V 60Hz Control voltage limit [Uc] 85~110% Consumption at 20℃ 90VA at inrush 9VA at holding Heat dissipation 2.7W at holding Operating time 15~30ms at closing 4~19ms at opening Applicable Accessories
$32.38
LS ELECTRIC LS ELECTRIC Magnetic Contactor MC-40a AC110V 50/60Hz SCREW 1a1b (Metasol) EXP (MC40A-30-11-F7-S-E)
General Product code 1337006600 Product description MC-40a AC110V 50/60Hz SCREW 1a1b (Metasol) EXP (MC40A-30-11-F7-S-E) Main contact 3NO Auxiliary contact 1NO 1NC Control voltage AC110V 50/60Hz Type of terminal Screw Local/Export Export Standards IEC 60947-4-1, IEC 60947-5-1, UL508 Certificates CE, UL, CCC KR, LR, BV, DNV, ABS, NK, RINA Characteristics Number of poles 3P Rated operational voltage [Ue] 1000V Rated insulation voltage [Ui] 1000V Rated withstand voltage [Uimp] 8kV Rated frequency [Hz] 50/60Hz Maximum operating rate in operating cycles per hour(AC3) 50/60Hz Mechanical durability (mil. operations) 50/60Hz Electrical durability (mil. operations) 50/60Hz Rated operational current (AC-1) 60A Power (AC-1) - - - - Current (AC-1) - - - - Motor power (AC-3) 11kW at 200/240V 18.5kW at 380/440V 22kW at 500/550V 22kW at 690V 22kW at 1000V Motor power (AC-4) 5.5kW at 200/240V 11kW at 380/440V Rated operational current (AC-3) 40A at 200/240V 40A at 380/440V 32A at 500/550V 23A at 690V 17A at 690V Rated operational current (AC-4) 25A at 200/240V 24A at 380/440V Rated operational current (DC-3,5) - - - Rated operational current (DC-1) - Type 2 Coordination See the Type 2 Coordination Table in the catalog Motor power (UL/CSA) 3hp at 110~220V for 1 phase motors 7.5hp at 220~240V for 1 phase motors 15hp at 200~208V for 3 phase motors 15hp at 220~240V for 3 phase motors 30hp at 440~480V for 3 phase motors 30hp at 550~600V for 3 phase motors NEMA size 30hp at 550~600V for 3 phase motors Rated Short-time withstand current 700A at 1s 300A at 10s 190A at 30s 120A at 1min 80A at 3min 65A at 10min 60A at =15min Conductor size (AWG) 8~6 Conductor size (mm2) 10~16 The max. number of conductor 10~16 Conductor type Solid, Stranded Conductor charateristic 65/75? Cu-wire only Main terminal size M5 Crimp terminal (mm) M5 Torque (lb-in) M5 Torque (Nm) M5 Torque (kgf.cm) M5 Environment Degree of protection IP20 Ambient air temperature -30? ~ +65? at storage -5? ~ +55? at operation (AC type) Operating altitude 3000m(8900ft) Shock resistance (1/2 sin wave=11ms) 8G at opened 10G at closed Vibration resistance (Conforming to IEC68-2-6) (5~300Hz) 2G at opened 4G at closed Flame resistance V0 at conforming to UL94 960? at conforming to IEC695-2-1 REACH Yes RoHS Yes WEEE Yes Dimensions Weight 0.5kg Size width 57mm / 2.24inch Size height 83mm / 3.27inch Size depth 90mm / 3.54inch Control coil Control voltage AC110V 50/60Hz Control voltage limit [Uc] 85~110% Consumption at 20℃ 90VA at inrush 9VA at holding Heat dissipation 2.7W at holding Operating time 15~30ms at closing 4~19ms at opening
$32.38
LS ELECTRIC LS ELECTRIC Magnetic Contactor MC-40a AC100V 50/60Hz SCREW 1a1b (Metasol) EXP (MC40A-30-11-H7-S-E)
General Product code 1337006500 Product description MC-40a AC100V 50/60Hz SCREW 1a1b (Metasol) EXP (MC40A-30-11-H7-S-E) Main contact 3NO Auxiliary contact 1NO 1NC Control voltage AC100V 50/60Hz Type of terminal Screw Local/Export Export Standards IEC 60947-4-1, IEC 60947-5-1, UL508 Certificates CE, UL, CCC KR, LR, BV, DNV, ABS, NK, RINA Characteristics Number of poles 3P Rated operational voltage [Ue] 1000V Rated insulation voltage [Ui] 1000V Rated withstand voltage [Uimp] 8kV Rated frequency [Hz] 50/60Hz Maximum operating rate in operating cycles per hour(AC3) 50/60Hz Mechanical durability (mil. operations) 50/60Hz Electrical durability (mil. operations) 50/60Hz Rated operational current (AC-1) 60A Power (AC-1) - - - - Current (AC-1) - - - - Motor power (AC-3) 11kW at 200/240V 18.5kW at 380/440V 22kW at 500/550V 22kW at 690V 22kW at 1000V Motor power (AC-4) 5.5kW at 200/240V 11kW at 380/440V Rated operational current (AC-3) 40A at 200/240V 40A at 380/440V 32A at 500/550V 23A at 690V 17A at 690V Rated operational current (AC-4) 25A at 200/240V 24A at 380/440V Rated operational current (DC-3,5) - - - Rated operational current (DC-1) - Type 2 Coordination See the Type 2 Coordination Table in the catalog Motor power (UL/CSA) 3hp at 110~220V for 1 phase motors 7.5hp at 220~240V for 1 phase motors 15hp at 200~208V for 3 phase motors 15hp at 220~240V for 3 phase motors 30hp at 440~480V for 3 phase motors 30hp at 550~600V for 3 phase motors NEMA size 30hp at 550~600V for 3 phase motors Rated Short-time withstand current 700A at 1s 300A at 10s 190A at 30s 120A at 1min 80A at 3min 65A at 10min 60A at =15min Conductor size (AWG) 8~6 Conductor size (mm2) 10~16 The max. number of conductor 10~16 Conductor type Solid, Stranded Conductor charateristic 65/75? Cu-wire only Main terminal size M5 Crimp terminal (mm) M5 Torque (lb-in) M5 Torque (Nm) M5 Torque (kgf.cm) M5 Environment Degree of protection IP20 Ambient air temperature -30? ~ +65? at storage -5? ~ +55? at operation (AC type) Operating altitude 3000m(8900ft) Shock resistance (1/2 sin wave=11ms) 8G at opened 10G at closed Vibration resistance (Conforming to IEC68-2-6) (5~300Hz) 2G at opened 4G at closed Flame resistance V0 at conforming to UL94 960? at conforming to IEC695-2-1 REACH Yes RoHS Yes WEEE Yes Dimensions Weight 0.5kg Size width 57mm / 2.24inch Size height 83mm / 3.27inch Size depth 90mm / 3.54inch
$32.38
