Autonics Photoelectric Sensors

Sensing type Retroreflective type(standard type) Sensing distance 5m(MS-2) Sensing target Opaque material of min. Ø60mm Light source Infrared LED(940nm) Response time Max. 1ms Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Current consumption Max. 50mA Sensitivity adjustment Sensitivity adjuster Operation mode Light ON/Dark ON(set by switch) Control output NPN, PNP open collector simultaneous output Connection type Cable type(Ø5, 2m) Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) Environment_Ambient temperature -20 to 65℃, storage: -25 to 70℃ Protection structure IP50 Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Material Case, Case cover: Heat resistant Acrylonitrile butadiene styrene,Sensing part: Polycarbonate(with polarizing filter: polymethyl methacrylate),Bracket: Steel Plate cold commercial, Bolt: steel chromium molybdenum,Nut: steel chromium molybden Accessories_Individual Reflector(MS-2) Accessories_Common Adjuster driver, Fixing bracket, Bolts, Nuts Weight Approx. 200g

Read more less

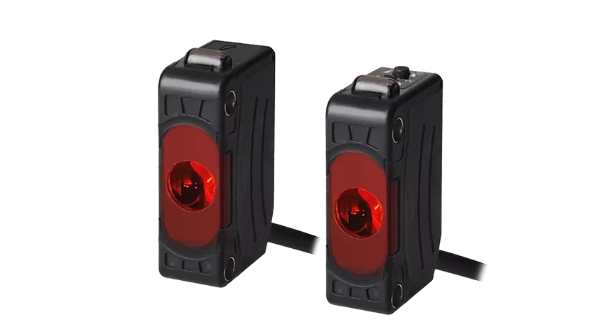

Sensing type Through-beam type Sensing distance 7m Sensing target Opaque material of min. Ø8mm Light source Red LED(650nm) Response time Max. 1ms Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Current consumption Emitter/Receiver: Max. 20mA Sensitivity adjustment Sensitivity adjuster Operation mode Light ON/Dark ON(set by switch) Control output NPN open collector Connection type Cable type(Ø3.5, 2m) Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) Environment_Ambient temperature -25 to 55℃, storage: -40 to 70℃ Protection structure IP65 Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Material Case: Polycarbonate+Acrylonitrile butadiene styrene, LED Cap: Polycarbonate, Sensing part: Polymethyl methacrylate,Bracket: SUS304(steel use stainless 304), Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum,Sleeve: Brass, Ni-plate Accessories_Common Fixing bracket, M3 Bolts: 4, M3 Nuts: 4, Adjuster driver Weight Approx. 115g (approx. 90g)

Read more less

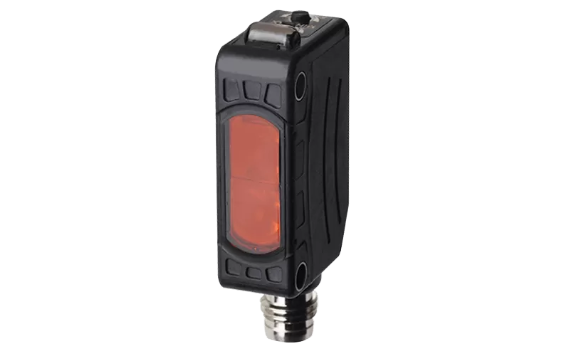

Sensing type Retroreflective type(built-in polarizing filter) Sensing distance 3m(MS-2A) Sensing target Opaque material of min. Ø75mm Light source Red LED(660nm) Response time Max. 1ms Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Current consumption Max. 30mA Sensitivity adjustment Sensitivity adjuster Operation mode Light ON/Dark ON(set by switch) Control output NPN open collector Connection type Connector type(M8) Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) Environment_Ambient temperature -25 to 55℃, storage: -40 to 70℃ Protection structure IP67 Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Material Case: Polycarbonate+Acrylonitrile butadiene styrene, LED Cap: Polycarbonate, Sensing part: Polymethyl methacrylate,Bracket: SUS304(steel use stainless 304), Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum,Sleeve: Brass, Ni-plate Accessories_Common Fixing bracket, M3 Bolts: 2, M3 Nuts: 2, Adjuster driver Accessories_Individual Reflector(MS-2A) Weight Approx. 55g (approx. 30g)

Read more less

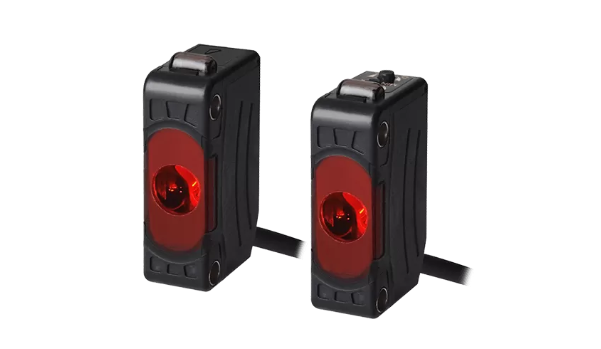

Sensing type Through-beam type Sensing distance 10m Sensing target Opaque material of min. Ø12mm Light source Red LED(660nm) Response time Max. 1ms Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Current consumption Emitter/Receiver: Max. 20mA Sensitivity adjustment Sensitivity adjuster Operation mode Light ON/Dark ON(set by switch) Control output NPN open collector Connection type Cable type(Ø3.5, 2m) Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) Environment_Ambient temperature -25 to 55℃, storage: -40 to 70℃ Protection structure IP65 Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Material Case: Polycarbonate+Acrylonitrile butadiene styrene, LED Cap: Polycarbonate, Sensing part: Polymethyl methacrylate,Bracket: SUS304(steel use stainless 304), Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum,Sleeve: Brass, Ni-plate Accessories_Common Fixing bracket, M3 Bolts: 4, M3 Nuts: 4, Adjuster driver Weight Approx. 115g (approx. 90g)

Read more less

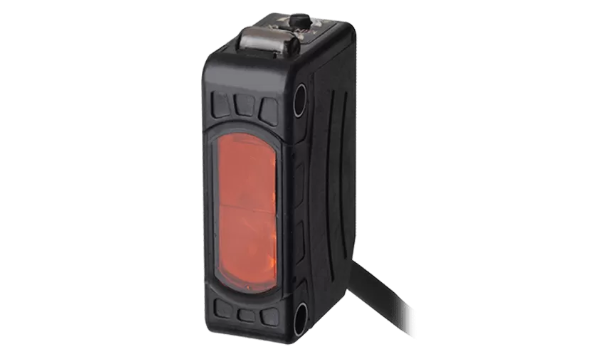

Sensing type Retroreflective type(built-in polarizing filter) Sensing distance 3m(MS-2A) Sensing target Opaque material of min. Ø75mm Light source Red LED(660nm) Response time Max. 1ms Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Current consumption Max. 30mA Sensitivity adjustment Sensitivity adjuster Operation mode Light ON/Dark ON(set by switch) Control output NPN open collector Connection type Cable type(Ø3.5, 2m) Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) Environment_Ambient temperature -25 to 55℃, storage: -40 to 70℃ Protection structure IP65 Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Material Case: Polycarbonate+Acrylonitrile butadiene styrene, LED Cap: Polycarbonate, Sensing part: Polymethyl methacrylate,Bracket: SUS304(steel use stainless 304), Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum,Sleeve: Brass, Ni-plate Accessories_Common Fixing bracket, M3 Bolts: 2, M3 Nuts: 2, Adjuster driver Accessories_Individual Reflector(MS-2A) Weight Approx. 85g (approx. 60g)

Read more less

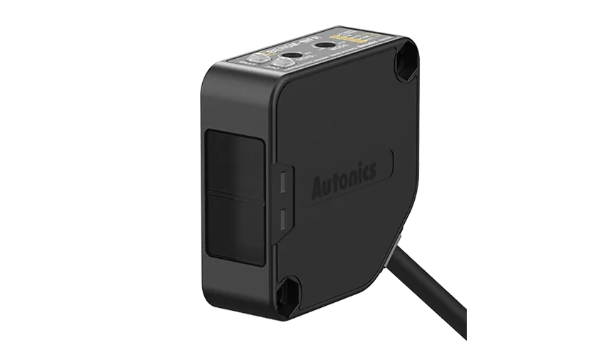

Sensing type Retroreflective type(standard type) Sensing distance 5m(MS-2) Sensing target Opaque material of min. Ø60mm Light source Infrared LED(940nm) Response time Max. 20ms Power voltage 24-240VAC~ ±10% 50/60Hz, 24-240VDC  ±10%(ripple P-P: max. 10%) Current consumption Max. 4VA Sensitivity adjustment Sensitivity adjuster Operation mode Light ON/Dark ON(set by switch) Control output Relay Connection type Cable type(Ø5, 2m) Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) Environment_Ambient temperature -20 to 65℃, storage: -25 to 70℃ Protection structure IP50 Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Material Case, Case cover: Heat resistant Acrylonitrile butadiene styrene,Sensing part: Polycarbonate(with polarizing filter: polymethyl methacrylate),Bracket: Steel Plate cold commercial, Bolt: steel chromium molybdenum,Nut: steel chromium molybden Accessories_Individual Reflector(MS-2) Accessories_Common Adjuster driver, Fixing bracket, Bolts, Nuts Weight Approx. 208g

Read more less

Sensing type Diffuse reflective type Sensing distance 1m Sensing target Opaque, Translucent material Light source Infrared LED(850nm) Response time Max. 1ms Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Current consumption Max. 30mA Sensitivity adjustment Sensitivity adjuster Operation mode Light ON/Dark ON(set by switch) Control output NPN open collector Connection type Cable type(Ø3.5, 2m) Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) Environment_Ambient temperature -25 to 55℃, storage: -40 to 70℃ Protection structure IP65 Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Hysteresis(distance) Max. 20% of sensing distance Material Case: Polycarbonate+Acrylonitrile butadiene styrene, LED Cap: Polycarbonate, Sensing part: Polymethyl methacrylate,Bracket: SUS304(steel use stainless 304), Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum,Sleeve: Brass, Ni-plate Accessories_Common Fixing bracket, M3 Bolts: 2, M3 Nuts: 2, Adjuster driver Weight Approx. 70g (approx. 45g)

Read more less

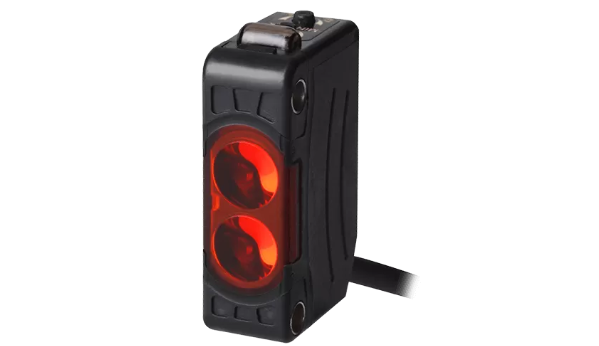

Sensing type Diffuse reflective type Sensing distance 300mm Sensing target Opaque, Translucent material Light source Red LED(660nm) Response time Max. 1ms Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Current consumption Max. 30mA Sensitivity adjustment Sensitivity adjuster Operation mode Light ON/Dark ON(set by switch) Control output NPN open collector Connection type Cable type(Ø3.5, 2m) Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) Environment_Ambient temperature -25 to 55℃, storage: -40 to 70℃ Protection structure IP65 Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Hysteresis(distance) Max. 20% of sensing distance Material Case: Polycarbonate+Acrylonitrile butadiene styrene, LED Cap: Polycarbonate, Sensing part: Polymethyl methacrylate,Bracket: SUS304(steel use stainless 304), Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum,Sleeve: Brass, Ni-plate Accessories_Common Fixing bracket, M3 Bolts: 2, M3 Nuts: 2, Adjuster driver Weight Approx. 70g (approx. 45g)

Read more less

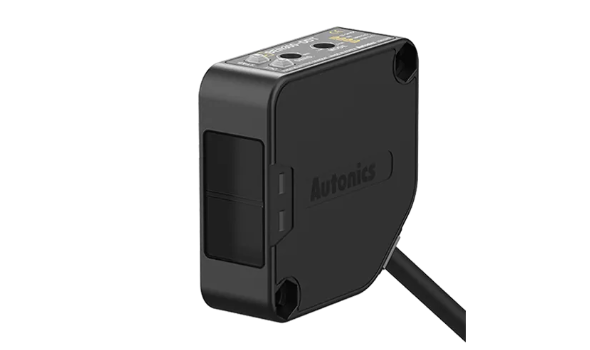

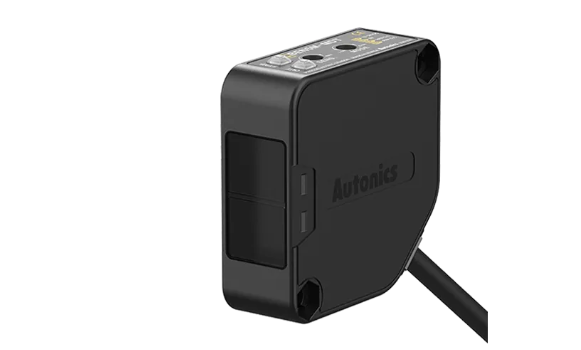

Sensing type Diffuse reflective type Sensing distance 300mm Sensing target Opaque, Translucent material Light source Infrared LED(940nm) Response time Max. 1ms Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Current consumption Max. 50mA Sensitivity adjustment Sensitivity adjuster Operation mode Light ON/Dark ON(set by switch) Control output NPN, PNP open collector simultaneous output Connection type Cable type(Ø5, 2m) Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) Environment_Ambient temperature -20 to 65℃, storage: -25 to 70℃ Protection structure IP50 Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Hysteresis(distance) Max. 20% at sensing distance Material Case, Case cover: Heat resistant Acrylonitrile butadiene styrene,Sensing part: Polycarbonate(with polarizing filter: polymethyl methacrylate),Bracket: Steel Plate cold commercial, Bolt: steel chromium molybdenum,Nut: steel chromium molybden Accessories_Common Adjuster driver, Fixing bracket, Bolts, Nuts Weight Approx. 187g

Read more less

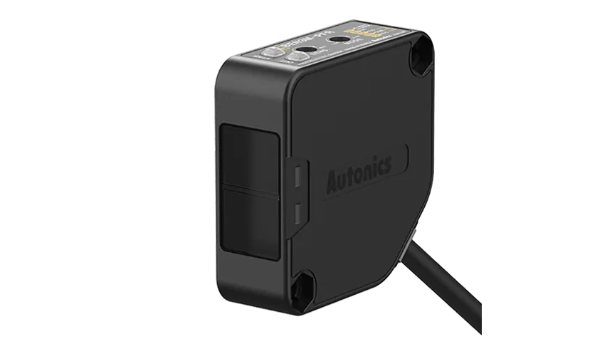

Sensing type Diffuse reflective type Sensing distance 300mm Sensing target Opaque, Translucent material Light source Infrared LED(940nm) Response time Max. 20ms Power voltage 24-240VAC~ ±10% 50/60Hz, 24-240VDC  ±10%(ripple P-P: max. 10%) Current consumption Max. 4VA Sensitivity adjustment Sensitivity adjuster Operation mode Light ON/Dark ON(set by switch) Control output Relay Connection type Cable type(Ø5, 2m) Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) Environment_Ambient temperature -20 to 65℃, storage: -25 to 70℃ Protection structure IP50 Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Hysteresis(distance) Max. 20% at sensing distance Material Case, Case cover: Heat resistant Acrylonitrile butadiene styrene,Sensing part: Polycarbonate(with polarizing filter: polymethyl methacrylate),Bracket: Steel Plate cold commercial, Bolt: steel chromium molybdenum,Nut: steel chromium molybden Accessories_Common Adjuster driver, Fixing bracket, Bolts, Nuts Weight Approx. 195g

Read more less

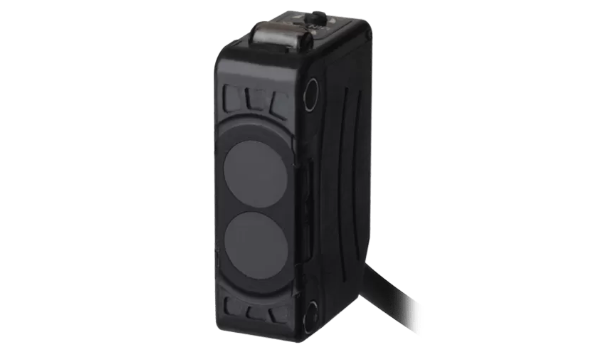

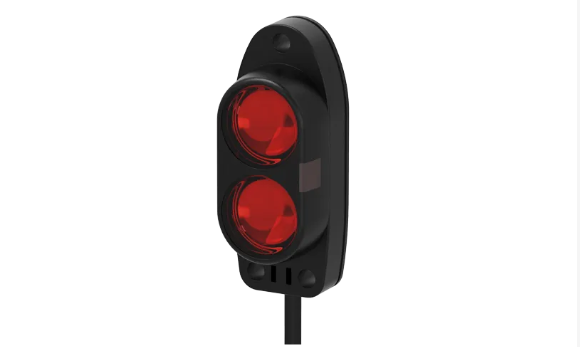

Sensing type Diffuse reflective type Sensing distance 2m Sensing target Opaque, Translucent material Light source Infrared LED(850nm) Response time Max. 1ms Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Current consumption Max. 15mA Sensitivity adjustment Sensitivity adjuster Operation mode Light ON Control output NPN open collector Connection type Cable type(Ø3, 2m) Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) Environment_Ambient temperature -25 to 55℃, storage: -25 to 70℃ Protection structure IP64 Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Hysteresis(distance) Max. 20% at sensing distance Material Case: Acrylonitrile butadiene styrene, Sensing part: Polycarbonate, Indicator: Polycarbonate, Adjuster: IXEF Accessories Adjuster driver Weight Approx. 50g
