Clamps & Vises

Products Details Clamping aid for clamping components of different thicknesses at any chosen angle Sturdy body and base plate made from high-quality cast iron The copper-plated spindle prevents welding splatter from sticking Angle range: 5°‐180°   Reference no. Angle range Opening a (mm) Jaw height (mm) Weight approx. (kg) SM10-SET 5°-180° 100 35 10.66

Read more less

Products Details Automatic adjustment to workpieces of various thicknesses Sturdy jaws and base plate made from high-quality cast iron The copper-plated spindle prevents welding splatter from sticking Precise 90°-angles   Reference no. Opening min/max (mm) Current passage max. (mm) Jaw height (mm) Jaw length (mm) Weight approx. (kg) WSM9 2 x 90 60 35 110 3.8 WSM12 2 x 120 100 61 120 7.8

Read more less

Products Details   Even pressure on mitre joints Crank handle can be relocated for right and left-handed users Contains: 1 band clamp, 4 Vario corners On carded hang pack Reference no. Clamping Range (mm) Band W × D (mm) Angle Range Weight approx. (kg) BAN700 Up to 7m 25 × 1 60 ° -180 ° 0.56

Read more less

Products Details   Parallel jaw faces Prism recess for small round parts Includes pressure caps for gentle clamping of sensitive surfaces   Reference no. Opening a (mm) Throat depth b (mm) Weight approx. (kg) GRZ10 100 65 1 GRZ20 200 65 1.2

Read more less

Products Details   High-quality two-component plastic handle positioned around the rail, so clamp can be used in tight spaces Clamping force up to 2,000 N Easy-to-move trapezoidal thread spindle with swivelling pressure plate Quick-release shift button to quickly adjust sliding bar On carded hang-pack   Reference no. Opening a (mm) Throat depth b (mm) Rail (mm) Weight approx. (kg) GK15 150 60 25 x 12 0.61 GK30 300 60 25 x 12 0.71 GK45 450 60 25 x 12 0.82 GK60 600 60 25 x 12 0.94

Read more less

Products Details   EZS: Clamping force up to 2,000 N No tools required for spreading thanks to intelligent release mechanism in upper section Ergonomically shaped 2-component plastic handle behind the rail One-handed operation with little effort required On carded hang pack   Reference no. Opening a (mm) Throat depth b (mm) Spreading width e min/max(mm) Rail (mm) Weight approx. (kg) EZS15-8 150 80 170-360 19 x 6 0.72 EZS30-8 300 80 170-510 19 x 6 0.83 EZS45-8 450 80 170-660 19 x 6 0.93 EZS60-8 600 80 170-810 19 x 6 1.04 EZS90-8 900 80 170-1110 19 x 6 1.26

Read more less

Products Details   Clamping force up to 1,200 N Feather light yet ultra strong Sturdy fixed and sliding arms made from lightweight magnesium Quick and vibration free clamping On carded hang pack   Reference no. Opening a (mm) Throat depth b (mm) Rail (mm) Weight approx. (kg) KLI12 120 80 20 x 5 0.26 KLI16 160 80 20 x 5 0.29 KLI20 200 80 20 x 5 0.32 KLI25 250 80 20 x 5 0.35 KLI30 300 80 20 x 5 0.38 KLI40 400 80 20 x 5 0.45

Read more less

Products Details   Upper and lower arms and lever made from high‐quality hardwood Cork pads for gentle clamping   Reference no. Opening a (mm) Throat depth b (mm) Rail (mm) Weight approx. (kg) HKL20 200 110 20 x 5 0.32 HKL30 300 110 20 x 5 0.46 HKL40 400 110 20 x 5 0.54 HKL60 600 110 20 x 5 0.7 HKL80 800 110 20 x 5 0.86 HKL100 1000 110 20 x 5 1

Read more less

Products Details   Clamping force up to 6,000 N High‐quality 2‐component plastic handle Pressure plates can be replace by hand – no tools required (from 80 mm throat depth) With protective caps on the clamping surfaces Stable profiled rail with serration BESSEY anti‐slip system (from 80 mm throat depth)   Reference no. Opening a (mm) Throat depth b (mm) Rail (mm) Weight approx. (kg) TG10-2K 100 50 15 x 5 0.26 TG16-2K 160 80 25 x 6 0.66 TG20-2K 200 100 27 x 7 1.06 TG25-2K 250 120 29 x 9 1.54 TG30-2K 300 140 32 x 10 2.2 TG25S10-2K 250 100 27 x 7 1.15 TG30S10-2K 300 100 27 x 7 1.18 TG40S10-2K 400 100 27 x 7 1.33 TG40S12-2K 400 120 29 x 9 1.78 TG60S12-2K 600 120 29 x 9 2.13 TG100S12-2K 1000 120 29 x 9 2.83 TG50S17-2K 500 175 32 x 10 2.9

Read more less

Products Details   Clamping force up to 1,200 N Change from clamping to spreading by switching, not converting Handle with pump lever parallel to the rail Convenient one-handed operation, with little effort required All-round clamping – in front of, behind and at the side of the rail On carded hang pack   Reference no. Opening a (mm) Throat depth b (mm) Spreading width e min/max(mm) Spreading width f min/max (mm) Rail (mm) Weight approx. (kg) DUO16-8 160 85 75-235 9-170 20 x 5 0.66 DUO30-8 300 85 75-380 9-315 20 x 5 0.72 DUO45-8 450 85 75-535 9-470 20 x 5 0.83 DUO65-8 650 85 75-685 9-660 20 x 5 1.02

Read more less

Products Details   Greater reserves of power, thanks to optimized rail profile, even clamping force build-up, especially under maximum utilization of the clamping range Non-slip trigger release Sintered steel cams - particularly hard-wearing, due to low friction surface hardness Quick - up to 5 x faster than regular clamps Secure - vibration resistant Strong - clamping force up to 8,500 N  BESSEY Prod# Clamping Capacity Throat Depth Load Limit Approx. Weight Reference no. Inch Inch Pounds Pounds GSCC2.506 6 2 ½ 600 1.34 GSCC2.512 12 2 ½ 600 1.72 GSCC2.524 24 2 ½ 600 2.27 GSCC2.536 36 2 ½ 600 2.82

Read more less

Products Details   Greater reserves of power, thanks to optimized rail profile, even clamping force build-up, especially under maximum utilization of the clamping range Non-slip trigger release Sintered steel cams - particularly hard-wearing, due to low friction surface hardness Quick - up to 5 x faster than regular clamps Secure - vibration resistant Strong - clamping force up to 8,500 N   Reference no. Opening a (mm) Throat depth b (mm) Rail (mm) Weight approx. (kg) GH16 160 80 17.5 x 6.8 0.64 GH20 200 100 22 x 8.5 1.11 GH25 250 120 24.5 x 9.5 1.44 GH30 300 140 28 x 11 2.27 GH40 400 120 28 x 11 2.41 GH60 600 120 28 x 11 2.84 GH80 800 120 28 x 11 3.2 GH100 1000 120 28 x 11 3.59

Read more less

Products Details   Clamping force up to 35,000 N at tightening torque of 100 Nm Long life due to heat‐resistant pressure plate with sintered steel insert, which can be tilted up to 35° With 36 mm hexagonal bolt on the end of the spindle With wedge for fixing the sliding arm     Reference no. Opening a (mm) Throat depth b (mm) Rail (mm) Weight approx. (kg) STBS100 1000 200 50 x 25 17.3

Read more less

Products Details   Clamping force up to 22,000 N at tightening torque of 70 Nm. Long life due to heat‐resistant pressure plate with sintered steel insert, which can be tilted up to 35°. With 19 mm hexagonal bolt on the end of the spindle.      Reference no. Opening a (mm) Throat depth b (mm) Rail (mm) Weight approx. (kg) STB30M 300 175 40 x 20 5.61 STB40M 400 175 40 x 20 6.1 STB50M 500 175 40 x 20 6.67 STB60M 600 175 40 x 20 7.23 STB125M 1250 175 40 x 20 10.77

Read more less

Products Details   Clamping force up to 8,500 N at tightening torque of 25 Nm. 20 % more clamping force per spindle rotation with optimised rail profile. Maximum safety due to the better linear transfer of force of the sliding arm. Long life due to heat-resistant pressure plate with sintered steel insert, which can be tilted up to 35°.      Reference no. Opening a (mm) Throat depth b (mm) Rail (mm) Weight approx. (kg) SL20M 200 120 28 x 11 1.88 SL25M 250 120 28 x 11 2 SL30M 300 120 28 x 11 2.11 SL40M 400 120 28 x 11 2.34 SL60M 600 120 28 x 11 2.82

Read more less

Products Details   20 % more clamping force per spindle rotation with optimised rail profile Maximum security with linear transfer of force at the sliding arm Clamping force up to 6,000 N Fixed jaw and sliding arm are constructed of tempered steel for resilient clamping Tommy bar with rounded ends for simple transfer of force when clamping Pressure plates can be replaced by hand – no need for tools    Reference no. Opening a (mm) Throat depth b (mm) Rail (mm) Weight approx. (kg) GZ16K 160 80 17.5 x 6.8 0.5 GZ20K 200 100 22 x 8.5 0.93 GZ25K 250 120 24.5 x 9.5 1.31 GZ30K 300 140 28 x 11 1.89 GZ40K 400 120 28 x 11 2 GZ50K 500 120 28 x 11 2.2 GZ60K 600 120 28 x 11 2.42 GZ80K 800 120 28 x 11 2.76

Read more less

Products Details   Clamping force up to 2,000 N Clamping arms manufactured in toughened die cast zinc black powder coated to prevent chemical corrosion  Comes with protective cap Small and easy to handle Light weight Reference no. Opening a (mm) Throat depth b (mm) Rail (mm) Weight approx. (kg) LM10/5 100 50 15 x 5 0.26 LM15/5 150 50 15 x 5 0.27 LM15/8 150 80 20 x 5 0.51 LM20/10 200 100 25 x 6 0.9 LM20/5 200 50 15 x 5 0.31 LM20/8 200 80 20 x 5 0.55 LM25/5 250 50 15 x 5 0.35 LM25/8 250 80 20 x 5 0.6 LM30/10 300 100 25 x 6 1.02 LM30/5 300 50 15 x 5 0.37 LM30/8 300 80 20 x 5 0.64 LM40/10 400 100 25 x 6 1.1 LM50/10 500 100 25 x 6 1.24 LM60/10 600 100 25 x 6 1.3 LM80/10 800 100 25 x 6 1.58

Read more less

IRWIN One-Handed Mini Bar Clamps 546ZR  Features: ● 25% smaller than Quick-Change clamps for smaller projects or for working in confined spaces● Constructed high-tech reinforced resin for strength and durability● Exerts up to 150 lbs. of clamping pressure● Patented pistol grip design enhances comfort and ease of use● Non-marring pads grip firmly and protect work● Ideal for clamping / gluing, holding work for sawing / drilling, and positioning work for fastening   Product Code. Item # Clamping Capacity Throat Depth 212-1547 546ZR 6" (15 cm) 2 7/16" (62 mm)

Read more less

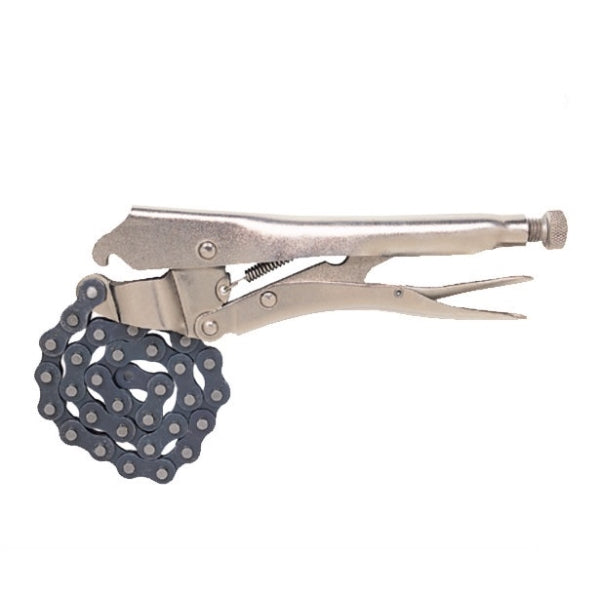

IRWIN The Original™ Locking Chain Clamp 20R  Features: ● Chain holds and locks around any shape or size● Ideal for awkward shape pieces● Turn screw to adjust pressure and fit work. Stays adjusted for repetitive use● Constructed high-grade heat-treated alloy steel for maximum toughness and durability● Classic trigger release designed to provide maximum locking force   Product Code. Item # Jaw Capacity Model Size 212-0900 27ZR 18" / 455 mm 20R 9" / 255 mm

Read more less

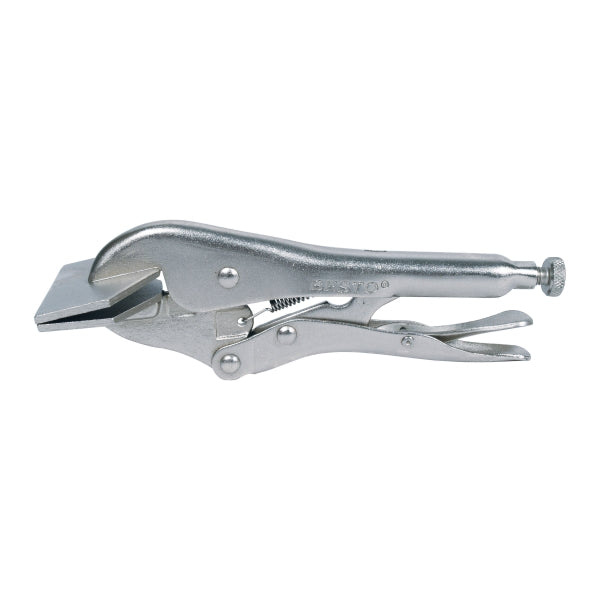

IRWIN The Original™ Locking Sheet Metal Tools 8R  Features: ● Makes bending, forming, and crimping sheet metal jobs easier● Turn screw to adjust pressure and fit work. Stays adjusted for repetitive use● Constructed high-grade heat-treated alloy steel for maximum toughness and durability● Classic trigger release designed to provide maximum locking force   Product Code. Item # Jaw Capacity Model Size 212-0964 23 3-1/8 / 78 mm 8R® 8" / 200 mm

Read more less

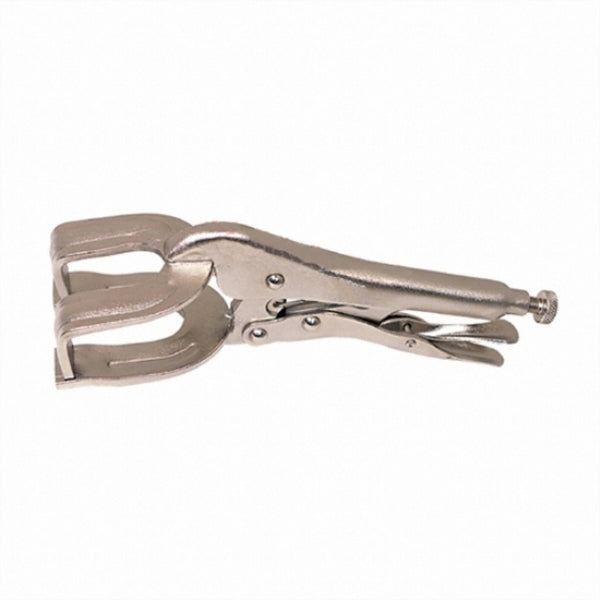

IRWIN The Original™ Locking Welding Clamp 9R  Features: ● U-shaped jaws provide enhanced visibility and more working space● Holds work in proper alignment● For use in welding applications or for holding awkward shapes in place● Turn screw to adjust pressure and fit work. Stays adjusted for repetitive use● Constructed high-grade heat-treated alloy steel for maximum toughness and durability● Classic trigger release designed to provide maximum locking force   Product Code. Item # Description Size Jaw Capacity 212-0955 25ZR 9R 9" / 225 mm 2-3/4" / 70 mm

Read more less

LOBSTER L-type Clamp For Wood Work  • The grip handle is easy and efficient tightening work.• Special heat treatment has given the body appropriate elasticity. Proven high durability.• The plate is large and allows tightening work at angles up to 20 °.Use / Application• For attaching, fastening and holding materialsSpecifications  Product Code. Model No. (Product) weight size1 size2 size3 size4 size5 size6 215-0947 WM3012 1400g 300mm 121mm 380mm φ32mm 10.4mm 21.4mm IMPORTANT SAFETY INSTRUCTIONS◆ Precautions in useDo not use this tool as a sling gear.Do not use this clamp for connecting scaffolding.Ensure secure tightening.Do not apply impact to this tool by hitting it with a hammer, etc.Do not extend this tool with a pipe, etc.When tightening a tapered or inclined workpiece, use particular caution. Slipping may occur.CAUTIONS ON INSCRIBED VALUES※ Since dimensions, weights, etc. are nominal, there are possibly some numerical values.※ Specifications may be changed for improvement without prior notice.
