FDPF-210-05R Type : Plastic injection molding type Sensing distance : 70mm Min. sensing target : Ø0.08mm Allowable bend radius : R1 Cable length : 1m Adapter : Adapter Environment_Ambient temperature : -30 to 70℃ Type Plastic injection molding type Sensing distance 70mm Min. sensing target Ø0.08mm Allowable bend radius R1 Cable length 1m Free cut Free cut Adapter Adapter Environment_Ambient temperature -30 to 70℃ Sensing type Diffuse reflective type

Read more less

FDR-610-10R Type : Right-angle Sensing distance : 120mm Min. sensing target : Ø0.04mm Allowable bend radius : R1 Cable length : 1m Environment_Ambient temperature : -40 to 60℃ Type Right-angle Sensing distance 120mm Min. sensing target Ø0.04mm Allowable bend radius R1 Cable length 1m Free cut Free cut Environment_Ambient temperature -40 to 60℃ Sensing type Diffuse reflective type ※The sensing distance is a standard for BF5 Series.※Min. sensing target is a value measured opaque material in accurate output status and the sensing distance is different with the rated sensing distance.※Free cut type's sensing distance can be shortened about max. 20% than the normal according to condition of the cable. [(FC-3) should be used for cutting fiber cable.]※Glass type is for BF5, BF4 Series.

Read more less

FDRT-420-02B Type : Right-angle Sensing distance : 230mm Min. sensing target : Ø0.08mm Allowable bend radius : R5 Cable length : 2m Environment_Ambient temperature : -30 to 70℃ Type Right-angle Sensing distance 230mm Min. sensing target Ø0.08mm Allowable bend radius R5 Cable length 2m Free cut Free cut Environment_Ambient temperature -30 to 70℃ Sensing type Diffuse reflective type

Read more less

FDS-420-05 Type : SUS type(SUS length 90mm) Sensing distance : 40mm Min. sensing target : Ø0.03mm Allowable bend radius : 15R(SUS part 10R) Cable length : 2m Adapter : Adapter Environment_Ambient temperature : -40 to 70℃ Type SUS type(SUS length 90mm) Sensing distance 40mm Min. sensing target Ø0.03mm Allowable bend radius 15R(SUS part 10R) Cable length 2m Free cut Free cut Adapter Adapter Environment_Ambient temperature -40 to 70℃ Sensing type Diffuse reflective type ※The sensing distance is a standard for red LED of BF4 Series and 10% of red LED is applied when it is green LED. It is applied to 40% of sensing distance for BF3RX.※Min. sensing target is a value measured opaque material in accurate output status and the sensing distance is different with the rated sensing distance.※Free cut type's sensing distance can be shortened about max. 20% than the normal according to condition of the cable. [(FC-3) should be used for cutting fiber cable.]※Glass type is for BF5, BF4 Series.

Read more less

FDS2-420-05 Type : SUS type(SUS length 45mm) Sensing distance : 40mm Min. sensing target : Ø0.03mm Allowable bend radius : 15R(SUS part 10R) Cable length : 2m Adapter : Adapter Environment_Ambient temperature : -40 to 70℃ Type SUS type(SUS length 45mm) Sensing distance 40mm Min. sensing target Ø0.03mm Allowable bend radius 15R(SUS part 10R) Cable length 2m Free cut Free cut Adapter Adapter Environment_Ambient temperature -40 to 70℃ Sensing type Diffuse reflective type ※The sensing distance is a standard for red LED of BF4 Series and 10% of red LED is applied when it is green LED. It is applied to 40% of sensing distance for BF3RX.※Min. sensing target is a value measured opaque material in accurate output status and the sensing distance is different with the rated sensing distance.※Free cut type's sensing distance can be shortened about max. 20% than the normal according to condition of the cable. [(FC-3) should be used for cutting fiber cable.]※Glass type is for BF5, BF4 Series.

Read more less

FDS2-620-10 Type : SUS type(SUS length 45mm) Sensing distance : 120mm Min. sensing target : Ø0.03mm Allowable bend radius : R25(SUS part R10) Cable length : 2m Environment_Ambient temperature : -40 to 70℃ Type SUS type(SUS length 45mm) Sensing distance 120mm Min. sensing target Ø0.03mm Allowable bend radius R25(SUS part R10) Cable length 2m Free cut Free cut Environment_Ambient temperature -40 to 70℃ Sensing type Diffuse reflective type ※The sensing distance is a standard for red LED of BF4 Series and 10% of red LED is applied when it is green LED. It is applied to 40% of sensing distance for BF3RX.※Min. sensing target is a value measured opaque material in accurate output status and the sensing distance is different with the rated sensing distance.※Free cut type's sensing distance can be shortened about max. 20% than the normal according to condition of the cable. [(FC-3) should be used for cutting fiber cable.]※Glass type is for BF5, BF4 Series.

Read more less

FDW10-320-02B Type : Area type Sensing distance : 230mm Min. sensing target : Ø0.08mm Allowable bend radius : R5 Cable length : 2m Environment_Ambient temperature : -30 to 70℃ Type Area type Sensing distance 230mm Min. sensing target Ø0.08mm Allowable bend radius R5 Cable length 2m Free cut Free cut Environment_Ambient temperature -30 to 70℃ Sensing type Diffuse reflective type

Read more less

FDW10T-320-02B Type : Area type Sensing distance : 230mm Min. sensing target : Ø0.08mm Allowable bend radius : R5 Cable length : 2m Environment_Ambient temperature : -30 to 70℃ Type Area type Sensing distance 230mm Min. sensing target Ø0.08mm Allowable bend radius R5 Cable length 2m Free cut Free cut Environment_Ambient temperature -30 to 70℃ Sensing type Diffuse reflective type

Read more less

FLF-310-10V Type : Flat type/Flat view Sensing distance : 60mm(FU-VA01)/70mm(FU-VA02) Min. sensing target : Ø3.9mm(FU-VA01)/Ø3.4mm(FU-VA02) Allowable bend radius : R25 Cable length : 1m Environment_Ambient temperature : -30 to 105℃ Type Flat type/Flat view Sensing distance 60mm(FU-VA01)/70mm(FU-VA02) Min. sensing target Ø3.9mm(FU-VA01)/Ø3.4mm(FU-VA02) Allowable bend radius R25 Cable length 1m Free cut Free cut Environment_Ambient temperature -30 to 105℃ Sensing type Convergent reflective type

Read more less

FLF-320-05 Type : Flat type/Flat view Sensing distance : 8mm Min. sensing target : Ø0.1mm Allowable bend radius : R15 Cable length : 2m Adapter : Adapter Environment_Ambient temperature : -30 to 70℃ Type Flat type/Flat view Sensing distance 8mm Min. sensing target Ø0.1mm Allowable bend radius R15 Cable length 2m Free cut Free cut Adapter Adapter Environment_Ambient temperature -30 to 70℃ Sensing type Convergent reflective type

Read more less

FLF-320-05R Type : Flat type/Flat view Sensing distance : 7mm Min. sensing target : Ø0.08mm Allowable bend radius : R1 Cable length : 2m Adapter : Adapter Environment_Ambient temperature : -30 to 70℃ Type Flat type/Flat view Sensing distance 7mm Min. sensing target Ø0.08mm Allowable bend radius R1 Cable length 2m Free cut Free cut Adapter Adapter Environment_Ambient temperature -30 to 70℃ Sensing type Convergent reflective type

Read more less

FLF-320-10 Type : Flat type/Flat view Sensing distance : 8mm Min. sensing target : Ø0.0125mm Allowable bend radius : R25 Cable length : 2m Environment_Ambient temperature : -40 to 60℃ Type Flat type/Flat view Sensing distance 8mm Min. sensing target Ø0.0125mm Allowable bend radius R25 Cable length 2m Environment_Ambient temperature -40 to 60℃ Sensing type Convergent reflective type ※The sensing distance is a standard for BF5 Series.※Free cut type's sensing distance can be shortened about max. 20% than the normal according to condition of the cable. [(FC-3) should be used for cutting fiber cable.]

Read more less

FLF-320-10A Type : Flat type/Flat view Sensing distance : 100mm Min. sensing target : Ø0.08mm Allowable bend radius : R20 Cable length : 2m Adapter : Adapter Environment_Ambient temperature : -30 to 70℃ Type Flat type/Flat view Sensing distance 100mm Min. sensing target Ø0.08mm Allowable bend radius R20 Cable length 2m Free cut Free cut Adapter Adapter Environment_Ambient temperature -30 to 70℃ Sensing type Convergent reflective type

Read more less

FLF-320-10H Type : Flat type/Flat view Sensing distance : 130mm Min. sensing target : Ø0.08mm Allowable bend radius : R25 Cable length : 2m Environment_Ambient temperature : -40 to 105℃ Type Flat type/Flat view Sensing distance 130mm Min. sensing target Ø0.08mm Allowable bend radius R25 Cable length 2m Free cut Free cut Environment_Ambient temperature -40 to 105℃ Sensing type Convergent reflective type

Read more less

FLFU-320-10WP Type : Flat type/Top view(up) Sensing distance : 80mm Min. sensing target : Ø0.08mm Allowable bend radius : R20 Cable length : 2m Environment_Ambient temperature : -30 to 70℃ Type Flat type/Top view(up) Sensing distance 80mm Min. sensing target Ø0.08mm Allowable bend radius R20 Cable length 2m Free cut Free cut Environment_Ambient temperature -30 to 70℃ Sensing type Convergent reflective type

Read more less

FTS2-420-10 Type : SUS type(SUS length 45mm) Sensing distance : 500mm Min. sensing target : Ø1mm Allowable bend radius : R30(SUS part 10R) Cable length : 2m Environment_Ambient temperature : -40 to 70℃ Type SUS type(SUS length 45mm) Sensing distance 500mm Min. sensing target Ø1mm Allowable bend radius R30(SUS part 10R) Cable length 2m Free cut Free cut Environment_Ambient temperature -40 to 70℃ Sensing type Through-beam type ※The sensing distance is a standard for red LED of BF4 Series and 10% of red LED is applied when it is green LED. It is applied to 40% of sensing distance for BF3RX.※Min. sensing target is a value measured opaque material in accurate output status and the sensing distance is different with the rated sensing distance.※Free cut type's sensing distance can be shortened about max. 20% than the normal according to condition of the cable. [(FC-3) should be used for cutting fiber cable.]※FT-420-13 was discontinued. FT-420-13B is replacement.※Glass type is for BF5, BF4 Series.

Read more less

GD-610-12V2 Type : Standard type(bolt type) Sensing distance : 180mm(FU-VA01)/120mm(FU-VA02) Min. sensing target : Ø0.08mm Allowable bend radius : R25 Cable length : 1m Environment_Ambient temperature : -60 to 250℃ Type Standard type(bolt type) Sensing distance 180mm(FU-VA01)/120mm(FU-VA02) Min. sensing target Ø0.08mm Allowable bend radius R25 Cable length 1m Environment_Ambient temperature -60 to 250℃ Sensing type Diffuse reflective type

Read more less

GD-620-12H3 Type : Standard type(bolt type) Sensing distance : 270mm Min. sensing target : Ø0.08mm Allowable bend radius : R25 Cable length : 2m Environment_Ambient temperature : -60 to 350℃ Type Standard type(bolt type) Sensing distance 270mm Min. sensing target Ø0.08mm Allowable bend radius R25 Cable length 2m Environment_Ambient temperature -60 to 350℃ Sensing type Diffuse reflective type

Read more less

GD-620-20H2 Type : Standard type(bolt type) Sensing distance : 300mm Min. sensing target : Ø0.08mm Allowable bend radius : R25 Cable length : 2m Environment_Ambient temperature : -40 to 250℃ Type Standard type(bolt type) Sensing distance 300mm Min. sensing target Ø0.08mm Allowable bend radius R25 Cable length 2m Environment_Ambient temperature -40 to 250℃ Sensing type Diffuse reflective type ※The sensing distance is a standard for red LED of BF4 Series and 10% of red LED is applied when it is green LED. It is applied to 40% of sensing distance for BF3RX.※Min. sensing target is a value measured opaque material in accurate output status and the sensing distance is different with the rated sensing distance.※Free cut type's sensing distance can be shortened about max. 20% than the normal according to condition of the cable. [(FC-3) should be used for cutting fiber cable.]※Glass type is for BF5, BF4 Series.

Read more less

GDL-610-12V2 Type : L type Sensing distance : 180mm(FU-VA01)/130mm(FU-VA02) Min. sensing target : Ø0.08mm Allowable bend radius : R25 Cable length : 1m Environment_Ambient temperature : -60 to 250℃ Type L type Sensing distance 180mm(FU-VA01)/130mm(FU-VA02) Min. sensing target Ø0.08mm Allowable bend radius R25 Cable length 1m Environment_Ambient temperature -60 to 250℃ Sensing type Diffuse reflective type

Read more less

GDL-620-12H2 Type : L type Sensing distance : 260mm Min. sensing target : Ø0.08mm Allowable bend radius : R25 Cable length : 2m Environment_Ambient temperature : -60 to 250℃ Type L type Sensing distance 260mm Min. sensing target Ø0.08mm Allowable bend radius R25 Cable length 2m Environment_Ambient temperature -60 to 250℃ Sensing type Diffuse reflective type

Read more less

GDL-620-12H3 Type : L type Sensing distance : 260mm Min. sensing target : Ø0.08mm Allowable bend radius : R25 Cable length : 2m Environment_Ambient temperature : -60 to 350℃ Type L type Sensing distance 260mm Min. sensing target Ø0.08mm Allowable bend radius R25 Cable length 2m Environment_Ambient temperature -60 to 350℃ Sensing type Diffuse reflective type

Read more less

GDR-620-17H2 Type : Right angle M6 bolt Sensing distance : 250mm Min. sensing target : Ø0.08mm Allowable bend radius : R25 Cable length : 2m Environment_Ambient temperature : -60 to 250℃ Type Right angle M6 bolt Sensing distance 250mm Min. sensing target Ø0.08mm Allowable bend radius R25 Cable length 2m Environment_Ambient temperature -60 to 250℃ Sensing type Diffuse reflective type

Read more less

GDR-620-17H3 Type : Right angle M6 bolt Sensing distance : 260mm Min. sensing target : Ø0.08mm Allowable bend radius : R25 Cable length : 2m Environment_Ambient temperature : -60 to 350℃ Type Right angle M6 bolt Sensing distance 260mm Min. sensing target Ø0.08mm Allowable bend radius R25 Cable length 2m Environment_Ambient temperature -60 to 350℃ Sensing type Diffuse reflective type

Read more less

GLF-310-12V2 Type : Flat type/Flat view Sensing distance : 60mm(FU-VA01)/80mm(FU-VA02) Min. sensing target : Ø2mm(FU-VA01)/Ø1.8mm(FU-VA02) Allowable bend radius : R25 Cable length : 1m Environment_Ambient temperature : -60 to 250℃ Type Flat type/Flat view Sensing distance 60mm(FU-VA01)/80mm(FU-VA02) Min. sensing target Ø2mm(FU-VA01)/Ø1.8mm(FU-VA02) Allowable bend radius R25 Cable length 1m Environment_Ambient temperature -60 to 250℃ Sensing type Convergent reflective type

Read more less

GLF-310-12V2L Type : Flat type/Flat view Sensing distance : 60mm(FU-VA01)/80mm(FU-VA02) Min. sensing target : Ø2mm(FU-VA01)/Ø0.6mm(FU-VA02) Allowable bend radius : R25 Cable length : 1m Environment_Ambient temperature : -60 to 250℃ Type Flat type/Flat view Sensing distance 60mm(FU-VA01)/80mm(FU-VA02) Min. sensing target Ø2mm(FU-VA01)/Ø0.6mm(FU-VA02) Allowable bend radius R25 Cable length 1m Environment_Ambient temperature -60 to 250℃ Sensing type Convergent reflective type

Read more less

GLF-310-12V3L Type : Flat type/Flat view Sensing distance : 60mm(FU-VA01)/80mm(FU-VA02) Min. sensing target : Ø1.5mm(FU-VA01)/Ø0.6mm(FU-VA02) Allowable bend radius : R25 Cable length : 1m Environment_Ambient temperature : -60 to 350℃ Type Flat type/Flat view Sensing distance 60mm(FU-VA01)/80mm(FU-VA02) Min. sensing target Ø1.5mm(FU-VA01)/Ø0.6mm(FU-VA02) Allowable bend radius R25 Cable length 1m Environment_Ambient temperature -60 to 350℃ Sensing type Convergent reflective type

Read more less

GLF-320-12H2L Type : Flat type/Flat view Sensing distance : 120mm Min. sensing target : Ø0.6mm Allowable bend radius : R25 Cable length : 2m Environment_Ambient temperature : -60 to 250℃ Type Flat type/Flat view Sensing distance 120mm Min. sensing target Ø0.6mm Allowable bend radius R25 Cable length 2m Environment_Ambient temperature -60 to 250℃ Sensing type Convergent reflective type

Read more less

BFNC-CL Display : Status indicator × 4 Communication : CC-Link Power supply : Power connector (3-pin) Max. expansion Amp. units : ≤ 16 units Current consumption : ≤ 200 mA (10 VDC), ≤ 140 mA (30 VDC) Display Status indicator × 4 Communication CC-Link Power voltage 10 - 30 VDC(ripple P-P: ≤ 10 %) Power supply Power connector (3-pin) Max. expansion Amp. units ≤ 16 units Current consumption ≤ 200 mA (10 VDC), ≤ 140 mA (30 VDC) Amp. allowable current Max. 2A Amp. connection Via side connector Unit weight (packaged weight) ≈ 75 g (≈ 128 g) Protection circuit Reverse power protection circuit, surge protection circuit Insulation resistance ≥ 20 MΩ (500 VDC megger) Dielectric strength Between the charging part and the case: 1,000 VAC~ 50/60 Hz for 1 minute Vibration 1.5 mm double amplitude at frequency of 10 to 55 Hz in each X, Y, Z direction for 2 hours Shock 500m/s²(approx. 50G) in each X, Y, Z direction for 3 times Environment_Ambient temperature -10 to 50℃, storage: -20 to 70℃ Environment_Ambient humidity 35 to 85%RH, Storage: 35 to 85%RH (no freezing or condensation) Installation DIN rail 35 mm Protection structure IP20(IEC standard) Material Case, cover: PC

Read more less

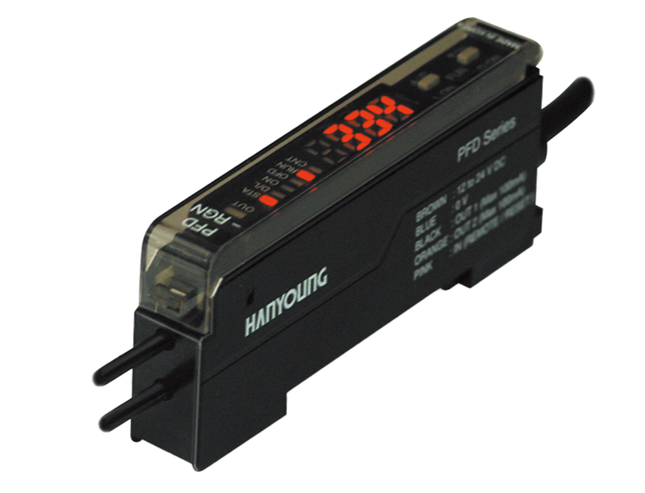

PFD series Multifunctional digital fiber optic sensor - 7 segments 4 digits LED display- Set up delay output time (1~9999 ms)- Set up sensitivity by using auto teaching- Detect mark/counter/tachometer function (multi type) Display Digit display method Model NPN PFD-RGN PFD-RMN PNP PFD-RGP PFD-RMP Appearance Power supply voltage 12 - 24 V d.c. ±10 % Current Consumption 50 mA max. Output Main Control : Open collector output, 100 mA (30 V d.c. Residual voltage 1 V or less) Sub Stability : Open collector output, 100 mA (30 V d.c. Residual voltage 1 V or less) External Input Teaching by external input signal Teaching / Reset input Mtensity of light 0~1,000 Multi functions Counter - 400 cps, Up/Down, 0~9,999 RPM - 12 ~ 9,999 rpm Output action Light On / Dark On Output NORMAL , ON DELAY, OFF DELAY, ONE Shot Time Output On/Off Delay 0 ~ 9,999 ms OneShotTime 0 ~ 9,999 ms Light source (wave length) Red LED / 660 nm Protective circuit Built in the reversed power supply connection protective circuit and output short protective circuit Response time 0.7 ms max 1 ms max The Rate of Change 10 % max LED 7 contacts state indicating LED, 7 segments LED 4 digits Sensitivity adjustment Auto teaching / Manual setting by using the set button Additional Function Display brightness control function & 180-degree rotating display Display time setting, Lock function Display brightness control function & 180-degree rotating display Display time setting, Zero Reset, Initial Reset, Lock function Ambient illumination Sunlight : 10,000 lx max, Incandescent lamp : 3,000 lx max Ambient temperature In opration : -10 ℃ ~ 55 ℃, In storage : -25 ℃ ~ 70 ℃ (without condensation or freezing) Ambient humidity 35 ~ 85 % RH Vibration resistance 10 - 55 ㎐ double amplitude 1.5 mm, for 2 hours each in X · Y · Z directions Shock resistance 500 m/s² 3 times each in X · Y · Z directions Dielectric strength Max 1 minute in 1000 V a.c. (50 - 60 ㎐) Insulation resistance Min 20 MΩ in 500 V d.c. Connection method ▪DIN rail installation structure, ▪Code extended type, ▪Code length : 2 m, ▪No. of lines : 5P, ▪Thickness : Ø4 mm Accessory Mounting bracket Certification ■ Multi-functions Multi functions Counter ▪UP / DOWN mode, Free scale 1~999 (double, demultiply setting) ▪Range : 0 - 9,999 ▪Counting speed : 400 cps (50 % duty) ▪Output mode : N, F, C, R, K, P, Q, A 8 kinds ▪External reset : Min. signal width 5 ㎳ RPM ▪Range : 0 - 9,999 rpm ▪Speed guard output ▪Free scale : 1 - 1,000 Measring ▪Cycle setting Cautions) Use by combining the Fiber Unit in the form of transmission type at the time of Tachometer/Count Measurement. Malfunction can occur from the increase in the light receiving change range by speed when using for the reflection purpose. Distance measurement at the optical measurement mode changes in accordance with the Fiber Cable and within 20 mm is recommended.

Read more less

FTW5-320-02B Type : Area type Sensing distance : 730mm Min. sensing target : Ø0.8mm Allowable bend radius : R5 Cable length : 2m Environment_Ambient temperature : -30 to 70℃   Type Area type Sensing distance 730mm Min. sensing target Ø0.8mm Allowable bend radius R5 Cable length 2m Free cut Free cut Environment_Ambient temperature -30 to 70℃ Sensing type Through-beam type

Read more less

FD-420-05R Type : Standard type(bolt type) Sensing distance : 35mm Min. sensing target : Ø0.0125mm Allowable bend radius : R1 Cable length : 2m Adapter : Adapter Environment_Ambient temperature : -40 to 60℃ Type Standard type(bolt type) Sensing distance 35mm Min. sensing target Ø0.0125mm Allowable bend radius R1 Cable length 2m Free cut Free cut Adapter Adapter Environment_Ambient temperature -40 to 60℃ Sensing type Diffuse reflective type ※The sensing distance is a standard for BF5 Series.※Min. sensing target is a value measured opaque material in accurate output status and the sensing distance is different with the rated sensing distance.※Flexible optical fiber (Multi core): A large number of ultra-fine cores are all surrounded by cladding. Easy to install it in the many places as the change of the intensity of radiation by bending is small.Break-resistant optical fiber: The fiber units contain a large number of independent fine fibers, by ensuring a high degree of flexibility. It can be used for moving parts (robot hand) and it is not easily broken.※Free cut type's sensing distance can be shortened about max. 20% than the normal according to condition of the cable. [(FC-3) should be used for cutting fiber cable.]※Glass type is for BF5, BF4 Series.

Read more less

FDS2-320-05 Type : SUS type(SUS length 45mm) Sensing distance : 40mm Min. sensing target : Ø0.03mm Allowable bend radius : 15R(SUS part 10R) Cable length : 2m Adapter : Adapter Environment_Ambient temperature : -40 to 70℃ Type SUS type(SUS length 45mm) Sensing distance 40mm Min. sensing target Ø0.03mm Allowable bend radius 15R(SUS part 10R) Cable length 2m Free cut Free cut Adapter Adapter Environment_Ambient temperature -40 to 70℃ Sensing type Diffuse reflective type ※The sensing distance is a standard for red LED of BF4 Series and 10% of red LED is applied when it is green LED. It is applied to 40% of sensing distance for BF3RX.※Min. sensing target is a value measured opaque material in accurate output status and the sensing distance is different with the rated sensing distance.※Free cut type's sensing distance can be shortened about max. 20% than the normal according to condition of the cable. [(FC-3) should be used for cutting fiber cable.]※Glass type is for BF5, BF4 Series.

Read more less

BFNC-EC Display : Status indicator × 5 Communication : EtherCAT Power supply : Power connector (3-pin) Max. expansion Amp. units : ≤ 16 units Current consumption : ≤ 300 mA (10 VDC), ≤ 200 mA (30 VDC) Display Status indicator × 5 Communication EtherCAT Power voltage 10 - 30 VDC(ripple P-P: ≤ 10 %) Power supply Power connector (3-pin) Max. expansion Amp. units ≤ 16 units Current consumption ≤ 300 mA (10 VDC), ≤ 200 mA (30 VDC) Amp. allowable current Max. 2A Amp. connection Via side connector Unit weight (packaged weight) ≈ 81 g (≈ 125 g) Protection circuit Reverse power protection circuit, surge protection circuit Insulation resistance ≥ 20 MΩ (500 VDC megger) Dielectric strength Between the charging part and the case: 1,000 VAC~ 50/60 Hz for 1 minute Vibration 1.5 mm double amplitude at frequency of 10 to 55 Hz in each X, Y, Z direction for 2 hours Shock 500m/s²(approx. 50G) in each X, Y, Z direction for 3 times Environment_Ambient temperature -10 to 50℃, storage: -20 to 70℃ Environment_Ambient humidity 35 to 85%RH, Storage: 35 to 85%RH (no freezing or condensation) Installation DIN rail 35 mm Protection structure IP20(IEC standard) Material Case, cover: PC

Read more less

FD-620-10R Type : Standard type(bolt type) Sensing distance : 130mm Min. sensing target : Ø0.04mm Allowable bend radius : R1 Cable length : 2m Environment_Ambient temperature : -40 to 60℃ Type Standard type(bolt type) Sensing distance 130mm Min. sensing target Ø0.04mm Allowable bend radius R1 Cable length 2m Free cut Free cut Environment_Ambient temperature -40 to 60℃ Sensing type Diffuse reflective type ※The sensing distance is a standard for BF5 Series.※Min. sensing target is a value measured opaque material in accurate output status and the sensing distance is different with the rated sensing distance.※Flexible optical fiber (Multi core): A large number of ultra-fine cores are all surrounded by cladding. Easy to install it in the many places as the change of the intensity of radiation by bending is small.Break-resistant optical fiber: The fiber units contain a large number of independent fine fibers, by ensuring a high degree of flexibility. It can be used for moving parts (robot hand) and it is not easily broken.※Free cut type's sensing distance can be shortened about max. 20% than the normal according to condition of the cable. [(FC-3) should be used for cutting fiber cable.]※Glass type is for BF5, BF4 Series.

Read more less

FDS-320-05 Type : SUS type(SUS length 90mm) Sensing distance : 40mm Min. sensing target : Ø0.03mm Allowable bend radius : 15R(SUS part 10R) Cable length : 2m Adapter : Adapter Environment_Ambient temperature : -40 to 70℃ Type SUS type(SUS length 90mm) Sensing distance 40mm Min. sensing target Ø0.03mm Allowable bend radius 15R(SUS part 10R) Cable length 2m Free cut Free cut Adapter Adapter Environment_Ambient temperature -40 to 70℃ Sensing type Diffuse reflective type ※The sensing distance is a standard for red LED of BF4 Series and 10% of red LED is applied when it is green LED. It is applied to 40% of sensing distance for BF3RX.※Min. sensing target is a value measured opaque material in accurate output status and the sensing distance is different with the rated sensing distance.※Free cut type's sensing distance can be shortened about max. 20% than the normal according to condition of the cable. [(FC-3) should be used for cutting fiber cable.]※Glass type is for BF5, BF4 Series.

Read more less

FTC-220-05 Type : Cylinder type Sensing distance : 150mm Min. sensing target : Ø0.5mm Allowable bend radius : R10 Cable length : 2m Adapter : Adapter Environment_Ambient temperature : -40 to 70℃ Type Cylinder type Sensing distance 150mm Min. sensing target Ø0.5mm Allowable bend radius R10 Cable length 2m Free cut Free cut Adapter Adapter Environment_Ambient temperature -40 to 70℃ Sensing type Through-beam type

Read more less

FTF-210-05R Type : Flat type/Flat view Sensing distance : 100mm Min. sensing target : Ø0.04mm Allowable bend radius : R1 Cable length : 1m Adapter : Adapter Environment_Ambient temperature : -40 to 60℃ Type Flat type/Flat view Sensing distance 100mm Min. sensing target Ø0.04mm Allowable bend radius R1 Cable length 1m Free cut Free cut Adapter Adapter Environment_Ambient temperature -40 to 60℃ Sensing type Through-beam type ※The sensing distance is a standard for BF5 Series.※Min. sensing target is a value measured opaque material in accurate output status and the sensing distance is different with the rated sensing distance.※Free cut type's sensing distance can be shortened about max. 20% than the normal according to condition of the cable. [(FC-3) should be used for cutting fiber cable.]※FT-420-13 was discontinued. FT-420-13B is replacement.※Glass type is for BF5, BF4 Series.

Read more less

FD-320-F Type : Standard type(bolt type) Sensing distance : 40mm Min. sensing target : Ø0.03mm Allowable bend radius : R10 Cable length : 2m Adapter : Adapter Environment_Ambient temperature : -40 to 70℃ Type Standard type(bolt type) Sensing distance 40mm Min. sensing target Ø0.03mm Allowable bend radius R10 Cable length 2m Free cut Free cut Adapter Adapter Environment_Ambient temperature -40 to 70℃ Sensing type Diffuse reflective type

Read more less

FDCS-320-05 Type : Cylinder+SUS type(SUS length 15mm) Sensing distance : 40mm Min. sensing target : Ø0.03mm Allowable bend radius : 15R(SUS part 10R) Cable length : 2m Adapter : Adapter Environment_Ambient temperature : -40 to 70℃ Type Cylinder+SUS type(SUS length 15mm) Sensing distance 40mm Min. sensing target Ø0.03mm Allowable bend radius 15R(SUS part 10R) Cable length 2m Free cut Free cut Adapter Adapter Environment_Ambient temperature -40 to 70℃ Sensing type Diffuse reflective type

Read more less

FDFU-210-05R Type : Flat type/Top view(up) Sensing distance : 35mm Min. sensing target : Ø0.0125mm Allowable bend radius : R1 Cable length : 1m Adapter : Adapter Environment_Ambient temperature : -40 to 60℃ Type Flat type/Top view(up) Sensing distance 35mm Min. sensing target Ø0.0125mm Allowable bend radius R1 Cable length 1m Free cut Free cut Adapter Adapter Environment_Ambient temperature -40 to 60℃ Sensing type Diffuse reflective type

Read more less

FT-320-05 Type : Standard type(bolt type) Sensing distance : 150mm Min. sensing target : Ø0.5mm Allowable bend radius : R10 Cable length : 2m Adapter : Adapter Environment_Ambient temperature : -40 to 70℃ Type Standard type(bolt type) Sensing distance 150mm Min. sensing target Ø0.5mm Allowable bend radius R10 Cable length 2m Free cut Free cut Adapter Adapter Environment_Ambient temperature -40 to 70℃ Sensing type Through-beam type

Read more less

GTU3-320-H2 Type : U-shaped head Sensing distance : 20mm Min. sensing target : Ø2.5mm Allowable bend radius : R25 Cable length : 2m Environment_Ambient temperature : -60 to 250℃ Type U-shaped head Sensing distance 20mm Min. sensing target Ø2.5mm Allowable bend radius R25 Cable length 2m Environment_Ambient temperature -60 to 250℃ Sensing type Through-beam type

Read more less

FD-320-05R Type : Standard type(bolt type) Sensing distance : 35mm Min. sensing target : Ø0.0125mm Allowable bend radius : R1 Cable length : 2m Adapter : Adapter Environment_Ambient temperature : -40 to 60℃ Type Standard type(bolt type) Sensing distance 35mm Min. sensing target Ø0.0125mm Allowable bend radius R1 Cable length 2m Free cut Free cut Adapter Adapter Environment_Ambient temperature -40 to 60℃ Sensing type Diffuse reflective type

Read more less

FDCSN-320-05 Type : Ø2.47mm Side view Sensing distance : 30mm Min. sensing target : Ø0.0125mm Allowable bend radius : R15 Cable length : 2m Environment_Ambient temperature : -40 to 60℃ Type Ø2.47mm Side view Sensing distance 30mm Min. sensing target Ø0.0125mm Allowable bend radius R15 Cable length 2m Environment_Ambient temperature -40 to 60℃ Sensing type Diffuse reflective type

Read more less

FTR-410-10R Type : Right-angle Sensing distance : 460mm Min. sensing target : Ø0.5mm Allowable bend radius : R1 Cable length : 1m Environment_Ambient temperature : -40 to 60℃ Type Right-angle Sensing distance 460mm Min. sensing target Ø0.5mm Allowable bend radius R1 Cable length 1m Free cut Free cut Environment_Ambient temperature -40 to 60℃ Sensing type Through-beam type

Read more less

FT-420-10R Type : Standard type(bolt type) Sensing distance : 500mm Min. sensing target : Ø0.5mm Allowable bend radius : R1 Cable length : 2m Environment_Ambient temperature : -40 to 60℃ Type Standard type(bolt type) Sensing distance 500mm Min. sensing target Ø0.5mm Allowable bend radius R1 Cable length 2m Free cut Free cut Environment_Ambient temperature -40 to 60℃ Sensing type Through-beam type

Read more less

FTC-1520-05 Type : Cylinder type Sensing distance : 150mm Min. sensing target : Ø0.5mm Allowable bend radius : R10 Cable length : 2m Adapter : Adapter Environment_Ambient temperature : -40 to 70℃ Type Cylinder type Sensing distance 150mm Min. sensing target Ø0.5mm Allowable bend radius R10 Cable length 2m Free cut Free cut Adapter Adapter Environment_Ambient temperature -40 to 70℃ Sensing type Through-beam type

Read more less
