TSUBAKI R — BS/DIN Standard RS Roller Chain Connecting Link, genuine TSUBAKI product.OverviewThis Tsubaki connecting link joins BS/DIN-standard roller chain, the European chain standard whose dimensions differ from ANSI-based RS chain. It is used to assemble chain to the required length or repair a drive on machinery built to European specifications. Using the correct standard is essential, as BS and ANSI chains of similar pitch are not interchangeable.Key Features Designed for BS/DIN standard roller chain Joins chain ends during installation or repair Available for several chain numbers Robust steel construction Specifications Part No. Material (Body) Pitch (mm) Dim. H (mm) Link Width (mm) Dim. l1 (mm) Connection Pitch (mm) Dim. l2 (mm) Max. Allowable Tension (kN) Compatibility Type Dim. T1 (mm) Body Material No. of Strands Type Pin Diameter D (mm) RF06B-1-JL 9.525 8.2 5.72 6.1 7.7 RF06B-1 Roller chain 1 Steel 1 Connecting link 3.27 RS08B-1-JL 1.4 7.75 8.4 12.7 10 3.8 Roller chain 1.6 Steel 1 Connecting link 4.45 RS10B-1-JL Steel 13.7 9.65 9.55 15.875 11.25 4.52 RS10B-1 Roller chain 1.5 1 5.08 RS12B-1-JL 16.1 11.68 11.1 19.05 13 5.28 RS12B-1 Roller chain 1.8 1 Connecting link 5.72 RS16B-1-JL 21 17.02 25.4 19.95 13.1 RS16B-1 Roller chain 3.2 Steel 1 Connecting link 8.28 How to OrderConfirm the BS chain number (for example 06B or 08B), number of strands and link type. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.About TSUBAKITsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.Ordering & Shipping Genuine TSUBAKI product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

TSUBAKI R — RS Roller Chain Single Strand (BS/DIN Standard), genuine TSUBAKI product.OverviewThis TSUBAKI single-strand roller chain follows BS/DIN (ISO B series) dimensions, which differ from ANSI-based RS chain. It is used to replace chain on European-built machinery or where sprockets are made to British or German standards. Function is the same as standard roller chain, with rollers engaging sprocket teeth to transmit power.Key Features Built to BS/DIN (ISO B) dimensions Interchangeable with B-series sprockets Heat-treated components for durability Specifications Part No. Roller Outer Diameter (R) (Ømm) Pin Type Unit Length (m) Link Width W (mm) Chain No. Dim. H (mm) Min. Tensile Strength (kN[kgf]) Dim. T1 (mm) Mass (kg) Pin Diameter D (mm) Connection Pitch (mm) Link Width (mm) Max. Allowable Tension (kN) Body Material Max. Allowable Tension kN (kgf) Links per Unit Dim. l1 (mm) Type No. of Strands Pin Length (mm) Tensile Strength (kN[kgf]) RF06B-1 Rivet type 3 RF35 9.0 [920] 1.17 3.27 5.72 Steel 6.1 Roller chain 15.1 8.90 910 (ISO606) RS08B-1 8.51 3 7.75 1.6 4.45 12.7 7.75 3.8 3..80 [387] 8.4 Roller chain 17.8 [1820] (ISO606) RS12B-1 12.07 11.68 RS60 16.1 3.75 5.72 19.05 11.68 160 11.1 1 28.9 [2950] (ISO606) RS16B-1 Rivet type 3 21 70 [7100] 8.1 8.28 25.4 17.02 13.1 120 Roller chain 39.3 How to OrderConfirm the BS/DIN chain designation, such as 08B, and the required length. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.Product image is representative of the TSUBAKI series; appearance varies by size and model.About TSUBAKITsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.Ordering & Shipping Genuine TSUBAKI product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

TSUBAKI L — Insert Only for Jaw Flex Coupling L Series, genuine TSUBAKI product.OverviewThis insert is the elastomer element used in Tsubaki Jaw Flex L series couplings. It sits between the two hubs and transmits torque while absorbing shock and minor misalignment. Replacing worn inserts restores coupling performance without replacing the hubs. Inserts are typically changed during scheduled maintenance of pumps, fans and conveyor drives.Key Features Elastomer element absorbs shock and vibration Compensates for minor misalignment Replaceable without changing hubs Sized to match L series couplings Specifications Part No. Allowable Parallel Misalignment (mm) Shape Type Color Allowable Angular Misalignment (°) Size Operating Temp. Range (℃) Y(mm) Dim. X (mm) Material (Insert) Dim. Z (mm) L070GH 0.38 B Related products White 0.5 70 -50 ~ 120 - 12.7 Hytrel 12.7 L070GM 0.38 B Related products Blue 1 70 -34 ~ 70 - 12.7 Urethane 12.7 L070GS 0.38 A Related products Black 1 70 -40 ~ 100 - 12.7 Nitrile - L075GH 0.38 B Related products White 0.5 75 -50 ~ 120 - 12.7 Hytrel 19.05 L075GM 0.38 B Related products Blue 1 75 -34 ~ 70 - 12.7 Urethane 19.05 L075GS 0.38 C Related products Black 1 75 -40 ~ 100 2.35 12.7 Nitrile 19.05 L090GH 0.38 B Related products White 0.5 90 -50 ~ 120 - 12.7 Hytrel 22.23 L090GM 0.38 B Related products Blue 1 90 -34 ~ 70 - 12.7 Urethane 22.23 L090GS 0.38 C Related products Black 1 90 -40 ~ 100 7.11 12.7 Nitrile 22.23 L110GH 0.38 B Related products White 0.5 110 -50 ~ 120 - 21.95 Hytrel 30.16 How to OrderMatch the insert to the coupling size number and material grade. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.About TSUBAKITsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.Ordering & Shipping Genuine TSUBAKI product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

TSUBAKI CR — Roller Chain Coupling (Replacement Chain), genuine TSUBAKI product.OverviewThis replacement chain fits TSUBAKI roller chain couplings, which connect two shafts using a pair of sprockets wrapped by double strand chain. Replacing a worn chain restores coupling performance and removes backlash without changing the sprockets. It is a common maintenance part for pumps, compressors, conveyors and gear reducers.Key Features Double strand chain sized for coupling sprockets Easy removal and fitting via connecting pin Restores torque transmission and alignment tolerance Supports quick coupling maintenance Specifications Part No. Type Applicable Sprocket Teeth Type Chain No. Accessories Type CR4014-C Chain only 14 CR40 Connecting link included Dedicated roller chain CR4016-C Chain only 16 Dedicated roller chain CR40 Connecting link included CR5016-C Chain only 16 CR50 Connecting link included Dedicated roller chain CR5018-C Chain only 18 CR50 Connecting link included Dedicated roller chain CR6018-C Chain only 18 CR60 Connecting link included Dedicated roller chain CR6022-C Chain only 22 Dedicated roller chain CR60 Connecting link included How to OrderConfirm the coupling size number to select the matching chain. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.Product image is representative of the TSUBAKI series; appearance varies by size and model.About TSUBAKITsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.Ordering & Shipping Genuine TSUBAKI product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

TSUBAKI BG3600P8M60-W — PX Belt P8M Type, Waterproof, genuine TSUBAKI product.OverviewThe Tsubaki PX belt is a high-torque timing belt with a rounded tooth profile, and the P8M type uses an 8mm tooth pitch for medium to high power synchronous drives. This waterproof version is designed for environments exposed to water or moisture, such as washdown areas. Timing belts transmit power without slip, which suits indexing and positioning drives.Key Features 8mm pitch rounded tooth profile for high torque Waterproof construction for wet environments Synchronous drive with no slip or lubrication Low noise compared with chain drives Specifications Part No. No. of Teeth (T) Type Belt Width (mm) Type Material Connection Pitch (mm) Belt Type Circumference (mm) Belt Thickness (mm) BG3600P8M60-W 450 PX belt 60 Waterproof specification Rubber 8 P8M 3600 5.5 How to OrderSpecify the belt circumference or number of teeth, belt width and matching P8M pulleys. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.Product image is representative of the TSUBAKI series; appearance varies by size and model.About TSUBAKITsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.Ordering & Shipping Genuine TSUBAKI product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

TSUBAKI BG2645UP5M15-HC — Ultra PX Belt UP5M Type, genuine TSUBAKI product.OverviewThe TSUBAKI Ultra PX Belt UP5M Type is a high-torque timing belt with a 5 mm tooth pitch. Rounded teeth engage the pulley grooves for synchronous transmission without slip, while the reinforced construction supports high loads in a narrow width. It is used in machine tools, robots, printing and packaging equipment requiring accurate, compact drives.Key Features Synchronous drive with no slip High-capacity tooth profile for compact drives Quiet running compared with chain Runs on matching 5M profile pulleys Specifications Part No. Circumference (mm) Belt Thickness (mm) Belt Width (mm) Type No. of Teeth (T) Belt Type Material Connection Pitch (mm) BG2645UP5M15-HC 2645 3.6 15 PX belt 529 UP5M Rubber 5 How to OrderSpecify the belt length (pitch length or tooth count), width and profile. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.Product image is representative of the TSUBAKI series; appearance varies by size and model.About TSUBAKITsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.Ordering & Shipping Genuine TSUBAKI product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

TSUBAKI PT20P2M6DF-A — PX Pulley P2M Type (Aluminum), genuine TSUBAKI product.OverviewThe Tsubaki PX pulley P2M type is an aluminum timing pulley for PX belts with a 2 mm pitch profile. It meshes with the belt teeth for synchronous power transmission without slip. It is used in compact drives such as office machines, small robots and precision positioning devices.Key Features Aluminum body for low weight P2M tooth profile for fine pitch belts Synchronous transmission without slip Flanged versions guide the belt Specifications Part No. Max. Bore Diameter d (Ømm) Shape Dim. BL (mm) Min. Bore Diameter D (Ømm) Hub Diameter Dh (Ømm) Applicable Belt Width (mm) Flange I.D. df (Ømm) Flange No. of Teeth (T) Pitch Diameter (Dp) (Ømm) Flange O.D. Df (Ømm) Dim. Bw (mm) PT20P2M6DF-A 6.35 DF 20 4 17 6 10 PTAS10170100 20 12.73 17 9.5 How to OrderSpecify number of teeth, belt width, bore and flange type. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.Product image is representative of the TSUBAKI series; appearance varies by size and model.About TSUBAKITsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.Ordering & Shipping Genuine TSUBAKI product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

TSUBAKI RF20 — Double Pitch Chain Offset Link O/L, genuine TSUBAKI product.OverviewThis offset link is designed for TSUBAKI double pitch chain. It allows the chain to be assembled with an odd number of pitches, which helps match fixed conveyor lengths. Double pitch chain is used for light-load conveying in packaging, electronics and assembly equipment. Using a matching offset link avoids forcing a standard link into the wrong roller size.Key Features Enables odd pitch counts in double pitch chain Matches chain dimensions and roller type Helps fit conveyors with fixed lengths Installed with standard chain tools Specifications Part No. Model Type No. of Strands Plate Thickness (mm) Operating Temp. Range (℃) Chain Type Type Pin Diameter D (mm) Pin Type Max. Allowable Tension (kN) Plate Width H (mm) Link Width (mm) Body Material Pin Length (mm) Avg. Tensile Strength (kN) Connection Pitch (mm) Material RF2040R-OL 1 1.5 -10 ~ 150 Double pitch chain Roller chain 3.97 Clip type 12 7.95 Steel (Offset) 18.2 16.7 RF2040S-OL S roller type 1 -10 ~ 150 Double pitch chain Roller chain 3.97 2.65 12 7.95 Steel 16.7 Steel RF2050S-OL S roller type 1 -10 ~ 150 Double pitch chain Roller chain 5.09 15 9.53 Steel (Offset) 22.6 27.5 Steel RF2060S-OL S roller type 1 Double pitch chain Roller chain 5.96 Clip type 6.28 17.2 12.7 Steel 40.2 38.1 RF2080S-OL S roller type 1 -10 ~ 150 Double pitch chain Roller chain 7.94 23 Steel (Offset) 39.9 68.6 50.8 Steel How to OrderConfirm chain number and roller type before ordering. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.Product image is representative of the TSUBAKI series; appearance varies by size and model.About TSUBAKITsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.Ordering & Shipping Genuine TSUBAKI product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

TSUBAKI RF2 — Double Pitch Chain Connecting Link, Both-Side Attachment, genuine TSUBAKI product.OverviewThis Tsubaki connecting link is used to close a double pitch chain that carries K-type attachments on both sides of the link. It keeps the attachment spacing continuous across the joint, so slats, carriers or fixtures can be mounted without gaps. Typical uses include slat conveyors, assembly line carriers and packaging machine conveyors.Key Features Attachments on both sides of the link Maintains continuous attachment pitch through the joint Matched to RF2000-series double pitch chain sizes Allows chain to be joined or shortened on site Specifications Part No. Dim. O (Ømm) No. of Holes No. of Strands Body Material Type Chain Type Dim. X2 (mm) Pin Type Dim. k (mm) Dim. C (mm) Link Width (mm) Max. Allowable Tension (kN) Dim. s (mm) Avg. Tensile Strength (kN) Connection Pitch (mm) Pin Length (mm) Link Plate Thickness T (mm) Plate Width (mm) Dim. n (mm) Pin Diameter (Ømm) Operating Temp. Range (℃) Type Material Dim. X (mm) RF2040-K2-JL 3.6 1 Connecting link Double pitch chain 12.7 7.95 25.4 8.25 9.95 12 19.1 Steel RF2050-K1-JL (Attachment) 1 Steel Double pitch chain 9.53 4.31 27.5 31.75 15 23.8 5.09 -10 ~ 150 Steel RF2050-K2-JL 1 Steel Double pitch chain 22 15.9 9.53 4.31 31.75 15 23.8 -10 ~ 150 24.2 RF2060-K2-JL 5.2 Steel Connecting link Clip type 21.45 12.7 38.1 3.2 17.2 Attachment chain Steel 31.5 RF2080-K2-JL (Attachment) 2 1 Connecting link 19.1 27.8 15.88 50.8 18.30 20.90 7.94 -10 ~ 150 Attachment chain RF2100-K2-JL 8.7 Connecting link 44.9 23.8 19.05 17.1 23.4 108 63.5 4.8 Attachment chain 49.9 How to OrderCheck the chain number, attachment type (K1 or K2) and hole size to match the existing chain. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.Product image is representative of the TSUBAKI series; appearance varies by size and model.About TSUBAKITsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.Ordering & Shipping Genuine TSUBAKI product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

TSUBAKI RF20 — Double Pitch Chain Connecting Link, Single-Side Attachment, genuine TSUBAKI product.OverviewThis connecting link is for TSUBAKI double pitch chain fitted with a bent attachment on one side. Double pitch chain has twice the pitch of standard roller chain, making it lighter and economical for conveying over longer distances. The link joins chain ends while keeping the attachment spacing consistent along the conveyor.Key Features Matches double pitch chain dimensions Attachment provided on one side of the link Keeps attachment pitch uniform at the joint Specifications Part No. Dim. k (mm) Body Material Link Plate Thickness T (mm) Max. Allowable Tension (kN) Dim. C (mm) Dim. O (Ømm) Pin Diameter (Ømm) No. of Strands Material Avg. Tensile Strength (kN) Pin Length (mm) Link Width (mm) Operating Temp. Range (℃) Connection Pitch (mm) Chain Type Dim. X (mm) Type No. of Holes Dim. s (mm) Dim. n (mm) Plate Width (mm) Pin Type Type Dim. X2 (mm) RF2040-A2-JL 9.5 1.5 3.6 Steel 16.7 25.4 Double pitch chain Connecting link 9.1 19.1 Clip type 17.6 RF2050-A2-JL 11.9 15.9 5.09 10.30 12.0 31.75 Double pitch chain 24.2 Connecting link (Attachment) 2 Clip type Attachment chain RF2060-A2-JL 14.3 Steel 21.45 5.96 1 14.55 16.55 -10 ~ 150 31.5 (Attachment) 2 28.6 17.2 RF2080-A2-JL 19.1 Steel 10.7 6.8 Steel 15.88 -10 ~ 150 50.8 Connecting link 19.1 Cotter pin type 36.6 How to OrderConfirm the chain number, attachment type (such as A2) and attachment side. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.Product image is representative of the TSUBAKI series; appearance varies by size and model.About TSUBAKITsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.Ordering & Shipping Genuine TSUBAKI product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

TSUBAKI RF2 — Double Pitch Chain Connecting Link C/L, genuine TSUBAKI product.OverviewThis connecting link joins the ends of Tsubaki double pitch roller chain. Double pitch chain has twice the pitch of standard roller chain, making it lighter and more economical for long conveyors and slow drives. The connecting link allows easy installation and length adjustment of these chains.Key Features Designed for RF double pitch chain Allows quick chain installation and adjustment Matched to chain pitch and roller type Spring clip or cotter retention Specifications Part No. Material (Body) Type Plate Width (mm) Pin Length (mm) Type Connection Pitch (mm) Type Chain Type Body Material Plate Thickness (mm) Link Width (mm) Material Max. Allowable Tension (kN) No. of Strands Pin Diameter (Ømm) Avg. Tensile Strength (kN) Pin Type Operating Temp. Range (℃) RF2040-JL Steel 12 8.25 9.95 25.4 Double pitch chain 1.5 7.95 Steel 2.65 3.97 Clip type RF2050-JL 15 10.30 12.0 Connecting link Double pitch chain Steel 2 9.53 Steel 4.31 1 5.09 Clip type RF2060-JL Connecting link 17.2 14.55 16.55 38.1 Roller chain Double pitch chain Steel 3.2 6.28 5.96 40.2 RF2080-JL 18.30 20.90 Connecting link 50.8 Double pitch chain Steel 4 Steel 10.7 1 68.6 Cotter pin type RF2100-JL Steel 28.6 21.80 24.50 63.5 Double pitch chain 4.8 19.05 1 9.54 108 Cotter pin type How to OrderConfirm the double pitch chain size number and roller type. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.Product image is representative of the TSUBAKI series; appearance varies by size and model.About TSUBAKITsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.Ordering & Shipping Genuine TSUBAKI product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

TSUBAKI RF2040S-2LA2 — Double Pitch Chain S Roller Type, Single-Side Attachment Every 2 Links, genuine TSUBAKI product.OverviewDouble pitch chain has twice the pitch of standard roller chain, making it lighter and more economical for long conveyors. This TSUBAKI S roller version carries an attachment on one side every two links for mounting slats, fixtures or carriers. It is used in light-load conveyors for packaging, electronics and assembly lines.Key Features Double pitch reduces chain weight and cost Single-side attachment every second link S roller size for running on sprockets Suitable for long, light-load conveyors Specifications Part No. Avg. Tensile Strength (kN) Chain Type Type Dim. k (mm) Dim. X (mm) Dim. n (mm) No. of Holes Dim. X2 (mm) Material Dim. O (Ømm) Roller Diameter R1 (Ømm) Max. Allowable Tension (kN) RF2040S-2LA2 16.7 Double pitch chain Attachment chain 9.5 19.3 19.1 (Attachment) 2 17.6 Steel 3.6 7.92 2.65 How to OrderConfirm chain number, roller type, attachment type and spacing, and required length. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.Product image is representative of the TSUBAKI series; appearance varies by size and model.About TSUBAKITsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.Ordering & Shipping Genuine TSUBAKI product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

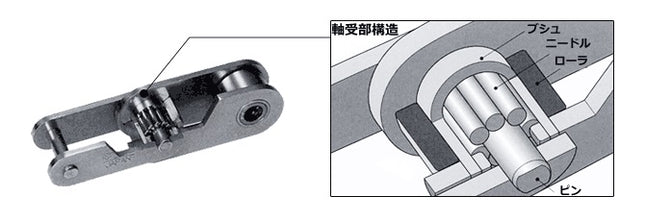

TSUBAKI RF20 — Double Pitch Chain S Roller Type, genuine TSUBAKI product.OverviewDouble pitch roller chain has a pitch twice that of the corresponding standard roller chain while using the same pins, bushings and rollers, making it lighter and more economical for long conveyors and slow drives. The S roller is the standard small roller that matches the bushing diameter. Tsubaki S roller double pitch chain is widely used in light conveyors and long-center drives.Key Features Double length pitch reduces weight per meter Standard S roller for drive and light conveying Runs on dedicated double pitch sprockets Can be combined with standard attachments Specifications Part No. Max. Allowable Tension (kN) Model Type Roller Diameter R1 (Ømm) Body Material Avg. Tensile Strength (kN) Pin Type Connection Pitch (mm) Unit Length (m) Operating Temp. Range (℃) Link Plate Thickness T (mm) Approx. Mass (kg/m) Pin Length L2 (mm) Type Plate Width H (mm) Links per Unit Chain Type Material No. of Strands Link Width W (mm) Pin Length L1 (mm) RF2040S 2.65 S roller type 16.7 25.4 3 1.5 9.95 12 Double pitch chain Steel 1 8.25 RF2050S S roller type 10.16 (Fitting link) clip type (chain body) rivet type 31.75 -10 ~ 150 12 Roller chain 15 96 Steel 1 9.53 RF2060S S roller type Steel 40.2 (Fitting link) clip type (chain body) rivet type 38.1 3 -10 ~ 150 3.2 17.2 1 12.7 14.55 RF2080S 10.7 Steel 68.6 (Fitting link) cotter pin type (chain body) rivet type 3 4 2.41 23 Double pitch chain 1 15.88 18.3 How to OrderSpecify the chain number, roller type (S), total length or number of links and any connecting links required. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.Product image is representative of the TSUBAKI series; appearance varies by size and model.About TSUBAKITsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.Ordering & Shipping Genuine TSUBAKI product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

TSUBAKI RS25-1B — RS Standard Sprocket RS25, genuine TSUBAKI product.OverviewThe TSUBAKI RS25 standard sprocket is designed for the small RS25 roller chain used in light power transmission. Teeth mesh with the chain rollers for smooth, positive drive in a compact space. It is commonly used in office equipment, small conveyors, vending machines and light automation where a small chain pitch is preferred.Key Features Small pitch for compact, light-duty drives Hub style suited to small shafts Range of tooth counts and bore sizes Specifications Part No. Outer Diameter (Do) (Ømm) No. of Teeth (T) Tooth Width (mm) Chain No. Approx. Mass (kg) Roller Diameter (Ømm) Pitch Diameter (Dp) (Ømm) Set Screw Size S Type Material Bore Diameter (Ømm) Hub Length L (mm) Hub Diameter DH (mm) Bore Type Shaft Diameter Tolerance (mm) Set Screw Tooth Profile Chain Pitch (mm) Accessories No. of Strands RS25-1B10T-6 10 2.9 0.013 3.3 20.55 M3 × 6 6 H8 (1 location) position H, 4mm Type B 1 cross recessed pan head screw (stainless steel) 1 RS25-1B10T-8 23.5 RS25 3.3 20.55 M3 × 6 Sprocket 14 (1 location) position H, 4mm Type B 6.35 1 cross recessed pan head screw (stainless steel) 1 RS25-1B11T-6 25.5 2.9 RS25 22.54 Sprocket 6 14 15 Type B 6.35 1 cross recessed pan head screw (stainless steel) 1 RS25-1B11T-8 25.5 11 2.9 RS25 3.3 Iron-based sintered alloy 8 14 Shaft bore finished type H8 (1 location) position H, 4mm 1 RS25-1B12T-10 27.5 RS25 0.02 3.3 24.53 M4 × 8 10 17 Shaft bore finished type H8 (1 location) position H, 4mm 1 cross recessed pan head screw (stainless steel) RS25-1B12T-8 12 2.9 RS25 M4 × 8 Sprocket Iron-based sintered alloy 8 17 Type B 6.35 1 cross recessed pan head screw (stainless steel) 1 RS25-1B13T-10 13 2.9 0.023 Sprocket Iron-based sintered alloy 10 14 18 Shaft bore finished type Type B 6.35 1 cross recessed pan head screw (stainless steel) RS25-1B13T-8 29.5 13 2.9 RS25 26.53 M4 × 8 18 Shaft bore finished type (1 location) position H, 4mm Type B 6.35 1 RS25-1B14T-10 14 2.9 RS25 0.026 28.54 10 14 19 (1 location) position H, 4mm 6.35 1 cross recessed pan head screw (stainless steel) 1 RS25-1B14T-8 31.5 2.9 0.026 28.54 Sprocket 8 14 19 Shaft bore finished type H8 6.35 1 RS25-1B15T-10 0.031 3.3 M4 × 10 Sprocket Iron-based sintered alloy 10 14 20 Shaft bore finished type H8 (1 location) position H, 4mm 1 RS25-1B15T-8 33.5 2.9 3.3 30.54 Sprocket 8 14 20 (1 location) position H, 4mm 6.35 1 cross recessed pan head screw (stainless steel) 1 RS25-1B16T-10 16 2.9 RS25 0.038 3.3 32.55 16 21 Shaft bore finished type (1 location) position H, 5mm 6.35 1 cross recessed pan head screw (stainless steel) RS25-1B16T-8 35.5 RS25 0.038 M4 × 10 Iron-based sintered alloy 8 16 21 Shaft bore finished type H8 1 cross recessed pan head screw (stainless steel) 1 RS25-1B17T-10 17 2.9 0.045 34.56 Sprocket 23 Shaft bore finished type H8 (1 location) position H, 5mm Type B 6.35 1 cross recessed pan head screw (stainless steel) RS25-1B18T-10 39.5 2.9 RS25 M4 × 12 Iron-based sintered alloy 10 16 H8 (1 location) position H, 5mm Type B 6.35 1 RS25-1B18T-8 39.5 18 2.9 RS25 0.052 M4 × 12 Sprocket 25 Shaft bore finished type H8 Type B 1 RS25-1B19T-10 41.5 19 0.06 3.3 38.58 M4 × 12 10 16 26 Type B 1 cross recessed pan head screw (stainless steel) 1 RS25-1B20T-10 43.5 0.068 3.3 40.59 Sprocket Iron-based sintered alloy 10 16 28 (1 location) position H, 5mm Type B 6.35 RS25-1B20T-8 43.5 2.9 RS25 0.068 3.3 Sprocket Iron-based sintered alloy 8 28 (1 location) position H, 5mm 6.35 1 cross recessed pan head screw (stainless steel) RS25-1B21T-10 45.5 2.9 42.61 Iron-based sintered alloy 10 18 Shaft bore finished type H8 (1 location) position H, 7mm Type B 6.35 1 cross recessed pan head screw (stainless steel) RS25-1B24T-10 52 2.9 RS25 0.093 48.65 M4 × 14 Sprocket 10 Shaft bore finished type (1 location) position H, 7mm 6.35 1 cross recessed pan head screw (stainless steel) RS25-1B25T-10 54 25 2.9 50.66 M4 × 14 Sprocket 10 18 H8 (1 location) position H, 7mm 1 cross recessed pan head screw (stainless steel) 1 RS25-1B25T-8 54 25 2.9 50.66 M4 × 14 Sprocket 8 18 30 Shaft bore finished type H8 Type B RS25-1B26T-10 56 2.9 RS25 0.098 3.3 M4 × 14 30 H8 Type B 6.35 1 cross recessed pan head screw (stainless steel) 1 RS25-1B28T-10 60 2.9 0.103 3.3 M4 × 14 Sprocket H8 (1 location) position H, 7mm Type B 6.35 1 cross recessed pan head screw (stainless steel) 1 RS25-1B28T-12 60 2.9 56.71 Sprocket Carbon steel for machine structural use 12 18 30 Shaft bore finished type (1 location) position H, 7mm 1 cross recessed pan head screw (stainless steel) 1 RS25-1B30T-10 30 RS25 3.3 60.75 M4 × 14 Carbon steel for machine structural use 18 30 Shaft bore finished type H8 1 cross recessed pan head screw (stainless steel) 1 RS25-1B30T-12 30 0.11 60.75 M4 × 14 Sprocket 12 30 Shaft bore finished type (1 location) position H, 7mm Type B 1 cross recessed pan head screw (stainless steel) 1 RS25-1B32T-10 68 32 2.9 RS25 0.117 Sprocket 10 18 H8 (1 location) position H, 7mm 6.35 1 RS25-1B32T-12 32 RS25 3.3 M4 × 14 Sprocket Carbon steel for machine structural use 12 H8 (1 location) position H, 7mm 6.35 1 cross recessed pan head screw (stainless steel) 1 How to OrderConfirm the number of teeth, bore size and hub style. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.Product image is representative of the TSUBAKI series; appearance varies by size and model.About TSUBAKITsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.Ordering & Shipping Genuine TSUBAKI product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

TSUBAKI PL025×043KE — Power-Lock KE Series, genuine TSUBAKI product.OverviewThe Tsubaki Power-Lock KE series is a keyless locking device that secures hubs to shafts using friction generated by tightening bolts. It provides a strong, backlash-free connection without keyways. It is used in sprockets, pulleys and gears where accurate positioning and easy removal are required.Key Features Keyless mounting with no shaft keyway needed Precise adjustment of hub position Easy removal for maintenance Supports high torque transmission Specifications Part No. Dim. D1 (Ømm) Dim. l2 (mm) Type Mass (kg) Dim. I (mm) Dim. l (mm) Bolt Size (") Tolerance Shaft-Side Pressure (MPa[kgf/mm2) Operating Temp. Range (℃) Transmission Torque (N·m[kgf·m) Overall Length (mm) PL025×043KE 47 20.5 Fastener 0.17 15 25 M5 × 18 Applicable shaft: h8 / Applicable boss bore: H8 216 (22.0) -30 ~ 200 343 (35.0) / (when thrust load is 0) 30 How to OrderSpecify shaft diameter, hub bore and required torque. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.Product image is representative of the TSUBAKI series; appearance varies by size and model.About TSUBAKITsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.Ordering & Shipping Genuine TSUBAKI product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

TSUBAKI RS60-1B — RS Standard Sprocket RS60 Type 1B, genuine TSUBAKI product.OverviewThe TSUBAKI RS60 Type 1B sprocket is a one-sided hub sprocket designed for RS60 roller chain. It is supplied with a pilot bore so users can finish the bore and keyway to their shaft. It is widely used in medium-duty power transmission on conveyors, industrial machinery and agricultural equipment.Key Features Single-side hub for keyed or set-screw mounting Pilot bore for custom machining Induction-hardened teeth on Q models Fits RS60 roller chain Specifications Part No. Pilot Bore Diameter d (Ømm) Pitch Diameter (Dp) (Ømm) Tooth Width (mm) No. of Strands Outer Diameter (Do) (Ømm) No. of Teeth (T) Material Chain No. Tooth Profile Chain Pitch (mm) Roller Diameter (Ømm) Hub Diameter DH (mm) Bore Diameter (Ømm) Type Hub Length L (mm) Bore Type Type Approx. Mass (kg) RS60-1B13TQ 15.9 79.6 11.9 89 13 RS60 Type B 19.05 Strong product 32 Pilot bore type 0.76 RS60-1B15TQ 15.9 91.63 1 101 15 RS60 Type B 11.91 68 Strong product Sprocket 1.1 RS60-1B20TQ 121.78 11.9 20 Carbon steel for machine structural use, machined specification Type B 19.05 83 ~ 55 Strong product 40 Pilot bore type 2.1 RS60-1B30TQ 18 182.25 1 193 30 Carbon steel for machine structural use, machined specification 11.91 ~ 55 Strong product Pilot bore type Sprocket 3.4 How to OrderSpecify number of teeth, pilot bore range and final bore and keyway dimensions. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.Product image is representative of the TSUBAKI series; appearance varies by size and model.About TSUBAKITsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.Ordering & Shipping Genuine TSUBAKI product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

TSUBAKI RS80-1B15TQ — RS Standard Sprocket RS80 Type 1B, genuine TSUBAKI product.OverviewTsubaki's RS80 Type 1B sprocket carries a hub on one side of the toothed plate and drives 1-inch pitch RS80 roller chain in medium to heavy power transmission. The hub provides length for a keyway and set screws, giving secure shaft fixing under higher torque. It is common on conveyors, mixers, construction machinery and industrial drive trains.Key Features One-sided hub (Type B) for secure shaft fixing Sized for RS80 single-strand roller chain Hardened teeth on Q-suffix models for longer life Pilot bore ready for machining to shaft size Specifications Part No. Material Outer Diameter (Do) (Ømm) Tooth Profile Hub Diameter DH (mm) Hub Length L (mm) Bore Type Type Tooth Width (mm) Bore Diameter (Ømm) No. of Teeth (T) Chain Pitch (mm) No. of Strands RS80-1B15TQ Carbon steel for machine structural use, machined specification 135 Type B 93 40 Pilot bore type Strong product 15 ~ 63 15 25.4 1 How to OrderConfirm the tooth count, single strand requirement, hub dimensions and the bore and keyway to be machined. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.Product image is representative of the TSUBAKI series; appearance varies by size and model.About TSUBAKITsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.Ordering & Shipping Genuine TSUBAKI product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

TSUBAKI RS50-1B19TQ — RS Standard Sprocket RS50 Type 1B, genuine TSUBAKI product.OverviewThe TSUBAKI RS50 Type 1B standard sprocket has a hub projecting on one side and is made to run with RS50 roller chain. Its teeth engage the chain rollers to transmit power between parallel shafts. The plain or pilot bore can be machined to suit the shaft, making it a staple for conveyors and machine drives.Key Features Single-side hub for set screws and keyway Tooth form matched to RS50 chain Wide choice of tooth counts Hardened teeth available on many sizes Specifications Part No. Pilot Bore Diameter d (Ømm) No. of Strands Tooth Profile Type Pitch Diameter (Dp) (Ømm) No. of Teeth (T) Chain No. Hub Length L (mm) Approx. Mass (kg) Type Bore Type Hub Diameter DH (mm) RS50-1B19TQ 12.7 1 Type B Sprocket 96.45 19 RS50 28 1.1 Strong product Pilot bore type 73 How to OrderSpecify the number of teeth, whether the teeth are hardened, and bore and keyway requirements. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.Product image is representative of the TSUBAKI series; appearance varies by size and model.About TSUBAKITsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.Ordering & Shipping Genuine TSUBAKI product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

TSUBAKI RS40 — RS Standard Sprocket RS40 Type 1A, genuine TSUBAKI product.OverviewThis Tsubaki RS40 Type 1A sprocket is a plate-type sprocket without hub for ANSI No. 40 roller chain. Type 1A designs are flat discs that are typically welded or bolted to a hub or machined by the user. They are used in custom drives where the sprocket must be fitted to existing components.Key Features Flat plate design without integral hub Suitable for welding or bolting to custom hubs Teeth sized for RS40 single-strand chain Wide range of tooth counts available Specifications Part No. No. of Strands Outer Diameter (Do) (Ømm) No. of Teeth (T) Tooth Profile Type Roller Diameter (Ømm) Pilot Bore Diameter d (Ømm) Bore Type Approx. Mass (kg) Material Chain No. Pitch Diameter (Dp) (Ømm) Chain Pitch (mm) Tooth Width (mm) Type RS40 1A15T 1 67 Standard product 7.92 Pilot bore type 0.14 Carbon steel for machine structural use RS40 61.08 12.7 7.3 Sprocket RS40 1A20T 1 88 20 Standard product 16 0.26 Carbon steel for machine structural use RS40 81.18 12.7 7.3 Sprocket RS40 1A24T 1 104 24 Type A Standard product 16 Pilot bore type 0.39 Carbon steel for machine structural use 97.3 7.3 Sprocket RS40 1A25T 1 108 Type A Standard product 7.92 16 Pilot bore type 0.42 Carbon steel for machine structural use 12.7 7.3 Sprocket RS40 1A30T 128 30 Standard product 7.92 Pilot bore type 0.62 Carbon steel for machine structural use RS40 121.5 12.7 7.3 Sprocket RS40 1A36T 1 153 36 Type A 7.92 16 Pilot bore type 0.9 Carbon steel for machine structural use RS40 12.7 7.3 RS40 1A48T 1 201 48 Type A 7.92 Pilot bore type 1.6 Carbon steel for machine structural use RS40 12.7 7.3 Sprocket RS40 1A54T 1 226 54 Type A Standard product 7.92 18 Pilot bore type RS40 218.42 12.7 7.3 RS40-1A45T 1 189 45 Standard product 7.92 18 Pilot bore type 1.4 Carbon steel for machine structural use 12.7 7.3 Sprocket How to OrderCheck the number of teeth, chain size and bore or mounting method. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.Product image is representative of the TSUBAKI series; appearance varies by size and model.About TSUBAKITsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.Ordering & Shipping Genuine TSUBAKI product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

TSUBAKI RS40-1B — RS Standard Sprocket RS40 Type 1B, genuine TSUBAKI product.OverviewThis RS40 Type 1B standard sprocket from TSUBAKI has a hub on one side and a plain pilot bore that can be machined to suit the shaft. It engages RS40 roller chain to transmit power or drive conveyors. Hardened teeth on Q versions increase wear life. Typical uses include small to medium power drives in machinery and conveyors.Key Features Type 1B design with hub on one side Pilot bore ready for machining Hardened teeth on Q versions Matches RS40 roller chain Specifications Part No. Pilot Bore Diameter d (Ømm) Chain Pitch (mm) Pitch Diameter (Dp) (Ømm) Groove Diameter (Ømm) Type Bore Diameter (Ømm) Hub Diameter DH (mm) Material Approx. Mass (kg) Outer Diameter (Do) (Ømm) Tooth Width (mm) Tooth Profile No. of Strands Bore Type Type Roller Diameter (Ømm) Hub Length L (mm) No. of Teeth (T) Chain No. RS40-1B10TQ 9.5 12.7 25 Strong product ~ 16.5 Carbon steel for machine structural use, machined specification 0.13 7.3 Type B Sprocket 10 RS40 RS40-1B13TQ 9.5 12.7 - Strong product ~ 20 37 Carbon steel for machine structural use, machined specification Type B Pilot bore type 22 13 RS40 RS40-1B14TQ 9.5 57.07 - ~ 24 42 63 7.3 Type B Pilot bore type Sprocket 7.92 22 RS40-1B15TQ 9.5 61.08 - Strong product ~ 28.5 46 Carbon steel for machine structural use, machined specification 1 Sprocket 7.92 22 15 RS40-1B16TQ 12.7 65.1 Carbon steel for machine structural use, machined specification 0.37 71 7.3 Type B 1 Pilot bore type Sprocket 7.92 RS40 RS40-1B17TQ 12.7 12.7 - Strong product 0.44 76 Type B 1 Pilot bore type Sprocket 7.92 22 RS40-1B18TQ 12.7 73.14 - ~ 35 0.49 80 7.3 Pilot bore type Sprocket 7.92 18 RS40 RS40-1B20TQ 12.7 81.18 - ~ 45.5 67 Carbon steel for machine structural use, machined specification 0.73 88 7.3 Type B 7.92 RS40 RS40-1B30TQ 12.7 - 63 Carbon steel for machine structural use, machined specification 1 128 7.3 Type B 1 Pilot bore type 30 RS40 RS40-1B9TQ 9.5 37.13 21 ~ 15 Carbon steel for machine structural use, machined specification 0.1 43 7.3 Sprocket 7.92 9 RS40 How to OrderCheck number of teeth, hub dimensions and the final bore and keyway needed. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.Product image is representative of the TSUBAKI series; appearance varies by size and model.About TSUBAKITsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.Ordering & Shipping Genuine TSUBAKI product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

TSUBAKI RS35-1B — RS Standard Sprocket RS35, genuine TSUBAKI product.OverviewThis RS35 standard sprocket from Tsubaki engages RS35 roller chain, a 3/8-inch pitch bushing-type chain used for light-duty drives. The sprocket transfers torque between the shaft and chain through its hardened tooth profile, and is supplied with a pilot bore that can be machined to suit the shaft. It is used on packaging machines, small conveyors, printing equipment and light industrial drives.Key Features Tooth profile matched to RS35 chain pitch Pilot bore allows custom boring and keyway machining Hub style options for set-screw or key fixing Wide selection of tooth counts for ratio choice Specifications Part No. Pilot Bore Diameter d (Ømm) No. of Teeth (T) Roller Diameter (Ømm) Pitch Diameter (Dp) (Ømm) No. of Strands Chain No. Hub Length L (mm) Tooth Width (mm) Hub Diameter DH (mm) Outer Diameter (Do) (Ømm) Approx. Mass (kg) Type Tooth Profile Material Groove Diameter (Ømm) Chain Pitch (mm) Bore Type Type Bore Diameter (Ømm) RS35-1B10TQ 8 5.08 30.82 RS35 25 35 Sprocket Type B Carbon steel for machine structural use, machined specification 18 Pilot bore type ~ 12 RS35-1B12TQ 8 5.08 36.8 1 RS35 20 31 41 24 9.525 Strong product ~ 16.5 RS35-1B14TQ 14 RS35 20 4.4 30 47 0.12 Carbon steel for machine structural use, machined specification - 9.525 Pilot bore type Strong product RS35-1B15TQ 9.5 15 5.08 45.81 35 0.16 Sprocket Type B Carbon steel for machine structural use, machined specification - Pilot bore type Strong product RS35-1B18TQ 9.5 54.85 RS35 20 44 0.25 Sprocket Carbon steel for machine structural use, machined specification - 9.525 Pilot bore type ~ 24.5 RS35-1B20TQ 5.08 1 RS35 20 4.4 50 Sprocket Carbon steel for machine structural use, machined specification - 9.525 Pilot bore type ~ 30 RS35-1B36TQ 12.7 1 RS35 22 4.4 53 115 Sprocket Type B - 9.525 Pilot bore type RS35-1B9TQ 9 5.08 1 20 4.4 22 32 Type B Carbon steel for machine structural use, machined specification Pilot bore type Strong product ~ 11 How to OrderSpecify the number of teeth, hub type and the final bore and keyway dimensions required for the shaft. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.Product image is representative of the TSUBAKI series; appearance varies by size and model.About TSUBAKITsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.Ordering & Shipping Genuine TSUBAKI product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

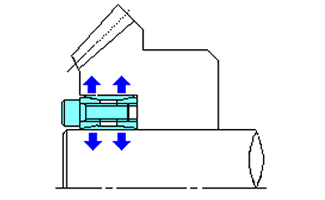

TSUBAKI PL0 — Power-Lock AS Series, genuine TSUBAKI product.OverviewThe TSUBAKI Power-Lock AS Series is a keyless shaft locking device that fixes pulleys, sprockets, gears and couplings to a shaft by friction. Tightening the clamping bolts pulls tapered rings together, expanding against the hub bore and gripping the shaft. Because no keyway is needed, it allows fine positioning and backlash-free connection in general machine drives.Key Features Keyless, backlash-free hub-to-shaft connection Hub can be positioned freely in axial and rotational direction Installed and released with standard hand tools Sizes designated by shaft diameter and outer diameter Specifications Part No. Dim. l (mm) Outer Diameter D (Ømm) Mass (kg) Bolt Size (") Tightening Torque (N·m[kgf·m]) Boss-Side Pressure (MPa[kgf/mm2) Dim. I (mm) Tolerance Surface Roughness (S) Overall Length (mm) Type No. of Bolts Operating Temp. Range (℃) Transmission Torque (N·m[kgf·m) Thrust Load (kN[kgf]) Shaft-Side Pressure (MPa[kgf/mm2) Shaft Diameter d (Ømm) PL020×047AS 20 47 0.2 16.7 (1.7) Applicable shaft: h8, Applicable boss bore: H8 26 Fastener -30 ~ 200 265 (27) (when thrust load is 0) 26.5 (2700) (when transmitted torque is 0) 199 (20.3) 20 PL025×050AS 20 50 0.22 M6 × 18 101 (10.3) 12 or less Fastener -30 ~ 200 421 (43) (when thrust load is 0) 33.3 (3400) (when transmitted torque is 0) 203 (20.7) 25 PL035×060AS 20 0.27 M6 × 18 16.7 (1.7) 18 12 or less Fastener 10 -30 ~ 200 42.1 (4300) (when transmitted torque is 0) 181 (18.5) 35 PL040×065AS 20 65 0.3 M6 × 18 16.7 (1.7) 107 (10.9) 18 Applicable shaft: h8, Applicable boss bore: H8 Fastener 47.0 (4800) (when transmitted torque is 0) 174 (17.8) 40 PL045×075AS 24 75 0.51 M8 × 22 40.2 (4.1) 121 (12.3) Applicable shaft: h8, Applicable boss bore: H8 12 or less 32 9 200 (20.4) 45 PL055×085AS 24 85 0.6 M8 × 22 40.2 (4.1) 130 (13.3) Applicable shaft: h8, Applicable boss bore: H8 Fastener 11 -30 ~ 200 2390 (244) (when thrust load is 0) 86.2 (8800) (when transmitted torque is 0) How to OrderConfirm the shaft diameter, hub bore diameter and required transmissible torque. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.Product image is representative of the TSUBAKI series; appearance varies by size and model.About TSUBAKITsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.Ordering & Shipping Genuine TSUBAKI product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

TSUBAKI PL035×047TF — Power-Lock TF Series, genuine TSUBAKI product.OverviewThe Tsubaki Power-Lock TF series is a keyless shaft locking device that clamps a hub to a shaft by friction instead of a key. Tightening the bolts expands the device radially between hub bore and shaft, creating a firm connection. It is used for sprockets, pulleys, gears and couplings in machinery where backlash-free mounting is needed.Key Features Keyless friction connection eliminates keyways Easy axial and angular positioning Backlash-free clamping between shaft and hub Removable for maintenance or adjustment Specifications Part No. Dim. D2 (Ømm) Thrust Load (kN[kgf]) No. of Bolts Dim. l1 (mm) Tolerance Type Mass (kg) Dim. Lo (mm) Shaft Diameter d (Ømm) Surface Roughness (S) Operating Temp. Range (℃) Transmission Torque (N·m[kgf·m) PL035×047TF 62 44.1 (4500) (when transmitted torque is 0) 8 52 Applicable shaft: h8, Applicable boss bore: H8 Fastener 0.63 45 35 12 or less -30 ~ 200 774 (79) (when thrust load is 0) How to OrderSpecify shaft diameter, hub bore diameter and transmitted torque requirements. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.Product image is representative of the TSUBAKI series; appearance varies by size and model.About TSUBAKITsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.Ordering & Shipping Genuine TSUBAKI product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

TSUBAKI CR — Roller Chain Coupling Case, genuine TSUBAKI product.OverviewA roller chain coupling joins two shafts using a pair of sprockets wrapped by a double strand roller chain. This TSUBAKI coupling case encloses the assembly, holding lubricant in and keeping dirt out. Using the case improves wear life of the chain and sprockets and adds safety by covering the rotating parts.Key Features Encloses roller chain coupling assemblies Retains grease and excludes dust Covers rotating parts for safer operation Sized to match the coupling number Specifications Part No. Thread Diameter Outer Diameter A (Ømm) Length B (mm) Material Approx. Mass (kg) GD2(kgf·m2) No. of Tapped Holes Axial Displacement (mm) Type Allowable Angular Misalignment (°) Moment of Inertia (kg·m2) Allowable Parallel Misalignment (mm) Oil Seal CR4014K M6 84 75 Aluminum die casting 0.38 2.61 × 10 -3 4 S ± 0.68 Case only 6.53 × 10 -4 0.254 Special type CR4016K M6 92 75 Aluminum die casting 0.41 3.43 × 10 -3 4 S ± 0.68 Case only 1 8.58 × 10 -4 Special type CR5016K M6 111 85 Aluminum die casting 7.25 × 10 -3 4 S ± 0.88 Case only 1 1.81 × 10 -3 0.318 Special type CR5018K M6 122 85 0.66 9.40 × 10 -3 4 S ± 0.88 Case only 1 2.35 × 10 -3 0.318 Special type CR6018K M8 142 106 Aluminum die casting 0.96 1.94 × 10 -2 S ± 1.02 Case only 1 4.85 × 10 -3 0.381 Special type CR6022K M8 167 106 Aluminum die casting 1.3 3.74 × 10 -2 4 S ± 1.02 Case only 1 9.35 × 10 -3 0.381 How to OrderConfirm the coupling size number and whether seals or O-rings are required. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.About TSUBAKITsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.Ordering & Shipping Genuine TSUBAKI product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

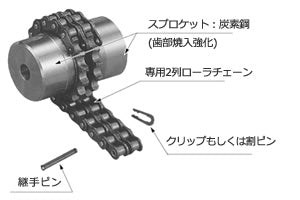

TSUBAKI CR — Roller Chain Coupling, genuine TSUBAKI product.OverviewThe Tsubaki roller chain coupling connects two shafts using a pair of sprockets wrapped by a double-strand roller chain. It transmits torque while accommodating small misalignment, and can be disconnected easily by removing the chain. Couplings like this are used on pumps, conveyors, gear reducers and general machinery.Key Features Double-strand chain wraps two matching sprockets Tolerates small angular and parallel misalignment Easy disassembly by removing the chain Simple and robust design Specifications Part No. Max. Chain Width E (mm) Dim. I (mm) GD2(kgf·m2) Length L (mm) Type Chain Pitch (mm) Allowable Torque (N.m) Outer Diameter D (Ømm) Max. Speed (min-1r.p.m) Dim. DH (mm) Allowable Parallel Misalignment (mm) Axial Displacement (mm) Approx. Mass (kg) Dim. s (mm) Max. Shaft Diameter Range (mm) Pilot Bore Diameter (Ømm) Dim. F (mm) No. of Teeth (T) Chain Used Dim. C (mm) Material JIS Designation Allowable Angular Misalignment (°) Moment of Inertia (kg·m2) CR3812H 30 2.24 × 10 -4 9.525 45 6000 0.19 0.3 16 14 Carbon steel 1 5.60 × 10 -5 CR4014H 33.1 79.4 (50rpm or less) 295 4800 0.254 S ± 0.68 7.4 28 9 10 Carbon steel 1 CR4016H 33.1 87.4 12.7 (50rpm or less) 386 77 50 S ± 0.68 13 20 16 4016 7.90 × 10 -4 CR5016H 45 96 60 9.7 40 13 21 16 No.50 12 Carbon steel 2.18 × 10 -3 CR5018H 41 1.41 × 10 -2 99.7 Body only (50rpm or less) 931 3.6 9.7 13 No.50 Carbon steel 5018 1 CR6018H 56 3.73 × 10 -2 123.5 Body only 19.05 (50rpm or less) 1750 2500 85 11.5 No.60 Carbon steel 9.33 × 10 -3 How to OrderConfirm coupling size, bore diameters and keyway dimensions for each shaft. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.Product image is representative of the TSUBAKI series; appearance varies by size and model.About TSUBAKITsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.Ordering & Shipping Genuine TSUBAKI product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

TSUBAKI RS — Offset Link O/L for Lambda Roller Chain, genuine TSUBAKI product.OverviewThe offset link for TSUBAKI Lambda roller chain lets the chain be built with an odd number of pitches. Lambda chain is a lube-free chain whose sintered bushings are impregnated with oil, so the offset link is built to the same construction. It is used where center distance does not allow an even link count.Key Features Allows odd-pitch chain lengths Built for Lambda lube-free chain Single-strand configuration Specifications Part No. Link Width (mm) Chain Type Max. Allowable Tension kN (kgf) No. of Strands Dim. D (Ømm) Roller Outer Diameter (R) (Ømm) Dim. H (mm) Max. Allowable Tension (kN) Dim. l (mm) Body Material Pin Type Type Avg. Tensile Strength (kN[kgf]) Connection Pitch (mm) Type RS40-LMD-1-OL 7.55 Lambda chain 1 3.97 10.4 20 Steel Cotter pin type Roller chain 12.7 Offset link RS50-LMD-1-OL 9.26 6.37 (650) 1 5.09 13 6.37 24 Steel Cotter pin type 31.4 (3200) Offset link RS60-LMD-1-OL 12.28 Lambda chain 8.83 (900) 1 11.91 15.6 8.83 Steel Cotter pin type Roller chain 44.1 (4500) 19.05 RS80-LMD-1-OL 15.48 Lambda chain 7.94 15.88 20.8 14.7 Steel Cotter pin type Roller chain 78.5 (8000) 25.4 How to OrderSpecify the Lambda chain size and confirm the strand count before ordering. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.About TSUBAKITsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.Ordering & Shipping Genuine TSUBAKI product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

TSUBAKI RS — Lambda Roller Chain Connecting Link C/L, genuine TSUBAKI product.OverviewThis connecting link is designed for Tsubaki Lambda roller chain, a lube-free chain whose sintered bushings are impregnated with oil. Using the matching Lambda link preserves the chain's self-lubricating performance at the joint. Lambda chain is used where external lubrication is undesirable, such as in food, printing, textile and clean equipment.Key Features Matched to Lambda lube-free roller chain Maintains self-lubricating performance at the joint Available for different chain sizes Enables chain installation and length adjustment Specifications Part No. Type Type Connection Pitch (mm) Type Pin Type Max. Allowable Tension kN (kgf) Dim. T1 (mm) Body Material Dim. D (Ømm) Dim. H (mm) Chain Type Avg. Tensile Strength (kN[kgf]) Dim. l2 (mm) Link Width (mm) Max. Allowable Tension (kN) No. of Strands Dim. l1 (mm) RS100-LMD-1-JL Roller chain 31.75 Cotter pin type 4 Steel 26 Lambda chain 118 (12000) 23.85 18.7 22.6 20.65 RS40-LMD-1-JL Connecting link 12.7 Clip type 3.63 (370) 1.5 3.97 Lambda chain 19.1 (1950) 10.45 7.55 1 8.78 RS50-LMD-1-JL Connecting link 15.875 Clip type 6.37 (650) Steel 5.09 31.4 (3200) 12.45 9.26 6.37 1 10.75 RS60-LMD-1-JL Roller chain Connecting link Clip type 8.83 (900) 2.4 Steel 15.6 44.1 (4500) 15.65 12.28 1 13.75 RS80-LMD-1-JL Roller chain 25.4 Cotter pin type 14.7 (1500) 3.2 Steel 20.8 Lambda chain 78.5 (8000) 20.25 14.7 17.15 How to OrderConfirm the Lambda chain size number and strand count before ordering. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.About TSUBAKITsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.Ordering & Shipping Genuine TSUBAKI product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

TSUBAKI RS — Standard Stainless Steel Offset Link O/L, genuine TSUBAKI product.OverviewThis stainless steel offset link from TSUBAKI matches stainless RS roller chain and lets the chain be assembled with an odd number of links. Stainless construction suits environments with water, washdown or mild chemicals where carbon steel chain would corrode. It is commonly used in food processing, beverage, pharmaceutical and outdoor equipment.Key Features Stainless steel for corrosion resistance Enables odd number of chain links Matches stainless RS roller chain dimensions Suited to washdown and wet environments Specifications Part No. Pin Type Pin Length (L) (mm) Material (Body) Type Link Width (mm) Pin Length (mm) No. of Strands Type Max. Allowable Tension (kN) Body Material Connection Pitch (mm) RS25-SS-1-2POL 2-pitch type 7.6 2-pitch offset link 3.18 1 Roller chain 0.12 Stainless steel 6.35 RS35SS-1OL Cotter pin type Offset link 4.78 14.7 1 Roller chain 0.26 Stainless steel 9.525 RS40SS-1OL Cotter pin type Stainless steel Offset link 7.95 18.6 1 Roller chain 0.44 12.7 RS50SS-1OL Cotter pin type 23.9 Offset link 9.53 1 Roller chain 0.69 Stainless steel 15.875 RS60SS-1OL Cotter pin type 29.4 Offset link 12.7 1 Roller chain 1.03 Stainless steel 19.05 RS80SS-1OL Cotter pin type Offset link 15.88 39 1 Roller chain 1.77 Stainless steel 25.4 How to OrderConfirm chain number, strand count and that the mating chain is also stainless steel. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.About TSUBAKITsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.Ordering & Shipping Genuine TSUBAKI product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

TSUBAKI RS — Lambda Roller Chain, genuine TSUBAKI product.OverviewTsubaki Lambda roller chain is a lube-free chain that uses sintered, oil-impregnated bushings to provide long-term internal lubrication. It reduces maintenance and prevents oil contamination of products or surroundings. It is commonly used in food, packaging, printing, textile and clean environments. Lambda chain fits standard RS sprockets, so it can replace conventional chain without redesigning the drive.Key Features Oil-impregnated sintered bushings for lube-free operation Reduces maintenance and lubrication intervals Clean operation for sensitive environments Interchangeable with standard RS sprockets Specifications Part No. Max. Allowable Tension kN (kgf) Chain Type Link Width (mm) Allowable Speed (m/min) Operating Temp. Range (℃) Dim. l2 (mm) Body Material Unit Length (m) Dim. T2 (mm) No. of Strands Dim. D (Ømm) Links per Unit Dim. H (mm) Pin Type Avg. Tensile Strength (kN[kgf]) Max. Allowable Tension (kN) Approx. Mass (kg/m) Dim. T1 (mm) Roller Outer Diameter (R) (Ømm) RS40-LMD-1 3.63 (370) Lambda chain 150 10.45 Approx. 3 3.97 240 10.4 Rivet type 3.63 0.7 7.92 RS50-LMD-1 6.37 (650) Lambda chain 9.26 -10 ~ 150 Approx. 3 2.4 5.09 192 Rivet type 31.4 [3200] 2 10.16 RS60-LMD-1 120 15.65 Approx. 3 1 5.96 160 15.6 Rivet type 44.1 [4500] 8.83 2.4 11.91 RS80-LMD-1 14.7 (1500) Lambda chain 90 -10 ~ 150 Steel 7.94 24.1 14.7 2.77 3.2 15.88 How to OrderSelect chain number, number of strands and required length. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.Product image is representative of the TSUBAKI series; appearance varies by size and model.About TSUBAKITsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.Ordering & Shipping Genuine TSUBAKI product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

TSUBAKI RS — Standard Stainless Steel Chain Connecting Link C/L, genuine TSUBAKI product.OverviewThis connecting link is made for TSUBAKI standard stainless steel roller chain, closing the loop while keeping the whole drive corrosion resistant. Mixing a carbon steel link into a stainless chain would create a rust point, so a matching stainless link is required. It is used in food processing, beverage, pharmaceutical, washdown and outdoor equipment.Key Features Stainless steel construction matches SS chain Prevents rust spots at the joint Suited to wet and washdown environments Specifications Part No. Material (Body) Pitch (mm) Length L2 (mm) Type Diameter D (Ømm) Link Width (mm) Body Material Plate Width (mm) No. of Strands Max. Allowable Tension (kN) Thickness T (mm) Length L1 (mm) Pin Type Connection Pitch (mm) Type RS25SS-1JL 4.8 Connecting link 3.18 Stainless steel 5.05 1 0.12 0.75 3.8 Clip type 6.35 Roller chain RS35SS-1JL Stainless steel 6.85 Connecting link 3.59 4.78 7.8 1 0.26 5.85 Clip type 9.525 Roller chain RS40SS-1JL 12.7 9.95 Connecting link 3.97 7.95 Stainless steel 10.4 1 1.5 8.25 Clip type Roller chain RS50SS-1JL 12 Connecting link 5.09 9.53 Stainless steel 1 0.69 2 10.3 Clip type 15.875 Roller chain RS60SS-1JL Connecting link 5.96 12.7 Stainless steel 15.6 1 1.03 2.4 12.85 Clip type 19.05 Roller chain RS80SS-1JL 19.25 Connecting link 7.94 15.88 Stainless steel 20.8 1 1.77 3.2 16.25 Cotter pin type Roller chain How to OrderConfirm the chain number and that your chain is stainless steel specification. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.About TSUBAKITsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.Ordering & Shipping Genuine TSUBAKI product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

TSUBAKI RS — Stainless Steel Roller Chain SS, genuine TSUBAKI product.OverviewTsubaki SS roller chain is made from stainless steel for drive and conveying applications exposed to water, washdown or corrosive environments. It follows standard RS dimensions, so it runs on standard sprockets while resisting rust better than carbon steel chain. Typical uses include food processing, beverage lines, pharmaceutical equipment and outdoor machinery.Key Features Stainless steel construction resists rust and corrosion Interchangeable with standard RS chain dimensions Suitable for washdown and wet environments Lower load capacity than equivalent carbon steel chain Specifications Part No. Max. Allowable Tension (kN) Type Connection Pitch (mm) Link Width (mm) Links per Unit Max. Allowable Tension kN (kgf) Material Body Material Unit Length (m) Weight (kg/m) Pin Type No. of Strands RS25SS 0.12 Roller chain 6.35 3.18 160 0.12 (12) Stainless steel SUS304 (clip: SUS301) Stainless steel 1 0.14 Rivet type 1 RS35SS 0.26 Roller chain 9.525 4.78 320 0.26 (27) Stainless steel SUS304 (clip: SUS301) Stainless steel 3 0.33 Rivet type 1 RS40SS 0.44 Roller chain 12.7 7.95 240 0.44 (45) Stainless steel SUS304 (clip: SUS301) Stainless steel 3 0.64 Rivet type 1 RS50SS 0.69 Roller chain 15.875 9.53 192 0.69 (70) Stainless steel SUS304 (clip: SUS301) Stainless steel 3 1.04 Rivet type 1 RS60SS 1.03 Roller chain 19.05 12.7 160 1.03 (105) Stainless steel SUS304 (clip: SUS301) Stainless steel 3 1.53 Rivet type 1 How to OrderSpecify chain size number, number of links or length, and the required connecting link type. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.Product image is representative of the TSUBAKI series; appearance varies by size and model.About TSUBAKITsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.Ordering & Shipping Genuine TSUBAKI product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

TSUBAKI RS — Offset Link O/L for RS Roller Chain (Double Strand), genuine TSUBAKI product.OverviewAn offset link lets a roller chain be built with an odd number of pitches, which is useful when shaft centers cannot be adjusted. This TSUBAKI offset link is made for double strand RS roller chain. It replaces one inner and one outer link at the joint, but reduces chain strength slightly, so it is best used in moderate-duty drives.Key Features Allows odd numbers of chain pitches Sized for double strand RS roller chain Helps fit chain to fixed shaft center distances Installed with standard chain tools Specifications Part No. Min. Tensile Strength (kN[kgf]) Material (Body) Type Roller Link Inner Width (mm) Avg. Tensile Strength (kN[kgf]) Pin Type JIS Tensile Strength (kN) Max. Allowable Tension (kN) No. of Strands Body Material Link Width (mm) Dim. l (mm) Max. Allowable Tension kN (kgf) Connection Pitch (mm) Roller Outer Diameter (R) (Ømm) Type Dim. H (mm) RS100-2OL 107 (10900) 19.05 118 (12000) Cotter pin type 24.895 2 Steel 19.05 44.4 31.75 Offset link 26 RS35-2OL 9.81 (1000) Roller chain 4.78 Cotter pin type 15.8 2 4.78 13.5 2.16 (220) Offset link 7.8 RS40-2OL 17.7 (1800) Roller chain 7.95 19.1 (1950) 27.8 2 Steel 12.7 7.92 Offset link 12 RS50-2OL 28.4 (2900) Steel Roller chain 9.53 31.4 (3200) 43.6 7.02 9.53 22.5 6.37 (650) 10.16 Offset link RS60-2OL 12.7 44.1 (4500) 62.6 9.75 2 Steel 28.2 8.83 (900) 19.05 11.91 Offset link 18.1 RS80-2OL Roller chain 15.88 Cotter pin type 16.25 2 Steel 15.88 36 14.7 (1500) 25.4 15.88 20.8 How to OrderConfirm chain number and strand count, and check that the drive load suits an offset link. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.About TSUBAKITsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.Ordering & Shipping Genuine TSUBAKI product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

TSUBAKI RS — Offset Link O/L for RS Roller Chain (Single Strand), genuine TSUBAKI product.OverviewAn offset link is used to make an RS roller chain with an odd number of links, since standard chain only joins evenly with inner and outer links. The cranked plates connect an inner link to another inner link. Tsubaki offset links are used when chain length must be adjusted precisely to center distance.Key Features Allows chain with odd number of links Cranked plate design for single-strand chains Matched to specific RS chain number Removable for length adjustment Specifications Part No. Type Roller Link Width (W) (mm) Max. Allowable Tension (kN) Material (Body) Dim. l (mm) Pitch (mm) Roller Link Inner Width (mm) Class No. of Strands Dim. H (mm) Roller Outer Diameter (R) (Ømm) Type Body Material Pin Type Connection Pitch (mm) Avg. Tensile Strength (kN[kgf]) Min. Tensile Strength (kN[kgf]) Link Width (mm) JIS Tensile Strength (kN) RS100-1-2POL Roller chain 22.6 19.05 1 19.05 Steel Rivet type 31.75 118 [12000] 107 [10900] 19.05 87 RS100-1OL Roller chain 44.4 1 26 19.05 Offset link Steel 31.75 118 (12000) 107 (10900) 87 RS120-1OL Roller chain 19.76 55.8 25.4 1 31.2 22.23 Offset link Steel 38.1 148 (15100) 125 RS140-1-OL Roller chain 26.13 25.4 36.4 25.4 Offset link Steel Cotter pin type 44.45 216 (22000) 193 (19700) 25.4 RS160-1-OL Roller chain 34.45 70.2 31.75 48.2 Offset link Steel Cotter pin type 279 (28500) 255 (26000) 31.75 223 RS25-1-2POL 0.64 7.6 3.18 1 5.84 2-pitch offset link Steel 2-pitch type 6.35 4.71 (480) 4.12 (420) 3.5 RS35-1-2POL Roller chain 2.16 1 5.08 2-pitch offset link Steel Rivet type 9.525 11.3 1150] 9.81 [1000] 4.78 7.9 RS35-1OL Roller chain 1.4 4.78 7.8 5.08 Steel 9.525 11.3 (1150) 9.81 (1000) 4.78 7.9 RS37-1-OL Roller chain 0.89 12.7 3.4 1 7.8 Offset link Steel - 9.41 [960] 8.14 [830] - RS38-1-OL Roller chain 4.8 0.89 1 7.8 Steel - 12.7 9.41 [960] 8.14 [830] 4.8 - RS40-12POL Roller chain 3.63 6.38 1 7.92 2-pitch offset link Steel 2-pitch type 12.7 17.7 [1800] 6.38 13.9 RS40-1OL Roller chain 2.36 18 1 10.4 7.92 Offset link Steel 19.1 (1950) 17.7 (1800) 7.95 13.9 RS41-1OL Roller chain 1.47 15.1 6.38 Offset link 9.8 Steel Rivet type 12.7 10.3 [1050] 6.38 6.7 RS50-1OL 4.14 Steel 22.5 1 15 Offset link Cotter pin type 15.875 31.4 (3200) 28.4 (2900) 9.53 21.8 RS60-1-2POL Roller chain 8.83 12.7 1 11.91 2-pitch offset link Steel Rivet type 19.05 44.1 [4500] 40.2 [4100] 31.3 RS60-1OL Roller chain 5.74 28.2 1 18.1 Offset link Steel Cotter pin type 44.1 (4500) 40.2 (4100) 12.7 31.3 RS80-1OL Roller chain 9.56 36 1 20.8 15.88 Offset link Steel 25.4 71.6 (7300) 15.88 How to OrderCheck RS chain number and number of strands to match the existing chain. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.About TSUBAKITsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.Ordering & Shipping Genuine TSUBAKI product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

TSUBAKI RS Roller Chain Connecting Link C/L (Single Strand) — RS Roller Chain Connecting Link C/L (Single Strand), genuine TSUBAKI product.OverviewThe TSUBAKI connecting link for single-strand RS roller chain joins two chain ends to close the loop. It consists of a pin link plate with pins pressed in and a detachable cover plate held by a spring clip or cotter pins, depending on size. It is used for chain installation, replacement and length changes on drives and conveyors.Key Features Closes RS chain loops without press tools Spring clip or cotter pin retention by chain size Dimensionally matched to standard RS chain Specifications Part No. No. of Strands Link Width (mm) Dim. T1 (mm) Type Type Max. Allowable Tension kN (kgf) Pin Type Body Material Connection Pitch (mm) Type Dim. l1 (mm) Min. Tensile Strength (kN[kgf]) Dim. l2 (mm) Avg. Tensile Strength (kN[kgf]) Max. Allowable Tension (kN) Dim. D (Ømm) Dim. H (mm) JIS Tensile Strength (kN) BF25-H-1-JL 1 3.18 Roller chain 0.78 (80) Rivet type Steel 4.01 4.9 (500) 4.81 0.624 5.84 - RS100-1JL 1 4 Roller chain 22.6 (2300) Cotter pin type Steel Connecting link 19.75 22.85 118 (12000) 26 95.4 RS120-1JL 1 25.4 4.8 Roller chain 30.4 (3100) Cotter pin type Steel 38.1 148 (15100) 167 (17000) 30.4 31.2 RS140-1-JL 1 5.6 Connecting link Roller chain 40.2 (4100) Cotter pin type 44.45 26.9 193 (19700) 31.7 40.2 36.4 RS15-1-JL 1 0.6 Roller chain Clip type 4.7625 Connecting link 3.05 1.77 (180) 3.85 0.25 4.3 - RS160-1-JL 31.75 53.0 (5400) Cotter pin type 50.8 Connecting link 31.85 255 (26000) 279 (28500) 53 14.29 41.6 244.6 RS200-1-JL 1 38.1 8 Roller chain 63.5 39 427 (43500) 44.8 471 (48000) 19.85 52 381.7 RS25-1JL 1 3.18 0.74 Clip type Steel 6.35 Connecting link 4.12 (420) 4.71 (480) 0.512 2.31 3.6 RS35-1JL 1 1.25 Roller chain 2.16 (220) Clip type Steel Connecting link 5.85 6.85 11.3 (1150) 3.59 8.7 RS37-1-JL 3.4 1 Roller chain 1.37 (140) Clip type Steel 12.7 5.1 8.14 (830) 9.41 (960) 7.8 - RS38-1-JL 1 1.1 Roller chain Clip type Connecting link 8.14 (830) 7.1 9.41 (960) 1.096 7.8 8.4 - RS40-1JL 1 7.95 1.5 Roller chain 3.63 (370) Steel 12.7 Connecting link 17.7 (1800) 9.95 19.1 (1950) 3.63 RS41-1JL 1 1.25 2.26 (230) Rivet type Steel 12.7 6.75 10.3 [1050] 7.95 11.8 [1200] 7.77 684 RS50-1JL 9.53 2 Connecting link Roller chain 6.37 (650) Clip type Steel 28.4 (2900) 12 31.4 (3200) 6.37 24 RS60-1JL 1 12.7 2.4 Roller chain 8.83 (900) Steel 19.05 Connecting link 14.75 8.83 5.96 34.2 RS80-1JL 1 15.88 14.7 (1500) Cotter pin type Steel 71.6 (7300) 19.25 78.5 (8000) 14.7 7.94 20.8 61.2 How to OrderSelect the link for your exact chain number and confirm it is single strand. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.About TSUBAKITsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.Ordering & Shipping Genuine TSUBAKI product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

TSUBAKI RS — RS Roller Chain Connecting Link C/L (Double Strand), genuine TSUBAKI product.OverviewA connecting link closes a roller chain into a loop by joining its two ends with a removable pin plate. This Tsubaki RS connecting link is made for double-strand ANSI-standard roller chain, which carries higher loads than single strand chain of the same pitch. It is used during chain installation, shortening and repair on drives for conveyors, pumps and industrial machinery.Key Features Joins the ends of double-strand RS roller chain Retained by spring clip or cotter depending on size Matched to the chain pitch and strand count Allows chain to be opened for maintenance Specifications Part No. Dim. D (Ømm) JIS Tensile Strength (kN) Min. Tensile Strength (kN[kgf]) Dim. H (mm) No. of Strands Link Width (mm) Dim. l1 (mm) Type Max. Allowable Tension (kN) Dim. T1 (mm) Pin Type Body Material Connection Pitch (mm) Type Dim. l2 (mm) Avg. Tensile Strength (kN[kgf]) RS100-2JL 9.54 174 26 2 19.05 Connecting link 38.3 4 Cotter pin type 31.75 Roller chain 40.8 RS120-2JL 11.1 250 31.2 2 25.4 47.6 Connecting link 4.8 Cotter pin type Steel Roller chain 333 (34000) RS25-2-JL 2 3.18 Connecting link 0.64 Clip type Steel 6.35 Roller chain RS35-2JL 3.59 15.8 19.6 (2000) 4.78 10.9 Connecting link 1.25 Clip type Steel 9.525 Roller chain 22.6 (2300) RS40-2JL 3.97 27.8 2 7.95 15.45 Connecting link 6.18 1.5 Steel Roller chain 17.15 38.2 (3900) RS50-2JL 43.6 13 9.53 19.35 Connecting link 10.8 2 Clip type Steel 15.875 Roller chain 21.15 RS60-2JL 5.96 62.6 15.6 12.7 24.25 Connecting link 15 Clip type Steel 19.05 Roller chain 26.25 RS80-2JL 111.2 20.8 2 15.88 30.9 25 3.2 Cotter pin type Steel Roller chain 33.9 157 (16000) How to OrderMatch the chain size number (pitch) and confirm the link is for double-strand chain. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.About TSUBAKITsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.Ordering & Shipping Genuine TSUBAKI product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

TSUBAKI RS — RS Roller Chain Double Strand, genuine TSUBAKI product.OverviewRS roller chain double strand is the TSUBAKI ANSI-standard drive chain built with two parallel strands sharing common pins. It transmits power between sprockets with high efficiency and handles greater loads than single strand chain of the same pitch. It is used in machine tools, conveyors, mixers, printing machines and general power transmission drives.Key Features ANSI-standard RS pitch for broad compatibility Double strand construction increases load capacity Hardened pins and bushings for wear resistance Pre-lubricated from the factory Specifications Part No. Type Accessories Material (Body) Type Avg. Tensile Strength (kN[kgf]) No. of Strands Pin Type Connection Pitch (mm) Type Max. Allowable Tension (kN) Body Material Links per Unit Unit Length (m) Weight (kg/m) Link Width (mm) RS25-2 Roller chain With 1 connecting link Steel 9.41 [960] 2 Rivet type 6.35 - 1.08 160 0.27 3.18 RS35-2 Roller chain With 1 connecting link 22.6 [2300] 2 Rivet type 9.525 - 3.63 320 3 0.33 4.78 RS40-2 Roller chain With 1 connecting link 38.2 [3900] 2 Rivet type 12.7 - 6.18 240 3 1.27 7.95 RS50-2 Roller chain With 1 connecting link 62.8 [6400] 2 Rivet type 15.875 - 10.8 192 3 2.07 9.53 RS60-2 Roller chain With 1 connecting link 88.3 [9000] 2 Rivet type - 15 Steel 160 3 3.04 12.7 How to OrderSpecify chain number, strand count, overall length or number of links, and connecting link type. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.Product image is representative of the TSUBAKI series; appearance varies by size and model.About TSUBAKITsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.Ordering & Shipping Genuine TSUBAKI product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

TSUBAKI TKP — TKP Plastic Cable Carrier (Fixed End Bracket), genuine TSUBAKI product.OverviewThis is the fixed-end mounting bracket for a Tsubaki TKP plastic cable carrier. The bracket attaches the stationary end of the carrier to the machine frame and anchors the cables and hoses running inside. Proper end brackets keep the carrier aligned and ensure smooth travel.Key Features Secures the stationary end of a TKP carrier Matches specific TKP size and width Simple bolt-on attachment to the frame Supports straight, aligned carrier movement Specifications Part No. Compatibility Inner Width (mm) Mass (g) Type Material Mounting Direction Type Inner Width (mm) Remarks Type Connection Pitch (mm) Model Type Outer Width (mm) TKP13H10W10TC-FO Engineering plastic Fixed-end side / outer side Outer: removable 10 Integrated type / outer-side mounting Fixed-end bracket mounting bracket 13 TKP13H10 17 TKP13H10W20TC-FO Engineering plastic Fixed-end side / outer side Outer: removable 20 Integrated type / outer-side mounting Fixed-end bracket mounting bracket 13 TKP13H10 27 TKP13H10W6-FI 6 Engineering plastic Fixed-end side * inner side General Integrated type * inner-side mounting Fixed-end bracket mounting bracket 13 TKP13H10 12 TKP35H22W25-FI (Cable carrier body) TKP35H22- □□ W25R □□ 15 Fixed end, inner opening 25 Integrated type * inner-side mounting Fixed-end bracket mounting bracket 35 TKP35H22 37 TKP35H22W25-FO (Cable carrier body) TKP35H22- □□ W25R □□ 15 Fixed end, outer opening 25 Integrated type / outer-side mounting Fixed-end bracket mounting bracket 35 TKP35H22 37 TKP35H22W38-FO (Cable carrier body) TKP35H22- □□ W38R □□ 18 Fixed end, outer opening 38 Integrated type / outer-side mounting Fixed-end bracket mounting bracket 35 TKP35H22 50 TKP35H22W50-FO (Cable carrier body) TKP35H22- □□ W50R □□ 20 Fixed end, outer opening 50 Integrated type / outer-side mounting Fixed-end bracket mounting bracket 35 TKP35H22 62 How to OrderConfirm carrier series, size and width code, and whether the fixed or moving end bracket is needed. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.Product image is representative of the TSUBAKI series; appearance varies by size and model.About TSUBAKITsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.Ordering & Shipping Genuine TSUBAKI product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

TSUBAKI RS Roller Chain Single Strand — RS Roller Chain Single Strand, genuine TSUBAKI product.OverviewTSUBAKI RS Roller Chain in single-strand form is the standard chain for transmitting power between sprockets in industrial machinery. Rollers turn on bushings as they engage the sprocket teeth, which reduces wear and keeps transmission efficient. It is used in conveyors, packaging lines, agricultural machines, printing equipment and general drives where a durable, easily maintained chain is needed.Key Features ANSI-based pitch sizes compatible with standard RS sprockets Heat-treated pins, bushings and rollers for wear resistance Can be cut to length and joined with connecting links Variants available with special finishes or materials Specifications Part No. Unit Length (m) Body Material Material (Body) Type Type No. of Strands Pin Type Links per Unit Accessories Connection Pitch (mm) Type Avg. Tensile Strength (kN[kgf]) Link Width (mm) Max. Allowable Tension (kN) Weight (kg/m) BF25-H-1-RP-U 1 Steel Roller chain 1 Rivet type With 1 connecting link 6.35 Per unit 5.88 [600] 3.18 0.78 0.17 RS15-1-RP-U 1 Steel Roller chain 1 Rivet type 210 With 1 connecting link 4.7625 Per unit 2.38 0.31 0.075 RS25-1-RP-U 1 Steel 1 Rivet type 160 With 1 connecting link 6.35 Per unit 4.71 [480] 3.18 0.64 0.14 RS35-1-RP-U 3 Steel Roller chain 1 Rivet type 320 9.525 Per unit 11.3 1150] 4.78 2.16 0.33 RS37-1-RP-U 3 Steel Roller chain Rivet type 240 With 1 connecting link 12.7 Per unit 9.41 [960] 3.4 1.37 0.29 RS38-1-RP-U 3 Steel 1 Rivet type 240 With 1 connecting link 12.7 Per unit 9.41 [960] 4.8 1.37 0.35 RS40-1-RP-U 3 Steel Roller chain 1 Rivet type 240 With 1 connecting link Per unit 19.1 [1950] 7.95 3.63 0.64 RS41-1-RP-U 3 Steel Roller chain 1 Rivet type 240 With 1 connecting link 12.7 11.8 [1200] 6.38 2.26 0.41 RS50-1-RP-U 3 Steel Roller chain 1 Rivet type 192 With 1 connecting link 15.875 Per unit 31.4 [3200] 9.53 6.37 RS60-1-CP-U 3 Steel Roller chain Cotter pin type 160 With 1 connecting link 19.05 Per unit 44.1 [4500] 12.7 8.83 1.53 RS60-1-RP-U 3 Steel Per unit Roller chain 1 Rivet type With 1 connecting link 19.05 44.1 [4500] 12.7 8.83 1.53 RS80-1-CP-U 3 Steel Roller chain 1 Cotter pin type 120 With 1 connecting link 25.4 78.5 [8000] 15.88 14.7 2.66 RS80-1-RP-U 3 Roller chain 1 Rivet type 120 With 1 connecting link 25.4 Per unit 78.5 [8000] 15.88 14.7 2.66 How to OrderConfirm the chain number (pitch), required number of links or length, and any finish or material suffix. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.Product image is representative of the TSUBAKI series; appearance varies by size and model.About TSUBAKITsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.Ordering & Shipping Genuine TSUBAKI product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

TSUBAKI TKP35H22-ST — TKP Plastic Cable Carrier (Vertical Separator), genuine TSUBAKI product.OverviewThe Tsubaki TKP is a plastic cable carrier that guides and protects moving cables and hoses on machines with reciprocating motion. Links snap together to form a flexible chain that bends at a fixed radius, keeping cables from tangling or wearing. This version uses vertical separators to divide the inner space, and it is common on machine tools, gantries and automated handling equipment.Key Features Lightweight plastic links resist wear and corrosion Vertical separators keep cables and hoses apart Fixed bending radius protects cable life Links can be added or removed to adjust length Specifications Part No. Mass (g) Compatibility Type Remarks Type Connection Pitch (mm) Model Type Outer Width (mm) Inner Width (mm) TKP35H22-ST 1 (Cable carrier body) TKP35H22- □□ W □□ R □□ Vertical separator Separator height: 54.5mm Vertical separator 35 TKP35H22 General General How to OrderConfirm inner height and width, bending radius, required length and the separator arrangement. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.Product image is representative of the TSUBAKI series; appearance varies by size and model.About TSUBAKITsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.Ordering & Shipping Genuine TSUBAKI product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

TSUBAKI TKP — TKP Plastic Cable Carrier (Moving End Bracket), genuine TSUBAKI product.OverviewThis moving end bracket is a mounting part for the TSUBAKI TKP plastic cable carrier. Cable carriers guide and protect cables and hoses that move with machine axes, and the moving end bracket attaches the carrier's last link to the travelling part of the machine. Correct brackets keep the carrier aligned and prevent stress on cables during repeated strokes.Key Features Attaches the cable carrier to the moving machine element Matched to the TKP carrier height and width Keeps the carrier aligned through each stroke Resin construction consistent with the carrier links Specifications Part No. Mounting Direction Compatibility Inner Width (mm) Inner Width (mm) Type Type Material Mass (g) Remarks Type Connection Pitch (mm) Model Type Outer Width (mm) TKP13H10W10TC-MO Moving-end side / outer side 10 Outer: removable Engineering plastic Integrated type / outer-side mounting Moving-end bracket mounting bracket 13 TKP13H10 17 TKP13H10W20TC-MO Moving-end side * inner side 20 Outer: removable Engineering plastic Integrated type / outer-side mounting Moving-end bracket mounting bracket 13 TKP13H10 27 TKP35H22W25-MI (Cable carrier body) TKP35H22- □□ W25R □□ 25 Moving end, inner opening 15 Integrated type * inner-side mounting Moving-end bracket mounting bracket 35 TKP35H22 37 TKP35H22W25-MO (Cable carrier body) TKP35H22- □□ W25R □□ 25 Moving end, outer opening 15 Integrated type / outer-side mounting Moving-end bracket mounting bracket 35 TKP35H22 37 TKP35H22W38-MI (Cable carrier body) TKP35H22- □□ W38R □□ 38 Moving end, inner opening 18 Integrated type * inner-side mounting Moving-end bracket mounting bracket 35 TKP35H22 50 TKP35H22W38-MO (Cable carrier body) TKP35H22- □□ W38R □□ 38 Moving end, outer opening 18 Integrated type / outer-side mounting Moving-end bracket mounting bracket 35 TKP35H22 50 TKP35H22W50-MO (Cable carrier body) TKP35H22- □□ W50R □□ 50 Moving end, outer opening 20 Integrated type / outer-side mounting Moving-end bracket mounting bracket 35 TKP35H22 62 TKP45H25-MOA Moving-end side * inner side - General Steel (bright zinc plated) Split type (inward) / outer-side mounting Moving-end bracket mounting bracket 45 TKP45H25 General How to OrderConfirm carrier type, inner height and width, and whether a moving or fixed end bracket is required. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.Product image is representative of the TSUBAKI series; appearance varies by size and model.About TSUBAKITsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.Ordering & Shipping Genuine TSUBAKI product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

TSUBAKI TKP — TKP Plastic Cable Carrier (Cable Carrier), genuine TSUBAKI product.OverviewThe Tsubaki TKP is a plastic cable carrier that guides and protects moving cables and hoses on machine tools, robots and automated equipment. Linked plastic segments bend at a fixed radius, preventing cables from twisting, kinking or wearing. It is suited to short to medium travel lengths with continuous reciprocating motion.Key Features Lightweight plastic links with smooth bending Fixed bending radius protects cable life Openable design for easy cable insertion Several inner widths and heights available Specifications Part No. Max. Weight (kg/m) Height (mm) Max. Travel Stroke (m) Operating Temp. Range (℃) Type Mounting Dimension (Height) (mm) External Width (mm) Bending Radius R (mm) Max. Travel Speed (m/min) Max. Unsupported Span (m) External Height (mm) Type Weight (kg/m) Material Max. Outer Diameter (mm) Connection Pitch (mm) Inner Width (mm) Outer Width (mm) Max. Speed (m/min) Type Model Type TKP13H10-30W15R20 Cable Hose: 0.4 10 1.3 21 20 0.69 12.5 Openable type 0.2 Cable Hose: 8 13 Moving: 300 TKP13H10-30W20R18TC Cable Hose: 0.4 10 1.3 -40 ~ 80 27 18 0.69 0.2 Body Mounting bracket: engineering plastic (black) Cable Hose: 8 TKP13H10-30W6R20 Cable Hose: 0.4 1.3 -40 ~ 80 12 20 0.69 12.5 0.2 Body Mounting bracket: engineering plastic (black) Cable Hose: 4 13 TKP35H22-30W25R37 22 2.7 -40 ~ 80 114 ~ 134 37 300 30 Body Mounting bracket: engineering plastic (black) Cable Hose: 19 35 37 TKP35H22-30W25R50 22 2.7 -40 ~ 80 Outer: openable both sides 140 ~ 160 50 300 30 Body Mounting bracket: engineering plastic (black) Cable Hose: 19 35 37 TKP45H25-30W38R50 25 2.8 -40 ~ 80 56 50 36 Open type Body Mounting bracket: engineering plastic (black) Cable Hose: 22 45 TKP45H25-30W58R50 25 2.8 -40 ~ 80 50 30 Outer-side opening Body Mounting bracket: engineering plastic (black) Cable Hose: 22 45 58 78 How to OrderSpecify inner height and width, bending radius and the number of links or carrier length. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.Product image is representative of the TSUBAKI series; appearance varies by size and model.About TSUBAKITsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.Ordering & Shipping Genuine TSUBAKI product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

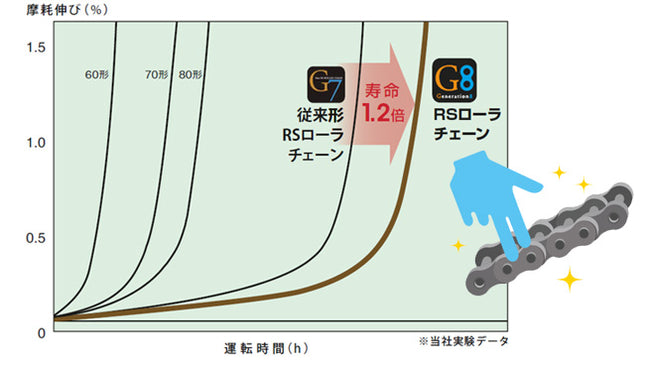

TSUBAKI TSU — Standard Roller Chain (Double Strand), genuine TSUBAKI product.OverviewThis double strand standard roller chain from TSUBAKI uses two rows of rollers joined by common pins, roughly doubling the load capacity of a single strand chain of the same pitch. It runs on matching double sprockets to transmit power between parallel shafts. Typical applications include conveyors, agricultural machinery, packaging lines and industrial drives where higher torque is needed in limited width.Key Features Two strands share pins for higher transmission capacity Runs on matching double strand sprockets Sold by length; connecting links joined on site Standard pitch dimensions for interchangeability Specifications Part No. No. of Strands Chain No. Overall Length Pitch (mm) Roller Link Inner Width (mm) Roller Outer Diameter (mm) TSU 035-2RP 2 35 10FT(3M) 9.525 4.78 5.08 TSU 040-2RP 2 40 10FT(3M) 12.7 7.95 7.92 TSU 050-2RP 2 50 10FT(3M) 15.875 9.53 10.16 TSU 060-2RP 2 60 10FT(3M) 19.05 12.7 11.91 TSU 080-2RP 2 80 10FT(3M) 25.4 15.88 15.88 TSU 100-2CP 2 100 10FT(3M) 31.75 19.05 19.05 TSU 120-2CP 2 120 10FT(3M) 38.1 25.4 22.23 TSU 140-2CP 2 140 10FT(3M) 42.2 25.4 25.4 TSU 160-2CP 2 160 10FT(3M) 50.8 31.75 28.58 TSU 200-2CP 2 200 10FT(3M) 63.5 38.1 39.68 TSU 240-2RP 2 240 10FT(3M) 76.2 47.63 47.63 How to OrderConfirm chain number (pitch), number of strands, required length and connecting or offset link needs. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.Product image is representative of the TSUBAKI series; appearance varies by size and model.About TSUBAKITsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.Ordering & Shipping Genuine TSUBAKI product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request High-value or heavy item: online checkout is disabled. Please request a quote for freight and pricing.

Read more less

TSUBAKI TSU — Standard Roller Chain (Single Strand), genuine TSUBAKI product.OverviewTsubaki standard single-strand roller chain transmits power between sprockets in drives, conveyors and machinery. Each link consists of pin and roller links joined by press-fitted pins, bushings and rollers that engage the sprocket teeth with low friction. It is used across packaging, agricultural, food processing and general industrial power transmission equipment.Key Features Single-strand construction for light to moderate loads Pins, bushings and rollers made of heat-treated steel Interchangeable with standard ANSI-pitch sprockets Supplied in lengths with connecting links available Specifications Part No. No. of Strands Chain No. Overall Length Pitch (mm) Roller Link Inner Width (mm) Roller Outer Diameter (mm) TSU 025-1RP 1 25 10FT(3M) 6.35 3.18 3.3 TSU 035-1RP 1 35 10FT(3M) 9.525 4.78 5.08 TSU 040-1RP 1 40 10FT(3M) 12.7 7.95 7.92 TSU 040-SS-1 1 40 10FT(3M) 12.7 7.95 7.92 TSU 050-1RP 1 50 10FT(3M) 15.875 9.53 10.16 TSU 050-SS-1 1 50 10FT(3M) 15.875 9.53 10.16 TSU 060-1RP 1 60 10FT(3M) 19.05 12.7 11.91 TSU 060-SS-1 1 60 10FT(3M) 19.05 12.7 11.91 TSU 080-1RP 1 80 10FT(3M) 25.4 15.88 15.88 TSU 080-SS-1 1 80 10FT(3M) 25.4 15.88 15.88 TSU 100-1RP 1 100 10FT(3M) 31.75 19.05 19.05 TSU 120-1RP 1 120 10FT(3M) 38.1 25.4 22.23 TSU 140-1CP 1 140 10FT(3M) 42.2 25.4 25.4 TSU 160-1CP 1 160 10FT(3M) 50.8 31.75 28.58 TSU 200-1CP 1 200 10FT(3M) 63.5 38.1 39.68 TSU 240-1RP 1 240 10FT(3M) 76.2 47.63 47.63 How to OrderConfirm chain number (pitch), number of strands, required length in links and connecting link type. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.Product image is representative of the TSUBAKI series; appearance varies by size and model.About TSUBAKITsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.Ordering & Shipping Genuine TSUBAKI product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

TSUBAKI EWJMK — TERVO Speed Reducer for Servo Motors, genuine TSUBAKI product.OverviewThe TSUBAKI TERVO speed reducer is designed specifically for servo motors, offering compact reduction with adapter mounting for common servo flanges. It increases torque and improves load inertia matching for servo-driven axes. It is used in robots, indexing tables, packaging machines and automation equipment requiring precise motion.Key Features Designed for direct servo motor mounting Improves inertia matching and torque Compact housing for machine integration Specifications Part No. Reduction Ratio Installation Size Type Mount Shaft Arrangement EWJMK70E10R-L1MC 10 E 70 EWJMK L1MC R EWJMK70E10R-L1PC 10 E 70 EWJMK L1PC R EWJMK70E10R-L1RC 10 E 70 EWJMK L1RC R EWJMK70E15L-K2LC 15 E 70 EWJMK K2LC L EWJMK70E15L-K3YC 15 E 70 EWJMK K3YC L EWJMK70E15L-L1MC 15 E 70 EWJMK L1MC L EWJMK70E15L-L1PC 15 E 70 EWJMK L1PC L EWJMK70E15L-L1RC 15 E 70 EWJMK L1RC L EWJMK70E15LR-K2LC 15 E 70 EWJMK K2LC LR EWJMK70E15LR-K3YC 15 E 70 EWJMK K3YC LR EWJMK70E15LR-L1MC 15 E 70 EWJMK L1MC LR EWJMK70E15LR-L1PC 15 E 70 EWJMK L1PC LR EWJMK70E15LR-L1RC 15 E 70 EWJMK L1RC LR EWJMK70E15R-K2LC 15 E 70 EWJMK K2LC R EWJMK70E15R-K3YC 15 E 70 EWJMK K3YC R EWJMK70E15R-L1MC 15 E 70 EWJMK L1MC R EWJMK70E15R-L1PC 15 E 70 EWJMK L1PC R EWJMK70E15R-L1RC 15 E 70 EWJMK L1RC R EWJMK70E20L-K2LC 20 E 70 EWJMK K2LC L EWJMK70E20L-K3YC 20 E 70 EWJMK K3YC L EWJMK70E20L-L1MC 20 E 70 EWJMK L1MC L EWJMK70E20L-L1PC 20 E 70 EWJMK L1PC L EWJMK70E20L-L1RC 20 E 70 EWJMK L1RC L EWJMK70E20LR-K2LC 20 E 70 EWJMK K2LC LR EWJMK70E20LR-K3YC 20 E 70 EWJMK K3YC LR EWJMK70E20LR-L1MC 20 E 70 EWJMK L1MC LR EWJMK70E20LR-L1PC 20 E 70 EWJMK L1PC LR EWJMK70E20LR-L1RC 20 E 70 EWJMK L1RC LR EWJMK70E20R-K2LC 20 E 70 EWJMK K2LC R EWJMK70E20R-K3YC 20 E 70 EWJMK K3YC R EWJMK70E20R-L1MC 20 E 70 EWJMK L1MC R EWJMK70E20R-L1PC 20 E 70 EWJMK L1PC R EWJMK70E20R-L1RC 20 E 70 EWJMK L1RC R EWJMK70E25L-K2LC 25 E 70 EWJMK K2LC L EWJMK70E25L-K3YC 25 E 70 EWJMK K3YC L EWJMK70E25L-L1MC 25 E 70 EWJMK L1MC L EWJMK70E25L-L1PC 25 E 70 EWJMK L1PC L EWJMK70E25L-L1RC 25 E 70 EWJMK L1RC L EWJMK70E25LR-K2LC 25 E 70 EWJMK K2LC LR EWJMK70E25LR-K3YC 25 E 70 EWJMK K3YC LR EWJMK70E25LR-L1MC 25 E 70 EWJMK L1MC LR EWJMK70E25LR-L1PC 25 E 70 EWJMK L1PC LR EWJMK70E25LR-L1RC 25 E 70 EWJMK L1RC LR EWJMK70E25R-K2LC 25 E 70 EWJMK K2LC R EWJMK70E25R-K3YC 25 E 70 EWJMK K3YC R EWJMK70E25R-L1MC 25 E 70 EWJMK L1MC R EWJMK70E25R-L1PC 25 E 70 EWJMK L1PC R EWJMK70E25R-L1RC 25 E 70 EWJMK L1RC R EWJMK70E30L-K2LC 30 E 70 EWJMK K2LC L EWJMK70E30L-K3YC 30 E 70 EWJMK K3YC L EWJMK70E30L-L1MC 30 E 70 EWJMK L1MC L EWJMK70E30L-L1PC 30 E 70 EWJMK L1PC L EWJMK70E30L-L1RC 30 E 70 EWJMK L1RC L EWJMK70E30LR-K2LC 30 E 70 EWJMK K2LC LR EWJMK70E30LR-K3YC 30 E 70 EWJMK K3YC LR EWJMK70E30LR-L1MC 30 E 70 EWJMK L1MC LR EWJMK70E30LR-L1PC 30 E 70 EWJMK L1PC LR EWJMK70E30LR-L1RC 30 E 70 EWJMK L1RC LR EWJMK70E30R-K2LC 30 E 70 EWJMK K2LC R EWJMK70E30R-K3YC 30 E 70 EWJMK K3YC R EWJMK70E30R-L1MC 30 E 70 EWJMK L1MC R EWJMK70E30R-L1PC 30 E 70 EWJMK L1PC R EWJMK70E30R-L1RC 30 E 70 EWJMK L1RC R EWJMK70E40L-K2LC 40 E 70 EWJMK K2LC L EWJMK70E40L-K3YC 40 E 70 EWJMK K3YC L EWJMK70E40L-L1MC 40 E 70 EWJMK L1MC L EWJMK70E40L-L1PC 40 E 70 EWJMK L1PC L EWJMK70E40L-L1RC 40 E 70 EWJMK L1RC L EWJMK70E40LR-K2LC 40 E 70 EWJMK K2LC LR EWJMK70E40LR-K3YC 40 E 70 EWJMK K3YC LR EWJMK70E40LR-L1MC 40 E 70 EWJMK L1MC LR EWJMK70E40LR-L1PC 40 E 70 EWJMK L1PC LR EWJMK70E40LR-L1RC 40 E 70 EWJMK L1RC LR EWJMK70E40R-K2LC 40 E 70 EWJMK K2LC R EWJMK70E40R-K3YC 40 E 70 EWJMK K3YC R EWJMK70E40R-L1MC 40 E 70 EWJMK L1MC R EWJMK70E40R-L1PC 40 E 70 EWJMK L1PC R EWJMK70E40R-L1RC 40 E 70 EWJMK L1RC R EWJMK70E50L-K2LC 50 E 70 EWJMK K2LC L EWJMK70E50L-K3YC 50 E 70 EWJMK K3YC L EWJMK70E50L-L1MC 50 E 70 EWJMK L1MC L EWJMK70E50L-L1PC 50 E 70 EWJMK L1PC L EWJMK70E50L-L1RC 50 E 70 EWJMK L1RC L EWJMK70E50LR-K2LC 50 E 70 EWJMK K2LC LR EWJMK70E50LR-K3YC 50 E 70 EWJMK K3YC LR EWJMK70E50LR-L1MC 50 E 70 EWJMK L1MC LR EWJMK70E50LR-L1PC 50 E 70 EWJMK L1PC LR EWJMK70E50LR-L1RC 50 E 70 EWJMK L1RC LR EWJMK70E50R-K2LC 50 E 70 EWJMK K2LC R EWJMK70E50R-K3YC 50 E 70 EWJMK K3YC R EWJMK70E50R-L1MC 50 E 70 EWJMK L1MC R EWJMK70E50R-L1PC 50 E 70 EWJMK L1PC R EWJMK70E50R-L1RC 50 E 70 EWJMK L1RC R EWJMK70E60L-K2LC 60 E 70 EWJMK K2LC L EWJMK70E60L-K3YC 60 E 70 EWJMK K3YC L EWJMK70E60L-L1MC 60 E 70 EWJMK L1MC L EWJMK70E60L-L1PC 60 E 70 EWJMK L1PC L EWJMK70E60L-L1RC 60 E 70 EWJMK L1RC L EWJMK70E60LR-K2LC 60 E 70 EWJMK K2LC LR EWJMK70E60LR-K3YC 60 E 70 EWJMK K3YC LR How to OrderConfirm the reduction ratio, frame size and the servo motor model to be mounted. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.Product image is representative of the TSUBAKI series; appearance varies by size and model.About TSUBAKITsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.Ordering & Shipping Genuine TSUBAKI product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request High-value or heavy item: online checkout is disabled. Please request a quote for freight and pricing.

Read more less

TSUBAKI BG1005UP3M6-HC — Timing Belt Ultra PX Belt (HC Spec), genuine TSUBAKI product.OverviewThe Tsubaki Ultra PX belt HC spec is a high-capacity timing belt designed to transmit more power per width than standard PX belts. Higher capacity allows narrower belts or smaller pulleys, saving space and weight. It is used in industrial drives, machine tools and automation equipment.Key Features High capacity per belt width Allows more compact drive layouts UP5M or UP8M profiles by model Durable tooth and cord construction Specifications Part No. No. of Teeth Type Belt Width (mm) Pitch (mm) Max. Tension (N) Circumference (mm) Tooth Profile BG1005UP3M6-HC 335 Single-sided teeth 6 3 Mounting: 40, Recommended mounting value: 29 1005 UP3M How to OrderSpecify profile, belt pitch length and width. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.Product image is representative of the TSUBAKI series; appearance varies by size and model.About TSUBAKITsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.Ordering & Shipping Genuine TSUBAKI product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

TSUBAKI BG1304UP8M25-HA — Timing Belt Ultra PX Belt (Oil and Water Resistant), genuine TSUBAKI product.OverviewThis Tsubaki Ultra PX timing belt is the oil- and water-resistant version of the high-capacity UP8M belt. It keeps the high power rating of Ultra PX construction while resisting deterioration from coolant, oil mist and moisture. It is used on machine tools, food processing equipment and industrial drives exposed to oil or water splash.Key Features Resistant to oil and water exposure High power capacity Ultra PX construction UP8M tooth profile for 8 mm pitch pulleys Synchronous, slip-free power transmission Specifications Part No. No. of Teeth Type Belt Width (mm) Pitch (mm) Max. Tension (N) Circumference (mm) Tooth Profile BG1304UP8M25-HA 163 Single-sided teeth 25 8 Mounting: 408, Recommended mounting value: 304 1304 UP8M How to OrderSpecify belt pitch length, width and the HA (oil/water resistant) specification. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.Product image is representative of the TSUBAKI series; appearance varies by size and model.About TSUBAKITsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.Ordering & Shipping Genuine TSUBAKI product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

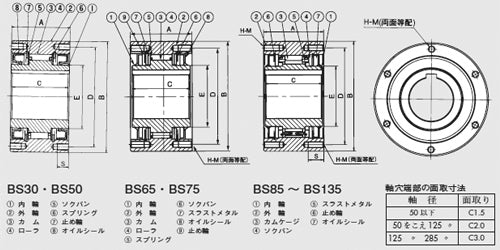

TSUBAKI BS — Cam Clutch BS Series, genuine TSUBAKI product.OverviewThe BS Series Cam Clutch from TSUBAKI is a backstop that allows a shaft to turn freely in one direction and locks it against reverse rotation. Cams or sprags wedge between inner and outer races when rotation reverses. It is used on inclined conveyors, bucket elevators and pumps to prevent rollback and reverse running when power is lost.Key Features Prevents reverse rotation of shafts Freewheels in the normal running direction Protects inclined conveyors from rollback Torque arm or mounting for reaction force Specifications Part No. BS110-100E BS110-100J BS110-105E BS110-105J BS110-110E BS110-110J BS110-85E BS110-85J BS110-95E BS110-95J BS110TA BS135TA BS160TA BS200TA BS220TA BS250TA BS270TA BS30-30E BS30-30J BS300TA BS335TA BS350TA BS50-45E BS50-45J BS65-40E BS65-40J BS65-45E BS65-45J BS65-50J BS75-60E BS75-60J BS75-65J BS75-70J BS75-75J BS85-70E BS85-70J BS85-75E BS85-75J BS85-80E BS85-80J BS85-85E BS85-85J BS95-80E BS95-80J BS95-85E BS95-85J BS95-90E BS95-90J BS95-95E BS95-95J BS95TA How to OrderConfirm shaft diameter, required backstop torque, rotation direction and mounting method. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.Product image is representative of the TSUBAKI series; appearance varies by size and model.About TSUBAKITsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.Ordering & Shipping Genuine TSUBAKI product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request High-value or heavy item: online checkout is disabled. Please request a quote for freight and pricing.

Read more less

TSUBAKI TTUP — Lock Sprocket for TTUP Type Chain, genuine TSUBAKI product.OverviewThis Tsubaki lock sprocket fits TTUP type side-flexing plastic top chain and is supplied with a keyless locking element already installed. The lock grips a plain shaft by friction, allowing the sprocket to be positioned and aligned across multi-lane conveyors without keyways. It speeds up installation and maintenance on container conveyor lines.Key Features Factory-fitted keyless locking element Tooth form for TTUP plastic top chain No keyway machining on the shaft Easy lane-to-lane alignment Specifications Part No. Dim. l (mm) Tightening Torque (N·m) Tooth Width (T) (mm) Outer Diameter Do (Ømm) Sleeve Frame No. Indexing Teeth TTUP1212T-S5542 45 8.3 15.9 153 S5 25 TTUP1212T-S5545 45 8.3 15.9 153 S5 25 TTUP1300T-S2415 45 8.3 15.9 159 S2 TTUP1300T-S2416 45 8.3 15.9 159 S2 TTUP1300T-S2417 45 8.3 15.9 159 S2 TTUP1300T-S2418 45 8.3 15.9 159 S2 TTUP1300T-S2419 45 8.3 15.9 159 S2 TTUP1300T-S2420 45 8.3 15.9 159 S2 TTUP1300T-S2422 45 8.3 15.9 159 S2 TTUP1300T-S3424 45 8.3 15.9 159 S3 TTUP1300T-S3425 45 8.3 15.9 159 S3 TTUP1300T-S3428 45 8.3 15.9 159 S3 TTUP1300T-S4430 45 8.3 15.9 159 S4 TTUP1300T-S4432 45 8.3 15.9 159 S4 TTUP1300T-S4435 45 8.3 15.9 159 S4 TTUP1300T-S5538 45 8.3 15.9 159 S5 TTUP1300T-S5540 45 8.3 15.9 159 S5 TTUP1300T-S5542 45 8.3 15.9 159 S5 TTUP1300T-S5545 45 8.3 15.9 159 S5 TTUP900T-S2415 45 8.3 15.9 111 S2 TTUP900T-S2416 45 8.3 15.9 111 S2 TTUP900T-S2417 45 8.3 15.9 111 S2 TTUP900T-S2418 45 8.3 15.9 111 S2 TTUP900T-S2419 45 8.3 15.9 111 S2 TTUP900T-S2420 45 8.3 15.9 111 S2 TTUP900T-S2422 45 8.3 15.9 111 S2 TTUP900T-S3424 45 8.3 15.9 111 S3 TTUP900T-S3425 45 8.3 15.9 111 S3 TTUP900T-S3428 45 8.3 15.9 111 S3 TTUP900T-S4430 45 8.3 15.9 111 S4 TTUP900T-S4432 45 8.3 15.9 111 S4 TTUP900T-S4435 45 8.3 15.9 111 S4 TTUP900T-S5538 45 8.3 15.9 111 S5 TTUP900T-S5540 45 8.3 15.9 111 S5 TTUP900T-S5542 45 8.3 15.9 111 S5 TTUP900T-S5545 45 8.3 15.9 111 S5 TTUP912T-S2415 45 8.3 15.9 117 S2 19 TTUP912T-S2416 45 8.3 15.9 117 S2 19 TTUP912T-S2417 45 8.3 15.9 117 S2 19 TTUP912T-S2418 45 8.3 15.9 117 S2 19 TTUP912T-S2419 45 8.3 15.9 117 S2 19 TTUP912T-S2420 45 8.3 15.9 117 S2 19 TTUP912T-S2422 45 8.3 15.9 117 S2 19 TTUP912T-S3424 45 8.3 15.9 117 S3 19 TTUP912T-S3425 45 8.3 15.9 117 S3 19 TTUP912T-S3428 45 8.3 15.9 117 S3 19 TTUP912T-S4430 45 8.3 15.9 117 S4 19 TTUP912T-S4432 45 8.3 15.9 117 S4 19 TTUP912T-S4435 45 8.3 15.9 117 S4 19 TTUP912T-S5538 45 8.3 15.9 117 S5 19 TTUP912T-S5540 45 8.3 15.9 117 S5 19 TTUP912T-S5542 45 8.3 15.9 117 S5 19 TTUP912T-S5545 45 8.3 15.9 117 S5 19 How to OrderSpecify the number of teeth and the shaft diameter for the lock. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.About TSUBAKITsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.Ordering & Shipping Genuine TSUBAKI product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less
