Autonics

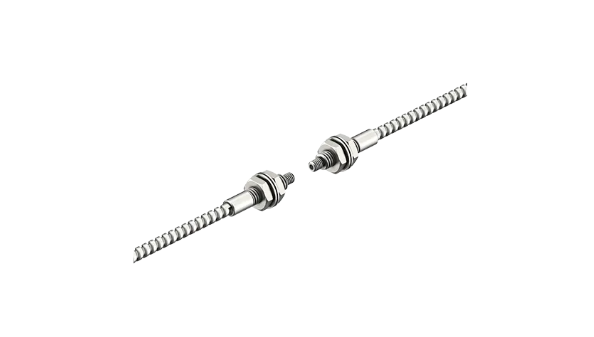

Autonics Autonics Fiber optic sensor, Standard type GT-420-13H2
GT-420-13H2 Type : Standard type(bolt type) Sensing distance : 400mm Min. sensing target : Ø1mm Allowable bend radius : R25 Cable length : 2m Environment_Ambient temperature : -40 to 250℃ Type Standard type(bolt type) Sensing distance 400mm Min. sensing target Ø1mm Allowable bend radius R25 Cable length 2m Environment_Ambient temperature -40 to 250℃ Sensing type Through-beam type
$216.26

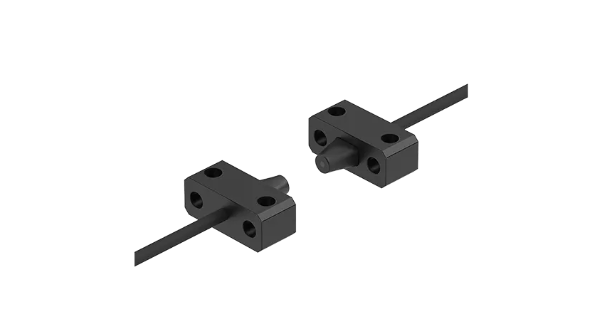

Autonics Autonics Fiber optic sensor, Plastic injection molding type FTP-320-10
FTP-320-10 Type : Plastic injection molding type Sensing distance : 500mm Min. sensing target : Ø1mm Allowable bend radius : R30 Cable length : 2m Environment_Ambient temperature : -40 to 70℃ Type Plastic injection molding type Sensing distance 500mm Min. sensing target Ø1mm Allowable bend radius R30 Cable length 2m Free cut Free cut Environment_Ambient temperature -40 to 70℃ Sensing type Through-beam type
$10.40

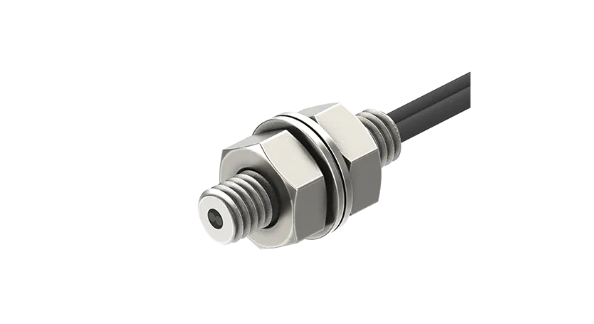

Autonics Autonics Fiber optic sensor, Standard type(bolt type) FD-310-05
FD-310-05 Type : Standard type(bolt type) Sensing distance : 40mm Min. sensing target : Ø0.03mm Allowable bend radius : R15 Cable length : 1m Adapter : Adapter Environment_Ambient temperature : -40 to 70℃ Type Standard type(bolt type) Sensing distance 40mm Min. sensing target Ø0.03mm Allowable bend radius R15 Cable length 1m Free cut Free cut Adapter Adapter Environment_Ambient temperature -40 to 70℃ Sensing type Diffuse reflective type
$17.44

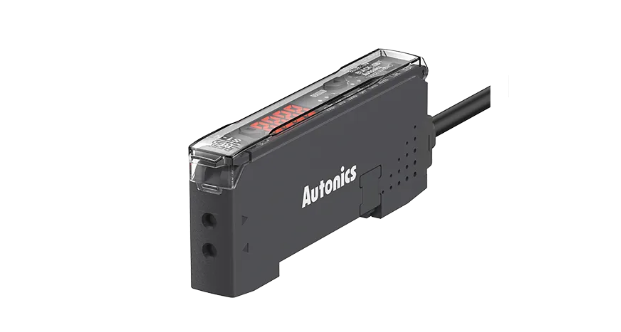

Autonics Autonics Fiber optic sensor, Fiber Optic Amplifier Communication Interface Converter BF5R-S1-N
BF5R-S1-N Type : Single display Display method : 4-digit 7-segment LED Light source : Red LED(660nm) Response time : 150㎲, 500㎲, 4ms Power voltage : 12-24VDC ±10%(ripple P-P: max. 10%) Operation mode : Light ON/Dark ON(set by parameter) Control output : NPN open collector Type Single display Display method 4-digit 7-segment LED Light source Red LED(660nm) Response time 150㎲, 500㎲, 4ms Power voltage 12-24VDC ±10%(ripple P-P: max. 10%) Current consumption Max. 50mA Operation mode Light ON/Dark ON(set by parameter) Control output NPN open collector Timer function OFF, OFF Delay(10ms, 40ms) Sensitivity adjustment Manual Teaching(auto-tuning, 1-point, 2-point, positioning)※ In multiple connection, batch teaching available Communication I2C(max. 8 units) Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) Environment_Ambient temperature -10 to 50℃, storage: -20 to 70℃ Protection structure IP40 Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Mutual interference prevention Max. 8 unit sets(automatically set regardless of response time) Material Case: Polybutylene terephthalate, Cover: Polycarbonate Accessories Connector type wire(Ø4mm, 3-wire, 2m)(AWG22, core diameter: 0.08mm, number of cores: 60, insulator out diameter: Ø1.25mm), Side connector Weight Approx. 138g(approx. 20g)
$57.02

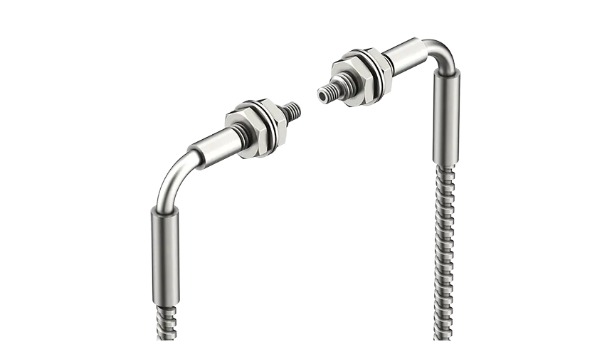

Autonics Autonics Fiber optic sensor, Through-beam type GTL-420-12H2
GTL-420-12H2 Type : L type Sensing distance : 670mm Min. sensing target : Ø0.08mm Allowable bend radius : R25 Cable length : 2m Environment_Ambient temperature : -60 to 250℃ Type L type Sensing distance 670mm Min. sensing target Ø0.08mm Allowable bend radius R25 Cable length 2m Environment_Ambient temperature -60 to 250℃ Sensing type Through-beam type
$259.86

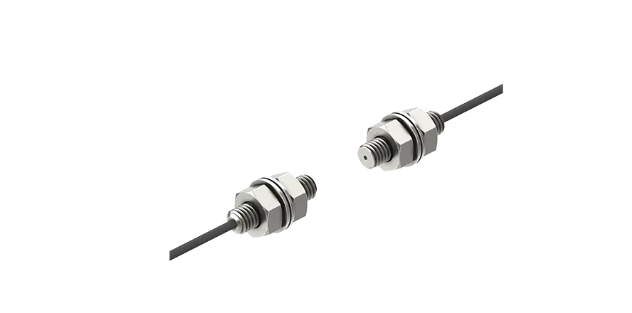

Autonics Autonics Fiber optic sensor, Through-beam type FT-310-05
FT-310-05 Type : Standard type(bolt type) Sensing distance : 150mm Min. sensing target : Ø0.5mm Allowable bend radius : R10 Cable length : 1m Adapter : Adapter Environment_Ambient temperature : -40 to 70℃ Type Standard type(bolt type) Sensing distance 150mm Min. sensing target Ø0.5mm Allowable bend radius R10 Cable length 1m Free cut Free cut Adapter Adapter Environment_Ambient temperature -40 to 70℃ Sensing type Through-beam type
$22.59

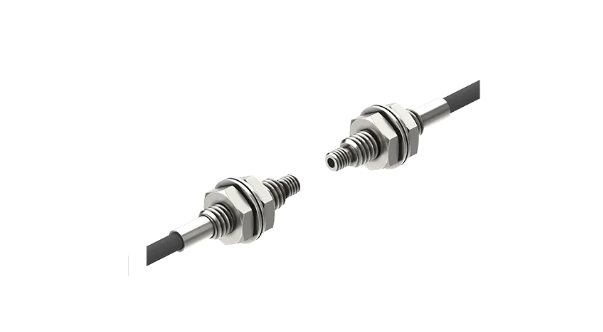

Autonics Autonics Fiber optic sensor, Standard type FT-420-10
FT-420-10 Type : Standard type(bolt type) Sensing distance : 500mm Min. sensing target : Ø1mm Allowable bend radius : R25 Cable length : 2m Environment_Ambient temperature : -40 to 70℃ Type Standard type(bolt type) Sensing distance 500mm Min. sensing target Ø1mm Allowable bend radius R25 Cable length 2m Free cut Free cut Environment_Ambient temperature -40 to 70℃ Sensing type Through-beam type
$18.23

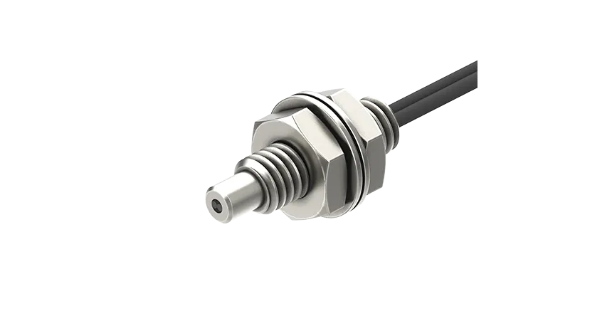

Autonics Autonics Fiber optic sensor, Standard type FD-420-05
FD-420-05 Type : Standard type(bolt type) Sensing distance : 40mm Min. sensing target : Ø0.03mm Allowable bend radius : R15 Cable length : 2m Adapter : Adapter Environment_Ambient temperature : -40 to 70℃ Type Standard type(bolt type) Sensing distance 40mm Min. sensing target Ø0.03mm Allowable bend radius R15 Cable length 2m Free cut Free cut Adapter Adapter Environment_Ambient temperature -40 to 70℃ Sensing type Diffuse reflective type
$20.80

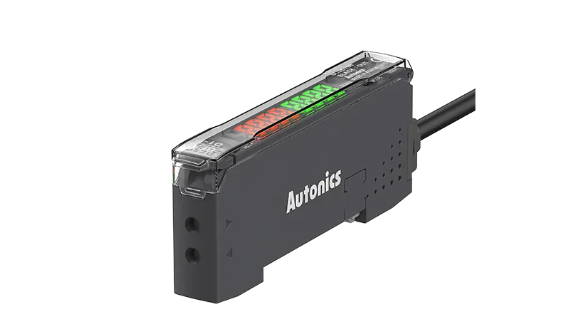

Autonics Autonics Fiber optic sensor, Fiber Optic Amplifier Communication Converter BF5R-D1-N
BF5R-D1-N Type : Dual display Display method : 4-digit 7-segment LED Light source : Red LED(660nm) Response time : 50㎲, 150㎲, 500㎲, 4ms, 10ms Power voltage : 12-24VDC ±10%(ripple P-P: max. 10%) Operation mode : Light ON/Dark ON(set by parameter) Control output : NPN open collector Type Dual display Display method 4-digit 7-segment LED Light source Red LED(660nm) Response time 50㎲, 150㎲, 500㎲, 4ms, 10ms Power voltage 12-24VDC ±10%(ripple P-P: max. 10%) Current consumption Max. 50mA Operation mode Light ON/Dark ON(set by parameter) Control output NPN open collector Timer function OFF, OFF Delay, ON Delay, One-shot(1 to 5000ms) Sensitivity adjustment Manual Teaching(auto-tuning, 1-point, 2-point, positioning)※ In multiple connection, batch teaching available Communication I2C(max. 8 units) Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) Environment_Ambient temperature -10 to 50℃, storage: -20 to 70℃ Protection structure IP40 Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Mutual interference prevention Max. 8 unit sets(automatically set regardless of response time) Initializing Initializing as factory mode Energy saving Normal/Energy saving 1/Energy saving 2 Material Case: Polybutylene terephthalate, Cover: Polycarbonate Accessories Connector type wire(Ø4mm, 3-wire, 2m)(AWG22, core diameter: 0.08mm, number of cores: 60, insulator out diameter: Ø1.25mm), Side connector Weight Approx. 138g(approx. 20g)
$74.13

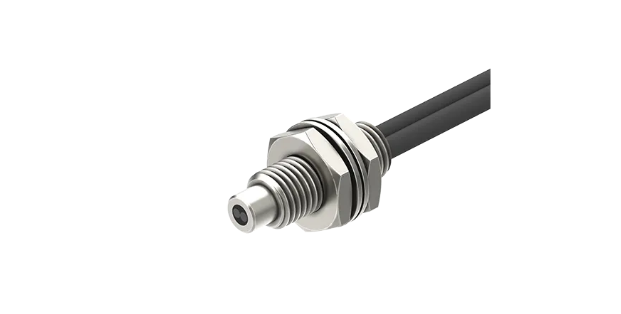

Autonics Autonics Fiber optic sensor, Standard type FD-620-10
FD-620-10 Type : Standard type(bolt type) Sensing distance : 120mm Min. sensing target : Ø0.03mm Allowable bend radius : R25 Cable length : 2m Environment_Ambient temperature : -40 to 70℃ Type Standard type(bolt type) Sensing distance 120mm Min. sensing target Ø0.03mm Allowable bend radius R25 Cable length 2m Free cut Free cut Environment_Ambient temperature -40 to 70℃ Sensing type Diffuse reflective type
$14.20

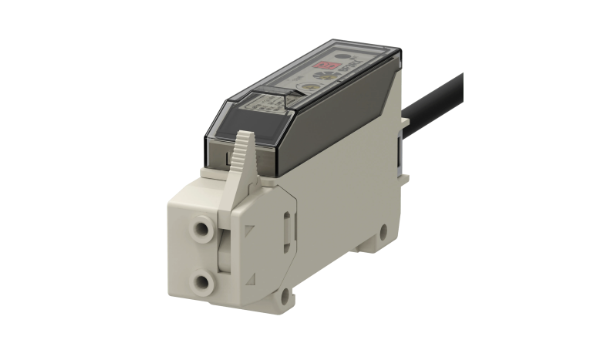

Autonics Autonics Fiber optic sensor, Fiber Optic Amplifier Unit BF3RX
BF3RX Type : Built-in twin volume type Light source : Red LED(660nm) Response time : Max. 1ms Power voltage : 12-24VDC ±10%(ripple P-P: max. 10%) Operation mode : Light ON/Dark ON(set by control wire) Control output : NPN open collector Type Built-in twin volume type Light source Red LED(660nm) Response time Max. 1ms Power voltage 12-24VDC ±10%(ripple P-P: max. 10%) Current consumption Max. 40mA Operation mode Light ON/Dark ON(set by control wire) Control output NPN open collector Sensitivity adjustment Sensitivity adjuster(coarse adjustment, fine adjustment) Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) Environment_Ambient temperature -10 to 50℃, storage: -25 to 70℃ Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Material Case: Acrylonitrile butadiene styrene, Cover: Polycarbonate Cable specification Ø5mm, 4-wire, 2m(AWG24, core diameter: 0.08mm, number of cores: 40, insulator out diameter: Ø1mm) Accessories Sensitivity adjuster driver, Mounting bracket, Bolts, Nuts Weight Approx. 90g
$27.84

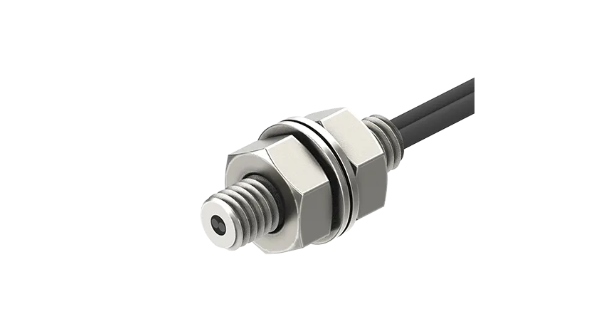

Autonics Autonics Fiber optic sensor, Standard type FD-320-05
FD-320-05 Type : Standard type(bolt type) Sensing distance : 40mm Min. sensing target : Ø0.03mm Allowable bend radius : R15 Cable length : 2m Adapter : Adapter Environment_Ambient temperature : -40 to 70℃ Type Standard type(bolt type) Sensing distance 40mm Min. sensing target Ø0.03mm Allowable bend radius R15 Cable length 2m Free cut Free cut Adapter Adapter Environment_Ambient temperature -40 to 70℃ Sensing type Diffuse reflective type
$18.23
Autonics Autonics photoelectric micro sensor, Through-beam type BS3-F1M-P
Sensing type Through-beam type Sensing distance 5mm Sensing target Opaque Min. sensing target ≥ 0.8 mm × 1.8 mm Hysteresis(distance) ≤0.05mm Response time Light ON: Max. 20㎲, Dark ON: Max. 100㎲ Response frequency 2kHz Light source Infrared LED Peak emission wavelength 940nm Operation mode Light ON/Dark ON(set by control wire) Indicator Operation indicator (red LED) Weight Approx. 50g Power voltage 5-24VDC ±10%(ripple P-P : max. 10%) Current consumption Max. 15mA Control output PNP open collector Load voltage ≤ 24VDC Load current Max. 50mA Residual voltage NPN: ≤1.2VDC, PNP: ≤ 1.2VDC Protection circuit Reverse polarity protection circuit, output overcurrent (short-circuit) protection circuit Insulation resistance ≥20 MΩ (250 VDC megger) Noise immunity The square wave noise (pulse width: 1㎲) by the noise simulator ±240VDC Dielectric strength 1,000VAC 50/60Hz for 1 minute Vibration 1.5mm amplitude (max. acceleration 196m/s²) at frequency of 10 to 2,000Hz in each X, Y, Z direction for 2 hours Shock 15,000 m/s² (approx. 1,500G) in each X, Y, Z direction for 3 times Environment_Ambient illumination Fluorescent lamp: Max. 1,000lx(received illumination) Environment_Ambient temperature -20 to 55℃, storage : -25 to 85℃ Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Protection structure IP50 (IEC standard) Connection Cable type Connection type Ø2.5mm, 4-wire, 1m Core AWG28 (0.08mm), 19-core, insulator out diameter: Ø0.65mm Material Case: PBT, Sensing part: PC
$12.97
Autonics Autonics photoelectric micro sensor ,Through-beam type BS3-F1R
Sensing type Through-beam type Sensing distance 5mm Sensing target Opaque Min. sensing target ≥ 0.8 mm × 1.8 mm Hysteresis(distance) ≤0.05mm Response time Light ON: Max. 20㎲, Dark ON: Max. 100㎲ Response frequency 2kHz Light source Infrared LED Peak emission wavelength 940nm Operation mode Light ON/Dark ON(set by control wire) Indicator Operation indicator (red LED) Weight Approx. 50g Power voltage 5-24VDC ±10%(ripple P-P : max. 10%) Current consumption Max. 15mA Control output NPN open collector Load voltage ≤ 24VDC Load current Max. 50mA Residual voltage NPN: ≤1.2VDC, PNP: ≤ 1.2VDC Protection circuit Reverse polarity protection circuit, output overcurrent (short-circuit) protection circuit Insulation resistance ≥20 MΩ (250 VDC megger) Noise immunity The square wave noise (pulse width: 1㎲) by the noise simulator ±240VDC Dielectric strength 1,000VAC 50/60Hz for 1 minute Vibration 1.5mm amplitude (max. acceleration 196m/s²) at frequency of 10 to 2,000Hz in each X, Y, Z direction for 2 hours Shock 15,000 m/s² (approx. 1,500G) in each X, Y, Z direction for 3 times Environment_Ambient illumination Fluorescent lamp: Max. 1,000lx(received illumination) Environment_Ambient temperature -20 to 55℃, storage : -25 to 85℃ Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Protection structure IP50 (IEC standard) Connection Cable type Connection type Ø2.5mm, 4-wire, 1m Core AWG28 (0.08mm), 19-core, insulator out diameter: Ø0.65mm Material Case: PBT, Sensing part: PC
$12.94
Autonics Autonics photoelectric micro sensor, Through-beam type BS3-K1M-P
Sensing type Through-beam type Sensing distance 5mm Sensing target Opaque Min. sensing target ≥ 0.8 mm × 1.8 mm Hysteresis(distance) ≤0.05mm Response time Light ON: Max. 20㎲, Dark ON: Max. 100㎲ Response frequency 2kHz Light source Infrared LED Peak emission wavelength 940nm Operation mode Light ON/Dark ON(set by control wire) Indicator Operation indicator (red LED) Weight Approx. 50g Power voltage 5-24VDC ±10%(ripple P-P : max. 10%) Current consumption Max. 15mA Control output PNP open collector Load voltage ≤ 24VDC Load current Max. 50mA Residual voltage NPN: ≤1.2VDC, PNP: ≤ 1.2VDC Protection circuit Reverse polarity protection circuit, output overcurrent (short-circuit) protection circuit Insulation resistance ≥20 MΩ (250 VDC megger) Noise immunity The square wave noise (pulse width: 1㎲) by the noise simulator ±240VDC Dielectric strength 1,000VAC 50/60Hz for 1 minute Vibration 1.5mm amplitude (max. acceleration 196m/s²) at frequency of 10 to 2,000Hz in each X, Y, Z direction for 2 hours Shock 15,000 m/s² (approx. 1,500G) in each X, Y, Z direction for 3 times Environment_Ambient illumination Fluorescent lamp: Max. 1,000lx(received illumination) Environment_Ambient temperature -20 to 55℃, storage : -25 to 85℃ Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Protection structure IP50 (IEC standard) Connection Cable type Connection type Ø2.5mm, 4-wire, 1m Core AWG28 (0.08mm), 19-core, insulator out diameter: Ø0.65mm Material Case: PBT, Sensing part: PC
$12.97
Autonics Autonics photoelectric micro sensor, Through-beam type BS3-K1R
Sensing type Through-beam type Sensing distance 5mm Sensing target Opaque Min. sensing target ≥ 0.8 mm × 1.8 mm Hysteresis(distance) ≤0.05mm Response time Light ON: Max. 20㎲, Dark ON: Max. 100㎲ Response frequency 2kHz Light source Infrared LED Peak emission wavelength 940nm Operation mode Light ON/Dark ON(set by control wire) Indicator Operation indicator (red LED) Weight Approx. 50g Power voltage 5-24VDC ±10%(ripple P-P : max. 10%) Current consumption Max. 15mA Control output NPN open collector Load voltage ≤ 24VDC Load current Max. 50mA Residual voltage NPN: ≤1.2VDC, PNP: ≤ 1.2VDC Protection circuit Reverse polarity protection circuit, output overcurrent (short-circuit) protection circuit Insulation resistance ≥20 MΩ (250 VDC megger) Noise immunity The square wave noise (pulse width: 1㎲) by the noise simulator ±240VDC Dielectric strength 1,000VAC 50/60Hz for 1 minute Vibration 1.5mm amplitude (max. acceleration 196m/s²) at frequency of 10 to 2,000Hz in each X, Y, Z direction for 2 hours Shock 15,000 m/s² (approx. 1,500G) in each X, Y, Z direction for 3 times Environment_Ambient illumination Fluorescent lamp: Max. 1,000lx(received illumination) Environment_Ambient temperature -20 to 55℃, storage : -25 to 85℃ Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Protection structure IP50 (IEC standard) Connection Cable type Connection type Ø2.5mm, 4-wire, 1m Core AWG28 (0.08mm), 19-core, insulator out diameter: Ø0.65mm Material Case: PBT, Sensing part: PC
$12.94
Autonics Autonics photoelectric micro sensor, Through-beam type BS3-K1R-P
Sensing type Through-beam type Sensing distance 5mm Sensing target Opaque Min. sensing target ≥ 0.8 mm × 1.8 mm Hysteresis(distance) ≤0.05mm Response time Light ON: Max. 20㎲, Dark ON: Max. 100㎲ Response frequency 2kHz Light source Infrared LED Peak emission wavelength 940nm Operation mode Light ON/Dark ON(set by control wire) Indicator Operation indicator (red LED) Weight Approx. 50g Power voltage 5-24VDC ±10%(ripple P-P : max. 10%) Current consumption Max. 15mA Control output PNP open collector Load voltage ≤ 24VDC Load current Max. 50mA Residual voltage NPN: ≤1.2VDC, PNP: ≤ 1.2VDC Protection circuit Reverse polarity protection circuit, output overcurrent (short-circuit) protection circuit Insulation resistance ≥20 MΩ (250 VDC megger) Noise immunity The square wave noise (pulse width: 1㎲) by the noise simulator ±240VDC Dielectric strength 1,000VAC 50/60Hz for 1 minute Vibration 1.5mm amplitude (max. acceleration 196m/s²) at frequency of 10 to 2,000Hz in each X, Y, Z direction for 2 hours Shock 15,000 m/s² (approx. 1,500G) in each X, Y, Z direction for 3 times Environment_Ambient illumination Fluorescent lamp: Max. 1,000lx(received illumination) Environment_Ambient temperature -20 to 55℃, storage : -25 to 85℃ Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Protection structure IP50 (IEC standard) Connection Cable type Connection type Ø2.5mm, 4-wire, 1m Core AWG28 (0.08mm), 19-core, insulator out diameter: Ø0.65mm Material Case: PBT, Sensing part: PC
$12.94
Autonics Autonics photoelectric micro sensor, Through-beam type BS3-L1M-P
Sensing type Through-beam type Sensing distance 5mm Sensing target Opaque Min. sensing target ≥ 0.8 mm × 1.8 mm Hysteresis(distance) ≤0.05mm Response time Light ON: Max. 20㎲, Dark ON: Max. 100㎲ Response frequency 2kHz Light source Infrared LED Peak emission wavelength 940nm Operation mode Light ON/Dark ON(set by control wire) Indicator Operation indicator (red LED) Weight Approx. 50g Power voltage 5-24VDC ±10%(ripple P-P : max. 10%) Current consumption Max. 15mA Control output PNP open collector Load voltage ≤ 24VDC Load current Max. 50mA Residual voltage NPN: ≤1.2VDC, PNP: ≤ 1.2VDC Protection circuit Reverse polarity protection circuit, output overcurrent (short-circuit) protection circuit Insulation resistance ≥20 MΩ (250 VDC megger) Noise immunity The square wave noise (pulse width: 1㎲) by the noise simulator ±240VDC Dielectric strength 1,000VAC 50/60Hz for 1 minute Vibration 1.5mm amplitude (max. acceleration 196m/s²) at frequency of 10 to 2,000Hz in each X, Y, Z direction for 2 hours Shock 15,000 m/s² (approx. 1,500G) in each X, Y, Z direction for 3 times Environment_Ambient illumination Fluorescent lamp: Max. 1,000lx(received illumination) Environment_Ambient temperature -20 to 55℃, storage : -25 to 85℃ Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Protection structure IP50 (IEC standard) Connection Cable type Connection type Ø2.5mm, 4-wire, 1m Core AWG28 (0.08mm), 19-core, insulator out diameter: Ø0.65mm Material Case: PBT, Sensing part: PC
$12.97
Autonics Autonics photoelectric micro sensor, Through-beam type BS3-L1R
Sensing type Through-beam type Sensing distance 5mm Sensing target Opaque Min. sensing target ≥ 0.8 mm × 1.8 mm Hysteresis(distance) ≤0.05mm Response time Light ON: Max. 20㎲, Dark ON: Max. 100㎲ Response frequency 2kHz Light source Infrared LED Peak emission wavelength 940nm Operation mode Light ON/Dark ON(set by control wire) Indicator Operation indicator (red LED) Weight Approx. 50g Power voltage 5-24VDC ±10%(ripple P-P : max. 10%) Current consumption Max. 15mA Control output NPN open collector Load voltage ≤ 24VDC Load current Max. 50mA Residual voltage NPN: ≤1.2VDC, PNP: ≤ 1.2VDC Protection circuit Reverse polarity protection circuit, output overcurrent (short-circuit) protection circuit Insulation resistance ≥20 MΩ (250 VDC megger) Noise immunity The square wave noise (pulse width: 1㎲) by the noise simulator ±240VDC Dielectric strength 1,000VAC 50/60Hz for 1 minute Vibration 1.5mm amplitude (max. acceleration 196m/s²) at frequency of 10 to 2,000Hz in each X, Y, Z direction for 2 hours Shock 15,000 m/s² (approx. 1,500G) in each X, Y, Z direction for 3 times Environment_Ambient illumination Fluorescent lamp: Max. 1,000lx(received illumination) Environment_Ambient temperature -20 to 55℃, storage : -25 to 85℃ Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Protection structure IP50 (IEC standard) Connection Cable type Connection type Ø2.5mm, 4-wire, 1m Core AWG28 (0.08mm), 19-core, insulator out diameter: Ø0.65mm Material Case: PBT, Sensing part: PC
$12.94
Autonics Autonics photoelectric micro sensor Through-beam type BS3-L1R-P
Sensing type Through-beam type Sensing distance 5mm Sensing target Opaque Min. sensing target ≥ 0.8 mm × 1.8 mm Hysteresis(distance) ≤0.05mm Response time Light ON: Max. 20㎲, Dark ON: Max. 100㎲ Response frequency 2kHz Light source Infrared LED Peak emission wavelength 940nm Operation mode Light ON/Dark ON(set by control wire) Indicator Operation indicator (red LED) Weight Approx. 50g Power voltage 5-24VDC ±10%(ripple P-P : max. 10%) Current consumption Max. 15mA Control output PNP open collector Load voltage ≤ 24VDC Load current Max. 50mA Residual voltage NPN: ≤1.2VDC, PNP: ≤ 1.2VDC Protection circuit Reverse polarity protection circuit, output overcurrent (short-circuit) protection circuit Insulation resistance ≥20 MΩ (250 VDC megger) Noise immunity The square wave noise (pulse width: 1㎲) by the noise simulator ±240VDC Dielectric strength 1,000VAC 50/60Hz for 1 minute Vibration 1.5mm amplitude (max. acceleration 196m/s²) at frequency of 10 to 2,000Hz in each X, Y, Z direction for 2 hours Shock 15,000 m/s² (approx. 1,500G) in each X, Y, Z direction for 3 times Environment_Ambient illumination Fluorescent lamp: Max. 1,000lx(received illumination) Environment_Ambient temperature -20 to 55℃, storage : -25 to 85℃ Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Protection structure IP50 (IEC standard) Connection Cable type Connection type Ø2.5mm, 4-wire, 1m Core AWG28 (0.08mm), 19-core, insulator out diameter: Ø0.65mm Material Case: PBT, Sensing part: PC
$12.94
Autonics Autonics photoelectric micro sensor Through-beam type BS3-R1R
Sensing type Through-beam type Sensing distance 5mm Sensing target Opaque Min. sensing target ≥ 0.8 mm × 1.8 mm Hysteresis(distance) ≤0.05mm Response time Light ON: Max. 20㎲, Dark ON: Max. 100㎲ Response frequency 2kHz Light source Infrared LED Peak emission wavelength 940nm Operation mode Light ON/Dark ON(set by control wire) Indicator Operation indicator (red LED) Weight Approx. 50g Power voltage 5-24VDC ±10%(ripple P-P : max. 10%) Current consumption Max. 15mA Control output NPN open collector Load voltage ≤ 24VDC Load current Max. 50mA Residual voltage NPN: ≤1.2VDC, PNP: ≤ 1.2VDC Protection circuit Reverse polarity protection circuit, output overcurrent (short-circuit) protection circuit Insulation resistance ≥20 MΩ (250 VDC megger) Noise immunity The square wave noise (pulse width: 1㎲) by the noise simulator ±240VDC Dielectric strength 1,000VAC 50/60Hz for 1 minute Vibration 1.5mm amplitude (max. acceleration 196m/s²) at frequency of 10 to 2,000Hz in each X, Y, Z direction for 2 hours Shock 15,000 m/s² (approx. 1,500G) in each X, Y, Z direction for 3 times Environment_Ambient illumination Fluorescent lamp: Max. 1,000lx(received illumination) Environment_Ambient temperature -20 to 55℃, storage : -25 to 85℃ Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Protection structure IP50 (IEC standard) Connection Cable type Connection type Ø2.5mm, 4-wire, 1m Core AWG28 (0.08mm), 19-core, insulator out diameter: Ø0.65mm Material Case: PBT, Sensing part: PC
$12.94
Autonics Autonics photoelectric micro sensor Through-beam type BS3-R1R-P
Sensing type Through-beam type Sensing distance 5mm Sensing target Opaque Min. sensing target ≥ 0.8 mm × 1.8 mm Hysteresis(distance) ≤0.05mm Response time Light ON: Max. 20㎲, Dark ON: Max. 100㎲ Response frequency 2kHz Light source Infrared LED Peak emission wavelength 940nm Operation mode Light ON/Dark ON(set by control wire) Indicator Operation indicator (red LED) Weight Approx. 50g Power voltage 5-24VDC ±10%(ripple P-P : max. 10%) Current consumption Max. 15mA Control output PNP open collector Load voltage ≤ 24VDC Load current Max. 50mA Residual voltage NPN: ≤1.2VDC, PNP: ≤ 1.2VDC Protection circuit Reverse polarity protection circuit, output overcurrent (short-circuit) protection circuit Insulation resistance ≥20 MΩ (250 VDC megger) Noise immunity The square wave noise (pulse width: 1㎲) by the noise simulator ±240VDC Dielectric strength 1,000VAC 50/60Hz for 1 minute Vibration 1.5mm amplitude (max. acceleration 196m/s²) at frequency of 10 to 2,000Hz in each X, Y, Z direction for 2 hours Shock 15,000 m/s² (approx. 1,500G) in each X, Y, Z direction for 3 times Environment_Ambient illumination Fluorescent lamp: Max. 1,000lx(received illumination) Environment_Ambient temperature -20 to 55℃, storage : -25 to 85℃ Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Protection structure IP50 (IEC standard) Connection Cable type Connection type Ø2.5mm, 4-wire, 1m Core AWG28 (0.08mm), 19-core, insulator out diameter: Ø0.65mm Material Case: PBT, Sensing part: PC
$12.94
Autonics Autonics photoelectric micro sensor Through-beam type BS3-U1R
Sensing type Through-beam type Sensing distance 5mm Sensing target Opaque Min. sensing target ≥ 0.8 mm × 1.8 mm Hysteresis(distance) ≤0.05mm Response time Light ON: Max. 20㎲, Dark ON: Max. 100㎲ Response frequency 2kHz Light source Infrared LED Peak emission wavelength 940nm Operation mode Light ON/Dark ON(set by control wire) Indicator Operation indicator (red LED) Weight Approx. 50g Power voltage 5-24VDC ±10%(ripple P-P : max. 10%) Current consumption Max. 15mA Control output NPN open collector Load voltage ≤ 24VDC Load current Max. 50mA Residual voltage NPN: ≤1.2VDC, PNP: ≤ 1.2VDC Protection circuit Reverse polarity protection circuit, output overcurrent (short-circuit) protection circuit Insulation resistance ≥20 MΩ (250 VDC megger) Noise immunity The square wave noise (pulse width: 1㎲) by the noise simulator ±240VDC Dielectric strength 1,000VAC 50/60Hz for 1 minute Vibration 1.5mm amplitude (max. acceleration 196m/s²) at frequency of 10 to 2,000Hz in each X, Y, Z direction for 2 hours Shock 15,000 m/s² (approx. 1,500G) in each X, Y, Z direction for 3 times Environment_Ambient illumination Fluorescent lamp: Max. 1,000lx(received illumination) Environment_Ambient temperature -20 to 55℃, storage : -25 to 85℃ Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Protection structure IP50 (IEC standard) Connection Cable type Connection type Ø2.5mm, 4-wire, 1m Core AWG28 (0.08mm), 19-core, insulator out diameter: Ø0.65mm Material Case: PBT, Sensing part: PC
$12.94
Autonics Autonics photoelectric micro sensor Through-beam type BS3-U1R-P
Sensing type Through-beam type Sensing distance 5mm Sensing target Opaque Min. sensing target ≥ 0.8 mm × 1.8 mm Hysteresis(distance) ≤0.05mm Response time Light ON: Max. 20㎲, Dark ON: Max. 100㎲ Response frequency 2kHz Light source Infrared LED Peak emission wavelength 940nm Operation mode Light ON/Dark ON(set by control wire) Indicator Operation indicator (red LED) Weight Approx. 50g Power voltage 5-24VDC ±10%(ripple P-P : max. 10%) Current consumption Max. 15mA Control output PNP open collector Load voltage ≤ 24VDC Load current Max. 50mA Residual voltage NPN: ≤1.2VDC, PNP: ≤ 1.2VDC Protection circuit Reverse polarity protection circuit, output overcurrent (short-circuit) protection circuit Insulation resistance ≥20 MΩ (250 VDC megger) Noise immunity The square wave noise (pulse width: 1㎲) by the noise simulator ±240VDC Dielectric strength 1,000VAC 50/60Hz for 1 minute Vibration 1.5mm amplitude (max. acceleration 196m/s²) at frequency of 10 to 2,000Hz in each X, Y, Z direction for 2 hours Shock 15,000 m/s² (approx. 1,500G) in each X, Y, Z direction for 3 times Environment_Ambient illumination Fluorescent lamp: Max. 1,000lx(received illumination) Environment_Ambient temperature -20 to 55℃, storage : -25 to 85℃ Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Protection structure IP50 (IEC standard) Connection Cable type Connection type Ø2.5mm, 4-wire, 1m Core AWG28 (0.08mm), 19-core, insulator out diameter: Ø0.65mm Material Case: PBT, Sensing part: PC
$12.94
Autonics Autonics photoelectric micro sensor Through-beam type BS4-F2M
Sensing type Through-beam type Sensing distance 5mm Sensing target Opaque Min. sensing target ≥ 0.8 mm × 1.8 mm Hysteresis(distance) ≤0.05mm Response time Light ON: Max. 20㎲,Dark ON: Max. 80㎲ Response frequency 2kHz Light source Infrared LED Peak emission wavelength 940nm Operation mode Light ON/Dark ON(Built-in) Indicator Operation indicator (red LED) Weight ≈ 2.4 g Power voltage 5-24VDC ±10%(ripple P-P : max. 10%) Current consumption Max. 15mA Control output NPN open collector Load voltage ≤ 24VDC Load current Max. 50mA Residual voltage NPN: ≤1.2VDC, PNP: ≤ 1.2VDC Protection circuit Reverse polarity protection circuit, output overcurrent (short-circuit) protection circuit Insulation resistance ≥20 MΩ (250 VDC megger) Noise immunity The square wave noise (pulse width: 1㎲) by the noise simulator ±240VDC Dielectric strength 1,000VAC~ 50/60Hz for 1 minute Vibration 1.5mm amplitude (max. acceleration 196m/s²) at frequency of 10 to 2,000Hz in each X, Y, Z direction for 2 hours Shock 15,000 m/s² (approx. 1,500G) in each X, Y, Z direction for 3 times Environment_Ambient illumination Fluorescent lamp: Max. 1,000lx(received illumination) Environment_Ambient temperature -20 to 55℃, storage : -25 to 85℃ Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Protection structure IP50 (IEC standard) Connection Connector type Material Case: PBT, Sensing part: PC
$10.10
Autonics Autonics photoelectric micro sensor Through-beam type BS4-F2M-P
Sensing type Through-beam type Sensing distance 5mm Sensing target Opaque Min. sensing target ≥ 0.8 mm × 1.8 mm Hysteresis(distance) ≤0.05mm Response time Light ON: Max. 20㎲,Dark ON: Max. 80㎲ Response frequency 2kHz Light source Infrared LED Peak emission wavelength 940nm Operation mode Light ON/Dark ON(Built-in) Indicator Operation indicator (red LED) Weight ≈ 2.4 g Power voltage 5-24VDC ±10%(ripple P-P : max. 10%) Current consumption Max. 15mA Control output PNP open collector Load voltage ≤ 24VDC Load current Max. 50mA Residual voltage NPN: ≤1.2VDC, PNP: ≤ 1.2VDC Protection circuit Reverse polarity protection circuit, output overcurrent (short-circuit) protection circuit Insulation resistance ≥20 MΩ (250 VDC megger) Noise immunity The square wave noise (pulse width: 1㎲) by the noise simulator ±240VDC Dielectric strength 1,000VAC~ 50/60Hz for 1 minute Vibration 1.5mm amplitude (max. acceleration 196m/s²) at frequency of 10 to 2,000Hz in each X, Y, Z direction for 2 hours Shock 15,000 m/s² (approx. 1,500G) in each X, Y, Z direction for 3 times Environment_Ambient illumination Fluorescent lamp: Max. 1,000lx(received illumination) Environment_Ambient temperature -20 to 55℃, storage : -25 to 85℃ Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Protection structure IP50 (IEC standard) Connection Connector type Material Case: PBT, Sensing part: PC
$10.19
Autonics Autonics photoelectric micro sensor Through-beam type BS4-F2R
Sensing type Through-beam type Sensing distance 5mm Sensing target Opaque Min. sensing target ≥ 0.8 mm × 1.8 mm Hysteresis(distance) ≤0.05mm Response time Light ON: Max. 20㎲,Dark ON: Max. 80㎲ Response frequency 2kHz Light source Infrared LED Peak emission wavelength 940nm Operation mode Light ON/Dark ON(Built-in) Indicator Operation indicator (red LED) Weight ≈ 2.4 g Power voltage 5-24VDC ±10%(ripple P-P : max. 10%) Current consumption Max. 15mA Control output NPN open collector Load voltage ≤ 24VDC Load current Max. 50mA Residual voltage NPN: ≤1.2VDC, PNP: ≤ 1.2VDC Protection circuit Reverse polarity protection circuit, output overcurrent (short-circuit) protection circuit Insulation resistance ≥20 MΩ (250 VDC megger) Noise immunity The square wave noise (pulse width: 1㎲) by the noise simulator ±240VDC Dielectric strength 1,000VAC~ 50/60Hz for 1 minute Vibration 1.5mm amplitude (max. acceleration 196m/s²) at frequency of 10 to 2,000Hz in each X, Y, Z direction for 2 hours Shock 15,000 m/s² (approx. 1,500G) in each X, Y, Z direction for 3 times Environment_Ambient illumination Fluorescent lamp: Max. 1,000lx(received illumination) Environment_Ambient temperature -20 to 55℃, storage : -25 to 85℃ Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Protection structure IP50 (IEC standard) Connection Connector type Material Case: PBT, Sensing part: PC
$10.10
Autonics Autonics photoelectric micro sensor Through-beam type BS4-F2R-P
Sensing type Through-beam type Sensing distance 5mm Sensing target Opaque Min. sensing target ≥ 0.8 mm × 1.8 mm Hysteresis(distance) ≤0.05mm Response time Light ON: Max. 20㎲,Dark ON: Max. 80㎲ Response frequency 2kHz Light source Infrared LED Peak emission wavelength 940nm Operation mode Light ON/Dark ON(Built-in) Indicator Operation indicator (red LED) Weight ≈ 2.4 g Power voltage 5-24VDC ±10%(ripple P-P : max. 10%) Current consumption Max. 15mA Control output PNP open collector Load voltage ≤ 24VDC Load current Max. 50mA Residual voltage NPN: ≤1.2VDC, PNP: ≤ 1.2VDC Protection circuit Reverse polarity protection circuit, output overcurrent (short-circuit) protection circuit Insulation resistance ≥20 MΩ (250 VDC megger) Noise immunity The square wave noise (pulse width: 1㎲) by the noise simulator ±240VDC Dielectric strength 1,000VAC~ 50/60Hz for 1 minute Vibration 1.5mm amplitude (max. acceleration 196m/s²) at frequency of 10 to 2,000Hz in each X, Y, Z direction for 2 hours Shock 15,000 m/s² (approx. 1,500G) in each X, Y, Z direction for 3 times Environment_Ambient illumination Fluorescent lamp: Max. 1,000lx(received illumination) Environment_Ambient temperature -20 to 55℃, storage : -25 to 85℃ Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Protection structure IP50 (IEC standard) Connection Connector type Material Case: PBT, Sensing part: PC
$10.10
Autonics Autonics photoelectric micro sensor Through-beam type BS4-K2M
Sensing type Through-beam type Sensing distance 5mm Sensing target Opaque Min. sensing target ≥ 0.8 mm × 1.8 mm Hysteresis(distance) ≤0.05mm Response time Light ON: Max. 20㎲,Dark ON: Max. 80㎲ Response frequency 2kHz Light source Infrared LED Peak emission wavelength 940nm Operation mode Light ON/Dark ON(Built-in) Indicator Operation indicator (red LED) Weight ≈ 2.4 g Power voltage 5-24VDC ±10%(ripple P-P : max. 10%) Current consumption Max. 15mA Control output NPN open collector Load voltage ≤ 24VDC Load current Max. 50mA Residual voltage NPN: ≤1.2VDC, PNP: ≤ 1.2VDC Protection circuit Reverse polarity protection circuit, output overcurrent (short-circuit) protection circuit Insulation resistance ≥20 MΩ (250 VDC megger) Noise immunity The square wave noise (pulse width: 1㎲) by the noise simulator ±240VDC Dielectric strength 1,000VAC~ 50/60Hz for 1 minute Vibration 1.5mm amplitude (max. acceleration 196m/s²) at frequency of 10 to 2,000Hz in each X, Y, Z direction for 2 hours Shock 15,000 m/s² (approx. 1,500G) in each X, Y, Z direction for 3 times Environment_Ambient illumination Fluorescent lamp: Max. 1,000lx(received illumination) Environment_Ambient temperature -20 to 55℃, storage : -25 to 85℃ Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Protection structure IP50 (IEC standard) Connection Connector type Material Case: PBT, Sensing part: PC
$10.10
Autonics Autonics photoelectric micro sensor Through-beam type BS4-K2M-P
Sensing type Through-beam type Sensing distance 5mm Sensing target Opaque Min. sensing target ≥ 0.8 mm × 1.8 mm Hysteresis(distance) ≤0.05mm Response time Light ON: Max. 20㎲,Dark ON: Max. 80㎲ Response frequency 2kHz Light source Infrared LED Peak emission wavelength 940nm Operation mode Light ON/Dark ON(Built-in) Indicator Operation indicator (red LED) Weight ≈ 2.4 g Power voltage 5-24VDC ±10%(ripple P-P : max. 10%) Current consumption Max. 15mA Control output PNP open collector Load voltage ≤ 24VDC Load current Max. 50mA Residual voltage NPN: ≤1.2VDC, PNP: ≤ 1.2VDC Protection circuit Reverse polarity protection circuit, output overcurrent (short-circuit) protection circuit Insulation resistance ≥20 MΩ (250 VDC megger) Noise immunity The square wave noise (pulse width: 1㎲) by the noise simulator ±240VDC Dielectric strength 1,000VAC~ 50/60Hz for 1 minute Vibration 1.5mm amplitude (max. acceleration 196m/s²) at frequency of 10 to 2,000Hz in each X, Y, Z direction for 2 hours Shock 15,000 m/s² (approx. 1,500G) in each X, Y, Z direction for 3 times Environment_Ambient illumination Fluorescent lamp: Max. 1,000lx(received illumination) Environment_Ambient temperature -20 to 55℃, storage : -25 to 85℃ Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Protection structure IP50 (IEC standard) Connection Connector type Material Case: PBT, Sensing part: PC
$10.19
Autonics Autonics photoelectric micro sensor Through-beam type BS4-K2R
Sensing type Through-beam type Sensing distance 5mm Sensing target Opaque Min. sensing target ≥ 0.8 mm × 1.8 mm Hysteresis(distance) ≤0.05mm Response time Light ON: Max. 20㎲,Dark ON: Max. 80㎲ Response frequency 2kHz Light source Infrared LED Peak emission wavelength 940nm Operation mode Light ON/Dark ON(Built-in) Indicator Operation indicator (red LED) Weight ≈ 2.4 g Power voltage 5-24VDC ±10%(ripple P-P : max. 10%) Current consumption Max. 15mA Control output NPN open collector Load voltage ≤ 24VDC Load current Max. 50mA Residual voltage NPN: ≤1.2VDC, PNP: ≤ 1.2VDC Protection circuit Reverse polarity protection circuit, output overcurrent (short-circuit) protection circuit Insulation resistance ≥20 MΩ (250 VDC megger) Noise immunity The square wave noise (pulse width: 1㎲) by the noise simulator ±240VDC Dielectric strength 1,000VAC~ 50/60Hz for 1 minute Vibration 1.5mm amplitude (max. acceleration 196m/s²) at frequency of 10 to 2,000Hz in each X, Y, Z direction for 2 hours Shock 15,000 m/s² (approx. 1,500G) in each X, Y, Z direction for 3 times Environment_Ambient illumination Fluorescent lamp: Max. 1,000lx(received illumination) Environment_Ambient temperature -20 to 55℃, storage : -25 to 85℃ Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Protection structure IP50 (IEC standard) Connection Connector type Material Case: PBT, Sensing part: PC
$10.10
Autonics Autonics photoelectric micro sensor Through-beam type BS4-K2R-P
Sensing type Through-beam type Sensing distance 5mm Sensing target Opaque Min. sensing target ≥ 0.8 mm × 1.8 mm Hysteresis(distance) ≤0.05mm Response time Light ON: Max. 20㎲,Dark ON: Max. 80㎲ Response frequency 2kHz Light source Infrared LED Peak emission wavelength 940nm Operation mode Light ON/Dark ON(Built-in) Indicator Operation indicator (red LED) Weight ≈ 2.4 g Power voltage 5-24VDC ±10%(ripple P-P : max. 10%) Current consumption Max. 15mA Control output PNP open collector Load voltage ≤ 24VDC Load current Max. 50mA Residual voltage NPN: ≤1.2VDC, PNP: ≤ 1.2VDC Protection circuit Reverse polarity protection circuit, output overcurrent (short-circuit) protection circuit Insulation resistance ≥20 MΩ (250 VDC megger) Noise immunity The square wave noise (pulse width: 1㎲) by the noise simulator ±240VDC Dielectric strength 1,000VAC~ 50/60Hz for 1 minute Vibration 1.5mm amplitude (max. acceleration 196m/s²) at frequency of 10 to 2,000Hz in each X, Y, Z direction for 2 hours Shock 15,000 m/s² (approx. 1,500G) in each X, Y, Z direction for 3 times Environment_Ambient illumination Fluorescent lamp: Max. 1,000lx(received illumination) Environment_Ambient temperature -20 to 55℃, storage : -25 to 85℃ Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Protection structure IP50 (IEC standard) Connection Connector type Material Case: PBT, Sensing part: PC
$10.10
Autonics Autonics photoelectric micro sensor Through-beam type BS4-L2M
Sensing type Through-beam type Sensing distance 5mm Sensing target Opaque Min. sensing target ≥ 0.8 mm × 1.8 mm Hysteresis(distance) ≤0.05mm Response time Light ON: Max. 20㎲,Dark ON: Max. 80㎲ Response frequency 2kHz Light source Infrared LED Peak emission wavelength 940nm Operation mode Light ON/Dark ON(Built-in) Indicator Operation indicator (red LED) Weight ≈ 2.4 g Power voltage 5-24VDC ±10%(ripple P-P : max. 10%) Current consumption Max. 15mA Control output NPN open collector Load voltage ≤ 24VDC Load current Max. 50mA Residual voltage NPN: ≤1.2VDC, PNP: ≤ 1.2VDC Protection circuit Reverse polarity protection circuit, output overcurrent (short-circuit) protection circuit Insulation resistance ≥20 MΩ (250 VDC megger) Noise immunity The square wave noise (pulse width: 1㎲) by the noise simulator ±240VDC Dielectric strength 1,000VAC~ 50/60Hz for 1 minute Vibration 1.5mm amplitude (max. acceleration 196m/s²) at frequency of 10 to 2,000Hz in each X, Y, Z direction for 2 hours Shock 15,000 m/s² (approx. 1,500G) in each X, Y, Z direction for 3 times Environment_Ambient illumination Fluorescent lamp: Max. 1,000lx(received illumination) Environment_Ambient temperature -20 to 55℃, storage : -25 to 85℃ Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Protection structure IP50 (IEC standard) Connection Connector type Material Case: PBT, Sensing part: PC
$10.10
Autonics Autonics photoelectric micro sensor Through-beam type BS4-L2M-P
Sensing type Through-beam type Sensing distance 5mm Sensing target Opaque Min. sensing target ≥ 0.8 mm × 1.8 mm Hysteresis(distance) ≤0.05mm Response time Light ON: Max. 20㎲,Dark ON: Max. 80㎲ Response frequency 2kHz Light source Infrared LED Peak emission wavelength 940nm Operation mode Light ON/Dark ON(Built-in) Indicator Operation indicator (red LED) Weight ≈ 2.4 g Power voltage 5-24VDC ±10%(ripple P-P : max. 10%) Current consumption Max. 15mA Control output PNP open collector Load voltage ≤ 24VDC Load current Max. 50mA Residual voltage NPN: ≤1.2VDC, PNP: ≤ 1.2VDC Protection circuit Reverse polarity protection circuit, output overcurrent (short-circuit) protection circuit Insulation resistance ≥20 MΩ (250 VDC megger) Noise immunity The square wave noise (pulse width: 1㎲) by the noise simulator ±240VDC Dielectric strength 1,000VAC~ 50/60Hz for 1 minute Vibration 1.5mm amplitude (max. acceleration 196m/s²) at frequency of 10 to 2,000Hz in each X, Y, Z direction for 2 hours Shock 15,000 m/s² (approx. 1,500G) in each X, Y, Z direction for 3 times Environment_Ambient illumination Fluorescent lamp: Max. 1,000lx(received illumination) Environment_Ambient temperature -20 to 55℃, storage : -25 to 85℃ Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Protection structure IP50 (IEC standard) Connection Connector type Material Case: PBT, Sensing part: PC
$10.10
Autonics Autonics photoelectric micro sensor Through-beam type BS4-L2R
Sensing type Through-beam type Sensing distance 5mm Sensing target Opaque Min. sensing target ≥ 0.8 mm × 1.8 mm Hysteresis(distance) ≤0.05mm Response time Light ON: Max. 20㎲,Dark ON: Max. 80㎲ Response frequency 2kHz Light source Infrared LED Peak emission wavelength 940nm Operation mode Light ON/Dark ON(Built-in) Indicator Operation indicator (red LED) Weight ≈ 2.4 g Power voltage 5-24VDC ±10%(ripple P-P : max. 10%) Current consumption Max. 15mA Control output NPN open collector Load voltage ≤ 24VDC Load current Max. 50mA Residual voltage NPN: ≤1.2VDC, PNP: ≤ 1.2VDC Protection circuit Reverse polarity protection circuit, output overcurrent (short-circuit) protection circuit Insulation resistance ≥20 MΩ (250 VDC megger) Noise immunity The square wave noise (pulse width: 1㎲) by the noise simulator ±240VDC Dielectric strength 1,000VAC~ 50/60Hz for 1 minute Vibration 1.5mm amplitude (max. acceleration 196m/s²) at frequency of 10 to 2,000Hz in each X, Y, Z direction for 2 hours Shock 15,000 m/s² (approx. 1,500G) in each X, Y, Z direction for 3 times Environment_Ambient illumination Fluorescent lamp: Max. 1,000lx(received illumination) Environment_Ambient temperature -20 to 55℃, storage : -25 to 85℃ Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Protection structure IP50 (IEC standard) Connection Connector type Material Case: PBT, Sensing part: PC
$10.10
Autonics Autonics photoelectric micro sensor Through-beam type BS4-L2R-P
Sensing type Through-beam type Sensing distance 5mm Sensing target Opaque Min. sensing target ≥ 0.8 mm × 1.8 mm Hysteresis(distance) ≤0.05mm Response time Light ON: Max. 20㎲,Dark ON: Max. 80㎲ Response frequency 2kHz Light source Infrared LED Peak emission wavelength 940nm Operation mode Light ON/Dark ON(Built-in) Indicator Operation indicator (red LED) Weight ≈ 2.4 g Power voltage 5-24VDC ±10%(ripple P-P : max. 10%) Current consumption Max. 15mA Control output PNP open collector Load voltage ≤ 24VDC Load current Max. 50mA Residual voltage NPN: ≤1.2VDC, PNP: ≤ 1.2VDC Protection circuit Reverse polarity protection circuit, output overcurrent (short-circuit) protection circuit Insulation resistance ≥20 MΩ (250 VDC megger) Noise immunity The square wave noise (pulse width: 1㎲) by the noise simulator ±240VDC Dielectric strength 1,000VAC~ 50/60Hz for 1 minute Vibration 1.5mm amplitude (max. acceleration 196m/s²) at frequency of 10 to 2,000Hz in each X, Y, Z direction for 2 hours Shock 15,000 m/s² (approx. 1,500G) in each X, Y, Z direction for 3 times Environment_Ambient illumination Fluorescent lamp: Max. 1,000lx(received illumination) Environment_Ambient temperature -20 to 55℃, storage : -25 to 85℃ Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Protection structure IP50 (IEC standard) Connection Connector type Material Case: PBT, Sensing part: PC
$10.19
Autonics Autonics photoelectric micro sensor Through-beam type BS4-R2M
Sensing type Through-beam type Sensing distance 5mm Sensing target Opaque Min. sensing target ≥ 0.8 mm × 1.8 mm Hysteresis(distance) ≤0.05mm Response time Light ON: Max. 20㎲,Dark ON: Max. 80㎲ Response frequency 2kHz Light source Infrared LED Peak emission wavelength 940nm Operation mode Light ON/Dark ON(Built-in) Indicator Operation indicator (red LED) Weight ≈ 2.4 g Power voltage 5-24VDC ±10%(ripple P-P : max. 10%) Current consumption Max. 15mA Control output NPN open collector Load voltage ≤ 24VDC Load current Max. 50mA Residual voltage NPN: ≤1.2VDC, PNP: ≤ 1.2VDC Protection circuit Reverse polarity protection circuit, output overcurrent (short-circuit) protection circuit Insulation resistance ≥20 MΩ (250 VDC megger) Noise immunity The square wave noise (pulse width: 1㎲) by the noise simulator ±240VDC Dielectric strength 1,000VAC~ 50/60Hz for 1 minute Vibration 1.5mm amplitude (max. acceleration 196m/s²) at frequency of 10 to 2,000Hz in each X, Y, Z direction for 2 hours Shock 15,000 m/s² (approx. 1,500G) in each X, Y, Z direction for 3 times Environment_Ambient illumination Fluorescent lamp: Max. 1,000lx(received illumination) Environment_Ambient temperature -20 to 55℃, storage : -25 to 85℃ Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Protection structure IP50 (IEC standard) Connection Connector type Material Case: PBT, Sensing part: PC
$10.10
Autonics Autonics photoelectric micro sensor Through-beam type BS4-R2M-P
Sensing type Through-beam type Sensing distance 5mm Sensing target Opaque Min. sensing target ≥ 0.8 mm × 1.8 mm Hysteresis(distance) ≤0.05mm Response time Light ON: Max. 20㎲,Dark ON: Max. 80㎲ Response frequency 2kHz Light source Infrared LED Peak emission wavelength 940nm Operation mode Light ON/Dark ON(Built-in) Indicator Operation indicator (red LED) Weight ≈ 2.4 g Power voltage 5-24VDC ±10%(ripple P-P : max. 10%) Current consumption Max. 15mA Control output PNP open collector Load voltage ≤ 24VDC Load current Max. 50mA Residual voltage NPN: ≤1.2VDC, PNP: ≤ 1.2VDC Protection circuit Reverse polarity protection circuit, output overcurrent (short-circuit) protection circuit Insulation resistance ≥20 MΩ (250 VDC megger) Noise immunity The square wave noise (pulse width: 1㎲) by the noise simulator ±240VDC Dielectric strength 1,000VAC~ 50/60Hz for 1 minute Vibration 1.5mm amplitude (max. acceleration 196m/s²) at frequency of 10 to 2,000Hz in each X, Y, Z direction for 2 hours Shock 15,000 m/s² (approx. 1,500G) in each X, Y, Z direction for 3 times Environment_Ambient illumination Fluorescent lamp: Max. 1,000lx(received illumination) Environment_Ambient temperature -20 to 55℃, storage : -25 to 85℃ Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Protection structure IP50 (IEC standard) Connection Connector type Material Case: PBT, Sensing part: PC
$10.19
Autonics Autonics photoelectric micro sensor Through-beam type BS4-R2R
Sensing type Through-beam type Sensing distance 5mm Sensing target Opaque Min. sensing target ≥ 0.8 mm × 1.8 mm Hysteresis(distance) ≤0.05mm Response time Light ON: Max. 20㎲,Dark ON: Max. 80㎲ Response frequency 2kHz Light source Infrared LED Peak emission wavelength 940nm Operation mode Light ON/Dark ON(Built-in) Indicator Operation indicator (red LED) Weight ≈ 2.4 g Power voltage 5-24VDC ±10%(ripple P-P : max. 10%) Current consumption Max. 15mA Control output NPN open collector Load voltage ≤ 24VDC Load current Max. 50mA Residual voltage NPN: ≤1.2VDC, PNP: ≤ 1.2VDC Protection circuit Reverse polarity protection circuit, output overcurrent (short-circuit) protection circuit Insulation resistance ≥20 MΩ (250 VDC megger) Noise immunity The square wave noise (pulse width: 1㎲) by the noise simulator ±240VDC Dielectric strength 1,000VAC~ 50/60Hz for 1 minute Vibration 1.5mm amplitude (max. acceleration 196m/s²) at frequency of 10 to 2,000Hz in each X, Y, Z direction for 2 hours Shock 15,000 m/s² (approx. 1,500G) in each X, Y, Z direction for 3 times Environment_Ambient illumination Fluorescent lamp: Max. 1,000lx(received illumination) Environment_Ambient temperature -20 to 55℃, storage : -25 to 85℃ Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Protection structure IP50 (IEC standard) Connection Connector type Material Case: PBT, Sensing part: PC
$10.10
Autonics Autonics photoelectric micro sensor Through-beam type BS4-R2R-P
Sensing type Through-beam type Sensing distance 5mm Sensing target Opaque Min. sensing target ≥ 0.8 mm × 1.8 mm Hysteresis(distance) ≤0.05mm Response time Light ON: Max. 20㎲,Dark ON: Max. 80㎲ Response frequency 2kHz Light source Infrared LED Peak emission wavelength 940nm Operation mode Light ON/Dark ON(Built-in) Indicator Operation indicator (red LED) Weight ≈ 2.4 g Power voltage 5-24VDC ±10%(ripple P-P : max. 10%) Current consumption Max. 15mA Control output PNP open collector Load voltage ≤ 24VDC Load current Max. 50mA Residual voltage NPN: ≤1.2VDC, PNP: ≤ 1.2VDC Protection circuit Reverse polarity protection circuit, output overcurrent (short-circuit) protection circuit Insulation resistance ≥20 MΩ (250 VDC megger) Noise immunity The square wave noise (pulse width: 1㎲) by the noise simulator ±240VDC Dielectric strength 1,000VAC~ 50/60Hz for 1 minute Vibration 1.5mm amplitude (max. acceleration 196m/s²) at frequency of 10 to 2,000Hz in each X, Y, Z direction for 2 hours Shock 15,000 m/s² (approx. 1,500G) in each X, Y, Z direction for 3 times Environment_Ambient illumination Fluorescent lamp: Max. 1,000lx(received illumination) Environment_Ambient temperature -20 to 55℃, storage : -25 to 85℃ Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Protection structure IP50 (IEC standard) Connection Connector type Material Case: PBT, Sensing part: PC
$10.10
Autonics Autonics photoelectric micro sensor Through-beam type BS4-T2M-P
Sensing type Through-beam type Sensing distance 5mm Sensing target Opaque Min. sensing target ≥ 0.8 mm × 1.8 mm Hysteresis(distance) ≤0.05mm Response time Light ON: Max. 20㎲,Dark ON: Max. 80㎲ Response frequency 2kHz Light source Infrared LED Peak emission wavelength 940nm Operation mode Light ON/Dark ON(Built-in) Indicator Operation indicator (red LED) Weight ≈ 2.4 g Power voltage 5-24VDC ±10%(ripple P-P : max. 10%) Current consumption Max. 15mA Control output PNP open collector Load voltage ≤ 24VDC Load current Max. 50mA Residual voltage NPN: ≤1.2VDC, PNP: ≤ 1.2VDC Protection circuit Reverse polarity protection circuit, output overcurrent (short-circuit) protection circuit Insulation resistance ≥20 MΩ (250 VDC megger) Noise immunity The square wave noise (pulse width: 1㎲) by the noise simulator ±240VDC Dielectric strength 1,000VAC~ 50/60Hz for 1 minute Vibration 1.5mm amplitude (max. acceleration 196m/s²) at frequency of 10 to 2,000Hz in each X, Y, Z direction for 2 hours Shock 15,000 m/s² (approx. 1,500G) in each X, Y, Z direction for 3 times Environment_Ambient illumination Fluorescent lamp: Max. 1,000lx(received illumination) Environment_Ambient temperature -20 to 55℃, storage : -25 to 85℃ Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Protection structure IP50 (IEC standard) Connection Connector type Material Case: PBT, Sensing part: PC
$10.10
Autonics Autonics photoelectric micro sensor Through-beam type BS4-T2R
Sensing type Through-beam type Sensing distance 5mm Sensing target Opaque Min. sensing target ≥ 0.8 mm × 1.8 mm Hysteresis(distance) ≤0.05mm Response time Light ON: Max. 20㎲,Dark ON: Max. 80㎲ Response frequency 2kHz Light source Infrared LED Peak emission wavelength 940nm Operation mode Light ON/Dark ON(Built-in) Indicator Operation indicator (red LED) Weight ≈ 2.4 g Power voltage 5-24VDC ±10%(ripple P-P : max. 10%) Current consumption Max. 15mA Control output NPN open collector Load voltage ≤ 24VDC Load current Max. 50mA Residual voltage NPN: ≤1.2VDC, PNP: ≤ 1.2VDC Protection circuit Reverse polarity protection circuit, output overcurrent (short-circuit) protection circuit Insulation resistance ≥20 MΩ (250 VDC megger) Noise immunity The square wave noise (pulse width: 1㎲) by the noise simulator ±240VDC Dielectric strength 1,000VAC~ 50/60Hz for 1 minute Vibration 1.5mm amplitude (max. acceleration 196m/s²) at frequency of 10 to 2,000Hz in each X, Y, Z direction for 2 hours Shock 15,000 m/s² (approx. 1,500G) in each X, Y, Z direction for 3 times Environment_Ambient illumination Fluorescent lamp: Max. 1,000lx(received illumination) Environment_Ambient temperature -20 to 55℃, storage : -25 to 85℃ Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Protection structure IP50 (IEC standard) Connection Connector type Material Case: PBT, Sensing part: PC
$10.10
Autonics Autonics photoelectric micro sensor Through-beam type BS4-T2R-P
Sensing type Through-beam type Sensing distance 5mm Sensing target Opaque Min. sensing target ≥ 0.8 mm × 1.8 mm Hysteresis(distance) ≤0.05mm Response time Light ON: Max. 20㎲,Dark ON: Max. 80㎲ Response frequency 2kHz Light source Infrared LED Peak emission wavelength 940nm Operation mode Light ON/Dark ON(Built-in) Indicator Operation indicator (red LED) Weight ≈ 2.4 g Power voltage 5-24VDC ±10%(ripple P-P : max. 10%) Current consumption Max. 15mA Control output PNP open collector Load voltage ≤ 24VDC Load current Max. 50mA Residual voltage NPN: ≤1.2VDC, PNP: ≤ 1.2VDC Protection circuit Reverse polarity protection circuit, output overcurrent (short-circuit) protection circuit Insulation resistance ≥20 MΩ (250 VDC megger) Noise immunity The square wave noise (pulse width: 1㎲) by the noise simulator ±240VDC Dielectric strength 1,000VAC~ 50/60Hz for 1 minute Vibration 1.5mm amplitude (max. acceleration 196m/s²) at frequency of 10 to 2,000Hz in each X, Y, Z direction for 2 hours Shock 15,000 m/s² (approx. 1,500G) in each X, Y, Z direction for 3 times Environment_Ambient illumination Fluorescent lamp: Max. 1,000lx(received illumination) Environment_Ambient temperature -20 to 55℃, storage : -25 to 85℃ Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Protection structure IP50 (IEC standard) Connection Connector type Material Case: PBT, Sensing part: PC
$10.10
Autonics Autonics photoelectric micro sensor Through-beam type BS4-TA2M
Sensing type Through-beam type Sensing distance 5mm Sensing target Opaque Min. sensing target ≥ 0.8 mm × 1.8 mm Hysteresis(distance) ≤0.05mm Response time Light ON: Max. 20㎲,Dark ON: Max. 80㎲ Response frequency 2kHz Light source Infrared LED Peak emission wavelength 940nm Operation mode Light ON/Dark ON(Built-in) Indicator Operation indicator (red LED) Weight ≈ 2.4 g Power voltage 5-24VDC ±10%(ripple P-P : max. 10%) Current consumption Max. 15mA Control output NPN open collector Load voltage ≤ 24VDC Load current Max. 50mA Residual voltage NPN: ≤1.2VDC, PNP: ≤ 1.2VDC Protection circuit Reverse polarity protection circuit, output overcurrent (short-circuit) protection circuit Insulation resistance ≥20 MΩ (250 VDC megger) Noise immunity The square wave noise (pulse width: 1㎲) by the noise simulator ±240VDC Dielectric strength 1,000VAC~ 50/60Hz for 1 minute Vibration 1.5mm amplitude (max. acceleration 196m/s²) at frequency of 10 to 2,000Hz in each X, Y, Z direction for 2 hours Shock 15,000 m/s² (approx. 1,500G) in each X, Y, Z direction for 3 times Environment_Ambient illumination Fluorescent lamp: Max. 1,000lx(received illumination) Environment_Ambient temperature -20 to 55℃, storage : -25 to 85℃ Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Protection structure IP50 (IEC standard) Connection Connector type Material Case: PBT, Sensing part: PC
$10.10
Autonics Autonics photoelectric micro sensor Through-beam type BS4-TA2M-P
Sensing type Through-beam type Sensing distance 5mm Sensing target Opaque Min. sensing target ≥ 0.8 mm × 1.8 mm Hysteresis(distance) ≤0.05mm Response time Light ON: Max. 20㎲,Dark ON: Max. 80㎲ Response frequency 2kHz Light source Infrared LED Peak emission wavelength 940nm Operation mode Light ON/Dark ON(Built-in) Indicator Operation indicator (red LED) Weight ≈ 2.4 g Power voltage 5-24VDC ±10%(ripple P-P : max. 10%) Current consumption Max. 15mA Control output PNP open collector Load voltage ≤ 24VDC Load current Max. 50mA Residual voltage NPN: ≤1.2VDC, PNP: ≤ 1.2VDC Protection circuit Reverse polarity protection circuit, output overcurrent (short-circuit) protection circuit Insulation resistance ≥20 MΩ (250 VDC megger) Noise immunity The square wave noise (pulse width: 1㎲) by the noise simulator ±240VDC Dielectric strength 1,000VAC~ 50/60Hz for 1 minute Vibration 1.5mm amplitude (max. acceleration 196m/s²) at frequency of 10 to 2,000Hz in each X, Y, Z direction for 2 hours Shock 15,000 m/s² (approx. 1,500G) in each X, Y, Z direction for 3 times Environment_Ambient illumination Fluorescent lamp: Max. 1,000lx(received illumination) Environment_Ambient temperature -20 to 55℃, storage : -25 to 85℃ Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Protection structure IP50 (IEC standard) Connection Connector type Material Case: PBT, Sensing part: PC
$10.10
Autonics Autonics photoelectric micro sensor Through-beam type BS4-TA2R
Sensing type Through-beam type Sensing distance 5mm Sensing target Opaque Min. sensing target ≥ 0.8 mm × 1.8 mm Hysteresis(distance) ≤0.05mm Response time Light ON: Max. 20㎲,Dark ON: Max. 80㎲ Response frequency 2kHz Light source Infrared LED Peak emission wavelength 940nm Operation mode Light ON/Dark ON(Built-in) Indicator Operation indicator (red LED) Weight ≈ 2.4 g Power voltage 5-24VDC ±10%(ripple P-P : max. 10%) Current consumption Max. 15mA Control output NPN open collector Load voltage ≤ 24VDC Load current Max. 50mA Residual voltage NPN: ≤1.2VDC, PNP: ≤ 1.2VDC Protection circuit Reverse polarity protection circuit, output overcurrent (short-circuit) protection circuit Insulation resistance ≥20 MΩ (250 VDC megger) Noise immunity The square wave noise (pulse width: 1㎲) by the noise simulator ±240VDC Dielectric strength 1,000VAC~ 50/60Hz for 1 minute Vibration 1.5mm amplitude (max. acceleration 196m/s²) at frequency of 10 to 2,000Hz in each X, Y, Z direction for 2 hours Shock 15,000 m/s² (approx. 1,500G) in each X, Y, Z direction for 3 times Environment_Ambient illumination Fluorescent lamp: Max. 1,000lx(received illumination) Environment_Ambient temperature -20 to 55℃, storage : -25 to 85℃ Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Protection structure IP50 (IEC standard) Connection Connector type Material Case: PBT, Sensing part: PC
$10.10
Autonics Autonics photoelectric micro sensor Through-beam type BS4-TA2R-P
Sensing type Through-beam type Sensing distance 5mm Sensing target Opaque Min. sensing target ≥ 0.8 mm × 1.8 mm Hysteresis(distance) ≤0.05mm Response time Light ON: Max. 20㎲,Dark ON: Max. 80㎲ Response frequency 2kHz Light source Infrared LED Peak emission wavelength 940nm Operation mode Light ON/Dark ON(Built-in) Indicator Operation indicator (red LED) Weight ≈ 2.4 g Power voltage 5-24VDC ±10%(ripple P-P : max. 10%) Current consumption Max. 15mA Control output PNP open collector Load voltage ≤ 24VDC Load current Max. 50mA Residual voltage NPN: ≤1.2VDC, PNP: ≤ 1.2VDC Protection circuit Reverse polarity protection circuit, output overcurrent (short-circuit) protection circuit Insulation resistance ≥20 MΩ (250 VDC megger) Noise immunity The square wave noise (pulse width: 1㎲) by the noise simulator ±240VDC Dielectric strength 1,000VAC~ 50/60Hz for 1 minute Vibration 1.5mm amplitude (max. acceleration 196m/s²) at frequency of 10 to 2,000Hz in each X, Y, Z direction for 2 hours Shock 15,000 m/s² (approx. 1,500G) in each X, Y, Z direction for 3 times Environment_Ambient illumination Fluorescent lamp: Max. 1,000lx(received illumination) Environment_Ambient temperature -20 to 55℃, storage : -25 to 85℃ Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Protection structure IP50 (IEC standard) Connection Connector type Material Case: PBT, Sensing part: PC
$10.10
Autonics Autonics photoelectric micro sensor Through-beam type BS4-Y2M
Sensing type Through-beam type Sensing distance 5mm Sensing target Opaque Min. sensing target ≥ 0.8 mm × 1.8 mm Hysteresis(distance) ≤0.05mm Response time Light ON: Max. 20㎲,Dark ON: Max. 80㎲ Response frequency 2kHz Light source Infrared LED Peak emission wavelength 940nm Operation mode Light ON/Dark ON(Built-in) Indicator Operation indicator (red LED) Weight ≈ 2.4 g Power voltage 5-24VDC ±10%(ripple P-P : max. 10%) Current consumption Max. 15mA Control output NPN open collector Load voltage ≤ 24VDC Load current Max. 50mA Residual voltage NPN: ≤1.2VDC, PNP: ≤ 1.2VDC Protection circuit Reverse polarity protection circuit, output overcurrent (short-circuit) protection circuit Insulation resistance ≥20 MΩ (250 VDC megger) Noise immunity The square wave noise (pulse width: 1㎲) by the noise simulator ±240VDC Dielectric strength 1,000VAC~ 50/60Hz for 1 minute Vibration 1.5mm amplitude (max. acceleration 196m/s²) at frequency of 10 to 2,000Hz in each X, Y, Z direction for 2 hours Shock 15,000 m/s² (approx. 1,500G) in each X, Y, Z direction for 3 times Environment_Ambient illumination Fluorescent lamp: Max. 1,000lx(received illumination) Environment_Ambient temperature -20 to 55℃, storage : -25 to 85℃ Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Protection structure IP50 (IEC standard) Connection Connector type Material Case: PBT, Sensing part: PC
$10.10
