Autonics Photoelectric Sensors

Sensing type Diffuse reflective type Sensing distance 100mm Sensing target Opaque, Translucent material Light source Infrared LED(850nm) Response time Max. 1ms Power voltage 10-30VDC  ±10%(ripple P-P: max. 10%) Current consumption Max. 30mA Sensitivity adjustment Sensitivity adjuster Operation mode Light ON/Dark ON(set by switch) Control output PNP open collector Connection type Ø4mm, 3-wire, 2m (emitter of through-beam type: Ø4mm, 2-wire, 2m)(AWG26, core diameter: 0.52mm, number of cores: 20, insulator out diameter: Ø1mm) Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) Environment_Ambient temperature -25 to 60℃, storage: -40 to 70℃ Protection structure IP65(IEC standard) Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Hysteresis(distance) Max. 20% of sensing distance Material ㆍCase: polycarbonateㆍLED CAP: polycarbonateㆍLens, Lens cover: polymethyl methacrylate Accessories_Common Mounting bracket, M3 bolt: 2, adjustment screwdriver Weight Approx. 60g(approx. 6g)

Read more less

Sensing type Through-beam type Sensing distance 5m Sensing target Opaque material of min. Ø7mm Light source Red LED(660nm) Response time Max. 1ms Power voltage 10-30VDC  ±10%(ripple P-P: max. 10%) Current consumption Emitter/Receiver: Max. 20mA Sensitivity adjustment Sensitivity adjuster Operation mode Light ON/Dark ON(set by control wire) Control output NPN open collector Connection type Cable type(Ø4, 2m) Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) Environment_Ambient temperature -25 to 60℃, storage: -30 to 70℃ Protection structure IP67(IEC standard) Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Material ㆍCase: brass, Ni-plateㆍLens, Lens cover: polymethyl methacrylate acrylic Weight Approx. 220g (approx. 140g)

Read more less

Sensing type Diffuse reflective type Sensing distance 400mm Sensing target Opaque, Translucent material Light source Red LED(660nm) Response time Max. 1ms Power voltage 10-30VDC  ±10%(ripple P-P: max. 10%) Current consumption Max. 30mA Sensitivity adjustment Sensitivity adjuster Operation mode Light ON/Dark ON(set by control wire) Control output NPN open collector Connection type Cable type(Ø4, 2m) Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) Environment_Ambient temperature -25 to 60℃, storage: -30 to 70℃ Protection structure IP67(IEC standard) Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Hysteresis(distance) Max. 20% at rated sensing distance Material ㆍCase: brass, Ni-plateㆍLens, Lens cover: polymethyl methacrylate acrylic Weight Approx. 150g(approx. 70g)

Read more less

Sensing type Diffuse reflective type Sensing distance 1m Sensing target Opaque, Translucent material Light source Red LED(660nm) Response time Max. 1ms Power voltage 10-30VDC  ±10%(ripple P-P: max. 10%) Current consumption Max. 30mA Sensitivity adjustment Sensitivity adjuster Operation mode Light ON/Dark ON(set by switch) Control output NPN open collector Connection type Ø4mm, 3-wire, 2m (emitter of through-beam type: Ø4mm, 2-wire, 2m)(AWG26, core diameter: 0.52mm, number of cores: 20, insulator out diameter: Ø1mm) Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) Environment_Ambient temperature -25 to 60℃, storage: -40 to 70℃ Protection structure IP65(IEC standard) Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Hysteresis(distance) Max. 20% of sensing distance Material ㆍCase: polycarbonateㆍLED CAP: polycarbonateㆍLens, Lens cover: polymethyl methacrylate Accessories_Common Mounting bracket, M3 bolt: 2, adjustment screwdriver Weight Approx. 60g(approx. 6g)

Read more less

Sensing type Through-beam type Sensing distance 10m Sensing target Opaque material of min. Ø15mm Light source Red LED(660nm) Response time Max. 1ms Power voltage 10-30VDC  ±10%(ripple P-P: max. 10%) Current consumption Emitter/Receiver: Max. 20mA Sensitivity adjustment Sensitivity adjuster Operation mode Light ON/Dark ON(set by switch) Control output NPN open collector Connection type Ø4mm, 3-wire, 2m (emitter of through-beam type: Ø4mm, 2-wire, 2m)(AWG26, core diameter: 0.52mm, number of cores: 20, insulator out diameter: Ø1mm) Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) Environment_Ambient temperature -25 to 60℃, storage: -40 to 70℃ Protection structure IP65(IEC standard) Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Material ㆍCase: polycarbonateㆍLED CAP: polycarbonateㆍLens, Lens cover: polymethyl methacrylate Accessories_Common Mounting bracket, M3 bolt: 4, adjustment screwdriver Weight Approx. 145g(approx. 95g)

Read more less

Sensing type Through-beam type Applicable pipe Using binding band: Ø6 to 13mm,Using protection bracket: Ø12.7mm (1/2 inch) transparent pipe in 1mm thickness (FEP (fluoroplastic) or with equivalent transparency) Standard sensing target Liquid in a pipe Light source Infrared LED(950nm) Response time Max. 2ms Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Current consumption Max. 30mA Operation mode Light ON/Dark ON(set by button) Control output NPN open collector Connection type Cable type(Ø2.5, 1m) Environment_Ambient illumination Sunlight/Incandescent lamp: Max. 3,000lx for each(received illumination) Environment_Ambient temperature 10 to 55℃, storage: -25 to 65℃ Protection structure IP64 Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Material Case: Polycarbonate Accessories Binding band: 2, Anti-slip tube: 2 Weight Approx. 50g(approx. 13g)

Read more less

Sensing type Diffuse reflective type Sensing distance 200mm Sensing target Opaque, Translucent material Light source Infrared LED(940nm) Response time Max. 3ms Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Current consumption Max. 40mA Sensitivity adjustment Sensitivity adjuster Operation mode Light ON(option: Dark ON) Control output NPN open collector Connection type Cable type(Ø4, 2m) Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) Environment_Ambient temperature -10 to 60℃, storage: -25 to 70℃ Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Hysteresis(distance) Max. 10% at sensing distance Material Case: Acrylonitrile butadiene styrene, Sensing part: Acryl, Bracket: Steel plate cold commercial, Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum Unit weight (packaged weight) ≈ 88 g (≈ 156 g)

Read more less

Sensing type Diffuse reflective type Sensing distance 100mm Sensing target Opaque, Translucent material Light source Infrared LED(850nm) Response time Max. 1ms Power voltage 10-30VDC  ±10%(ripple P-P: max. 10%) Current consumption Max. 30mA Sensitivity adjustment Sensitivity adjuster Operation mode Light ON/Dark ON(set by control wire) Control output NPN open collector Connection type Cable type(Ø4, 2m) Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) Environment_Ambient temperature -25 to 60℃, storage: -30 to 70℃ Protection structure IP67(IEC standard) Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Hysteresis(distance) Max. 20% at rated sensing distance Material ㆍCase: brass, Ni-plateㆍLens, Lens cover: polymethyl methacrylate acrylic Weight Approx. 150g(approx. 70g)

Read more less

Sensing type Diffuse reflective type Sensing distance 2m Sensing target Opaque, Translucent material Light source Infrared LED(850nm) Response time Max. 1ms Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Current consumption Max. 15mA Sensitivity adjustment Sensitivity adjuster Operation mode Dark ON Control output PNP open collector Connection type Cable type(Ø3, 2m) Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) Environment_Ambient temperature -25 to 55℃, storage: -25 to 70℃ Protection structure IP64 Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Hysteresis(distance) Max. 20% at sensing distance Material Case: Acrylonitrile butadiene styrene, Sensing part: Polycarbonate, Indicator: Polycarbonate, Adjuster: IXEF Accessories Adjuster driver Weight Approx. 50g

Read more less

Sensing type Through-beam type Sensing distance 15m Sensing target Opaque material of min. Ø12mm Light source Infrared LED(850nm) Response time Max. 1ms Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Current consumption Emitter/Receiver: Max. 20mA Sensitivity adjustment Sensitivity adjuster Operation mode Light ON/Dark ON(set by switch) Control output NPN open collector Connection type Cable type(Ø3.5, 2m) Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) Environment_Ambient temperature -25 to 55℃, storage: -40 to 70℃ Protection structure IP65 Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Material Case: Polycarbonate+Acrylonitrile butadiene styrene, LED Cap: Polycarbonate, Sensing part: Polymethyl methacrylate,Bracket: SUS304(steel use stainless 304), Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum,Sleeve: Brass, Ni-plate Accessories_Common Fixing bracket, M3 Bolts: 4, M3 Nuts: 4, Adjuster driver Weight Approx. 115g (approx. 90g)

Read more less

Sensing type Through-beam type Sensing distance 10m Sensing target Opaque material of min. Ø12mm Light source Red LED(660nm) Response time Max. 1ms Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Current consumption Emitter/Receiver: Max. 20mA Sensitivity adjustment Sensitivity adjuster Operation mode Light ON/Dark ON(set by switch) Control output PNP open collector Connection type Cable type(Ø3.5, 2m) Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) Environment_Ambient temperature -25 to 55℃, storage: -40 to 70℃ Protection structure IP65 Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Material Case: Polycarbonate+Acrylonitrile butadiene styrene, LED Cap: Polycarbonate, Sensing part: Polymethyl methacrylate,Bracket: SUS304(steel use stainless 304), Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum,Sleeve: Brass, Ni-plate Accessories_Common Fixing bracket, M3 Bolts: 4, M3 Nuts: 4, Adjuster driver Weight Approx. 115g (approx. 90g)

Read more less

Sensing type Retroreflective type(built-in polarizing filter) Sensing distance 3m(MS-2A) Sensing target Opaque material of min. Ø75mm Light source Red LED(660nm) Response time Max. 1ms Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Current consumption Max. 30mA Sensitivity adjustment Sensitivity adjuster Operation mode Light ON/Dark ON(set by switch) Control output PNP open collector Connection type Cable type(Ø3.5, 2m) Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) Environment_Ambient temperature -25 to 55℃, storage: -40 to 70℃ Protection structure IP65 Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Material Case: Polycarbonate+Acrylonitrile butadiene styrene, LED Cap: Polycarbonate, Sensing part: Polymethyl methacrylate,Bracket: SUS304(steel use stainless 304), Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum,Sleeve: Brass, Ni-plate Accessories_Common Fixing bracket, M3 Bolts: 2, M3 Nuts: 2, Adjuster driver Accessories_Individual Reflector(MS-2A) Weight Approx. 85g (approx. 60g)

Read more less

Sensing type Diffuse reflective type Sensing distance 100mm Sensing target Opaque, Translucent material Light source Infrared LED(850nm) Response time Max. 1ms Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Current consumption Max. 30mA Sensitivity adjustment Sensitivity adjuster Operation mode Light ON/Dark ON(set by switch) Control output PNP open collector Connection type Cable type(Ø3.5, 2m) Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) Environment_Ambient temperature -25 to 55℃, storage: -40 to 70℃ Protection structure IP65 Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Hysteresis(distance) Max. 20% of sensing distance Material Case: Polycarbonate+Acrylonitrile butadiene styrene, LED Cap: Polycarbonate, Sensing part: Polymethyl methacrylate,Bracket: SUS304(steel use stainless 304), Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum,Sleeve: Brass, Ni-plate Accessories_Common Fixing bracket, M3 Bolts: 2, M3 Nuts: 2, Adjuster driver Weight Approx. 70g (approx. 45g)

Read more less

Sensing type BGS reflective type Sensing distance 10 to 30mm Sensing target Opaque, Translucent material Light source Red LED(660nm) Response time Max. 1.5ms Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Current consumption Max. 30mA Sensitivity adjustment Sensitivity adjuster Operation mode Light ON/Dark ON(set by switch) Control output PNP open collector Connection type Cable type(Ø3.5, 2m) Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) Environment_Ambient temperature -25 to 55℃, storage: -40 to 70℃ Protection structure IP65 Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Hysteresis(distance) Max. 10% of sensing distance Min. diameter of transmitting spot Approx. Ø5.0mm Material Case: Polycarbonate+Acrylonitrile butadiene styrene, LED Cap: Polycarbonate, Sensing part: Polymethyl methacrylate,Bracket: SUS304(steel use stainless 304), Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum,Sleeve: Brass, Ni-plate Accessories Fixing bracket, M3 Bolts: 2, M3 Nuts: 2, Adjuster driver Weight Approx. 50g

Read more less

Sensing type Through-beam type Sensing distance 20m Sensing target Opaque material of min. Ø20mm Light source Red LED(660nm) Response time Max. 1ms Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Current consumption Emitter/Receiver: Max. 20mA Sensitivity adjustment Sensitivity adjuster Operation mode Light ON/Dark ON(set by switch) Control output NPN, PNP open collector simultaneous output Connection type Cable type(Ø4, 2.1m) Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) Environment_Ambient temperature -25 to 55℃, storage: -40 to 70℃ Protection structure IP67 Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Material Case: Polycarbonates, LED indicator: Polycarbonates, Sensing part: Polymethyl methacrylate acrylic Accessories_Common Adjustment screwdriver, fixing bracket, M18 fixing nut, fixing cap, M3 bolt, M3 nut Weight Approx. 190g(approx. 120g)

Read more less

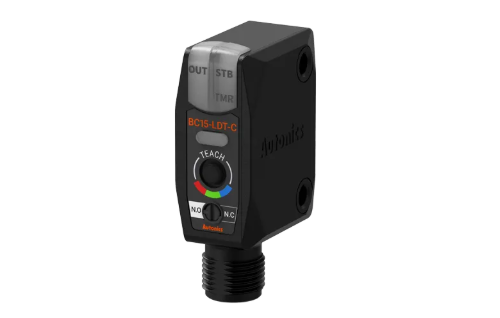

Sensing type Convergent reflective type Sensing distance 15mm Sensing target Color(opaque,translucent Material) Light source Full Color LED(red, green,blue) Response time 500㎲ Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Current consumption Max. 30mA Sensitivity adjustment 3-level Operation mode color only,color + intensity Control output PNP open collector Timer function Timer Function Connection type Connector type(M12) Environment_Ambient illumination Incandescent lamp: Max. 3,000lx Environment_Ambient temperature -10 to 55℃, storage: -25 to 75℃ Protection structure IP67 Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Hysteresis(distance) Max. 20% of sensing distance(may vary by sensing mode or sensitivity) Spot size 1.24×6.7mm(rectangular) Sensing mode C(color only) mode, C+I(color + intensity) mode Output mode Color match output, color mismatch output External input External SET cable input Material Case: polycarbonate, Sensing part: acrylic, Bracket: stainless steel 304 , Bolt: carbon steel Accessories Bracket, Fixing bolts: 2 , Adjustment screwdriver: 1 Weight Approx. 80g(approx. 14g)

Read more less

Sensing type Diffuse reflective type Sensing distance 300mm Light source Red LED(660nm) Response time Max. 1ms Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Current consumption Max. 30mA Sensitivity adjustment Sensitivity adjuster Operation mode Light ON/Dark ON(set by switch) Control output NPN, PNP open collector simultaneous output Connection type Cable type(Ø4, 2.1m) Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) Environment_Ambient temperature -25 to 55℃, storage: -40 to 70℃ Protection structure IP67 Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Hysteresis(distance) Max. 20% at rated sensing distance Material Case: Polycarbonates, LED indicator: Polycarbonates, Sensing part: Polymethyl methacrylate acrylic Accessories_Common Adjustment screwdriver, fixing bracket, M18 fixing nut, fixing cap, M3 bolt, M3 nut Weight Approx. 130g(approx. 60g)

Read more less

Sensing type Retroreflective type(built-in polarizing filter) Sensing distance 4m(MS-2A) Sensing target Opaque material of min. Ø75mm Light source Red LED(660nm) Response time Max. 1ms Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Current consumption Max. 30mA Sensitivity adjustment Sensitivity adjuster Operation mode Light ON/Dark ON(set by switch) Control output NPN, PNP open collector simultaneous output Connection type Cable type(Ø4, 2.1m) Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) Environment_Ambient temperature -25 to 55℃, storage: -40 to 70℃ Protection structure IP67 Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Material Case: Polycarbonates, LED indicator: Polycarbonates, Sensing part: Polymethyl methacrylate acrylic Accessories_Individual Reflector(MS-2A) Accessories_Common Adjustment screwdriver, fixing bracket, M18 fixing nut, fixing cap, M3 bolt, M3 nut Weight Approx. 140g(Approx. 60g)

Read more less

Sensing type Diffuse reflective type Sensing distance 100mm Sensing target Opaque, Translucent material Light source Infrared LED(850nm) Response time Max. 1ms Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Current consumption Max. 30mA Sensitivity adjustment Sensitivity adjuster Operation mode Light ON/Dark ON(set by switch) Control output NPN open collector Connection type Connector type(M8) Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) Environment_Ambient temperature -25 to 55℃, storage: -40 to 70℃ Protection structure IP67 Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Hysteresis(distance) Max. 20% of sensing distance Material Case: Polycarbonate+Acrylonitrile butadiene styrene, LED Cap: Polycarbonate, Sensing part: Polymethyl methacrylate,Bracket: SUS304(steel use stainless 304), Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum,Sleeve: Brass, Ni-plate Accessories_Common Fixing bracket, M3 Bolts: 2, M3 Nuts: 2, Adjuster driver Weight Approx. 35g (approx. 10g)

Read more less

Sensing type Diffuse reflective type Sensing distance 100mm Sensing target Opaque, Translucent material Light source Infrared LED(850nm) Response time Max. 1ms Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Current consumption Max. 30mA Sensitivity adjustment Sensitivity adjuster Operation mode Light ON/Dark ON(set by switch) Control output PNP open collector Connection type Connector type(M8) Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) Environment_Ambient temperature -25 to 55℃, storage: -40 to 70℃ Protection structure IP67 Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Hysteresis(distance) Max. 20% of sensing distance Material Case: Polycarbonate+Acrylonitrile butadiene styrene, LED Cap: Polycarbonate, Sensing part: Polymethyl methacrylate,Bracket: SUS304(steel use stainless 304), Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum,Sleeve: Brass, Ni-plate Accessories_Common Fixing bracket, M3 Bolts: 2, M3 Nuts: 2, Adjuster driver Weight Approx. 35g (approx. 10g)

Read more less

Sensing type Through-beam type Sensing distance 10m Sensing target Opaque material of min. Ø12mm Light source Red LED(660nm) Response time Max. 1ms Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Current consumption Emitter/Receiver: Max. 20mA Sensitivity adjustment Sensitivity adjuster Operation mode Light ON/Dark ON(set by switch) Control output NPN open collector Connection type Connector type(M8) Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) Environment_Ambient temperature -25 to 55℃, storage: -40 to 70℃ Protection structure IP67 Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Material Case: Polycarbonate+Acrylonitrile butadiene styrene, LED Cap: Polycarbonate, Sensing part: Polymethyl methacrylate,Bracket: SUS304(steel use stainless 304), Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum,Sleeve: Brass, Ni-plate Accessories_Common Fixing bracket, M3 Bolts: 4, M3 Nuts: 4, Adjuster driver Weight Approx. 45g (approx. 20g)

Read more less

Sensing type Through-beam type Sensing distance 10m Sensing target Opaque material of min. Ø12mm Light source Red LED(660nm) Response time Max. 1ms Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Current consumption Emitter/Receiver: Max. 20mA Sensitivity adjustment Sensitivity adjuster Operation mode Light ON/Dark ON(set by switch) Control output PNP open collector Connection type Connector type(M8) Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) Environment_Ambient temperature -25 to 55℃, storage: -40 to 70℃ Protection structure IP67 Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Material Case: Polycarbonate+Acrylonitrile butadiene styrene, LED Cap: Polycarbonate, Sensing part: Polymethyl methacrylate,Bracket: SUS304(steel use stainless 304), Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum,Sleeve: Brass, Ni-plate Accessories_Common Fixing bracket, M3 Bolts: 4, M3 Nuts: 4, Adjuster driver Weight Approx. 45g (approx. 20g)

Read more less

Sensing type Through-beam type Sensing distance 15m Sensing target Opaque material of min. Ø12mm Light source Infrared LED(850nm) Response time Max. 1ms Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Current consumption Emitter/Receiver: Max. 20mA Sensitivity adjustment Sensitivity adjuster Operation mode Light ON/Dark ON(set by switch) Control output NPN open collector Connection type Connector type(M8) Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) Environment_Ambient temperature -25 to 55℃, storage: -40 to 70℃ Protection structure IP67 Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Material Case: Polycarbonate+Acrylonitrile butadiene styrene, LED Cap: Polycarbonate, Sensing part: Polymethyl methacrylate,Bracket: SUS304(steel use stainless 304), Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum,Sleeve: Brass, Ni-plate Accessories_Common Fixing bracket, M3 Bolts: 4, M3 Nuts: 4, Adjuster driver Weight Approx. 45g (approx. 20g)

Read more less

Sensing type Through-beam type Sensing distance 15m Sensing target Opaque material of min. Ø12mm Light source Infrared LED(850nm) Response time Max. 1ms Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Current consumption Emitter/Receiver: Max. 20mA Sensitivity adjustment Sensitivity adjuster Operation mode Light ON/Dark ON(set by switch) Control output PNP open collector Connection type Connector type(M8) Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) Environment_Ambient temperature -25 to 55℃, storage: -40 to 70℃ Protection structure IP67 Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Material Case: Polycarbonate+Acrylonitrile butadiene styrene, LED Cap: Polycarbonate, Sensing part: Polymethyl methacrylate,Bracket: SUS304(steel use stainless 304), Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum,Sleeve: Brass, Ni-plate Accessories_Common Fixing bracket, M3 Bolts: 4, M3 Nuts: 4, Adjuster driver Weight Approx. 45g (approx. 20g)

Read more less

Sensing type Diffuse reflective type Sensing distance 300mm Sensing target Opaque, Translucent material Light source Red LED(660nm) Response time Max. 1ms Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Current consumption Max. 30mA Sensitivity adjustment Sensitivity adjuster Operation mode Light ON/Dark ON(set by switch) Control output NPN open collector Connection type Connector type(M8) Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) Environment_Ambient temperature -25 to 55℃, storage: -40 to 70℃ Protection structure IP67 Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Hysteresis(distance) Max. 20% of sensing distance Material Case: Polycarbonate+Acrylonitrile butadiene styrene, LED Cap: Polycarbonate, Sensing part: Polymethyl methacrylate,Bracket: SUS304(steel use stainless 304), Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum,Sleeve: Brass, Ni-plate Accessories_Common Fixing bracket, M3 Bolts: 2, M3 Nuts: 2, Adjuster driver Weight Approx. 35g (approx. 10g)

Read more less

Sensing type Diffuse reflective type Sensing distance 300mm Sensing target Opaque, Translucent material Light source Red LED(660nm) Response time Max. 1ms Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Current consumption Max. 30mA Sensitivity adjustment Sensitivity adjuster Operation mode Light ON/Dark ON(set by switch) Control output PNP open collector Connection type Connector type(M8) Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) Environment_Ambient temperature -25 to 55℃, storage: -40 to 70℃ Protection structure IP67 Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Hysteresis(distance) Max. 20% of sensing distance Material Case: Polycarbonate+Acrylonitrile butadiene styrene, LED Cap: Polycarbonate, Sensing part: Polymethyl methacrylate,Bracket: SUS304(steel use stainless 304), Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum,Sleeve: Brass, Ni-plate Accessories_Common Fixing bracket, M3 Bolts: 2, M3 Nuts: 2, Adjuster driver Weight Approx. 35g (approx. 10g)

Read more less

Sensing type Retroreflective type(built-in polarizing filter) Sensing distance 3m(MS-2A) Sensing target Opaque material of min. Ø75mm Light source Red LED(660nm) Response time Max. 1ms Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Current consumption Max. 30mA Sensitivity adjustment Sensitivity adjuster Operation mode Light ON/Dark ON(set by switch) Control output PNP open collector Connection type Connector type(M8) Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) Environment_Ambient temperature -25 to 55℃, storage: -40 to 70℃ Protection structure IP67 Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Material Case: Polycarbonate+Acrylonitrile butadiene styrene, LED Cap: Polycarbonate, Sensing part: Polymethyl methacrylate,Bracket: SUS304(steel use stainless 304), Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum,Sleeve: Brass, Ni-plate Accessories_Common Fixing bracket, M3 Bolts: 2, M3 Nuts: 2, Adjuster driver Accessories_Individual Reflector(MS-2A) Weight Approx. 55g (approx. 30g)

Read more less

Sensing type Narrow beam reflective type Sensing distance 30 to 70mm Sensing target Opaque, Translucent material(min. sensing target: min. Ø0.2mm(copper wire)) Light source Red LED(650nm) Response time Max. 1ms Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Current consumption Max. 30mA Sensitivity adjustment Sensitivity adjuster Operation mode Light ON/Dark ON(set by switch) Control output NPN open collector Connection type Cable type(Ø3.5, 2m) Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) Environment_Ambient temperature -25 to 55℃, storage: -40 to 70℃ Protection structure IP65 Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Hysteresis(distance) Max. 25% of sensing distance Min. diameter of transmitting spot Approx. Ø2.0mm Material Case: Polycarbonate+Acrylonitrile butadiene styrene, LED Cap: Polycarbonate, Sensing part: Polymethyl methacrylate,Bracket: SUS304(steel use stainless 304), Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum,Sleeve: Brass, Ni-plate Accessories Fixing bracket, M3 Bolts: 2, M3 Nuts: 2, Adjuster driver Weight Approx. 45g

Read more less

Sensing type Narrow beam reflective type Sensing distance 30 to 70mm Sensing target Opaque, Translucent material(min. sensing target: min. Ø0.2mm(copper wire)) Light source Red LED(650nm) Response time Max. 1ms Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Current consumption Max. 30mA Sensitivity adjustment Sensitivity adjuster Operation mode Light ON/Dark ON(set by switch) Control output PNP open collector Connection type Cable type(Ø3.5, 2m) Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) Environment_Ambient temperature -25 to 55℃, storage: -40 to 70℃ Protection structure IP65 Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Hysteresis(distance) Max. 25% of sensing distance Min. diameter of transmitting spot Approx. Ø2.0mm Material Case: Polycarbonate+Acrylonitrile butadiene styrene, LED Cap: Polycarbonate, Sensing part: Polymethyl methacrylate,Bracket: SUS304(steel use stainless 304), Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum,Sleeve: Brass, Ni-plate Accessories Fixing bracket, M3 Bolts: 2, M3 Nuts: 2, Adjuster driver Weight Approx. 45g

Read more less

Oil resistant/oil proof Oil resistant type Sensing type Diffuse reflective type Sensing distance 100mm Sensing target Opaque, Translucent material Light source Infrared LED(850nm) Response time Max. 1ms Power voltage 10-30VDC  ±10%(ripple P-P: max. 10%) Current consumption Max. 30mA Sensitivity adjustment Sensitivity adjuster Operation mode Light ON/Dark ON(set by switch) Control output NPN open collector Connection type Ø4mm, 3-wire, 2m (emitter of through-beam type: Ø4mm, 2-wire, 2m)(AWG26, core diameter: 0.52mm, number of cores: 20, insulator out diameter: Ø1mm) Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) Environment_Ambient temperature -25 to 60℃, storage: -40 to 70℃ Protection structure IP67 (IEC standard), IP67G (JEM standard) Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Hysteresis(distance) Max. 20% at rated sensing distance Material Case: Acrylonitrile butadiene styrene, LED Cap: PA12, Lens cover: Polymethyl Methacrylate Acrylic Accessories_Common Mounting bracket, M3 bolt: 2, adjustment screwdriver Weight Approx. 100g(approx. 50g)

Read more less

Oil resistant/oil proof Oil proof type Sensing type Diffuse reflective type Sensing distance 100mm Sensing target Opaque, Translucent material Light source Infrared LED(850nm) Response time Max. 1ms Power voltage 10-30VDC  ±10%(ripple P-P: max. 10%) Current consumption Max. 30mA Sensitivity adjustment Sensitivity adjuster Operation mode Light ON/Dark ON(set by switch) Control output NPN open collector Connection type Ø4mm, 3-wire, 2m (emitter of through-beam type: Ø4mm, 2-wire, 2m)(AWG26, core diameter: 0.52mm, number of cores: 20, insulator out diameter: Ø1mm) Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) Environment_Ambient temperature -25 to 60℃, storage: -40 to 70℃ Protection structure IP67(IEC standard), IP67F(JEM standard) Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Hysteresis(distance) Max. 20% at rated sensing distance Material Case: Acrylonitrile butadiene styrene, LED Cap: PA12, Lens cover: Polymethyl Methacrylate Acrylic Accessories_Common Fixing bracket, M3 Bolts: 2, M3 Nuts: 2, Adjuster driver Weight Approx. 100g(approx. 50g)

Read more less

Oil resistant/oil proof Oil resistant type Sensing type Diffuse reflective type Sensing distance 100mm Sensing target Opaque, Translucent material Light source Infrared LED(850nm) Response time Max. 1ms Power voltage 10-30VDC  ±10%(ripple P-P: max. 10%) Current consumption Max. 30mA Sensitivity adjustment Sensitivity adjuster Operation mode Light ON/Dark ON(set by switch) Control output PNP open collector Connection type Ø4mm, 3-wire, 2m (emitter of through-beam type: Ø4mm, 2-wire, 2m)(AWG26, core diameter: 0.52mm, number of cores: 20, insulator out diameter: Ø1mm) Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) Environment_Ambient temperature -25 to 60℃, storage: -40 to 70℃ Protection structure IP67 (IEC standard), IP67G (JEM standard) Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Hysteresis(distance) Max. 20% at rated sensing distance Material Case: Acrylonitrile butadiene styrene, LED Cap: PA12, Lens cover: Polymethyl Methacrylate Acrylic Accessories_Common Mounting bracket, M3 bolt: 2, adjustment screwdriver Weight Approx. 100g(approx. 50g)

Read more less

Oil resistant/oil proof Oil proof type Sensing type Diffuse reflective type Sensing distance 100mm Sensing target Opaque, Translucent material Light source Infrared LED(850nm) Response time Max. 1ms Power voltage 10-30VDC  ±10%(ripple P-P: max. 10%) Current consumption Max. 30mA Sensitivity adjustment Sensitivity adjuster Operation mode Light ON/Dark ON(set by switch) Control output NPN open collector Connection type Ø4mm, 3-wire, 300mm (emitter of through-beam type: Ø4mm, 2-wire, 300mm),M12 connector(AWG26, core diameter: 0.52mm, number of cores: 20, insulator out diameter: Ø1mm) Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) Environment_Ambient temperature -25 to 60℃, storage: -40 to 70℃ Protection structure IP67(IEC standard), IP67F(JEM standard) Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Hysteresis(distance) Max. 20% at rated sensing distance Material Case: Acrylonitrile butadiene styrene, LED Cap: PA12, Lens cover: Polymethyl Methacrylate Acrylic Accessories_Common Fixing bracket, M3 Bolts: 2, M3 Nuts: 2, Adjuster driver Weight Approx. 80g(approx. 30g)

Read more less

Oil resistant/oil proof Oil proof type Sensing type Diffuse reflective type Sensing distance 100mm Sensing target Opaque, Translucent material Light source Infrared LED(850nm) Response time Max. 1ms Power voltage 10-30VDC  ±10%(ripple P-P: max. 10%) Current consumption Max. 30mA Sensitivity adjustment Sensitivity adjuster Operation mode Light ON/Dark ON(set by switch) Control output NPN open collector Connection type M8 connector Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) Environment_Ambient temperature -25 to 60℃, storage: -40 to 70℃ Protection structure IP67(IEC standard), IP67F(JEM standard) Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Hysteresis(distance) Max. 20% at rated sensing distance Material Case: Acrylonitrile butadiene styrene, LED Cap: PA12, Lens cover: Polymethyl Methacrylate Acrylic Accessories_Common Fixing bracket, M3 Bolts: 2, M3 Nuts: 2, Adjuster driver Weight Approx. 60g(approx. 6g)

Read more less

Oil resistant/oil proof Oil proof type Sensing type Diffuse reflective type Sensing distance 100mm Sensing target Opaque, Translucent material Light source Infrared LED(850nm) Response time Max. 1ms Power voltage 10-30VDC  ±10%(ripple P-P: max. 10%) Current consumption Max. 30mA Sensitivity adjustment Sensitivity adjuster Operation mode Light ON/Dark ON(set by switch) Control output PNP open collector Connection type M8 connector Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) Environment_Ambient temperature -25 to 60℃, storage: -40 to 70℃ Protection structure IP67(IEC standard), IP67F(JEM standard) Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Hysteresis(distance) Max. 20% at rated sensing distance Material Case: Acrylonitrile butadiene styrene, LED Cap: PA12, Lens cover: Polymethyl Methacrylate Acrylic Accessories_Common Fixing bracket, M3 Bolts: 2, M3 Nuts: 2, Adjuster driver Weight Approx. 60g(approx. 6g)

Read more less

Oil resistant/oil proof Oil proof type Sensing type Diffuse reflective type Sensing distance 100mm Sensing target Opaque, Translucent material Light source Infrared LED(850nm) Response time Max. 1ms Power voltage 10-30VDC  ±10%(ripple P-P: max. 10%) Current consumption Max. 30mA Sensitivity adjustment Sensitivity adjuster Operation mode Light ON/Dark ON(set by switch) Control output PNP open collector Connection type Ø4mm, 3-wire, 2m (emitter of through-beam type: Ø4mm, 2-wire, 2m)(AWG26, core diameter: 0.52mm, number of cores: 20, insulator out diameter: Ø1mm) Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) Environment_Ambient temperature -25 to 60℃, storage: -40 to 70℃ Protection structure IP67(IEC standard), IP67F(JEM standard) Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Hysteresis(distance) Max. 20% at rated sensing distance Material Case: Acrylonitrile butadiene styrene, LED Cap: PA12, Lens cover: Polymethyl Methacrylate Acrylic Accessories_Common Fixing bracket, M3 Bolts: 2, M3 Nuts: 2, Adjuster driver Weight Approx. 100g(approx. 50g)

Read more less

Oil resistant/oil proof Oil resistant type Sensing type Diffuse reflective type Sensing distance 100mm Sensing target Opaque, Translucent material Light source Infrared LED(850nm) Response time Max. 1ms Power voltage 10-30VDC  ±10%(ripple P-P: max. 10%) Current consumption Max. 30mA Sensitivity adjustment Sensitivity adjuster Operation mode Light ON/Dark ON(set by switch) Control output NPN open collector Connection type Ø4mm, 3-wire, 300mm (emitter of through-beam type: Ø4mm, 2-wire, 300mm),M12 connector(AWG26, core diameter: 0.52mm, number of cores: 20, insulator out diameter: Ø1mm) Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) Environment_Ambient temperature -25 to 60℃, storage: -40 to 70℃ Protection structure IP67 (IEC standard), IP67G (JEM standard) Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Hysteresis(distance) Max. 20% at rated sensing distance Material Case: Acrylonitrile butadiene styrene, LED Cap: PA12, Lens cover: Polymethyl Methacrylate Acrylic Accessories_Common Mounting bracket, M3 bolt: 2, adjustment screwdriver Weight Approx. 80g(approx. 30g)

Read more less

Oil resistant/oil proof Oil resistant type Sensing type Diffuse reflective type Sensing distance 100mm Sensing target Opaque, Translucent material Light source Infrared LED(850nm) Response time Max. 1ms Power voltage 10-30VDC  ±10%(ripple P-P: max. 10%) Current consumption Max. 30mA Sensitivity adjustment Sensitivity adjuster Operation mode Light ON/Dark ON(set by switch) Control output PNP open collector Connection type Ø4mm, 3-wire, 300mm (emitter of through-beam type: Ø4mm, 2-wire, 300mm),M12 connector(AWG26, core diameter: 0.52mm, number of cores: 20, insulator out diameter: Ø1mm) Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) Environment_Ambient temperature -25 to 60℃, storage: -40 to 70℃ Protection structure IP67 (IEC standard), IP67G (JEM standard) Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Hysteresis(distance) Max. 20% at rated sensing distance Material Case: Acrylonitrile butadiene styrene, LED Cap: PA12, Lens cover: Polymethyl Methacrylate Acrylic Accessories_Common Mounting bracket, M3 bolt: 2, adjustment screwdriver Weight Approx. 80g(approx. 30g)

Read more less

Oil resistant/oil proof Oil proof type Sensing type Through-beam type Sensing distance 10m Sensing target Opaque material of min. Ø12mm Light source Red LED(660nm) Response time Max. 1ms Power voltage 10-30VDC  ±10%(ripple P-P: max. 10%) Current consumption Emitter/Receiver: Max. 20mA Sensitivity adjustment Sensitivity adjuster Operation mode Light ON/Dark ON(set by switch) Control output NPN open collector Connection type M8 connector Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) Environment_Ambient temperature -25 to 60℃, storage: -40 to 70℃ Protection structure IP67(IEC standard), IP67F(JEM standard) Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Material Case: Acrylonitrile butadiene styrene, LED Cap: PA12, Lens cover: Polymethyl Methacrylate Acrylic Accessories_Common Fixing bracket, M3 Bolts: 4, M3 Nuts: 4, Adjuster driver Weight Approx. 65g(approx. 12g)

Read more less

Oil resistant/oil proof Oil proof type Sensing type Through-beam type Sensing distance 10m Sensing target Opaque material of min. Ø12mm Light source Red LED(660nm) Response time Max. 1ms Power voltage 10-30VDC  ±10%(ripple P-P: max. 10%) Current consumption Emitter/Receiver: Max. 20mA Sensitivity adjustment Sensitivity adjuster Operation mode Light ON/Dark ON(set by switch) Control output PNP open collector Connection type M8 connector Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) Environment_Ambient temperature -25 to 60℃, storage: -40 to 70℃ Protection structure IP67(IEC standard), IP67F(JEM standard) Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Material Case: Acrylonitrile butadiene styrene, LED Cap: PA12, Lens cover: Polymethyl Methacrylate Acrylic Accessories_Common Fixing bracket, M3 Bolts: 4, M3 Nuts: 4, Adjuster driver Weight Approx. 65g(approx. 12g)

Read more less

Oil resistant/oil proof Oil proof type Sensing type Through-beam type Sensing distance 10m Sensing target Opaque material of min. Ø12mm Light source Red LED(660nm) Response time Max. 1ms Power voltage 10-30VDC  ±10%(ripple P-P: max. 10%) Current consumption Emitter/Receiver: Max. 20mA Sensitivity adjustment Sensitivity adjuster Operation mode Light ON/Dark ON(set by switch) Control output PNP open collector Connection type Ø4mm, 3-wire, 2m (emitter of through-beam type: Ø4mm, 2-wire, 2m)(AWG26, core diameter: 0.52mm, number of cores: 20, insulator out diameter: Ø1mm) Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) Environment_Ambient temperature -25 to 60℃, storage: -40 to 70℃ Protection structure IP67(IEC standard), IP67F(JEM standard) Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Material Case: Acrylonitrile butadiene styrene, LED Cap: PA12, Lens cover: Polymethyl Methacrylate Acrylic Accessories_Common Fixing bracket, M3 Bolts: 4, M3 Nuts: 4, Adjuster driver Weight Approx. 145g(approx. 95g)

Read more less

Oil resistant/oil proof Oil proof type Sensing type Through-beam type Sensing distance 10m Sensing target Opaque material of min. Ø12mm Light source Red LED(660nm) Response time Max. 1ms Power voltage 10-30VDC  ±10%(ripple P-P: max. 10%) Current consumption Emitter/Receiver: Max. 20mA Sensitivity adjustment Sensitivity adjuster Operation mode Light ON/Dark ON(set by switch) Control output NPN open collector Connection type Ø4mm, 3-wire, 300mm (emitter of through-beam type: Ø4mm, 2-wire, 300mm),M12 connector(AWG26, core diameter: 0.52mm, number of cores: 20, insulator out diameter: Ø1mm) Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) Environment_Ambient temperature -25 to 60℃, storage: -40 to 70℃ Protection structure IP67(IEC standard), IP67F(JEM standard) Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Material Case: Acrylonitrile butadiene styrene, LED Cap: PA12, Lens cover: Polymethyl Methacrylate Acrylic Accessories_Common Fixing bracket, M3 Bolts: 4, M3 Nuts: 4, Adjuster driver Weight Approx. 105g(approx. 55g)

Read more less

Oil resistant/oil proof Oil proof type Sensing type Through-beam type Sensing distance 10m Sensing target Opaque material of min. Ø12mm Light source Red LED(660nm) Response time Max. 1ms Power voltage 10-30VDC  ±10%(ripple P-P: max. 10%) Current consumption Emitter/Receiver: Max. 20mA Sensitivity adjustment Sensitivity adjuster Operation mode Light ON/Dark ON(set by switch) Control output PNP open collector Connection type Ø4mm, 3-wire, 300mm (emitter of through-beam type: Ø4mm, 2-wire, 300mm),M12 connector(AWG26, core diameter: 0.52mm, number of cores: 20, insulator out diameter: Ø1mm) Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) Environment_Ambient temperature -25 to 60℃, storage: -40 to 70℃ Protection structure IP67(IEC standard), IP67F(JEM standard) Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Material Case: Acrylonitrile butadiene styrene, LED Cap: PA12, Lens cover: Polymethyl Methacrylate Acrylic Accessories_Common Fixing bracket, M3 Bolts: 4, M3 Nuts: 4, Adjuster driver Weight Approx. 105g(approx. 55g)

Read more less

Oil resistant/oil proof Oil proof type Sensing type Through-beam type Sensing distance 15m Sensing target Opaque material of min. Ø12mm Light source Infrared LED(850nm) Response time Max. 1ms Power voltage 10-30VDC  ±10%(ripple P-P: max. 10%) Current consumption Emitter/Receiver: Max. 20mA Sensitivity adjustment Sensitivity adjuster Operation mode Light ON/Dark ON(set by switch) Control output PNP open collector Connection type M8 connector Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) Environment_Ambient temperature -25 to 60℃, storage: -40 to 70℃ Protection structure IP67(IEC standard), IP67F(JEM standard) Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Material Case: Acrylonitrile butadiene styrene, LED Cap: PA12, Lens cover: Polymethyl Methacrylate Acrylic Accessories_Common Fixing bracket, M3 Bolts: 4, M3 Nuts: 4, Adjuster driver Weight Approx. 65g(approx. 12g)

Read more less

Oil resistant/oil proof Oil proof type Sensing type Through-beam type Sensing distance 15m Sensing target Opaque material of min. Ø12mm Light source Infrared LED(850nm) Response time Max. 1ms Power voltage 10-30VDC  ±10%(ripple P-P: max. 10%) Current consumption Emitter/Receiver: Max. 20mA Sensitivity adjustment Sensitivity adjuster Operation mode Light ON/Dark ON(set by switch) Control output NPN open collector Connection type Ø4mm, 3-wire, 2m (emitter of through-beam type: Ø4mm, 2-wire, 2m)(AWG26, core diameter: 0.52mm, number of cores: 20, insulator out diameter: Ø1mm) Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) Environment_Ambient temperature -25 to 60℃, storage: -40 to 70℃ Protection structure IP67(IEC standard), IP67F(JEM standard) Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Material Case: Acrylonitrile butadiene styrene, LED Cap: PA12, Lens cover: Polymethyl Methacrylate Acrylic Accessories_Common Fixing bracket, M3 Bolts: 4, M3 Nuts: 4, Adjuster driver Weight Approx. 145g(approx. 95g)

Read more less

Oil resistant/oil proof Oil resistant type Sensing type Through-beam type Sensing distance 15m Sensing target Opaque material of min. Ø12mm Light source Infrared LED(850nm) Response time Max. 1ms Power voltage 10-30VDC  ±10%(ripple P-P: max. 10%) Current consumption Emitter/Receiver: Max. 20mA Sensitivity adjustment Sensitivity adjuster Operation mode Light ON/Dark ON(set by switch) Control output PNP open collector Connection type Ø4mm, 3-wire, 2m (emitter of through-beam type: Ø4mm, 2-wire, 2m)(AWG26, core diameter: 0.52mm, number of cores: 20, insulator out diameter: Ø1mm) Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) Environment_Ambient temperature -25 to 60℃, storage: -40 to 70℃ Protection structure IP67 (IEC standard), IP67G (JEM standard) Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Material Case: Acrylonitrile butadiene styrene, LED Cap: PA12, Lens cover: Polymethyl Methacrylate Acrylic Accessories_Common Mounting bracket, M3 bolt: 4, adjustment screwdriver Weight Approx. 145g(approx. 95g)

Read more less

Oil resistant/oil proof Oil proof type Sensing type Through-beam type Sensing distance 15m Sensing target Opaque material of min. Ø12mm Light source Infrared LED(850nm) Response time Max. 1ms Power voltage 10-30VDC  ±10%(ripple P-P: max. 10%) Current consumption Emitter/Receiver: Max. 20mA Sensitivity adjustment Sensitivity adjuster Operation mode Light ON/Dark ON(set by switch) Control output PNP open collector Connection type Ø4mm, 3-wire, 2m (emitter of through-beam type: Ø4mm, 2-wire, 2m)(AWG26, core diameter: 0.52mm, number of cores: 20, insulator out diameter: Ø1mm) Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) Environment_Ambient temperature -25 to 60℃, storage: -40 to 70℃ Protection structure IP67(IEC standard), IP67F(JEM standard) Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Material Case: Acrylonitrile butadiene styrene, LED Cap: PA12, Lens cover: Polymethyl Methacrylate Acrylic Accessories_Common Fixing bracket, M3 Bolts: 4, M3 Nuts: 4, Adjuster driver Weight Approx. 145g(approx. 95g)

Read more less

Oil resistant/oil proof Oil resistant type Sensing type Through-beam type Sensing distance 15m Sensing target Opaque material of min. Ø12mm Light source Infrared LED(850nm) Response time Max. 1ms Power voltage 10-30VDC  ±10%(ripple P-P: max. 10%) Current consumption Emitter/Receiver: Max. 20mA Sensitivity adjustment Sensitivity adjuster Operation mode Light ON/Dark ON(set by switch) Control output NPN open collector Connection type Ø4mm, 3-wire, 300mm (emitter of through-beam type: Ø4mm, 2-wire, 300mm),M12 connector(AWG26, core diameter: 0.52mm, number of cores: 20, insulator out diameter: Ø1mm) Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) Environment_Ambient temperature -25 to 60℃, storage: -40 to 70℃ Protection structure IP67 (IEC standard), IP67G (JEM standard) Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Material Case: Acrylonitrile butadiene styrene, LED Cap: PA12, Lens cover: Polymethyl Methacrylate Acrylic Accessories_Common Mounting bracket, M3 bolt: 4, adjustment screwdriver Weight Approx. 105g(approx. 55g)

Read more less
