SMC VS7-6-FHG-D-3-Q — VS7-6 series solenoid valve to the ISO interface, size 1, 5-port three position closed centre with metal seal construction and double solenoid. Specification — VS7-6-FHG-D-3-Q Series VS7-6 (ISO interface solenoid valve) Interface ISO size 1 Function 5/3, closed centre Actuation Double solenoid Seal Metal seal Product weight 730 g Closed centre With both solenoids off the spool centres and all ports are blocked, so air is trapped on both sides of the cylinder and the piston holds where it stands. That is the position to specify when a load must not drift during a pause. Note that a metal seal spool has a small amount of internal leakage by design — for a load that has to be held for a long period, or held safely, a mechanical lock or an exhaust centre plus a locking unit is the right answer rather than relying on the valve. Centre types in this family FHG is closed centre (C.CH.); FJG is exhaust centre (C.SC.), which vents both sides so the cylinder can be moved by hand. Both share the same body and price band, and the behaviour on a power cut is completely different — confirm which the circuit needs before ordering. Why the ISO interface matters The mounting face, port positions and bolt pattern are fixed by the standard, so a size 1 valve from any manufacturer bolts onto the same subplate. The valve can be replaced without touching the piping. Ordering Order by the full code VS7-6-FHG-D-3-Q. Coil voltage, centre type, electrical entry and pilot arrangement are all in the suffix. Subplates and manifold bases are quoted separately. Supply from Korea Genuine SMC, stocked and shipped from Gyeonggi-do, Korea, with export packing and commercial documents prepared as standard.

Read more less

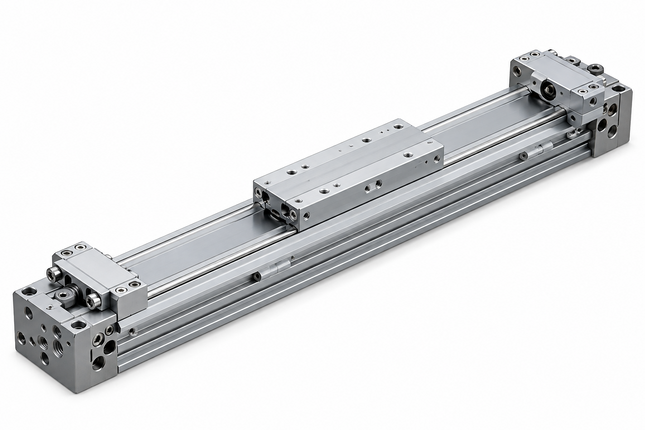

SMC MY1B16-240 — MY1B series mechanically jointed rodless cylinder, ø16 bore with 240 mm stroke, basic type. The carriage is coupled to the piston through a slot in the tube, so the whole unit is only as long as its stroke plus the end caps. Specification — MY1B16-240 Series MY1B (mechanically jointed rodless cylinder) Bore ø16 mm Stroke 240 mm Type Basic — no integral guide Product weight 898 g Why rodless A rod cylinder needs its own stroke length again behind the body for the rod to retract into. At 240 mm that is half a metre of machine space for a quarter-metre of travel. A rodless cylinder keeps the moving element inside the tube, so the installed length is roughly the stroke plus the end caps — which is usually what decides whether a long transfer fits the frame at all. Choosing the guide type The B is the basic body with no integral guide: the carriage takes the load directly, so it suits light work or installations where an external rail already carries the weight. Five guide types are standardised across the MY1 range — slide bearing, cam follower, high precision and others — so the same stroke can be specified against the actual load and accuracy required rather than over-specified as a whole. Typical use Long transfers, gantry axes, door and

Read more less

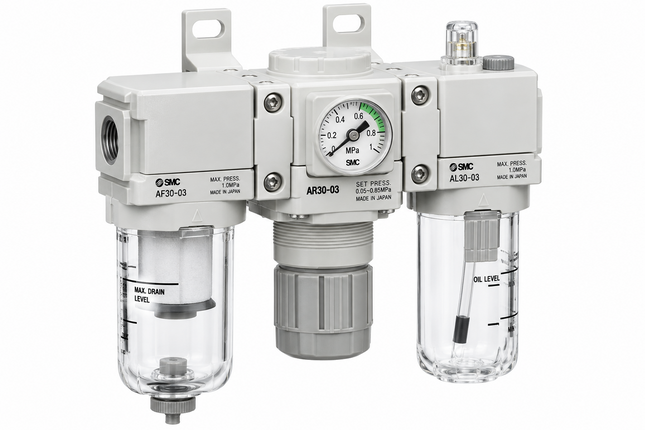

SMC AC50-10DG-V-D — AC-D series air combination unit with 1" ports: air filter, regulator and lubricator assembled as one modular set, with square gauge and drain options. Specification — AC50-10DG-V-D Series AC-D (air combination) Configuration Filter + regulator + lubricator Body size 50 Port size 1" (code 10) Gauge Square embedded pressure gauge Bowl Two-layer transparent case guard, 360° visibility Product weight 4,000 g One unit instead of three Buying filter, regulator and lubricator separately means three bodies, two connecting joints and a bracket to line them up. The combination unit arrives assembled on a common interface, which saves the piping work and removes two potential leak points from the installation. Features of the D generation Square gauge sits flush in the body, with projections minimised for a flat

Read more less

SMC CDJ2B10-XC11-DCT6252T — CJ2 series mini air cylinder, ø10 bore with built-in magnet, built to the XC11 made-to-order specification. Specification — CDJ2B10-XC11-DCT6252T Series CJ2 (mini air cylinder) Bore ø10 mm Mounting B — basic Magnet Built-in (CD prefix) Special specification -XC11 (made to order) Product weight Approx. 55 g Made-to-order specification XC codes are SMC made-to-order specifications, built against a defined requirement rather than picked from the catalogue. This code is registered with SMC and can be reordered, but it is not a stock item — lead time is longer than for a standard CJ2 and the full code including the suffix has to be quoted exactly. A standard CDJ2B10 will not be the same part. About the CJ2 series The CJ2 is SMC's mini cylinder line, used wherever a short stroke and small bore are needed in a confined space — small clamps, ejectors, gates and sensing jigs. Auto switch position is easy to adjust along the tube, and mounting brackets and rod end fittings can be specified in the order code. Ordering Order by the full code CDJ2B10-XC11-DCT6252T, including both suffixes. This item is not held in stock — tell us the quantity and we will confirm lead time with the price. If you are specifying a new machine rather than replacing an existing part, send us the requirement and we will check whether a catalogue CJ2 covers it. Supply from Korea Genuine SMC, sourced through Korean distribution and shipped from Gyeonggi-do with export packing and commercial documents prepared as standard.

Read more less

SMC VNB511A-32F-5DL — VNB series 2-port process valve with 1-1/4" ports, external pilot solenoid type. Built for fluid control rather than air service, with body and seal materials selected to suit the medium. Specification — VNB511A-32F-5DL Series VNB (2-port process valve) Port size 1-1/4" (code 32F) Operation External pilot, solenoid Fluids Air, water, oil, gas, vacuum — by body and seal specification Product weight 5,800 g Why external pilot An internal pilot valve takes its operating pressure from the line it controls, so it cannot work on vacuum, on a low pressure line, or on a fluid that must not reach the pilot mechanism. An external pilot is driven by a separate air supply, which decouples the actuation from the medium entirely — the valve opens the same way whether the line carries water at 10 bar or nothing at all. Body and seal decide the fluid The VNB body is offered in several materials with a choice of seals, and that combination is what makes a given code suitable for water, oil, steam, gas or vacuum. A valve specified for one fluid will not necessarily survive another — seal swelling and body corrosion are the usual failures. Confirm the fluid, its temperature and the line pressure before ordering rather than matching on port size alone. Typical use Cooling water mains, process fluid lines, tank fill and drain, and vacuum service where the pilot cannot be taken from the controlled line. Ordering Order by the full code VNB511A-32F-5DL. Port size, body material, seal, pilot type and coil voltage are all in the code. Tell us the fluid, temperature and pressure and we will confirm the right variant. Air operated versions of the same body are available where no coil is wanted. Supply from Korea Genuine SMC, stocked and shipped from Gyeonggi-do, Korea, with export packing and commercial documents prepared as standard.

Read more less

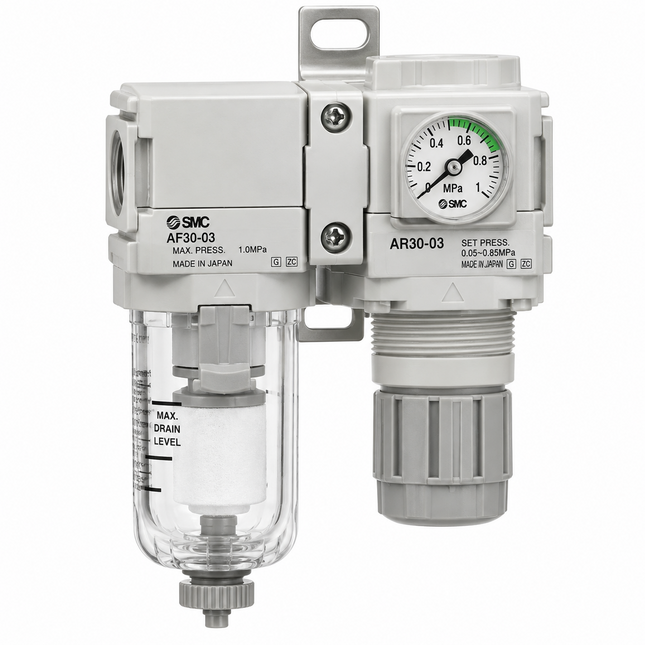

SMC AC40B-04DE1-D — AC-D series air combination unit with 1/2" ports: air filter and regulator assembled as one modular set, with a square embedded gauge. Specification — AC40B-04DE1-D Series AC20B-D to AC40B-D (air combination) Configuration Filter + regulator (no lubricator) Body size 40 Port size 1/2" (code 04) Gauge Square embedded pressure gauge Bowl Two-layer transparent case guard, 360° visibility Product weight 950 g Why no lubricator The B configuration leaves the lubricator out, and for most modern equipment that is correct. Current valves and cylinders are supplied pre-lubricated and run non-lube for their service life; adding oil to the air then does more harm than good, washing out the factory grease and coating everything downstream. A lubricator belongs on older equipment specified for it, or on tools that genuinely consume oil. Features of the D generation Square gauge sits flush in the body, with projections minimised for a flat overall profile Two-layer transparent case guard covering the full circumference — bowl and drain level readable from any side No tools needed for element replacement on the AF-D filter section Spacers Y200-D, Y300-D, Y400-D and bracket spacers Y200T-D, Y300T-D, Y400T-D available for extending the set Ordering Order by the full code AC40B-04DE1-D. Configuration letter, port size, gauge, drain and bracket options are all in the code — AC (F+R+L), AC-B (F+R), AC-C and AC-D give different combinations. The AC20B-D and AC30B-D cover smaller line sizes. Supply from Korea Genuine SMC, stocked and shipped from Gyeonggi-do, Korea, with export packing and commercial documents prepared as standard.

Read more less

SMC AV3000-F03-5DZB-A — AV3000-A series soft start-up valve with 3/8" ports. Admits air gradually when a machine is repressurised, then switches to full flow once the circuit is up to pressure. Specification — AV3000-F03-5DZB-A Series AV2000-A to AV5000-A (soft start-up valve) Body size 3000 Port size 3/8" (F03) Flow capacity C = 9.2 dm³/(s·bar) — up to 2.3× the previous model Power consumption 0.35 W Silencer Built in Product weight 446 g What it prevents When air is restored to a machine that has been shut down, every cylinder repressurises at once. Whatever was left mid-stroke slams to its end position, and anything resting against a stop jumps. A soft start-up valve fills the circuit slowly until the set pressure is reached, then opens fully — so the machine comes back under control rather than all at once. It is the standard companion to a lockout valve on the air inlet. Features of the A generation Flow capacity up to 2.3 times the previous model, so the valve is no longer the restriction once it opens Zero air flow when the main valve switches over — the transition itself no longer wastes air Better adjustment sensitivity during the slow fill stage, so the ramp can be tuned finely Silencer built into the body, saving the space and the fitting a separate one would need Typical use Machine air inlets, downstream of the lockout valve, on any equipment where an uncontrolled repressurisation would move a mechanism. Ordering Order by the full code AV3000-F03-5DZB-A. Port size, coil voltage, electrical entry and bracket options are all in the code. The AV2000, AV4000 and AV5000 bodies cover other line sizes. Supply from Korea Genuine SMC, stocked and shipped from Gyeonggi-do, Korea, with export packing and commercial documents prepared as standard.

Read more less

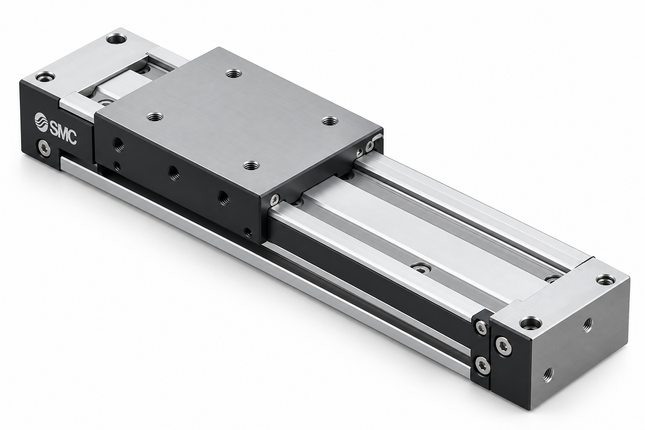

SMC MY1M16-400L — MY1M series mechanically jointed rodless cylinder, ø16 bore with 400 mm stroke, slide bearing guide. The carriage runs on its own guide, so the load does not have to be supported by an external rail. Specification — MY1M16-400L Series MY1M (rodless cylinder, slide bearing guide) Bore ø16 mm Stroke 400 mm Guide Slide bearing, integrated Product weight 1,710 g Why rodless at 400 mm A rod cylinder needs its stroke length again behind the body for the rod to retract into — 800 mm of machine for 400 mm of travel. A rodless cylinder keeps the moving element inside the tube, so the installed length is roughly the stroke plus the end caps. On a long transfer that is usually what decides whether the axis fits the frame. Slide bearing guide The M version carries an integrated slide bearing guide, so the carriage takes the load directly and no external rail is needed. Slide bearings tolerate shock and contamination better than ball types and run quietly; the trade-off is more friction, so for high speed or high cycle rates the cam follower and ball bushing versions in the MY1 range are the better fit. Five guide types are standardised across the series, which lets the same stroke be specified against the actual load rather than over-specified. Typical use Long transfers, gantry axes, door and shutter movement, and traverses where the return length of a rod cylinder will not fit. Ordering Order by the full code MY1M16-400L. Bore, stroke and guide type are in the code. The MY1B is the basic body without an integrated guide, and the MY1B25

Read more less

SMC MGPM25-40Z — MGP-Z series guided compact cylinder, ø25 bore with 40 mm stroke, slide bearing guide. Two guide rods carry the side load instead of the piston rod. This is the current replacement for the discontinued MGPM25-40. Specification — MGPM25-40Z Series MGP-Z (guided compact cylinder) Bore ø25 mm Stroke 40 mm Guide M — slide bearing Side load capacity Over 2× that of a conventional stopper cylinder Mounting 4 patterns, piping from 2 directions Product weight Approx. 1,090 g (MGPM25-40 was 1,160 g) Why a guided cylinder A plain cylinder rod is made to take axial load. Hang a plate or a gripper off the end and every stroke works the rod sideways in its bearing, which shows up as a leaking rod seal within months. The MGP carries that load on two guide rods running in their own bearings, so the piston rod only pushes. Replacing an MGPM25-40 SMC discontinued the original MGP in April 2012 and replaced it with MGP-Z. The Z generation shortened the guide rods by up to 22 mm and thinned the plates, cutting up to 24% from the mass — so the installed depth behind the cylinder is less than the old unit needed. Check the drawing before ordering, since that dimensional change is exactly what can catch out a like-for-like swap. Slide bearing or ball bushing The M suffix is the slide bearing version: higher load capacity, more tolerant of shock and contamination. The L version uses ball bushings for lower friction at higher speeds. Pick by whether the duty is heavy or fast. Ordering Order by the full code MGPM25-40Z. Bore, stroke and guide type are in the code. Strokes from 20 to 200 mm are available in this bore. Supply from Korea Genuine SMC, stocked and shipped from Gyeonggi-do, Korea, with export packing and commercial documents prepared as standard.

Read more less

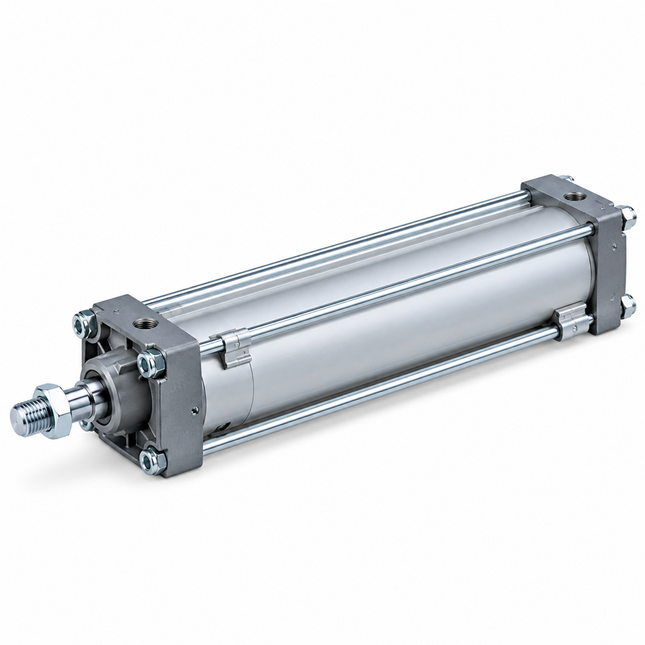

SMC CA2L40-650Z — CA2-Z series air cylinder, ø40 bore with 650 mm stroke, double acting single rod with foot mounting and air cushions at both ends. Specification — CA2L40-650Z Series CA2-Z (standard air cylinder) Bore ø40 mm Stroke 650 mm Action Double acting, single rod Cushion Air cushion, adjustable Mounting L — foot Magnet None (CDA2 prefix for auto switch versions) Product weight 3,000 g A 650 mm stroke changes what matters At this length the cylinder is a structural member, not a component. The rod carries its own weight as a cantilever when extended, buckling has to be checked against the stroke rather than the thrust, and the foot mounting needs to be bolted to something that will not flex. Where the load is offset at all, a guide or a floating joint is not optional. Air cushion at long stroke Over 650 mm the piston reaches full speed long before the end cover. The adjustable air cushion decelerates it over the last part of the travel — without it, a cylinder this size hammers itself and its mounting apart within months. The CA2-Z generation made the cushion easier to set, which matters when the right setting has to be found by trial on the machine. What changed in the Z generation Mass reduced by up to 15% against the previous design, with mounting dimensions unchanged. Auto switches from small body types to strong magnetic field types can all be fitted, and rod end fittings and pivot brackets can be specified in the order code rather than bought separately. Ordering Order by the full code CA2L40-650Z. Bore, stroke, mounting and cushion are all in the code. This code has no built-in magnet — the CDA2 and CDA2W versions carry one. Supply from Korea Genuine SMC, stocked and shipped from Gyeonggi-do, Korea, with export packing and commercial documents prepared as standard.

Read more less

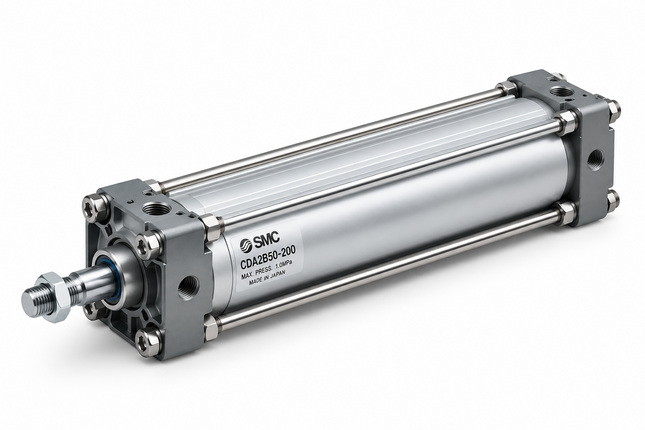

SMC CDA2G63-350Z-Z73 — CA2-Z series air cylinder, ø63 bore with 350 mm stroke, double acting single rod with head side flange mounting, air cushions, built-in magnet and Z73 auto switches specified. Specification — CDA2G63-350Z-Z73 Series CA2-Z (standard air cylinder) Bore ø63 mm Stroke 350 mm Action Double acting, single rod Mounting G — head side flange Cushion Air cushion, adjustable Magnet Built-in (CD prefix) Auto switch Z73 (reed, 2-wire) Product weight 4,000 g Head flange mounting The G mounting puts a flange on the head end — the end the rod comes out of — so the cylinder bolts through a plate with the body behind it and the rod working in front. It is the arrangement to use when the cylinder sits inside a frame and the load is on the other side of a panel, and it carries the thrust straight into the plate rather than through a bracket. Switches supplied with the cylinder The Z73 suffix means the auto switches are specified as part of the cylinder, fitted and set at the factory rather than ordered separately and mounted on site. On a ø63 cylinder with 350 mm of travel that saves the setup time and avoids the usual mistake of ordering a switch that does not suit the groove. What changed in the Z generation Mass reduced by up to 15% against the previous design, with mounting dimensions unchanged, and the air cushion made easier to adjust — which matters at this bore and stroke, where the piston carries real momentum into the end cover. Ordering Order by the full code CDA2G63-350Z-Z73. Bore, stroke, mounting, magnet and switch type are all in the code. The CA2 series was discontinued in September 2013 and replaced by CA2-Z; if your machine carries a plain CA2 code, this generation is where the replacement comes from. Supply from Korea Genuine SMC, stocked and shipped from Gyeonggi-do, Korea, with export packing and commercial documents prepared as standard.

Read more less

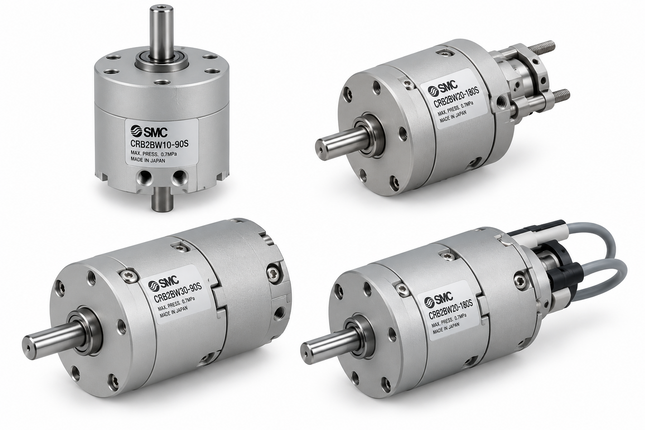

SMC CRB2BWU15-270SZ — CRB2 series vane type rotary actuator, size 15 with 270° rotation and an angle adjuster. Direct mounting, with the auto switch position freely adjustable around the body. Specification — CRB2BWU15-270SZ Series CRB2 (vane type rotary actuator) Size 15 Rotation 270°, adjustable Angle adjuster Fitted (U) Minimum operating pressure 0.15 MPa (sizes 15 to 40) Port position Body side (with switch and angle adjuster fitted) Product weight 60 g Vane type rotation A vane actuator turns a shaft directly with a single moving blade — no rack, no pinion, no linkage. That makes it short, light and free of backlash, and at 60 g this unit weighs less than the bracket a rack-and-pinion equivalent would need. The trade-off is lower torque for a given size, so it suits turning jigs, flippers and small indexing rather than driving a load. The angle adjuster Fixed-angle actuators stop at 90°, 180° or 270° and nowhere else. The U version carries adjustable stops, so the swing can be set to whatever the mechanism actually needs and trimmed on the machine — which saves redesigning a linkage to suit a standard angle. Low operating pressure Working from 0.15 MPa means the actuator still turns on a line that has dropped, and can be run deliberately at low pressure where a gentle motion is wanted. Ordering Order by the full code CRB2BWU15-270SZ. Size, rotation angle, angle adjuster and switch specification are all in the code. The CDRB2 versions (CDRB2□W, CDRB2□WU) carry the magnet for auto switch mounting. Supply from Korea Genuine SMC, stocked and shipped from Gyeonggi-do, Korea, with export packing and commercial documents prepared as standard.

Read more less

SMC MBL80-350Z — MB-Z series air cylinder, ø80 bore with 350 mm stroke, double acting single rod with foot mounting. Tie-rod construction on the standard mounting interface. Specification — MBL80-350Z Series MB-Z (standard air cylinder) Bore ø80 mm Stroke 350 mm Action Double acting, single rod Mounting L — foot Magnet None (MDB prefix for auto switch versions) Product weight 5,850 g Force and rod loading at 350 mm A ø80 bore gives roughly 3,000 N at 0.6 MPa. Extended 350 mm, that force is applied at the end of a rod carrying its own weight as well as the load, so buckling has to be checked against the stroke and not just the thrust. Where the load is offset at all, a guide or a floating joint at the rod end is the difference between a cylinder that lasts and one that wears its rod seal out in a season. Foot mounting Foot brackets bolt the body to a surface parallel to its axis, which suits a cylinder lying along a frame member. The thrust line sits off the bolt plane, so the bolts see a moment as well as shear — size them against the thrust rather than assuming. What changed in the Z generation Reshaped covers cut up to 10% from the mass of the previous design, with no change to the mounting dimensions, so a Z cylinder drops into an installation built for the older series. Ordering Order by the full code MBL80-350Z. Bore, stroke and mounting are in the code, and rod end fittings and pivot brackets can be added as suffixes. The 250 mm stroke (MBL80-250Z) is available in the same configuration. Supply from Korea Genuine SMC, stocked and shipped from Gyeonggi-do, Korea, with export packing and commercial documents prepared as standard.

Read more less

SMC MBF63-420Z — MB-Z series air cylinder, ø63 bore with 420 mm stroke, double acting single rod with rod side flange mounting. Supplied as the MBB63-420Z body with the MB-F06 flange fitted. Specification — MBF63-420Z Series MB-Z (standard air cylinder) Bore ø63 mm Stroke 420 mm Action Double acting, single rod Mounting F — rod side flange (MB-F06) Magnet None (MDB prefix for auto switch versions) Product weight 4,000 g Flange mounting on a long stroke A ø63 bore gives roughly 1,870 N at 0.6 MPa, and at 420 mm of travel the rod is extended a long way when that force is applied. The rod flange takes the reaction straight into the mounting plate in line with the thrust, rather than through brackets that would see a moment. Where the load is offset, add a guide or a floating joint — a rod this long will not tolerate side load. Supplied as body plus flange The MBF code is the MBB body with the matching flange bracket fitted, ordered as one item rather than two. If you already hold the flange, the plain MBB63-420Z body can be quoted on its own. What changed in the Z generation Reshaped covers cut up to 10% from the mass of the previous design, with mounting dimensions unchanged, so a Z cylinder drops into an installation built for the older series. Ordering Order by the full code MBF63-420Z. Bore, stroke and mounting are in the code. This code has no built-in magnet — the MDB versions carry one. The 50 mm and 400 mm strokes are available in the same bore and mounting. Supply from Korea Genuine SMC, stocked and shipped from Gyeonggi-do, Korea, with export packing and commercial documents prepared as standard.

Read more less

SMC MXQ16-125A-X42 — MXQ series air slide table, ø16 bore with 125 mm stroke, built to the X42 made-to-order specification. Guide rail and table are one integrated body running on a recirculating linear guide. Specification — MXQ16-125A-X42 Series MXQ (air slide table) Bore ø16 mm Stroke 125 mm Guide Recirculating linear guide, integrated rail and table Special specification -X42 (made to order) Product weight 1,000 g Made-to-order specification X codes are SMC made-to-order specifications rather than catalogue options — usually a change to seals, lubricant, surface treatment or an end arrangement outside the standard range. The code has to be quoted in full when reordering; a standard MXQ16-125A will not be the same part, even though it looks identical in the catalogue. Why a slide table instead of a cylinder and rail Building the same function from a cylinder, a linear rail and a coupling plate means aligning three components and living with the stack-up of their tolerances. A slide table arrives aligned — the piston drives a table already running on its own guide, machined as one assembly. At 125 mm of stroke that alignment is what keeps the table repeatable across the whole travel. Typical use Pick and place, transfer between stations, inspection positioning, and small assembly presses where the stroke is longer than a compact table covers. Ordering Order by the full code MXQ16-125A-X42, including the X suffix. Made-to-order items take longer than catalogue stock — tell us the quantity and we will confirm lead time with the price. Supply from Korea Genuine SMC, stocked and shipped from Gyeonggi-do, Korea, with export packing and commercial documents prepared as standard.

Read more less

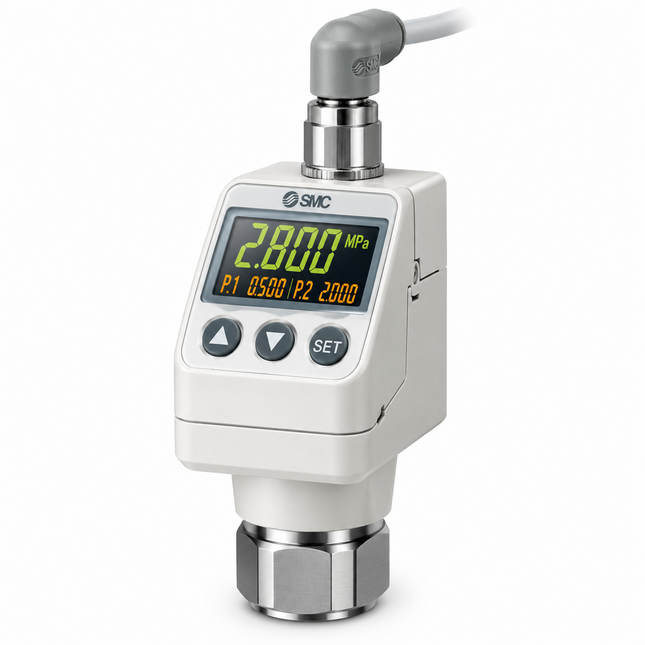

SMC ISE76G-F02-L2-S — ISE70G series high precision digital pressure switch for general fluids, G1/4 port, with a three-screen display and IO-Link. The G suffix marks the wetted parts specification that allows liquids as well as gases. Specification — ISE76G-F02-L2-S Series ISE70G/75G/76G/77G (digital pressure switch, general fluid) Port G 1/4 (F02) Fluids Liquids and gases that do not corrode the wetted parts Display 3-screen, rotatable 336° after installation Communication IO-Link Product weight 323 g General fluid versus air only The plain ISE70/71 is rated for air and non-corrosive, non-flammable gases. The G versions change the wetted parts so the switch can be used on liquids — coolant, water, oil — provided they do not attack the material. That is the distinction to check before substituting one for the other: the electronics are the same, the process connection is not. The rotating display A pressure switch usually ends up wherever the pipework puts it, which is rarely facing the operator. This display rotates 336° after the switch is installed, so the reading can be turned to face wherever it will be read from — without re-plumbing the connection to suit the display. Setting while measuring The three-screen layout keeps the measured value, the set point and the output state visible at once, so a threshold is set while watching the live reading rather than from memory. Over IO-Link the switch also reports its value and status to the controller, and set points can be written from the PLC — useful when a line changeover would otherwise mean walking round adjusting switches by hand. Ordering Order by the full code ISE76G-F02-L2-S. Pressure range, port, output and display options are all in the code. The ISE79S covers ranges up to 50 MPa. Supply from Korea Genuine SMC, stocked and shipped from Gyeonggi-do, Korea, with export packing and commercial documents prepared as standard.

Read more less

SMC CNA2F100-1000-D — CNA2 series air cylinder with an integral lock unit, ø100 bore with 1000 mm stroke, double acting single rod with flange mounting. The lock holds the rod in both directions, so the load stays put on a stop or a power failure. Specification — CNA2F100-1000-D Series CNA2 (air cylinder with lock) Bore ø100 mm Stroke 1000 mm Action Double acting, single rod Lock Dual direction (both ways) Mounting F — flange Auto switch D-P3DW series compatible (strong magnetic field, 2-colour, solid state) Product weight 23,000 g What the lock is for Air is compressible, so a cylinder held by pressure alone will drift and will drop if the supply fails. A lock unit clamps the rod mechanically, which is what makes intermediate stopping, emergency stopping and drop prevention possible. On a vertical axis carrying 1000 mm of travel and a real load, that distinction is a safety matter rather than a convenience — closing a valve does not hold a load, a lock does. Dual direction locking A single direction lock holds against gravity in one sense only. The dual direction version clamps whichever way the load pushes, which is required when the axis can be driven back — a press that could rebound, or a mechanism with stored energy on either side. Size and installation At ø100 and 1000 mm this unit weighs 23 kg before any mounting hardware. The flange carries the thrust into a plate in line with the axis, which is the right choice at this size, but the plate and its fixings have to be sized as structure. Rod buckling over a metre of extension needs checking against the actual load and guidance, not just the thrust figure. Ordering Order by the full code CNA2F100-1000-D. Bore, stroke, mounting and lock direction are all in the code. This code has no built-in magnet — the CDNA2 and CDNA2W versions carry one. Supply from Korea Genuine SMC, stocked and shipped from Gyeonggi-do, Korea, with export packing and commercial documents prepared as standard.

Read more less

SMC CKZT40-90T — CKZT series power clamp cylinder, ø40 bore, base mounted. A toggle mechanism multiplies the cylinder force and locks the arm at the clamped position, and the whole unit is built to survive a welding cell. Specification — CKZT40-90T Series CKZT (power clamp cylinder, base type) Bore ø40 mm Clamp force 1,200 N (100 mm arm at 0.5 MPa) Dimensions 54 mm wide × 265.9 mm high Construction Anti-spatter Switch Proximity switch rated for welding magnetic fields Product weight 1,600 g Toggle mechanism and locking A plain cylinder holds a clamp only as long as air pressure holds. The toggle linkage in a power clamp passes over centre at the clamped position, so the arm is held mechanically — air loss does not release the part, and the holding force does not depend on the line staying up. The same geometry multiplies the cylinder force, which is how a ø40 bore produces 1,200 N at the arm. Built for the welding cell Weld spatter destroys ordinary cylinders: it sticks to the rod, tears the seal, and jams the linkage. The anti-spatter construction shields the moving parts, and the proximity switches are specified to keep working in the magnetic field around a weld gun, where a standard reed switch gives false signals. At 54 mm wide the unit also fits between fixtures on a crowded jig. Typical use Body-in-white welding jigs, fixture clamping on assembly lines, and any station where a part must stay located through a process that would defeat a standard clamp. Ordering Order by the full code CKZT40-90T. Bore, arm arrangement and switch type are all in the code. A manual handle version with a lock specification is available where the clamp has to be released by hand. Supply from Korea Genuine SMC, stocked and shipped from Gyeonggi-do, Korea, with export packing and commercial documents prepared as standard.

Read more less

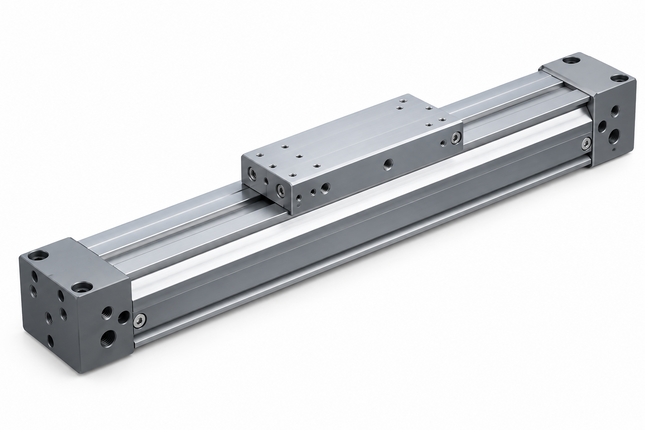

SMC MY1B32-420Z — MY1B-Z series mechanically jointed rodless cylinder, ø32 bore with 420 mm stroke, basic type. The carriage is coupled to the piston through a slot in the tube, so the installed length is roughly the stroke plus the end caps. Specification — MY1B32-420Z Series MY1B-Z (mechanically jointed rodless cylinder) Bore ø32 mm Stroke 420 mm Type Basic — no integral guide Product weight 3,708 g Why rodless A rod cylinder needs its stroke length again behind the body for the rod to retract into — 840 mm of machine for 420 mm of travel. A rodless cylinder keeps the moving element inside the tube, which on a long transfer is usually what decides whether the axis fits the frame at all. What the Z generation changed Mass reduced by 17% against the previous MY1B Auto switches can be fitted from the front even at the groove positions, so a switch can be added without dismantling the axis Dust seal band retention changed to magnetic holding, which keeps the band seated better over long strokes — on a 420 mm unit that is where contamination gets in Mounting dimensions unchanged from the previous series The dust seal band A rodless cylinder has a slot running the length of the tube, closed by a steel band that the carriage lifts as it passes. That band is the weak point of the design: if it lifts or wanders, dust enters and the seal fails. The magnetic retention in this generation addresses exactly that, which matters more the longer the stroke. Ordering Order by the full code MY1B32-420Z. Bore, stroke and guide type are in the code. The MY1M gives a slide bearing guide in the same family, and five guide types are standardised across the MY1 range. Supply from Korea Genuine SMC, stocked and shipped from Gyeonggi-do, Korea, with export packing and commercial documents prepared as standard.

Read more less

SMC MXQ25L-100B — MXQ series air slide table, ø25 bore with 100 mm stroke, long table type. Guide rail and table are one integrated body running on a recirculating linear guide. Specification — MXQ25L-100B Series MXQ (air slide table) Bore ø25 mm Stroke 100 mm Table L — long type Guide Recirculating linear guide, integrated rail and table Product weight 3,000 g Why the long table version The L table extends the bearing span along the rail, which increases the moment load the unit can carry. On a standard table a workpiece mounted out in front of the carriage levers against a short bearing base; lengthen that base and the same overhang becomes acceptable. If the load sits above or ahead of the table rather than directly over it, this is the version to specify. Why a slide table instead of a cylinder and rail Building the same function from a cylinder, a linear rail and a coupling plate means aligning three components and living with the stack-up of their tolerances. A slide table arrives aligned — the piston drives a table already running on its own guide, machined as one assembly. On a pick-and-place head or an inspection station, that is the difference between repeatability you can specify and repeatability you have to find by adjustment. Typical use Pick and place with an overhung gripper, transfer between stations, inspection positioning, and small assembly presses. Ordering Order by the full code MXQ25L-100B. Bore, stroke, table type and end configuration are all in the code — the B suffix specifies the stroke adjuster arrangement. Bores from ø6 to ø25 are available in this series. Supply from Korea Genuine SMC, stocked and shipped from Gyeonggi-do, Korea, with export packing and commercial documents prepared as standard.

Read more less

SMC MBL50-650Z — MB-Z series air cylinder, ø50 bore with 650 mm stroke, double acting single rod with foot mounting. Supplied as the MBB50-650Z body with the MB-L05 foot brackets fitted. Specification — MBL50-650Z Series MB-Z (standard air cylinder) Bore ø50 mm Stroke 650 mm Action Double acting, single rod Mounting L — foot (MB-L05) Magnet None (MDB prefix for auto switch versions) Product weight 4,000 g 650 mm of stroke At this length the rod carries its own weight as a cantilever before any load is added, so buckling has to be checked against the stroke rather than the thrust alone. Keep the load on the cylinder axis; where it is offset, a guide or a floating joint is not optional. A supported far end helps more than anything else on a cylinder this long. Foot mounting Foot brackets bolt the body to a surface parallel to its axis, which suits a cylinder lying along a frame member — the usual arrangement for a long horizontal push. The thrust line sits off the bolt plane, so the bolts see a moment as well as shear; size them against the ø50 thrust of roughly 1,180 N at 0.6 MPa rather than assuming. Supplied as body plus brackets The MBL code is the MBB body with the matching foot brackets fitted, ordered as one item rather than two. If you already hold the brackets, the plain MBB50-650Z body can be quoted on its own. Ordering Order by the full code MBL50-650Z. Bore, stroke and mounting are in the code. This code has no built-in magnet — the MDB versions carry one. Supply from Korea Genuine SMC, stocked and shipped from Gyeonggi-do, Korea, with export packing and commercial documents prepared as standard.

Read more less

SMC MBF100-40Z — MB-Z series air cylinder, ø100 bore with 40 mm stroke, double acting single rod with rod side flange mounting. Supplied as the MBB100-40Z body with the MB-F10 flange fitted. Specification — MBF100-40Z Series MB-Z (standard air cylinder) Bore ø100 mm Stroke 40 mm Action Double acting, single rod Mounting F — rod side flange (MB-F10) Magnet None (MDB prefix for auto switch versions) Product weight 5,000 g Force at ø100 A ø100 bore develops roughly 4,700 N at 0.6 MPa. With only 40 mm of stroke this is a force application rather than a transfer — pressing, clamping, or holding a die — and the short travel keeps the overall length manageable for a cylinder of this size. Rod flange mounting The flange sits at the rod end and bolts through a plate, so the thrust goes straight into the plate rather than through a bracket and into a frame member. At 4,700 N that matters — a foot mounting at this bore puts a substantial moment on the bolts, while a flange takes the load in line. Supplied as body plus flange The MBF code is the MBB body with the matching flange bracket fitted, ordered as one item rather than two. If you already hold the flange, the plain MBB100-40Z body can be quoted on its own. Ordering Order by the full code MBF100-40Z. Bore, stroke and mounting are in the code. This code has no built-in magnet — the MDB versions carry one. Strokes of 30 mm and 75 mm are available in the same bore and mounting. Supply from Korea Genuine SMC, stocked and shipped from Gyeonggi-do, Korea, with export packing and commercial documents prepared as standard.

Read more less

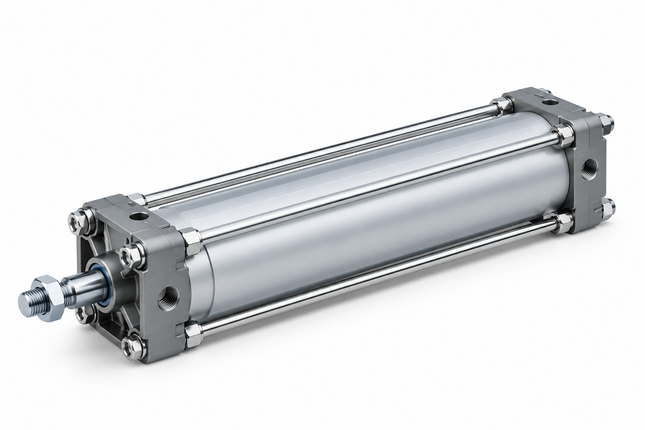

SMC CDA2D63-275Z — CA2-Z series air cylinder, ø63 bore with 275 mm stroke, double acting single rod with double clevis mounting, air cushions and a built-in magnet. Specification — CDA2D63-275Z Series CA2-Z (standard air cylinder) Bore ø63 mm Stroke 275 mm Action Double acting, single rod Mounting D — double clevis Cushion Air cushion, adjustable Magnet Built-in (CD prefix) Product weight 4,000 g Double clevis mounting A clevis lets the cylinder pivot as it works, which is what a swinging or tilting mechanism needs — a gate, a tipping chute, a hinged cover. The body swings on a pin at the rear while the rod end drives an arm, and the angle between them changes through the stroke. Rigid mountings cannot do this: bolt a cylinder solid to a frame and drive a pivoting arm with it, and the rod takes the side load every cycle. What this means for the rod end A clevis-mounted cylinder needs a matching pivot at the rod end — a rod clevis or a knuckle joint — so both ends are free to turn in the same plane. Ordering the body without that fitting is the usual oversight. What changed in the Z generation Mass reduced by up to 15% against the previous design, mounting dimensions unchanged, and the air cushion made easier to adjust — worth having at ø63 with 275 mm of travel, where the piston arrives at the end cover with real momentum. Ordering Order by the full code CDA2D63-275Z. Bore, stroke, mounting and magnet are all in the code. Rod end clevises and knuckle joints can be specified as suffixes rather than ordered separately. Supply from Korea Genuine SMC, stocked and shipped from Gyeonggi-do, Korea, with export packing and commercial documents prepared as standard.

Read more less

SMC MXS8-30 — MXS series air slide table, ø8 bore with 30 mm stroke. Work table and cylinder are integrated into one compact body running on cross roller guides, for precision assembly work. Specification — MXS8-30 Series MXS (air slide table) Bore ø8 mm Stroke 30 mm Guide Cross roller Piston Dual rod — twice the output of a conventional cylinder of the same bore Product weight 190 g Cross roller guide Cross roller guides use cylindrical rollers set alternately at 90°, giving line contact instead of the point contact of a ball. That carries load in every direction with almost no play, and the motion is smooth rather than notchy at low speed. On precision assembly — placing a component into a socket, aligning an optical part — that lack of rocking is the whole point of the unit. Dual rod construction Two pistons work in parallel rather than one, so the ø8 body produces about twice the thrust a single rod cylinder of the same bore would give. That keeps the table small while still providing usable force for pressing and inserting. Typical use Precision assembly stations, small component insertion, optical and electronic part placement, and inspection positioning where the table has to move to the same place every cycle. Ordering Order by the full code MXS8-30. Bore, stroke and end configuration are all in the code. Bores from ø6 to ø25 are available in the series, and the MXQ range covers recirculating guide types for longer strokes and heavier loads. Supply from Korea Genuine SMC, stocked and shipped from Gyeonggi-do, Korea, with export packing and commercial documents prepared as standard.

Read more less

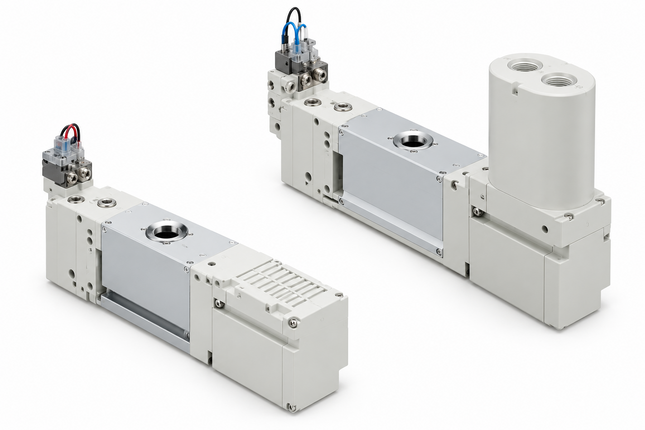

SMC ZL6H06-K15LZ-EBG — ZL6 series multistage ejector with integrated valve and an energy saving vacuum pressure switch. Multiple nozzle stages give high suction flow from one compressed air supply. Specification — ZL6H06-K15LZ-EBG Series ZL6 (multistage ejector) Configuration Ejector + valve + energy saving pressure switch Max. suction flow 600 L/min (ANR) class Air consumption Up to 91% reduction with energy saving function Product weight 650 g Multistage versus single stage A single stage ejector draws air through one nozzle. A multistage unit puts several in series, each handling a different part of the pressure range, so the same supply produces far more suction flow. That is what makes it viable to evacuate a large volume — a bag, a chamber, or a bank of pads — rather than just holding a single cup. Energy saving function An ejector consumes compressed air the whole time it runs, which on a continuously operating line is a significant load on the compressor. The built-in pressure switch cuts the supply once the set vacuum is reached and restores it only when the level drops, reducing consumption by up to 91%. On a sealed workpiece the ejector may run only a few seconds per cycle. Suction flow options The series offers 100, 300 and 600 L/min (ANR) classes. Sizing is by the volume to be evacuated and the time allowed, not by pad size alone — a large pad on a porous surface needs continuous flow, while a small sealed part needs only the initial evacuation. Ordering Order by the full code ZL6H06-K15LZ-EBG. Nozzle size, valve type, switch specification and connector are all in the code. IO-Link compatible switches and M12 connectors (IP65) are available in this series, allowing the ejector to be controlled and monitored over a single communication line. Supply from Korea Genuine SMC, stocked and shipped from Gyeonggi-do, Korea, with export packing and commercial documents prepared as standard.

Read more less

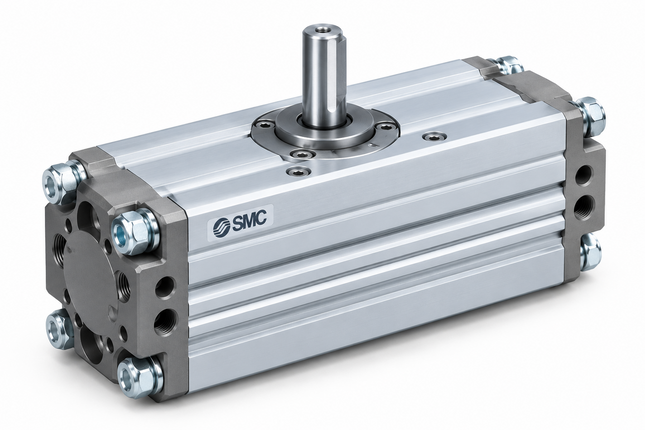

SMC CRA1FS100-190CZ — CRA1 series rack and pinion rotary actuator, size 100 with 190° rotation, flange mounting and cushions fitted. The largest body in the series, for turning loads that a vane actuator cannot handle. Specification — CRA1FS100-190CZ Series CRA1 (rack and pinion rotary actuator) Size 100 Rotation 190° Mounting F — flange Cushion Fitted, adjustable needle Magnet None (CDRA1 prefix for auto switch versions) Product weight 10,000 g Rack and pinion versus vane A vane actuator turns a shaft with a single blade — compact and backlash-free, but limited in torque. A rack and pinion converts the thrust of a piston through a gear, so the available torque scales with bore and the shaft can carry a real load. At size 100 this is a unit for turning fixtures, flipping heavy parts and driving indexing tables, not for small jigs. Cushioning matters at this size Ten kilograms of actuator turning a load through 190° stores significant energy. The adjustable cushion needles decelerate the rack before it reaches the stop, which protects both the actuator and whatever it is driving. Setting them is part of commissioning, not an option — running an uncushioned unit of this size into its stops will break something. What the Z generation changed Mass reduced by up to 14%, cushion needle adjustment made easier, and small auto switches (D-M9 type) can now be mounted on two faces and fitted from the front rather than from the side. Ordering Order by the full code CRA1FS100-190CZ. Size, rotation angle, mounting and cushion are all in the code. This code has no built-in magnet — the CDRA1, CDRA1□□U-Z and CDVRA1 versions carry one. Sizes 30, 50, 63 and 80 cover lighter duties. Supply from Korea Genuine SMC, stocked and shipped from Gyeonggi-do, Korea, with export packing and commercial documents prepared as standard.

Read more less

SMC PF3W720S-F04-B-MR — PF3W series digital flow switch for water, 1/2" port, with an integrated display. Measures flow and temperature in one body and shows both on a two-screen, three-colour display. Specification — PF3W720S-F04-B-MR Series PF3W (digital flow switch for water) Port size 1/2" (F04) Display 3-colour, 2-screen Temperature sensor Integrated Fluid temperature 0 to 90 °C Enclosure IP65 Grease Grease-free specification Product weight 477 g Flow and temperature in one body Cooling circuits usually need both readings — flow to confirm the pump is delivering, temperature to confirm the heat is being carried away. Fitting two instruments means two tappings, two cable runs and two inputs. This unit measures both at one point, which also means the two readings refer to the same place in the line rather than to points metres apart. The three-colour display The display changes colour with the output state, so an operator walking past sees whether the circuit is inside its window without reading the number. On a machine with several cooling

Read more less

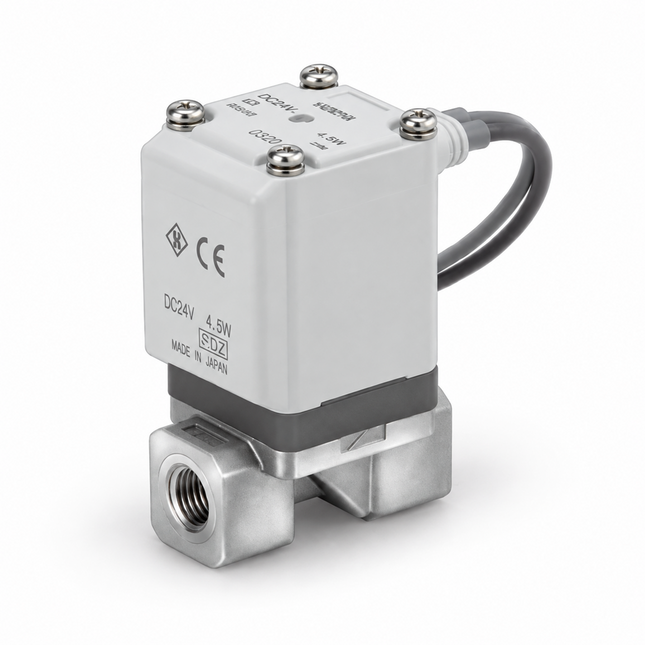

SMC VX2A4AG — genuine SMC valve from the VX21 series.Specification — VX2A4AG Weight 250 g Supply from KoreaStocked and shipped from Gyeonggi-do, Korea. Standard variants leave within a few working days; made-to-order suffixes are confirmed before processing.

Read more less

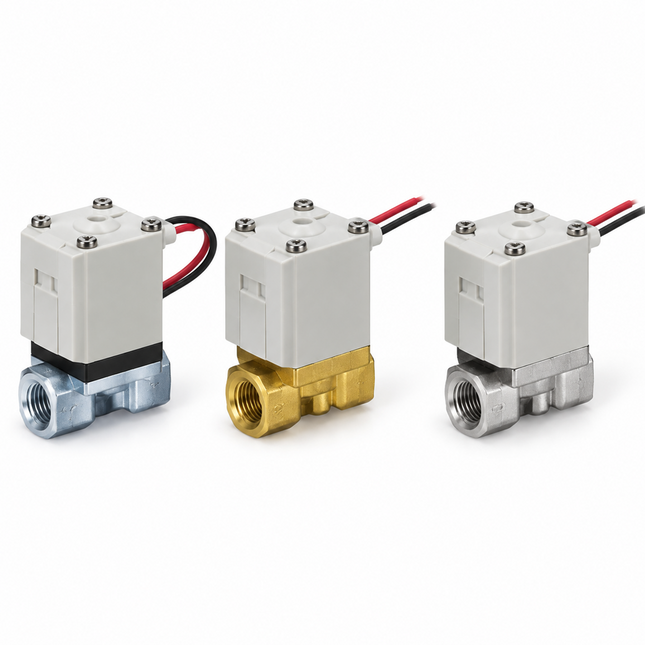

SMC VX214BZ2AAXB — genuine SMC valve from the VX21 series.Specification — VX214BZ2AAXB Weight 300 g Supply from KoreaShips from Korea with export packing and commercial documents prepared as standard. Transit time is quoted with the order.Related codesOther variants we carry in this series: VX210CF, VX2A4AG. Send the code and quantity and we will confirm price and lead time.

Read more less

SMC MY1B25G-200LZ — genuine SMC pneumatic cylinder from the MY1B series.Specification — MY1B25G-200LZ Bore 25mm Port thread Rc Stroke 200mm Auto switch Without auto switch Action Double acting Fluid Air Min. operating pressure 0.1 MPa Max. operating pressure 0.8 MPa Proof pressure 1.2 MPa Lubrication Non-lube Weight 1,000 g This code is built from bore 25mm, port thread Rc, stroke 200mm, auto switch Without auto switch. SMC suffixes carry size, thread, cushion and switch options, so a single character changes the part — order by the full code MY1B25G-200LZ.Supply from KoreaStocked and shipped from Gyeonggi-do, Korea. Standard variants leave within a few working days; made-to-order suffixes are confirmed before processing.Related codesOther variants we carry in this series: MY1B25G-350HZ, MY1B25G-350LZ, MY1B25G-350Z, MY1B25G-400HZ-A93L, MY1B25G-400LZ, MY1B25G-400Z. Send the code and quantity and we will confirm price and lead time.

Read more less

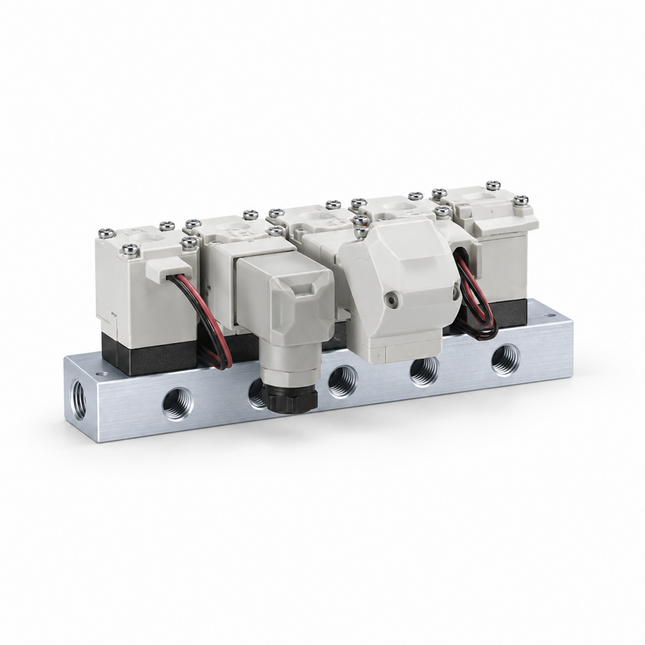

SMC VVX214B03 — genuine SMC valve from the VX21 series.Specification — VVX214B03 Weight 270 g Supply from KoreaShips from Korea with export packing and commercial documents prepared as standard. Transit time is quoted with the order.Related codesOther variants we carry in this series: VVX214B02, VVX214B04. Send the code and quantity and we will confirm price and lead time.

Read more less

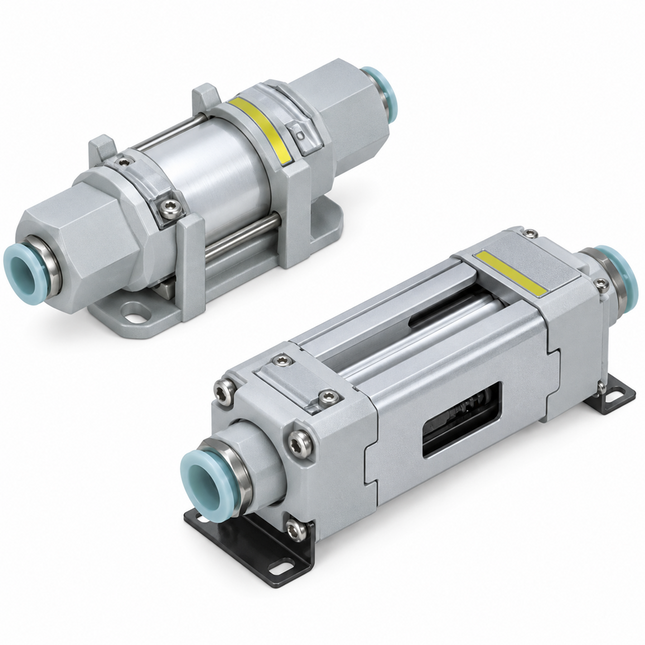

SMC SFD100-02 — genuine SMC air line filter from the SFD series.Specification — SFD100-02 Max. pressure 1.0 MPa Min. operating pressure -0.1 MPa Proof pressure 1.5 MPa Weight 35 g This code is built from max. pressure 1.0 MPa, min. operating pressure -0.1 MPa, proof pressure 1.5 MPa. SMC suffixes carry size, thread, cushion and switch options, so a single character changes the part — order by the full code SFD100-02.Supply from KoreaStocked and shipped from Gyeonggi-do, Korea. Standard variants leave within a few working days; made-to-order suffixes are confirmed before processing.

Read more less

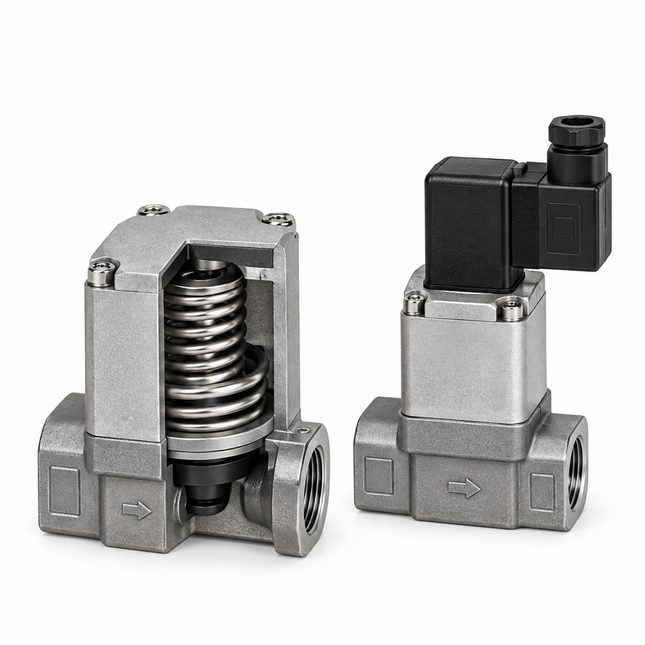

SMC VNB311AV-20A-5DZ-B — genuine SMC valve from the VNB series.Specification — VNB311AV-20A-5DZ-B Port size 3/4 Min. operating pressure -0.101 MPa Weight 1,000 g This code is built from port size 3/4, min. operating pressure -0.101 MPa. SMC suffixes carry size, thread, cushion and switch options, so a single character changes the part — order by the full code VNB311AV-20A-5DZ-B.Supply from KoreaKorean SMC distribution holds deep stock on this series, so common codes move quickly. Rarer suffixes are confirmed in writing before the order proceeds.

Read more less

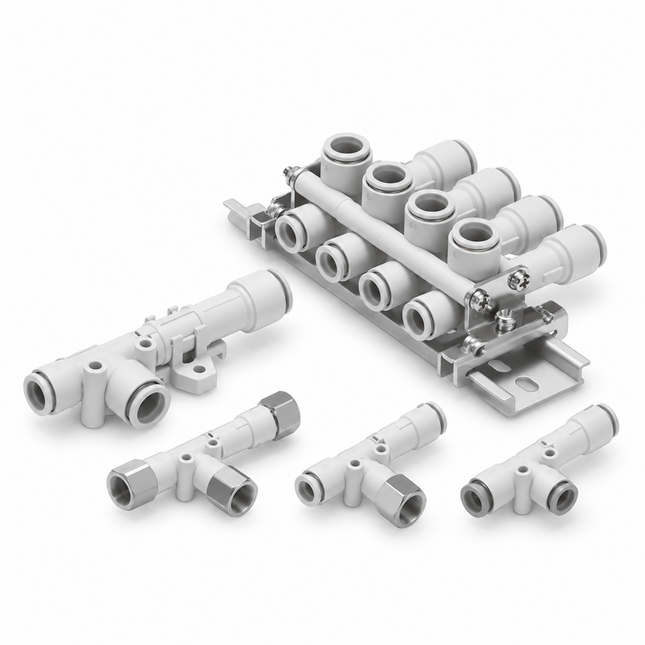

SMC ZH15DLA-02-03-03N — genuine SMC vacuum ejector from the ZH series.Specification — ZH15DLA-02-03-03N Fluid Air Weight 73 g This code is built from fluid Air. SMC suffixes carry size, thread, cushion and switch options, so a single character changes the part — order by the full code ZH15DLA-02-03-03N.Supply from KoreaKorean SMC distribution holds deep stock on this series, so common codes move quickly. Rarer suffixes are confirmed in writing before the order proceeds.

Read more less

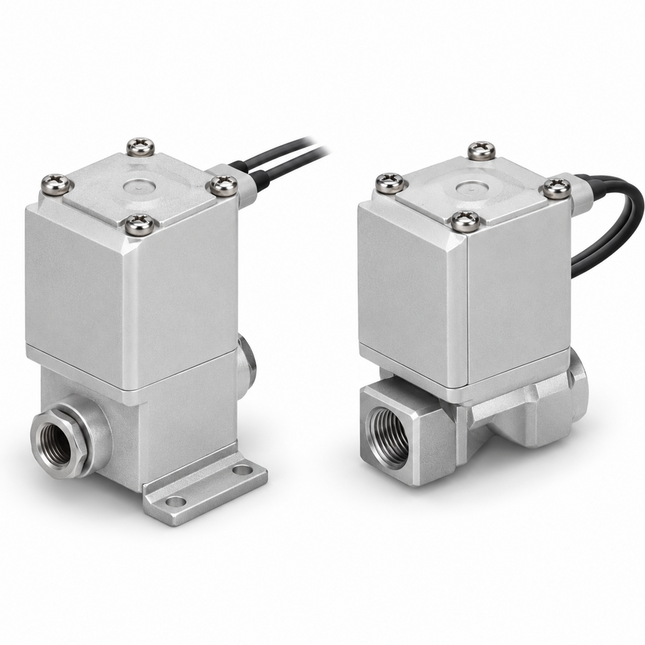

SMC VX210CF — genuine SMC valve from the VX21 series.Specification — VX210CF Fluid Air Weight 220 g This code is built from fluid Air. SMC suffixes carry size, thread, cushion and switch options, so a single character changes the part — order by the full code VX210CF.Supply from KoreaKorean SMC distribution holds deep stock on this series, so common codes move quickly. Rarer suffixes are confirmed in writing before the order proceeds.Related codesOther variants we carry in this series: VX214BZ2AAXB, VX2A4AG. Send the code and quantity and we will confirm price and lead time.

Read more less

SMC MXQ20A-125ZA — genuine SMC pneumatic component from the MXQA series.Specification — MXQ20A-125ZA Auto switch Without auto switch Magnet Built-in magnet Mounting Basic Port thread M Port size M5X0.8 Fluid Air Action Double acting Min. operating pressure 0.2 MPa Max. operating pressure 0.7 MPa Proof pressure 1.05 MPa Fluid temp. min -10 °C Fluid temp. max 60 °C Ambient temp. min -10 °C Ambient temp. max 60 °C Piston speed min 50 mm/s Piston speed max 300 mm/s Weight 2,000 g This code is built from auto switch Without auto switch, magnet Built-in magnet, mounting Basic, port thread M. SMC suffixes carry size, thread, cushion and switch options, so a single character changes the part — order by the full code MXQ20A-125ZA.Supply from KoreaKorean SMC distribution holds deep stock on this series, so common codes move quickly. Rarer suffixes are confirmed in writing before the order proceeds.Related codesOther variants we carry in this series: MXQ20A-20ZB, MXQ20A-50ZB-M9BL, MXQ20A-50Z-M9B, MXQ20A-50Z-M9BL, MXQ20A-50Z-M9BW, MXQ20A-75ZB. Send the code and quantity and we will confirm price and lead time.

Read more less

SMC VVX214B04 — genuine SMC valve from the VX21 series.Specification — VVX214B04 Weight 340 g Supply from KoreaStocked and shipped from Gyeonggi-do, Korea. Standard variants leave within a few working days; made-to-order suffixes are confirmed before processing.Related codesOther variants we carry in this series: VVX214B02, VVX214B03. Send the code and quantity and we will confirm price and lead time.

Read more less

SMC MY1B25G-150LZ — genuine SMC pneumatic cylinder from the MY1B series.Specification — MY1B25G-150LZ Bore 25mm Port thread Rc Stroke 150 Auto switch Without auto switch Action Double acting Fluid Air Min. operating pressure 0.1 MPa Max. operating pressure 0.8 MPa Proof pressure 1.2 MPa Lubrication Non-lube Weight 1,670 g This code is built from bore 25mm, port thread Rc, stroke 150, auto switch Without auto switch. SMC suffixes carry size, thread, cushion and switch options, so a single character changes the part — order by the full code MY1B25G-150LZ.Supply from KoreaShips from Korea with export packing and commercial documents prepared as standard. Transit time is quoted with the order.Related codesOther variants we carry in this series: MY1B25G-350HZ, MY1B25G-350LZ, MY1B25G-350Z, MY1B25G-400HZ-A93L, MY1B25G-400LZ, MY1B25G-400Z. Send the code and quantity and we will confirm price and lead time.

Read more less

SMC MXW16-200B — genuine SMC pneumatic component from the MXW series.Specification — MXW16-200B Bore 16mm Stroke 200mm Auto switch Without auto switch Magnet Built-in magnet Mounting Basic Port size M5X0.8 Fluid Air Action Double acting Min. operating pressure 0.15 MPa Max. operating pressure 0.7 MPa Proof pressure 1.05 MPa Lubrication Non-lube Weight 2,760 g This code is built from bore 16mm, stroke 200mm, auto switch Without auto switch, magnet Built-in magnet. SMC suffixes carry size, thread, cushion and switch options, so a single character changes the part — order by the full code MXW16-200B.Supply from KoreaKorean SMC distribution holds deep stock on this series, so common codes move quickly. Rarer suffixes are confirmed in writing before the order proceeds.

Read more less

SMC MY1B25G-250L — genuine SMC pneumatic cylinder from the MY1B series.Specification — MY1B25G-250L Bore 25mm Stroke 250 Auto switch Without auto switch Action Double acting Fluid Air Min. operating pressure 0.1 MPa Max. operating pressure 0.8 MPa Proof pressure 1.2 MPa Lubrication Non-lube Weight 2,000 g This code is built from bore 25mm, stroke 250, auto switch Without auto switch, action Double acting. SMC suffixes carry size, thread, cushion and switch options, so a single character changes the part — order by the full code MY1B25G-250L.Supply from KoreaKorean SMC distribution holds deep stock on this series, so common codes move quickly. Rarer suffixes are confirmed in writing before the order proceeds.Related codesOther variants we carry in this series: MY1B25G-350HZ, MY1B25G-350LZ, MY1B25G-350Z, MY1B25G-400HZ-A93L, MY1B25G-400LZ, MY1B25G-400Z. Send the code and quantity and we will confirm price and lead time.

Read more less

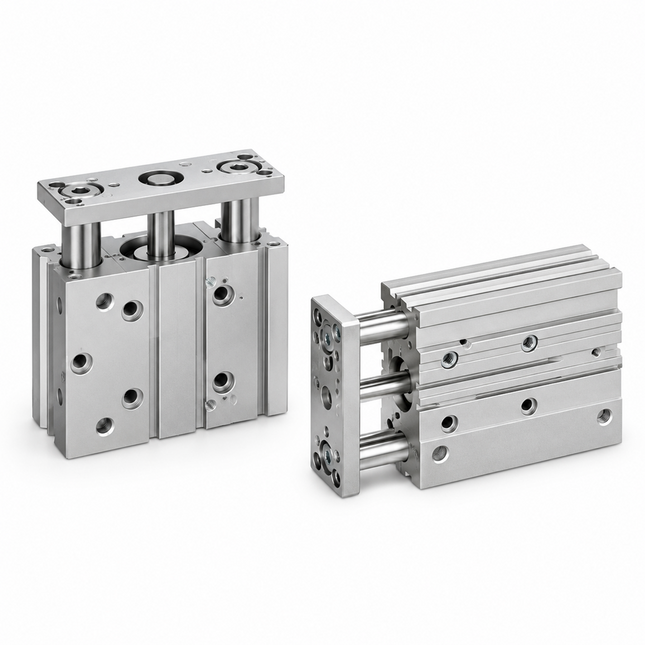

SMC MGPM40-350AZ — genuine SMC pneumatic cylinder from the MGP-Z series.Specification — MGPM40-350AZ Bore 40mm Port thread M5X0.8, Rc Stroke 350mm Fluid Air Action Double acting Min. operating pressure 0.12 MPa Max. operating pressure 1.0 MPa Proof pressure 1.5 MPa Fluid temp. min -10 ℃ Fluid temp. max 60 ℃ Ambient temp. min -10 ℃ Ambient temp. max 60 ℃ Lubrication Non-lube Piston speed min 50 mm/s Piston speed max 500 mm/s Rod diameter 14 mm Weight 7,320 g This code is built from bore 40mm, port thread M5X0.8, Rc, stroke 350mm, fluid Air. SMC suffixes carry size, thread, cushion and switch options, so a single character changes the part — order by the full code MGPM40-350AZ.Supply from KoreaStocked and shipped from Gyeonggi-do, Korea. Standard variants leave within a few working days; made-to-order suffixes are confirmed before processing.Related codesOther variants we carry in this series: MGPM40-100Z, MGPM40-10Z, MGPM40-125Z, MGPM40-150Z, MGPM40-200Z, MGPM40-20Z. Send the code and quantity and we will confirm price and lead time.

Read more less

SMC MXS8-30 — genuine SMC pneumatic component from the MXS series.Specification — MXS8-30 Bore 8mm Stroke 30mm Auto switch Without auto switch Magnet Built-in magnet Mounting Basic Port size M5X0.8 Fluid Air Action Double acting Min. operating pressure 0.15 MPa Max. operating pressure 0.7 MPa Proof pressure 1.05 MPa Fluid temp. min -10 °C Fluid temp. max 60 °C Ambient temp. min -10 °C Ambient temp. max 60 °C Piston speed min 50 mm/s Weight 190 g This code is built from bore 8mm, stroke 30mm, auto switch Without auto switch, magnet Built-in magnet. SMC suffixes carry size, thread, cushion and switch options, so a single character changes the part — order by the full code MXS8-30.Supply from KoreaStocked and shipped from Gyeonggi-do, Korea. Standard variants leave within a few working days; made-to-order suffixes are confirmed before processing.Related codesOther variants we carry in this series: MXS8-10-A93V, MXS8-10A-M9BW, MXS8-10A-M9NZ, MXS8-10AS-M9BW, MXS8-10AS-M9NV, MXS8-10AT-M9B. Send the code and quantity and we will confirm price and lead time.

Read more less

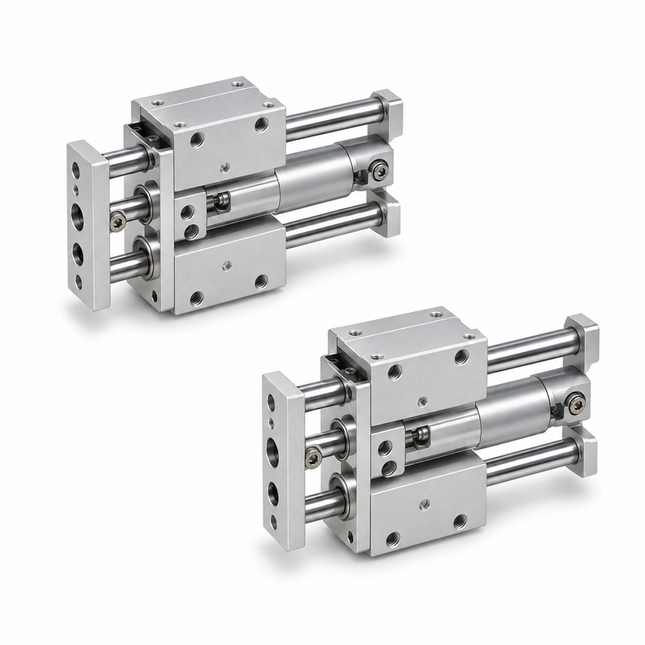

SMC MGCMB25-200-R — genuine SMC pneumatic cylinder from the MGC series.Specification — MGCMB25-200-R Bore 25mm Port thread M5X0.8, Rc Stroke 200mm Auto switch Without auto switch Fluid Air Action Double acting Cushion Air cushion Min. operating pressure 0.15 MPa Max. operating pressure 1.0 MPa Proof pressure 1.5 MPa Fluid temp. min -10 ℃ Fluid temp. max 60 ℃ Ambient temp. min -10 ℃ Ambient temp. max 60 ℃ Lubrication Non-lube Piston speed min 50 mm/s Weight 2,458 g This code is built from bore 25mm, port thread M5X0.8, Rc, stroke 200mm, auto switch Without auto switch. SMC suffixes carry size, thread, cushion and switch options, so a single character changes the part — order by the full code MGCMB25-200-R.Supply from KoreaShips from Korea with export packing and commercial documents prepared as standard. Transit time is quoted with the order.Related codesOther variants we carry in this series: MGCMB25-250-R, MGCMB25-100-R. Send the code and quantity and we will confirm price and lead time.

Read more less

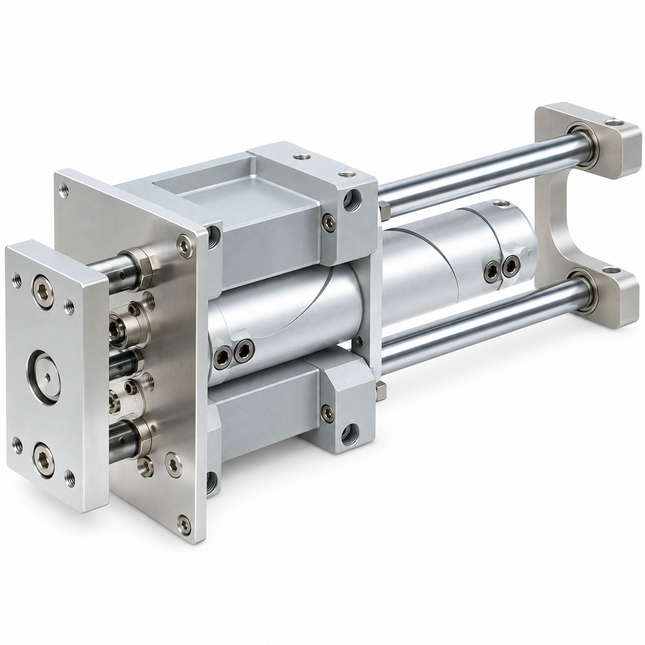

SMC MGGLB50-600 — genuine SMC pneumatic cylinder from the MGG series.Specification — MGGLB50-600 Bore 50mm Port thread Rc Stroke 600mm Auto switch Without auto switch Fluid Air Action Double acting Cushion Rubber bumper Min. operating pressure 0.15 MPa Max. operating pressure 1.0 MPa Proof pressure 1.5 MPa Fluid temp. min -10 ℃ Fluid temp. max 60 ℃ Ambient temp. min -10 ℃ Ambient temp. max 60 ℃ Lubrication Non-lube Piston speed min 50 mm/s Weight 19,071 g This code is built from bore 50mm, port thread Rc, stroke 600mm, auto switch Without auto switch. SMC suffixes carry size, thread, cushion and switch options, so a single character changes the part — order by the full code MGGLB50-600.Supply from KoreaKorean SMC distribution holds deep stock on this series, so common codes move quickly. Rarer suffixes are confirmed in writing before the order proceeds.Related codesOther variants we carry in this series: MGGLB50-200, MGGLB50-200-A93L, MGGLB50-100. Send the code and quantity and we will confirm price and lead time.

Read more less

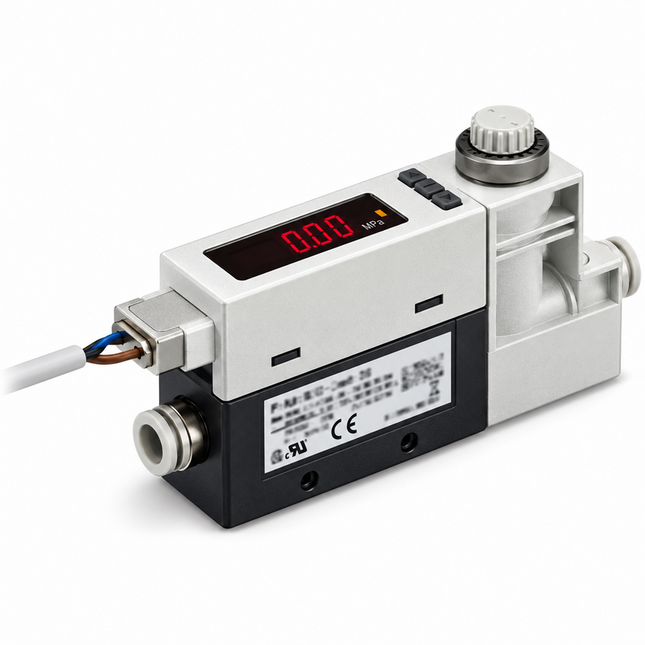

SMC PF2M711-F2-D — genuine SMC switch from the PF2M7 Series 2 series.Specification — PF2M711-F2-D Weight 152 g Supply from KoreaShips from Korea with export packing and commercial documents prepared as standard. Transit time is quoted with the order.

Read more less

SMC MGGLB50-100 — genuine SMC pneumatic cylinder from the MGG series.Specification — MGGLB50-100 Bore 50mm Port thread Rc Stroke 100mm Auto switch Without auto switch Fluid Air Action Double acting Cushion Rubber bumper Min. operating pressure 0.15 MPa Max. operating pressure 1.0 MPa Proof pressure 1.5 MPa Fluid temp. min -10 ℃ Fluid temp. max 60 ℃ Ambient temp. min -10 ℃ Ambient temp. max 60 ℃ Lubrication Non-lube Piston speed min 50 mm/s Weight 12,911 g This code is built from bore 50mm, port thread Rc, stroke 100mm, auto switch Without auto switch. SMC suffixes carry size, thread, cushion and switch options, so a single character changes the part — order by the full code MGGLB50-100.Supply from KoreaStocked and shipped from Gyeonggi-do, Korea. Standard variants leave within a few working days; made-to-order suffixes are confirmed before processing.Related codesOther variants we carry in this series: MGGLB50-200, MGGLB50-200-A93L, MGGLB50-600. Send the code and quantity and we will confirm price and lead time.

Read more less

SMC MXQ25-150B — genuine SMC pneumatic component from the MXQ series.Specification — MXQ25-150B Bore 25mm Stroke 150mm Auto switch Without auto switch Magnet Built-in magnet Mounting Basic Port size 1/8 Fluid Air Action Double acting Min. operating pressure 0.15 MPa Max. operating pressure 0.7 MPa Proof pressure 1.05 MPa Lubrication Non-lube Weight 5,000 g This code is built from bore 25mm, stroke 150mm, auto switch Without auto switch, magnet Built-in magnet. SMC suffixes carry size, thread, cushion and switch options, so a single character changes the part — order by the full code MXQ25-150B.Supply from KoreaShips from Korea with export packing and commercial documents prepared as standard. Transit time is quoted with the order.Related codesOther variants we carry in this series: MXQ25-150ZA, MXQ25-150ZH. Send the code and quantity and we will confirm price and lead time.

Read more less

SMC MGCMB25-100-R — genuine SMC pneumatic cylinder from the MGC series.Specification — MGCMB25-100-R Bore 25mm Port thread M5X0.8, Rc Stroke 100mm Auto switch Without auto switch Fluid Air Action Double acting Cushion Air cushion Min. operating pressure 0.15 MPa Max. operating pressure 1.0 MPa Proof pressure 1.5 MPa Ambient temp. min -10 ℃ Ambient temp. max 60 ℃ Lubrication Non-lube Piston speed min 50 mm/s Piston speed max 750 mm/s Rod diameter 10 mm Weight 2,118 g This code is built from bore 25mm, port thread M5X0.8, Rc, stroke 100mm, auto switch Without auto switch. SMC suffixes carry size, thread, cushion and switch options, so a single character changes the part — order by the full code MGCMB25-100-R.Supply from KoreaKorean SMC distribution holds deep stock on this series, so common codes move quickly. Rarer suffixes are confirmed in writing before the order proceeds.Related codesOther variants we carry in this series: MGCMB25-250-R, MGCMB25-200-R. Send the code and quantity and we will confirm price and lead time.

Read more less
